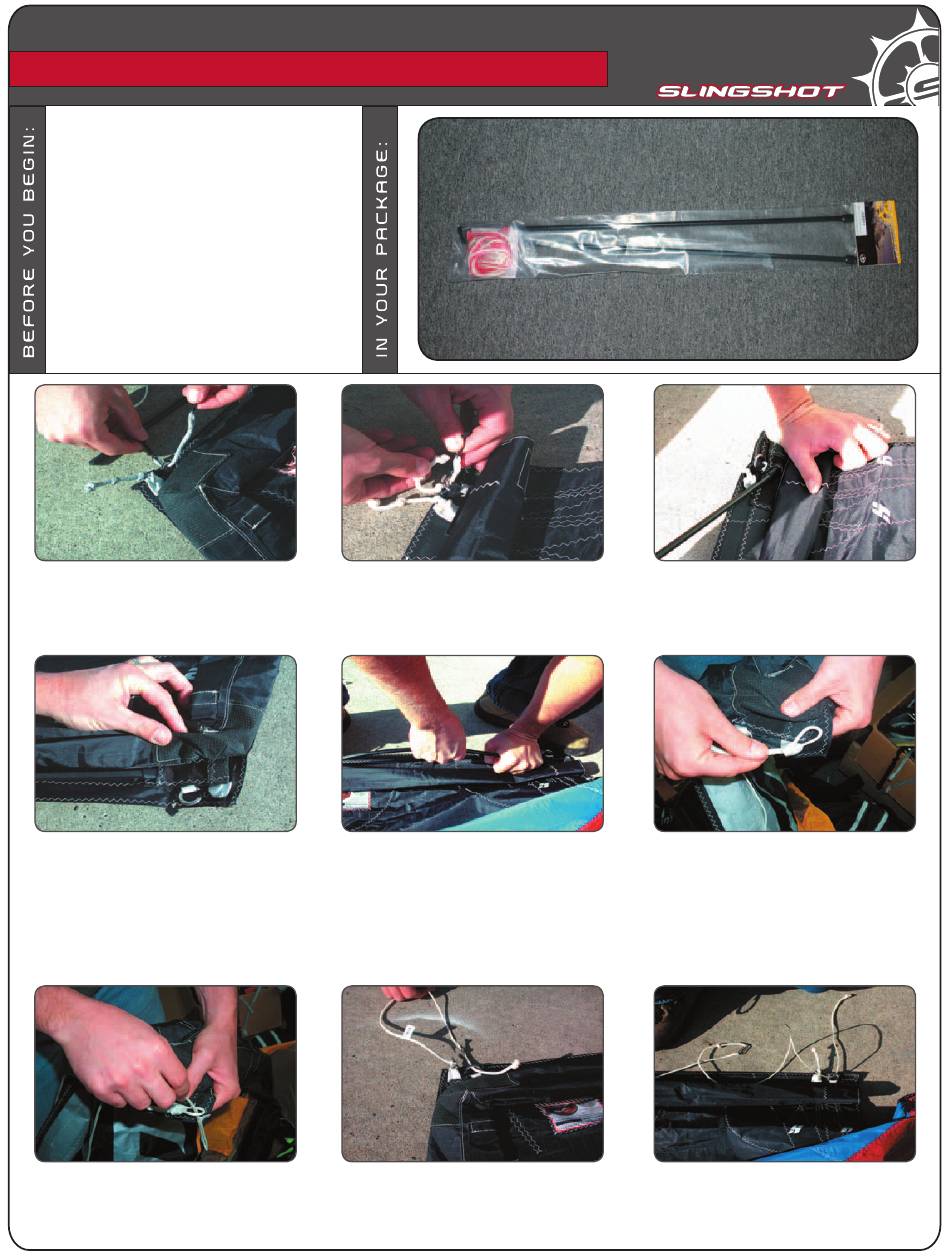

Slingshot ATL Kit Instructions

INS T RUC TIO N S
AT L INSTALLAT IO N
You will need:
1. ATL Kit-
(which contains, 2-wingtip battens, and 2
bridle lines, 1-red for left side of kite and 1-
white for right side of kite)
If you require further assistance, email us or
visit our website: www.sskiteboarding.com
Customer Service :
International: intl.service@sskites.com
1. Unroll your kite and locate the wingtip.
4. After you have opened up the rear/trailing
edge pocket, insert the batten in the leading
edge pocket.
7. Now take the other end of the bridle and
feed it through the exposed loop that has
been fed through white webbing. Pull tight
forming a loop to loop connection.
2. You will first need to remove all pig-
tails from the wingtip.
5. Secure the wingtip by standing on the
ends of the wingtip. Pull up on the middle
of the batten while pushing down on the
tip as shown in the picture. Guide the tip of
the batten into the trailing edge pocket and
release pressure. The batten will slide into
position. These are performance battens and
are very stiff so be patient during installation.
Use Velcro tab to secure batten to wingtip.
8. Take the other end of the bridle and thread
it up through the ring next to white webbing.
3. Now you must prepare the batten
pockets for installation. Take the bat-
ten and pry open the rear/trailing edge
pocket. This will make it easier to install
the batten.
6. Attach the bridle directly to webbing on
kite wingtip by inserting the loop end of
bridle through the webbing on the leading
edge section of wingtip. reference section A.
9. Take bridle across the wingtip and up
through the trailing edge ring. *Make sure
ATL bridle is between flap and ring. (Do not
feed bridle through trailing edge white web-
bing.) See section B.
