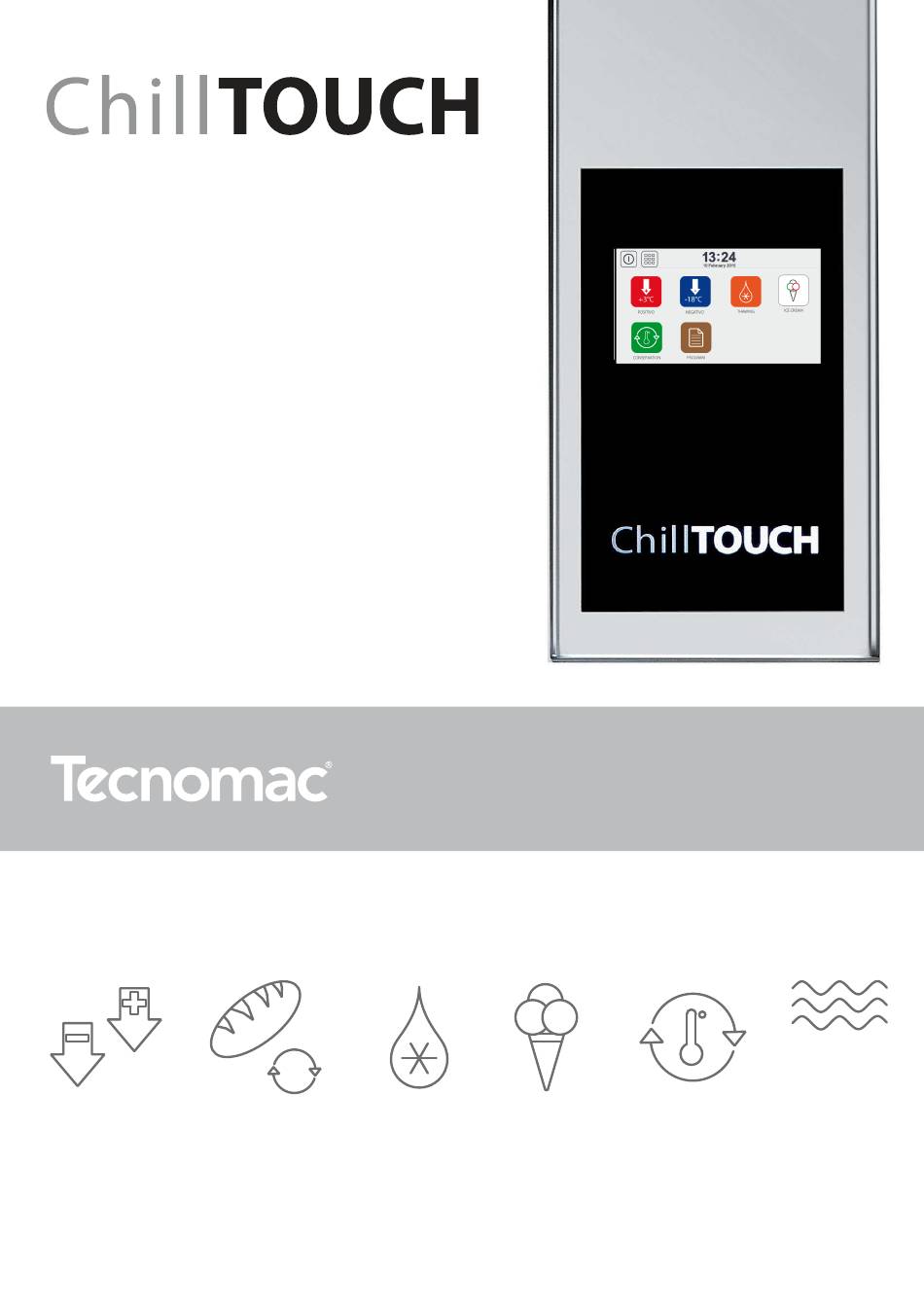

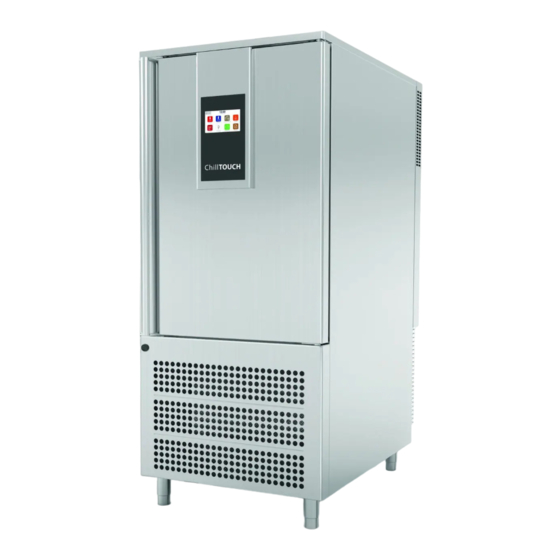

- Page 1 APPARECCHIO MULTIFUNZIONE MULTI-FUNCTION EQUIPMENT EQUIPEMENT MULTIFONCTION MULTIFUNKTIONSGERÄTE Low T°...
-
Page 3: Table Of Contents
INDEX 1 - MACHINE START-UP AND SHUT DOWN ..........................2 1.1 - General information ..................................2 1.2 - Entry and exit from Stand-by ..............................2 2 - INITIAL SETTINGS ..................................2 2.1 - Language ....................................2 2.2 - Unlocking the display ................................3 2.3 - Date and time setting ................................3 2.4 - Setting the 24-48-72 H cycle duration ............................4 3 - CHILLING/FREEZING CYCLES . -
Page 4: Machine Start-Up And Shut Down
1 - MACHINE START-UP AND SHUT DOWN 1.1 - General information Up to 40 programmes of various type can be saved. During all cycles, the humidification- dehumidification will be used, it will be active only if the cell temperature is higher than 3°C. The Touch interface accepts only pressing In order to return to the initial stand-by screen, just press with the fingers, avoid using tools or other... -
Page 5: Unlocking The Display
In order to access the date and time setting, press the 2.2 - Unlocking the display key [8] 1365 If the keyboard is blocked, type the password order to unlock it In order to change the date, press above the date field [10] 2.3 - Date and time setting Once the window opened, use the keys +/- to change... -
Page 6: Setting The 24-48-72 H Cycle Duration
2.4 - Setting the 24-48-72 H cycle duration All cycles that provide the programming of the cycle end date, adopt the following duration setting method, based on the time ranges that fall within the 24, 48 or 72 hour ranges following the cycle start. We present hereinafter a few examples that represent the setting logic. -
Page 7: Chilling/Freezing Cycles
3 - CHILLING/FREEZING CYCLES . 3.1 - Summary of Positive chilling cycles The Positive chilling cycle is set to bring the temperature of a food item under 10°C, normally to +3°C. Hereinafter, we list the available chilling programmes. 71504138-0-003... -
Page 8: Starting The Manual Positive Chilling
3.2 - Starting the MANUAL Positive Chilling While, in the case of a temperature cycle, in order to In order to start the Manual positive chilling cycle, press change the chilling end temperature set point, just press the icon [10] from the main screen. In order to stop at above the value [13] any time the chilling, just press the key STOP [11] If you want to select another type of chilling cycle, just... -
Page 9: Summary Of Negative Chilling Cycles
3.3 - Summary of Negative chilling cycles The negative chilling cycle is set to bring the temperature of a food item under -18°C, in the shortest time possible. Hereinafter, we list the available freezing programmes. 71504138-0-003... -
Page 10: Starting The Manual Negative Chilling
3.4 - Starting the MANUAL Negative Chilling In order to start the Manual negative chilling cycle, press the icon [17] from the main screen. In order to stop at any time the freezing, just press the key STOP [18] While, in the case of a temperature cycle, in order to change the freezing end temperature set point, just press above the value [21] Upon the first start-up, the blast chiller will execute a... -
Page 11: Saving The Positive / Negative Chilling Cycle
3.5 - Saving the Positive / Negative chilling cycle 3.6 - Change the preservation cell set point Both in the case of a chilling or a freezing, and possibly during the preservation phase, change the cell set point, If you want to save the just executed cycle, press the it will be enough to press above the represented cell key [A], then type the Name of the programme on the temperature value [D], and a change window will appear. -
Page 12: Thawing Cycle
4 - THAWING CYCLE 4.1 - Manual THAWING change the defrosting time, press above the value [28] . The defrost cycle has as its purpose to defrost a frozen food item, guaranteeing health and therefore being You can also choose if the ventilation should be below the temperatures at which bacterial growth occurs continuous or discontinuous, just press the symbol (above 10°C). -
Page 13: Programmed Thawing
4.2 - Programmed THAWING lower than the duration provided for defrosting, the programme cannot be executed and the top left START key [38] will have a grey background, and it will not The programmed defrost cycle consists of three phases: execute any programme. - Page 14 If you want to save the set programme, press the key [47], and the following window will open to name the At any time, you can start the cycle by pressing the programme. If you confirm the name with the key [48], the programme will be found in the programmes window.
-
Page 15: Ice Cream Cycle
6 - ICE CREAM CYCLE Using the keys +/- [111], you can change the value, afterwards, you can save the change by pressing the 6.1 - Ice Cream MANUAL cycle OK key [112], or you can exit without saving using the The Ice Cream cycle is a single phase cycle and of ESC key [113]. -
Page 16: Preservation Cycle
7 - PRESERVATION CYCLE If you want to save the new configuration as a 7.1 - MANUAL preservation cycle programme with a name, press the key [123]. You will access the window which allows typing the name of the The preservation cycle is a single phase cycle and of programme and save it. -
Page 17: Programme Writing
8 - PROGRAMME WRITING 8.1 - Access to programme set-up In addition to saving programmes from the selected cycles, you can register a programme without starting a cycle. In order to select a programme to store, press the icon [125] from the main menu. Upon pressing one of the represented symbols, a specific programme setting will follow. -
Page 18: Creation Of A Chilling Programme
8.2 - Creation of a Chilling Programme Now, if you want to save the set programme, press the key [135], while if you want to delete or if you do not If you select the icon of chilling cycles [127] from the want to save the new programme, press the key [136], wheel, you will access the following window: a message to confirm appears [137] or otherwise [138]... -
Page 19: Creation Of A Thawing Programme
8.3 - Creation of a thawing programme This is a phase the duration of which is obtained by If you select the icon of defrosting cycles [139] from the difference and therefore, the time will not be set. You wheel, you will access the following window: can change the set temperatures [146]. - Page 20 At any moment or at the end of the programme configuration, you can decide if you want to save the programme by pressing the icon [153], or if you want to delete it by pressing the icon [154]. In case of deletion, a confirmation message is displayed, otherwise a deletion one.
-
Page 21: Creation Of A Preservation Programme
8.7 - Creation of a preservation programme If you select the icon of preservation cycles [198] from the wheel, you will access the following window: There, you can access the keyboard by pressing above the programme name area [198], set different cell temperature set points by pressing the arrows [199], set the humidity set point by pressing the arrows [200], set the fan speed by pressing the arrows [201], and... -
Page 22: Starting Up Stored Programmes
9 - STARTING UP STORED PROGRAMMES 9.2 - Starting up from stored programmes If, upon the machine start-up, after pressing the stand-by 9.1 - Access to stored programmes key [1] , you want to directly access the programmes pages, you must enable the padlock function, pressing In order to access the archive of stored programmes above the icon [207]. -
Page 23: Starting The Utility Functions
10 - STARTING THE UTILITY FUNCTIONS 10.3 - List/Export of alarms 10.1 - Access to UTILITY window If you want to view the list of stored alarms and current alarms, press the icon [213] In order to access the Utility window, press the icon [209] from the main menu. -
Page 24: Starting The Manual Defrosting
Once the window is opened, insert the USB flash drive 10.5 - Starting the Drying cycle in the provided connecter (on the blast chiller air output), The drying cycle is used either to remove the humidity select the period you want to download [217], finally from the cell after cleaning or to perform a defrosting press the type Export key [219-220] and afterwards, using only the ambient air ventilation. -
Page 25: Configuration Of The Main Menu
You will access the Utility window, at this point press If you want to start an Ozone cycle, close the door of the key [231]. the chiller and then press the icon [226] The following window will appear and by checking the green flags, the main menu icon will be shown or hidden. -
Page 26: Alarm Statuses
11 - Alarm statuses 11.4 - Pre-alarm warnings 11.1 - Alarm warnings The pre-alarm warnings, as the ones represented below, which do not cause the immediate interruption If the machine is under alarm, a pop-up window appears of a running cycle, and represented by a YELLOW at the bottom, with the description of the type of alarms background warning, normally predict either an in progress. -
Page 27: Alarm List
11.6 Alarm list Cause Solution Effect Defective cell probe, for more Displaying of the wording "Cell temperature probe alarm" in Check the cell probe connections, check than 30 "(U1 card input). the alarm window. The alarm symbol will appear, the buzzer the configuration parameters (Service) and AL04 will sound and any program that is running will be exited,... - Page 28 Cause Solution Effect If the cell temperature is less than Displaying of the wording "Cell low temperature alarm" in the If the alarm repeats several times, stop the the set temperature determined, alarm window. The alarm symbol will appear, the buzzer will machine and contact the Support Service AL15 by the value in degrees defined...
- Page 30 Via del lavoro, 9 - 31033 Castelfranco Veneto - Treviso N. Registro Imprese TV e Partita Iva 01866640269 - Codice Fiscale 07892570156 - Capitale Sociale i.v. Euro 4.3000.000,00 Tel. +39 0423.738311 - Fax +39 0423.722811 Castel Mac SpA si riserva il diritto di apportare modi che sia tecniche che estetiche senza preavviso. Castel Mac reserves the right to change models and specications without prior notice.
