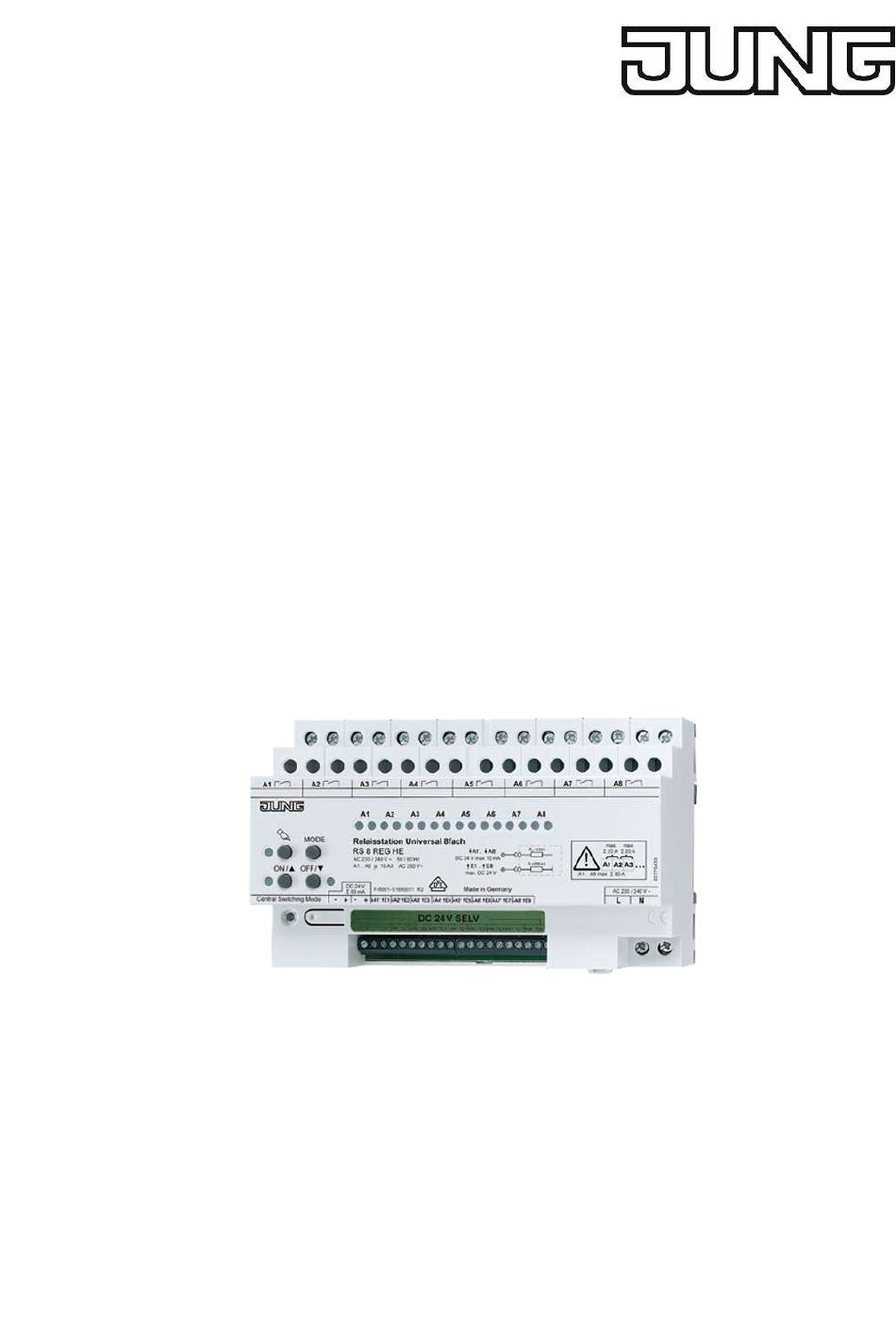

- Page 1 Operating instructions Relay station universal, 8-gang Art. no. RS8REGHE ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 03.02.2023 82556953 J0082556953 www.jung.de...
-
Page 2: Table Of Contents
Relay station universal, 8-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Intended use ........................ 4 Product characteristics ...................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 Commissioning .................... 13 6.2.1 Settings for sensor modules and push-button sensor modules.... 15 Technical data ......................... 16 Troubleshooting ...................... 18 Accessories ........................ 19... -
Page 3: Safety Instructions
Relay station universal, 8-gang Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: Intended Use
Relay station universal, 8-gang Connection of control sections or control voltage Activation outputs A1'... A8' / Switching outputs E1 ... E8 Connection for mains supply Intended use – Switching of lighting, single-phase fan motors, electrically driven Venetian blinds, shutters, awnings and similar hangings –... -
Page 5: Operation
Relay station universal, 8-gang Operation Image 2: Control panel Status LED for load outputs A1 ... A8 in normal operation c button for local control (10) LED c on: local control or programming mode active (11) Button ON/n: switching on the load output or setting the operating mode LED ON/n: status LED for load output or indication of operating mode (12) Button OFF/o: switching off the load output or setting the operating mode... - Page 6 Relay station universal, 8-gang The red status LEDs A1 ... A8 (4) indicate the switching status of the load out- puts. The load outputs retain the switch position previously set. A blind movement that has been started will be completed. Operating using control sections Button output ￭...
-
Page 7: Information For Electrically Skilled Persons
Relay station universal, 8-gang Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Always disconnect before carrying out work on the device or load. For this, switch off all corresponding circuit breakers, secure against being switched on again and check that there is no voltage. - Page 8 Relay station universal, 8-gang Image 4: Wiring example for mains voltage and loads Information on the operation points – Operation take place using the devices listed under Accessories. – Observe the technical data, especially the maximum number of sensor mod- ules and push-button sensor modules, current carrying capacity of the activa- tion outputs and switching inputs.
- Page 9 Relay station universal, 8-gang Image 5: Connection example with 24 V push-button sensor, 24 V push-button sensor module, 4-gang Sensor modules, push-button sensor modules (17) ￭ Establish the connection according to the connection example (see figure 6). Image 6: Connection example of sensor module or push-button sensor module 82556953 9 / 19 03.02.2023...
- Page 10 Relay station universal, 8-gang Push-button (18) ￭ Establish the connection according to the connection example (see figure 7). Image 7: Push-button connection example Connection of one 24 V push-button sensor or 24 V push-button sensor module to several relay stations When operating with 24 V push-button sensors or 24 V push-button sensor modules, they can be connected to up to four relay stations.
- Page 11 Relay station universal, 8-gang Image 8: Connection example with a 24 V push-button sensor to two relay stations Wiring example for central control. For the example, the central function must be switched on at both relay stations (see chapter Switching on the central function of the relay station).
- Page 12 Relay station universal, 8-gang Image 9: Connection example for Central ON, Central OFF Switching on the central function of the relay station For central operation using 24 V push-button sensors, 24 V push-button sensor mod- ules or push-buttons, the central function must be activated on the relay station. The sensor module and push-button sensor module are used to set the central function on the modules.
-
Page 13: Commissioning
Relay station universal, 8-gang Connecting one sensor module or push-button sensor module to two relay stations Sensor modules or push-button sensor modules can operate two relay stations to- gether. This requires the connection of both relay stations in parallel. To do this, the relay stations and sensor modules must have at least version V02. - Page 14 Relay station universal, 8-gang ￭ Press the MODE button (15) (see figure 2) for approx. 5 seconds. The LED c (10) (see figure 2) lights up. Programming mode is switched on. The green status LED (4) for the load output A1 or in Venetian blind mode A1 and A2 flash.
-
Page 15: 6.2.1 Settings For Sensor Modules And Push-Button Sensor Modules
Relay station universal, 8-gang The central function for the next load output can be set. Exit programming mode Press the MODE button (15) repeatedly until the LED c (10) goes out. ￭ The status LEDs (4) indicate the operating mode and the switching status of load outputs A1 ... -
Page 16: Technical Data
Relay station universal, 8-gang The relay station switches to normal operation. The regular status message is switched off in the same way as it is switched on. All red status LEDs (4) of the outputs flash briefly for acknowledgement. Cloning sensor modules or push-button sensor modules "Cloning"... - Page 17 Relay station universal, 8-gang Terminals -, + Control voltage DC 24 V SELV Current carrying capacity Ʃ 80 mA Total length of control cable max. 100 m Number Sensor modules / push-button sensor modules 24 V push-button sensors / 24 V push-button Type-dependent sensor modules Switching inputs E1 ...
-
Page 18: Troubleshooting
Relay station universal, 8-gang Incandescent lamps 3000 W HV halogen lamps 2500 W Electronic transformers 1500 W Inductive transformers 1200 VA Fluorescent lamps uncompensated 1000 VA parallel compensated 1160 VA (140 μF) twin-lamp circuit 2300 VA (140 μF) Mercury vapour lamps uncompensated 1000 W parallel compensated... -
Page 19: Accessories
Art.-no.: 42..TSM Push-button module 24 V AC/DC F50 Art.-no.: ..52..TSM Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
