Harman JBL Home Theater Series Technical Manual

Technical Manual

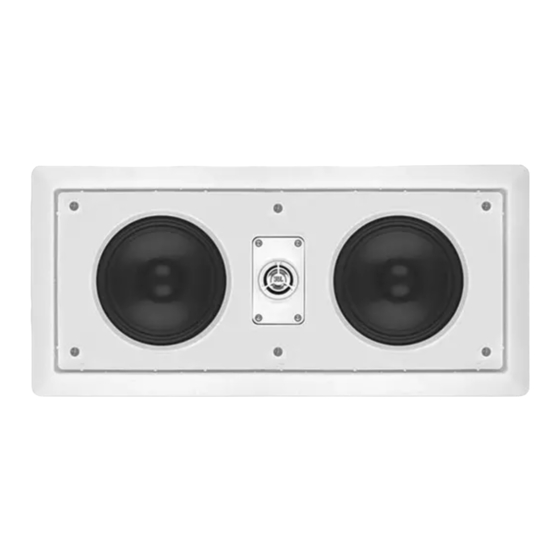

HTI55 Home Theater Series
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance
• Max Amp Power
• Frequency Response
Sensitivity
•
• Crossover Frequency
SYSTEM COMPONENTS:
• Grille
• Low-Frequency Transducer Dual 5" (127mm) polymer-coated
DC Resistance
• High-Frequency Transducer 1" (25mm) Pure-titanium dome
DC Resistance
• Crossover Network
PACKAGING
13
14
15
JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797
8 ohms nominal
120 watts*
40Hz – 20kHz (–10dB)
88dB (2.83V @ 1 meter)
2,000Hz
329-050-00781
aluminum cone w/rubber surround
13PR85BQ-JW01
9.4 ohms ±10%
95DM25BF-FT01
5.2 ohms ±10%
013-7600-00872
Legend on Page 2
16
16
12
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test
• L.F. Aural Sweep Test
H.F. Aural Sweep Test
•
PHYSICAL SPECIFICATIONS:
• Plate Size
• Mounting Cutout Size
• Mounting Depth
• Weight
WARRANTY:
Refer to Warranty Statement packed with each product.
•
*
The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.
HIGH-FREQUENCY
TRANSDUCER
95DM25BF-FT01
GRN
CROSSOVER
NETWORK
013-7600-00872
HTI55 SCHEMATIC
L1
1.2mH
C1
30uF
100V
C2
8uF
100V
6.0V input 40Hz to 20kHz
5.0V input 40Hz to 2kHz
2.83V input 2kHz to 20kHz
15-3/8" x 7-1/2"
(391mm x 191mm)
14" x 6" (356mm x 152mm)
3-7/8" (98mm)
5.7 lb (2.6kg) Each
LOW-FREQUENCY
TRANSDUCERS
13PR85BQ-JW01
+
WHT —
GRN
+
—
WHT
GRN
.250
GRN
.250
L.F.1
WHT
.205
WHT
.205
YEL
.205
L2
H.F.
0.4mH
YEL/BLK
.110
L.F.2
7/04
