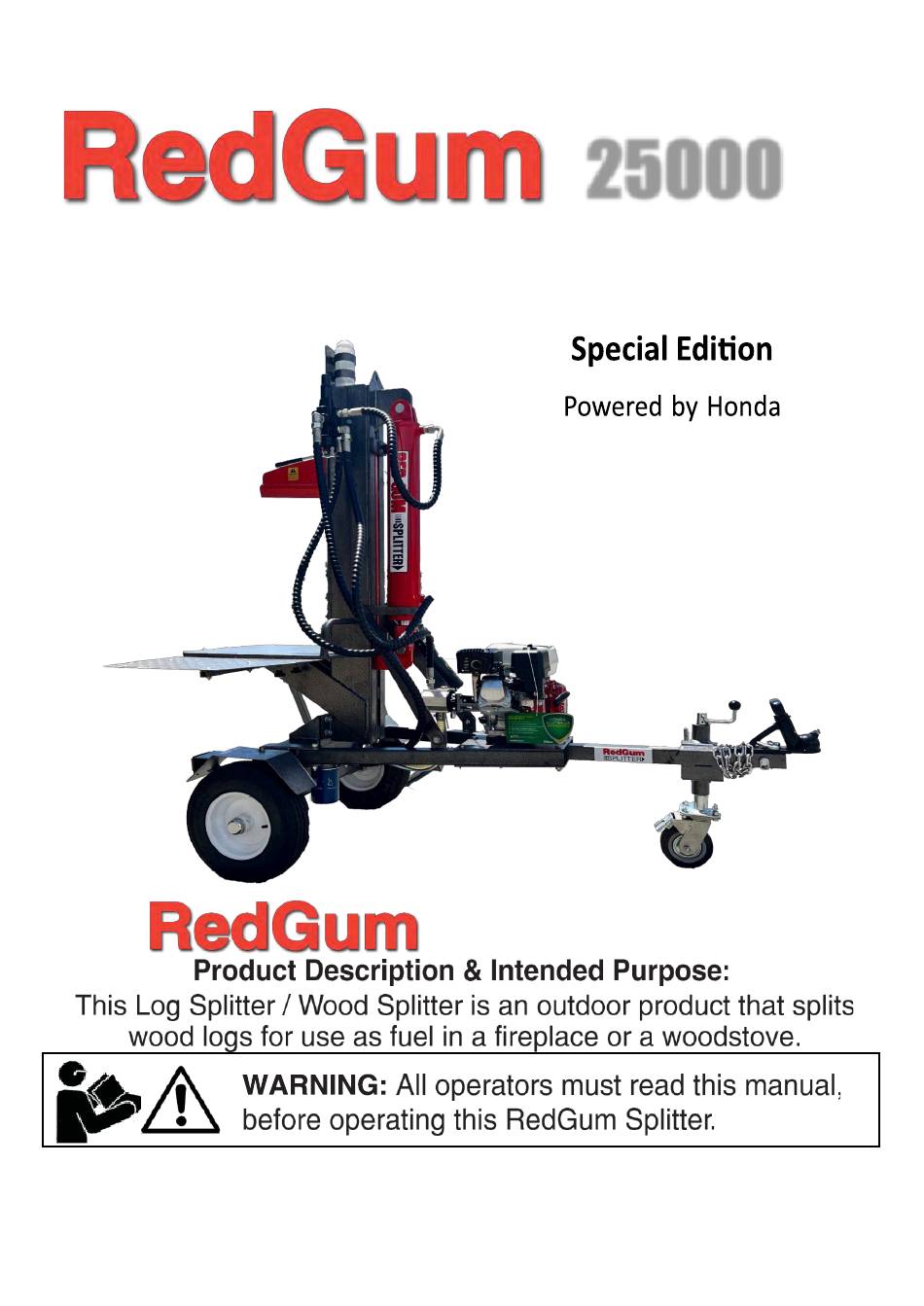

- Page 1 25000 SUPER V Lifter-Splitter Owner's Manual LOGSPLITTERS __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 1 VLS-0323 Rev 2...
-
Page 2: Table Of Contents
WARRANTY AND SERVICE INFORMATION ................14 STATEMENT OF WARRANTY ....................14 THE WARRANTY PERIODS ..................... 14 WHAT IS NOT COVERED BY WARRANTY ................15 WHERE TO GO FOR WARRANTY REPAIRS ................17 __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 2 VLS-0323 Rev 2... -
Page 3: Important Safety Information
Do not exceed the lifting capacity of the machine Ensure the block is sitting firmly on the table prior to splitting. Read and follow the risk assessment at the end of this manual. __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 3 VLS-0323 Rev 2... - Page 4 WARNING! WARNING Read and thoroughly understand all instructions contained in this operation manual before operating this RedGum Splitter. Serious injury or death can result if safety instructions are not understood or followed. If you wish to discuss this log splitter’s operational procedures after reading this manual, please call our Customer Service on 1300 039 251, available Monday to Friday, from 9AM to 5PM AEDT.
- Page 5 Splitting Bed (10). Once the log is in place and ready for splitting, push and hold the Control Valve Lever (7) upward. __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 5 VLS-0323 Rev 2...
-
Page 6: Log Splitter Components
8.) Repeat the above steps as required. 9.) Periodic cleaning of the unit is recommended to avoid the build up of debris (Sawdust, dirt and bark) that may retard the operation. LOG SPLITTER COMPONENTS __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 6 VLS-0323 Rev 2... -
Page 7: Engine Components
4) Oil Filler Cap 5) Off / On Switch 6) Muffler 7) Spark Plug 8) Choke Lever 9) Fuel Valve 10) Starter Grip 11) Recoil Starter Air Cleaner __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 7 VLS-0323 Rev 2... -
Page 8: Towing The Machine
Read the below details to know further instructions regarding the logsplitter. The RedGum 25000 SUPER V Lifter-Splitter has a 50mm Ball Coupler with a tow bar (3) which can be attached to the back of your ATV or Ride On Mower to tow the machine around your property. This tow bar is attached to an efficient Jockey Wheel, which allows you to easily move the machine without any problems! The RedGum 25000 SUPER V Lifter-Splitter is not suitable for towing on the road. -
Page 9: Logsplitter Specifications
2.) Move the Control Valve Lever forward and backward to relieve Hydraulic Pressure and leave in neutral position. 3. After performing maintenance, make sure all guards, shields and safety features are put back in place. Failure to follow this warning can result in serious injury. __________________________________________________________________________________________________________ Operation Manual RedGum Super V Splitter Page 9 VLS-0323 Rev 2... -
Page 10: Maintenance Schedule
First Service ( 5 hours of Operation or 3 Months, which ever occurs first Annual by Dealer Before Use inspection Maintenance Type I = Inspection C = Clean A = Adjust L = Lubricate R = Replace Operation Manual RedGum Super V Splitter Page 10 VLS-0522 Rev 2... -
Page 11: Storage Of The Logsplitter
Lightly lubricate all log splitter surfaces and moving parts to prevent rust. • Store indoors or protected area and preferably under the RedGum Cover when the log splitter is not being used. • It is essential to fully retract the splitting wedge, ensuring no silver part of piston rod is exposed to the elements. -
Page 12: Risk Register
45km/h RedGum Logsplitters are safe and efficient machines, and are the best at getting the job done. Our machines utilize the latest innovations in technology to give you a safe yet comfortable wood-splitting experience. The above Risk Register provides you with a list of some risks associated with operating this logsplitter. -
Page 13: Log Splitter Troubleshooting
LOG SPLITTER TROUBLESHOOTING Problem Solution Solution: A, D, E, H, J Cylinder rod & splitting wedge will not move Slow cylinder shaft speed when extending Solution: A, B, C, H, I, K, L or retracting Wood will not split or splits extremely slowly Solution: A, B, C, F, I, K Engine bogs down during splitting Solution: G, L... -
Page 14: Warranty And Service Information
If the product is found to be defective, in RedGum Products' opinion (due to a fault of the manufacturer) within the Warranty Period, RedGum Products will carry out the repair or replacement to the customer Free of Charge, provided: •... -
Page 15: What Is Not Covered By Warranty
YOUR RIGHTS AS A CUSTOMER The New Product Warranty that is provided by Drive System: Sprockets, belts, clutches, pulleys and RedGum Products is in addition to the rights and bearings all wear and will require replacement. remedies conferred on consumers by the relevant authorities and/or legislation. - Page 16 Any statutory or other rights or remedies available in connection with a claim for such loss or damage should be pursued separately.
-
Page 17: Where To Go For Warranty Repairs
WHERE TO GO FOR WARRANTY REPAIRS Take your product to any authorised RedGum Dealer if it needs warranty repairs. All authorised RedGum Dealers will honour the New Product Warranty, and will repair, replace or adjust free of charge any part of your product that is defective in factory materials or workmanship.
