- Page 1 Super VHD 32000 32000 LOGSPLITTERS Australia's No.1 Selling Honda-Powered Log Splitters RGVLS-0522 Rev 0...
- Page 2 WARNING Read and thoroughly understand all instructions contained in this operation manual before operating this RedGum Splitter. Serious injury or death can result if safety instructions are not understood or followed. If you wish to discuss this log splitter’s operational procedures after reading this manual, please call our Customer Service on 1300 039 251, available Monday to Friday, from 9AM to 5PM AEDT.
-
Page 3: Table Of Contents
Table of Contents Important Safety Rules ......... 4-6 Check Prior to Operation ......... 7 Operation Instructions ..........8 Towing the Log Splitter ..........9 Log Splitter Components ........10 ....11 Log Splitter Specifications ......12 Maintenance, Storage & Essential Checks Risk Register .......... -
Page 4: Important Safety Rules
Important Safety Rules WARNING 1.) Read this manual completely. - Serious injury or death can result if safety instructions are not fol- lowed. - Everyone who operates this log splitter must read and completely understand all safety rules, operating instructions, and maintenance instructions. - Page 5 Important Safety Rules WARNING 5.) Risk of fire and explosion. Hot exhaust fumes from the engine can cause a fire. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. - Position muffler at least 7 feet from combustible objects. - Before adding fuel, stop the engine and keep heat, sparks, and flame away.
- Page 6 · Shut engine off before leaving log splitter unattended. · RedGum Splitters are assembled and ready for use however: • Check Hydraulic Oil levels with a Dipstick • Check engine oil level by sighting engine dip stick. • Closely inspect all log splitter components. If you sight damaged components then contact your RedGum dealer before use.
-
Page 7: Check Prior To Operation
PRE-OPERATION CHECKS Essential checks to be carried out before each use: What When Inspect for exposed wire mesh & leaks. Replace Hoses Each Use all worn/damaged hoses before starting engine. Inspect for cracks & leaks. Replace all damaged Each Use Hydraulic Fittings fittings before starting the engine. -
Page 8: Operation Instructions
PREPARING THE LOGSPLITTER FOR USE Before operating the logsplitter, make sure that both the supports legs are firmly set on the ground and that both the tired have been blocked. This is necessary to prevent unnecessary movement of the log on the Logsplitter Splitting Table (10). -
Page 9: Towing The Logsplitter
• Read the below details to know further instructions regarding the logsplitter. TOWING THE LOGSPLITTER The RedGum Super VHD 32000 Logsplitter has a 50mm Ball Coupler with a tow bar (3) which can be attached to the back of your ATV or Ride On Mower to tow the machine around your property. -
Page 10: Logsplitter Components

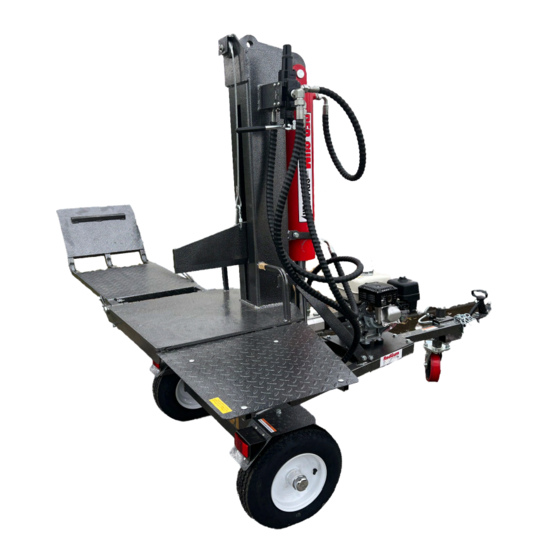

LOGSPLITTER COMPONENTS 1) Coupler: Attaches the log splitter to the ball. 2) Jockey Wheel 3) Tow Bar 4) Engine: The air-cooled Honda GX200 powers the hydraulic pump 5) Wood Tray: Can hold a maximum of 75kgs 6) Hydraulic Cylinder: Internal diameter of 4.5 Inch 7) Control Valve Lever: Controls the forward and backward movement of splitting wedge. -
Page 11: Logsplitter Specifications
ENGINE COMPONENTS 1.) Fuel Cap 2.) Fuel Tank 3.) Oil Drain Plug 4.) Oil Filler Cap/Dipstick 5.) P.T.O Shaft 6.) Muffler 7.) Spark Plug 8.) Choke Lever 9.) Fuel Valve Lever 10.) Starter Grip 11.) Recoil Starter 12.) Air Cleaner For more information on Engine Operation &... -
Page 12: Maintenance, Storage & Essential Checks
• Lightly lubricate all log splitter surfaces and moving parts to prevent rust. • Store indoors or protected area and preferably under the RedGum Cover when the log splitter is not being used. • It is essential to fully retract the splitting wedge, ensuring no silver part of piston rod is exposed to the elements. -
Page 13: Risk Register
45km/h RedGum Logsplitters are safe and efficient machines, and are the best at getting the job done. Our machines utilize the latest innovations in technology to give you a safe yet comfortable wood-splitting experience. The above Risk Register provides you with a list of some risks associated with operating this logsplitter. -
Page 14: Log Splitter Troubleshooting
LOG SPLITTER TROUBLESHOOTING Problem Solution Solution: A, D, E, H, J Cylinder rod & splitting wedge will not move Solution: A, B, C, H, I, K, L Slow cylinder shaft speed when extending or retracting Solution: A, B, C, F, I, K Wood will not split or splits extremely slowly Engine bogs down during splitting... -
Page 15: Warranty & Service Information
This combined with your Owner’s Manual and the knowledge and expertise offered to you by your respective RedGum Dealer should provide you with the confidence that your decision to purchase a RedGum product was a good one. STATEMENT OF WARRANTY This statement of warranty applies to all RedGum products (offered by the manufacturer, RedGum Products). - Page 16 The New Product Warranty that is provided by Mechanical Adjustments: Including engine tuning, RedGum Products is in addition to the rights and adjusting brakes, belts & clutches etc. remedies conferred on consumers by the relevant authorities and/or legislation. The warranty does...
- Page 17 WHERE TO GO FOR WARRANTY REPAIRS Take your product to any authorised RedGum Dealer if it needs warranty repairs. All authorised RedGum Dealers will honour the New Product Warranty, and will repair, replace or adjust free of charge any part of your product that is defective in factory materials or workmanship.
-
Page 18: Accessories
Improves productivity by preventing split logs from falling to the ground. It also helps reduce the effort of picking up split logs that require further splitting. Compatible with most RedGum splitters. 3.) RedGum Logsplitter Dust Cover - RRP $99 Heavy-duty 200D logsplitter cover for superior protection against dust, dirt and heavy rain! 5.) Dual Purpose Log Lifter &...
