ENTRAPMENT ALARM
Note: This is a hard-wired mains supply system and should
only be installed by a licensed Electrician
Features:
•
Easy push panic button
•
High output blue LED strobe lights
•
9V battery back-up
•
100db piezo siren
•
IP65 rated
•

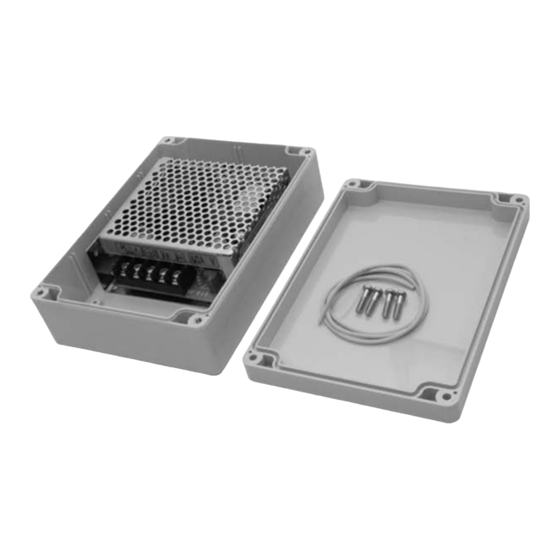

12v DC Transformer & weather proof utility
box
•
Simple twist to reset
•
OH&S & Australian Building Code compliant
•
Optional "Door Open" alarm
•
Remote dialer connection
Installation:
1. Install the supplied utility boxes &
conduit in the desired location (best
location would be in the vicinity of the
"Inside Release Handle" for hinged doors
or "Pocket/Lever Handle" for sliding
doors. Utility box for Alarm Module
should be mounted high on the wall
where staff have an unobstructed view of
the flashing LED lights. Run the cable
from the Panic Module to the Alarm
Module & attach to the "Panic"
connection
2. Plug the K1967-946 power cable into
either of the 2 "hub" connections and
route the cable from the "Alarm Utility
Box" to the 12v DC Transformer.
K1967-57HW
1
www.crh.com.au
Instruction
Manual
Advertisement
Table of Contents
Related Manuals for Kason K1967-57HW
Summary of Contents for Kason K1967-57HW
- Page 1 Instruction K1967-57HW Manual ENTRAPMENT ALARM Note: This is a hard-wired mains supply system and should only be installed by a licensed Electrician Features: • Easy push panic button • High output blue LED strobe lights • 9V battery back-up •...
- Page 2 Instruction Manual ENTRAPMENT ALARM Installation (continued): 3. Review wiring diagrams and make all connections. *Note: When adding the “Door Open Sensor” (optional extra), it is important to remove the wire jumper before adding wire. 4. Install Alarm Module into the “Utility Box”. 5.
