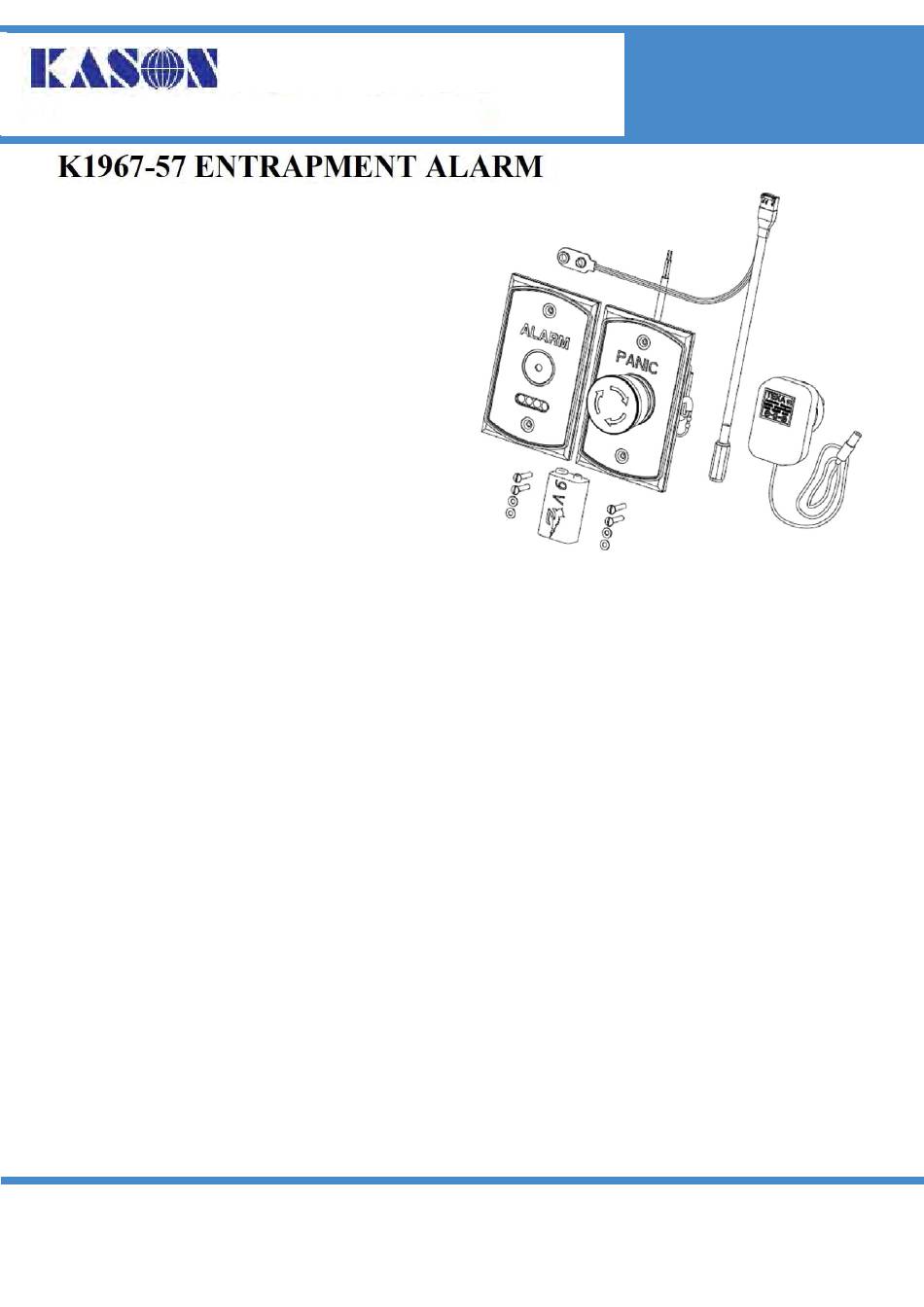

Kason K1967-57 Instruction Manual

ENTRAPMENT ALARM

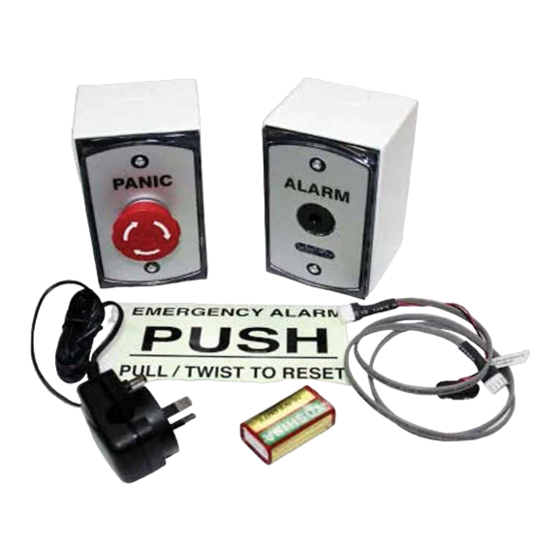

Features:

• Easy push panic button
• High output blue LED strobe lights
• 9V battery back-up
• 100db piezo siren
• IP65 rated
• 12v plug-in transformer
• Simple twist to reset
• OH&S & Australian Building Code compliant
• Simple plug & play installation
• Optional "Door Open" alarm
• Remote dialer connection

Installation:

1. Install the supplied utility boxes & conduit in the desired location (best location would be in the vicinity
of the "Inside Release Handle" for hinged doors or "Pocket/Lever Handle" for sliding doors.
The utility box for the "Alarm Module" should be mounted high on the wall where staff have an unob-
structed view of the flashing LED lights.
2. Feed the connection wire from the "Panic Module (K1967-007)" through conduit and connect to the
"Alarm Module (K1967-005)". Refer to wiring diagram included on page 2.
We have also included an additional wire for your convenience if required. Fix the "Alarm Module" to the
utility box.
3. Plug the K19670000946 power/battery cable into either of the "HUB" sockets on the "Alarm Module".
Then route the cable from the "Alarm Utility Box" to the location where the 100-240VAC outlet can be used
to plug in the supplied power transformer.
1
