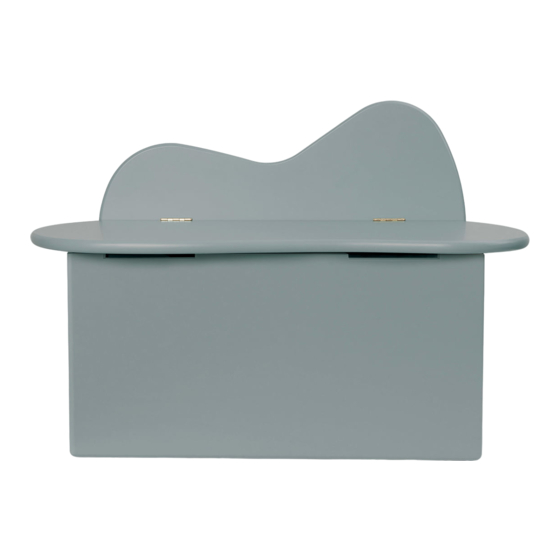

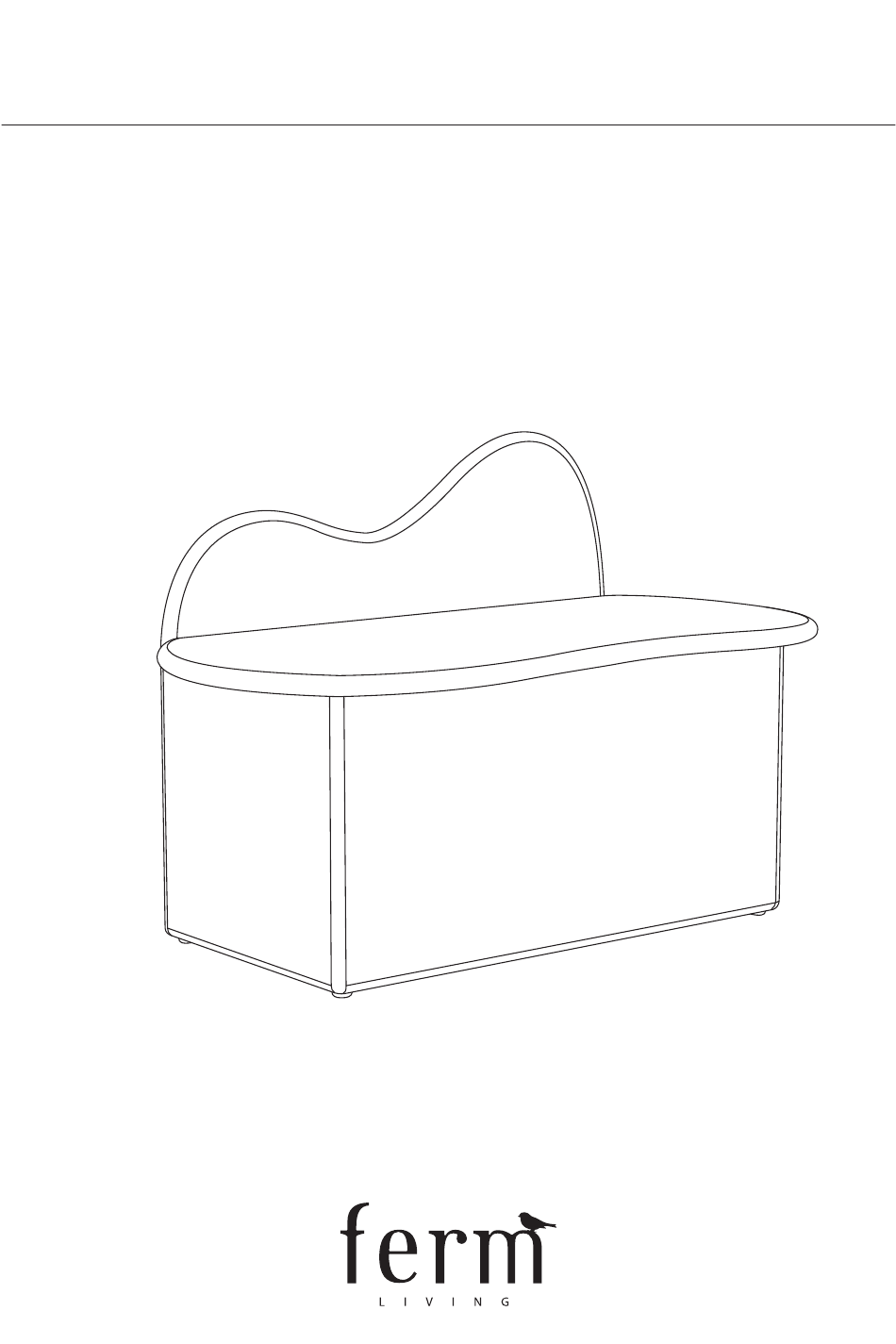

- Page 1 Slope Storage Bench Assembly manual...
-
Page 2: Box Content
Box Content Assembly Process 1 x Seat board 1 x Back board 1 x Gas spring 6 x Gas spring screw 2 x Side board 1 x Front board 1 x Bottom board 2 x Hinge 12 x Screw 18 x Connect cam 10 x Dowel 18 x Connect rod Needed tools... - Page 3 Assembly Process Assembly Process Insert dowel and screw connect rod into the 2 side board. Connect rods into front board, and back board.
- Page 4 Assembly Process Assembly Process Assemble 2 side board with bottom board, screw 4 connect cam. Assemble back board, screw 3 connect cam.
- Page 5 Assembly Process Assembly Process Assemble front board, screw 3 connect cam. Screw 8 connect cam inside bench...
- Page 6 Assembly Process Assembly Process Screw 2 hinge onto seat board with 6 screws Screw 2 hinge onto back board with 6 screws...
-
Page 7: Assembly Process
Assembly Process fermliving.com Screw gas spring onto seat board and back board...
