Replace Ice Maker

1. Unplug unit.
2. Disconnect ice maker wire harness at plug.
3. Disconnect thermistor plug.
4. Remove water inlet tube.
5. Remove front cover.

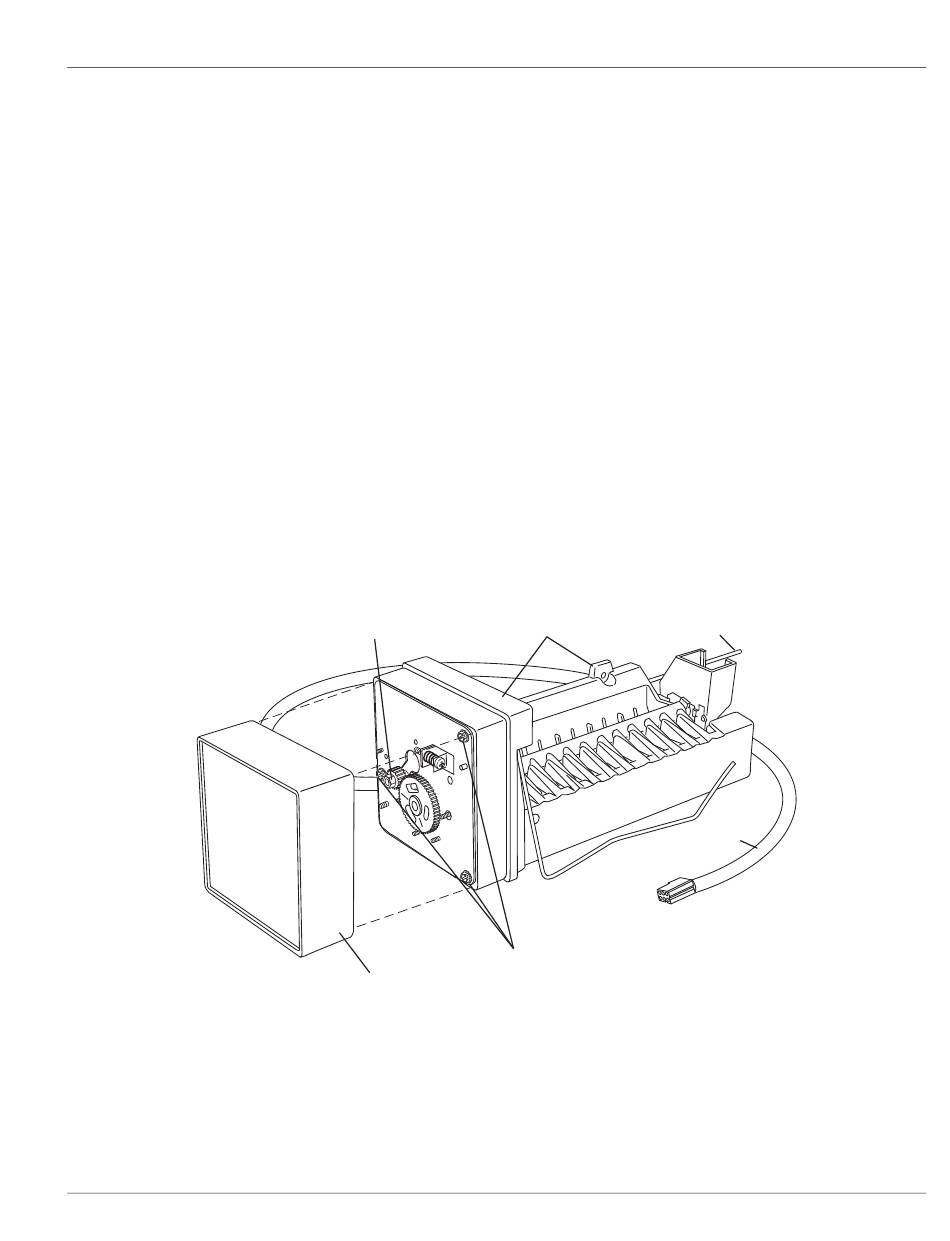

6. Advance ejector blade to the 3 o'clock position by
turning the 5/16" hex head on the small brass gear
counterclockwise.
7. Remove three screws from wall of freezer housing.
Small brass gear
hex head
Front cover
8. Remove ice maker assembly.
9. Install new ice maker assembly.
10.Reconnect plug.
11.Reconnect thermistor plug.
12.Insert water inlet tube.
®
13.Apply Permagum
14.Install back panel.
15.Plug in unit and test.
Freezer housing
Freezer housing
screws
57
to all exit holes.
2
Wire harness
ULIN_0373_A
Replace Ice Maker 1
