TS-1022
Required Printer
and Roller
Assembly
Maintenance
Purpose
This document provides guidance for maintaining the Sci-Print VX2/VXL and SOLO. If
the print head and rollers are not cleaned, adhesive residue build up from the labels can
cause a wide range of problems, including misalignment of text on the label, errors in
printing/applying labels, and improper tube handling in the roller assembly. This is a
supplemental guide to the User Manual for your instrument.
Required Material and Equipment
● Alcohol wipes o r a lcohol and lint-free cloth (ex. KimWipe™)
● 4mm Allen Wrench
● 2.5mm Allen Wrench
Intended Audience
Scinomix End users
Procedure
Daily Maintenance (When in Use)
1. Remove any dropped tubes or labels .
a. Turn off internal air pressure with blue air shut off switch.

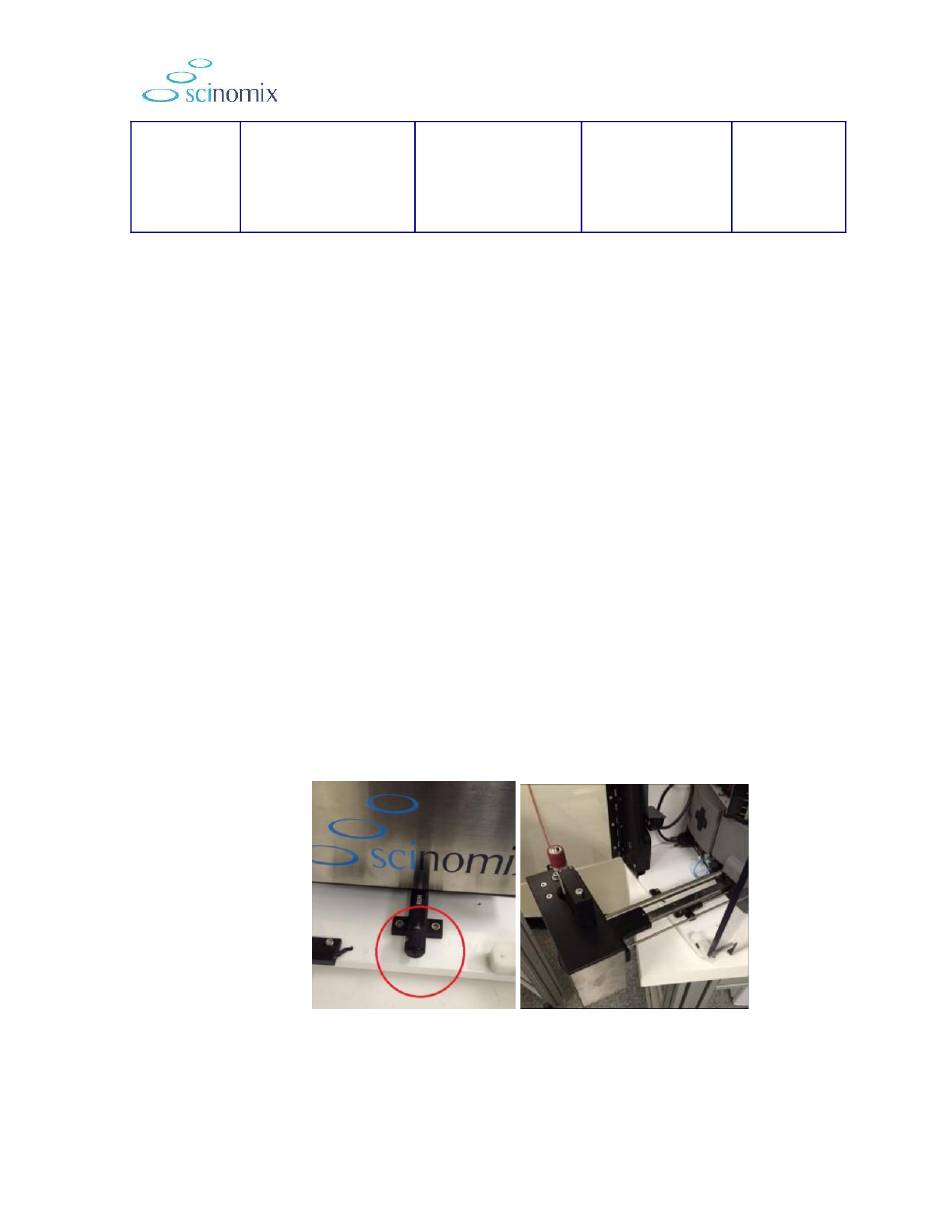

b. Unlock the roller assembly by pushing in on the black knob in FIgure 1.
and rotating 90 degrees until the word "RUN" is facing the front of the
instrument.
c. Pull the roller assembly out of the left side of the instrument.
File Location: DMS
Revision A Approved Date: APR-24-2020 Approved by: BP
Document Owner:
Effective Date:
Service Department
APR-24-2020
Figure 1.
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for Scinomix Sci-Print VX2
Summary of Contents for Scinomix Sci-Print VX2
- Page 1 Maintenance Purpose This document provides guidance for maintaining the Sci-Print VX2/VXL and SOLO. If the print head and rollers are not cleaned, adhesive residue build up from the labels can cause a wide range of problems, including misalignment of text on the label, errors in printing/applying labels, and improper tube handling in the roller assembly.
- Page 2 TS-1022 Required Printer Document Owner: Effective Date: Page 2 of 7 and Roller Service Department APR-24-2020 Assembly Maintenance d. Look inside the roller assembly for any tubes. Figure 2. 2. Deck plate - Clean the deck after each run with a water-dampened lint-free cloth (mild detergent can be used if necessary).
- Page 3 TS-1022 Required Printer Document Owner: Effective Date: Page 3 of 7 and Roller Service Department APR-24-2020 Assembly Maintenance 5. Power down the instrument (optional). Periodic Maintenance (When changing Labels/Ribbon) 1. Clean the following with alcohol wipes. a. Label tensioner rollers - Clean both pinching rollers with alcohol wipe, dry with lint-free cloth.
- Page 4 TS-1022 Required Printer Document Owner: Effective Date: Page 4 of 7 and Roller Service Department APR-24-2020 Assembly Maintenance c. Print Drive Roller - Remove to clean with alcohol wipe. Dry with lint-free cloth and reinstall. (A2+ model printer rollers are removed by removing the entire black cap holding them in) Note...
- Page 5 Failing to do so can cause labels to drift up/down in the print head. Figure 8. Some peel plate designs have less rollers. Please contact Sales@Scinomix.com if you would like this updated design.
- Page 6 TS-1022 Required Printer Document Owner: Effective Date: Page 6 of 7 and Roller Service Department APR-24-2020 Assembly Maintenance f. Rewind Assist Roller (Cleaning this roller is optional) - Remove to clean with alcohol wipe. Dry with lint-free cloth and reinstall. (A2+ model printer rollers are removed by removing the entire black cap holding them Figure 9.
- Page 7 Page 7 of 7 and Roller Service Department APR-24-2020 Assembly Maintenance If you need additional assistance, please call our service department at 314-298-9800 or email s ervice@scinomix.com Definitions Revision History Version Change Effective Date Approved by: APR-24-2020 B. Petti...
