IVAC SB24016-EU-A Handbook

Switch box
Hide thumbs

Advertisement

Table of Contents

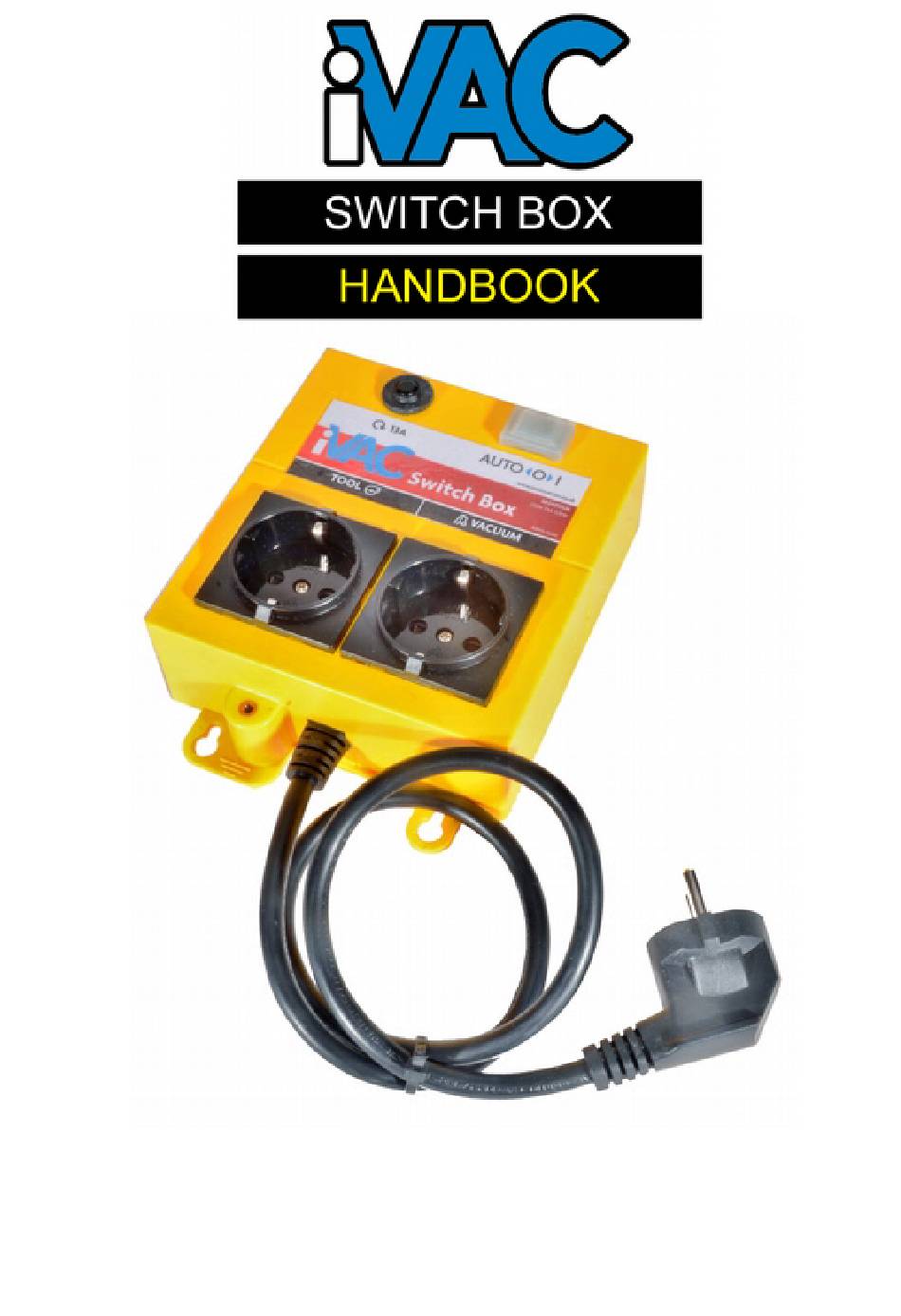

MODEL
SB24016-EU-A
For safe operation and to gain the full benefit of your iVAC Switch Box -
please read through this handbook before use.
Retain this handbook and your proof of purchase for future reference.
PAGE 1
of 8
16A 15391-1100 ENGLISH-R8 08/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB24016-EU-A and is the answer not in the manual?

Questions and answers

Related Manuals for IVAC SB24016-EU-A

Summary of Contents for IVAC SB24016-EU-A

  • Page 1 MODEL SB24016-EU-A For safe operation and to gain the full benefit of your iVAC Switch Box - please read through this handbook before use. Retain this handbook and your proof of purchase for future reference. PAGE 1 of 8 16A 15391-1100 ENGLISH-R8 08/19...
  • Page 2 This iVAC Switch Box enables the automatic and remote switching of a dust collecting vacuum. This iVAC Switch Box is intended to be used with a power tool such as a router, planer, saw, grinder or sander and an associated vacuum.

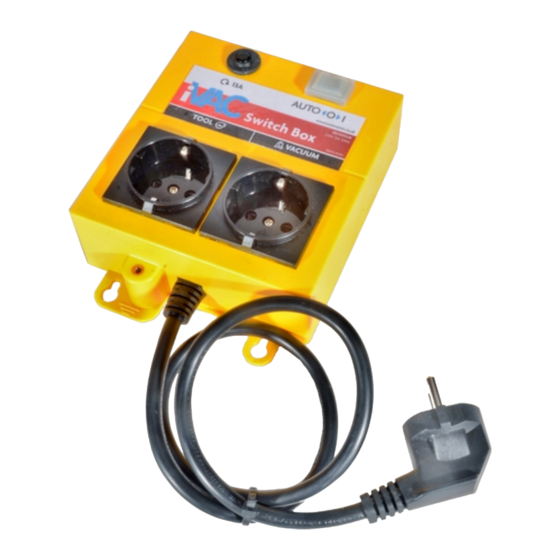

  • Page 3 DESCRIPTION AND FEATURES The two, 16A socket outlets on the Switch Box are specific and labelled TOOL & VACUUM. The vacuum turn ON delay of 1 or 2 seconds (configurable – see settings on page 4) is to prevent the start up power surges of the power tool and vacuum coinciding and overloading your Switch Box and/or power source circuit breakers.
  • Page 4 SETTINGS (CONFIGURATION) For most applications, the factory (default) settings do not need changing. If required, the Switch Box can DIP switches. be configured to suit a user's specific equipment and Factory settings shown. application. There are DIP 3, 5 and 6 are ON switches that can be set by the 1, 2 and 4 are OFF user.
  • Page 5 SAFETY Misuse of your Switch Box and any equipment plugged into it can potentially lead to injury and damage. Do not exceed the maximum total load of 16A ( 3500watts) ≈ This is the load of the vacuum and power tool combined. Overload and fault protection is provided by the 16A circuit breaker, Frequent overloading indicates a problem that requires investigation –...
  • Page 6 TECHNICAL DATA - SB24016-EU-A 220 - 240V 50/60 Hz AC. Maximum total load is 16A 3500watts. ≈ Maximum vacuum (LVHP) power is 12A 2700watts. ≈ Maximum extractor (HVLP) power is 1.5 hp. Vacuum turn ON delay is configurable – 1 or 2 seconds (factory set to 1).
  • Page 7 This Switch Box is not suitable for NVR protected vacuums Remedy > iVAC offers other products in it's range (e.g. the iVAC Pro System) that are suitable for NVR protected vacuums and extractors. PAGE 7...
  • Page 8 SERVICE AND REPAIRS The iVAC Switch Box can be repaired and maintained in our UK workshop. Beyond the guarantee period (one year) these repairs are chargeable. We can provide a quote once the Switch Box has been inspected and tested.
