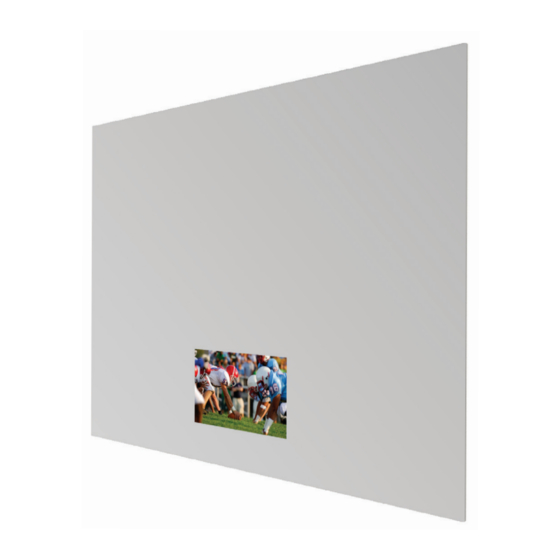

Mirror television

Advertisement

Quick Links

LOFT™
MIRROR TELEVISION
Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Loft LOF-156-AV-3040 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electric Mirror Loft LOF-156-AV-3040

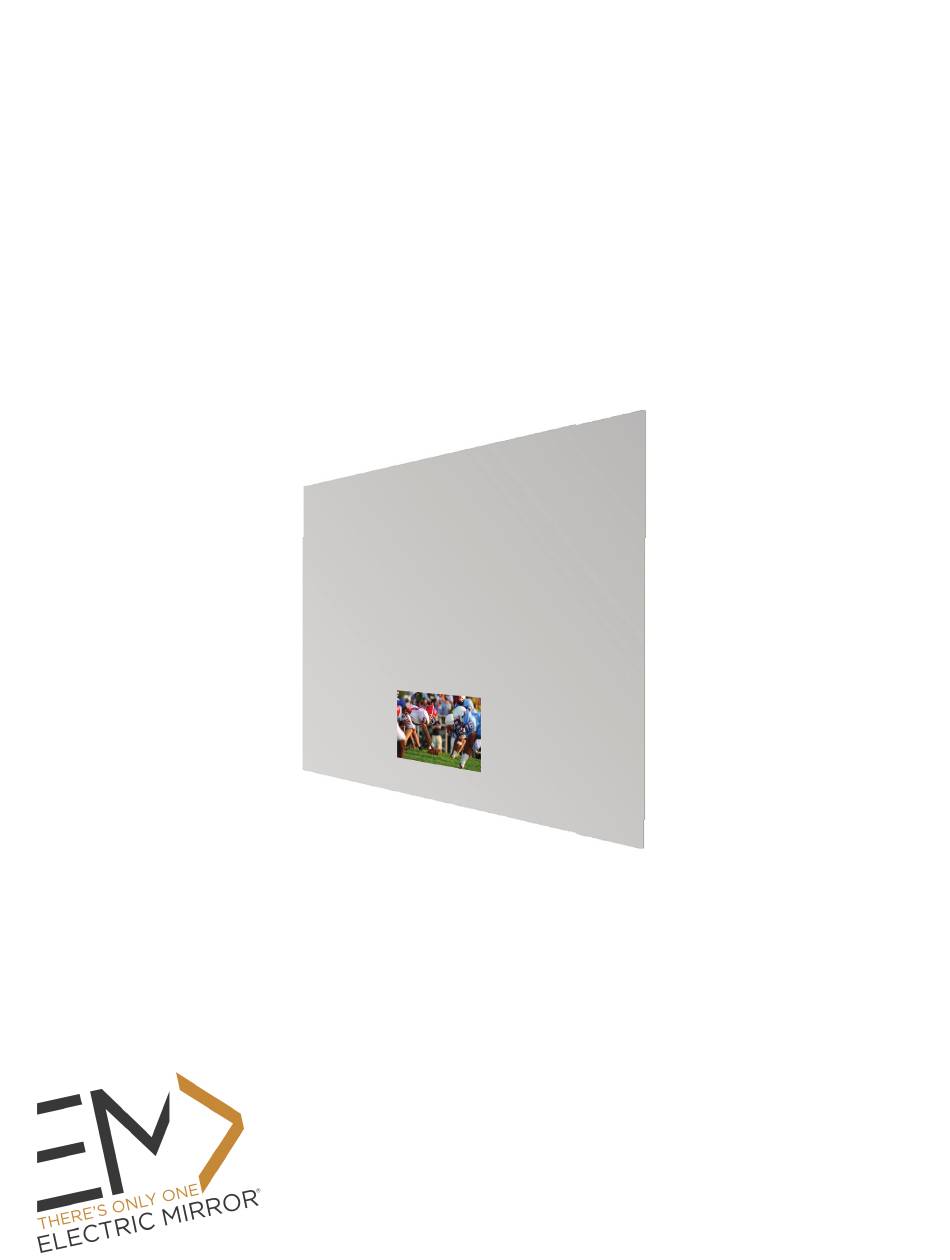

  • Page 1 LOFT™ MIRROR TELEVISION Installation Instructions...
  • Page 2 Prior to installation, unpack items and verify contents. BOX 1: WALL HANGERS AND SECURITY SCREWS Label will include part numbers Wall Hanger, T-screw wrench, and Mounting Bracket. THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
  • Page 3 BOX 2: MIRROR ASSEMBLY WITH INTEGRAL HANGERS BOX 3: KIT-TV-XX Includes remote, power cord, RF cable, & optional speakers INSTALLATION 1. WALL PREPARATION THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
  • Page 4 Dual-lock Velcro will be already attached to the bottom mirror security bracket. THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
  • Page 5 The Mirror TV shall be installed with a minimum of (4) 1/4” x 1-1/2” lag screws or other engineering approved fasteners. Use wall anchors or reinforced backing areas to support chassis. See individual product specifications for mounting hole locations. THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
  • Page 6 Connecting cables are provided. This will vary based on cable/VOD system being used. Before hanging unit, ensure that cables have sufficient slack. THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
  • Page 7 Refer to the TV Operation Manual for instructions on how to operate the TV. 6. LOCK SECURITY SCREWS TO SECURE MIRROR TO WALL THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
