HX3 Apps and Tools

The following chapter describes how you can control the HX3 device completely via the menu
panel. However, there are other, more convenient options: Use the Panel in the HX3 Manager for
operation via PC or notebook. Use TouchOSC for operation via tablet or smartphone.

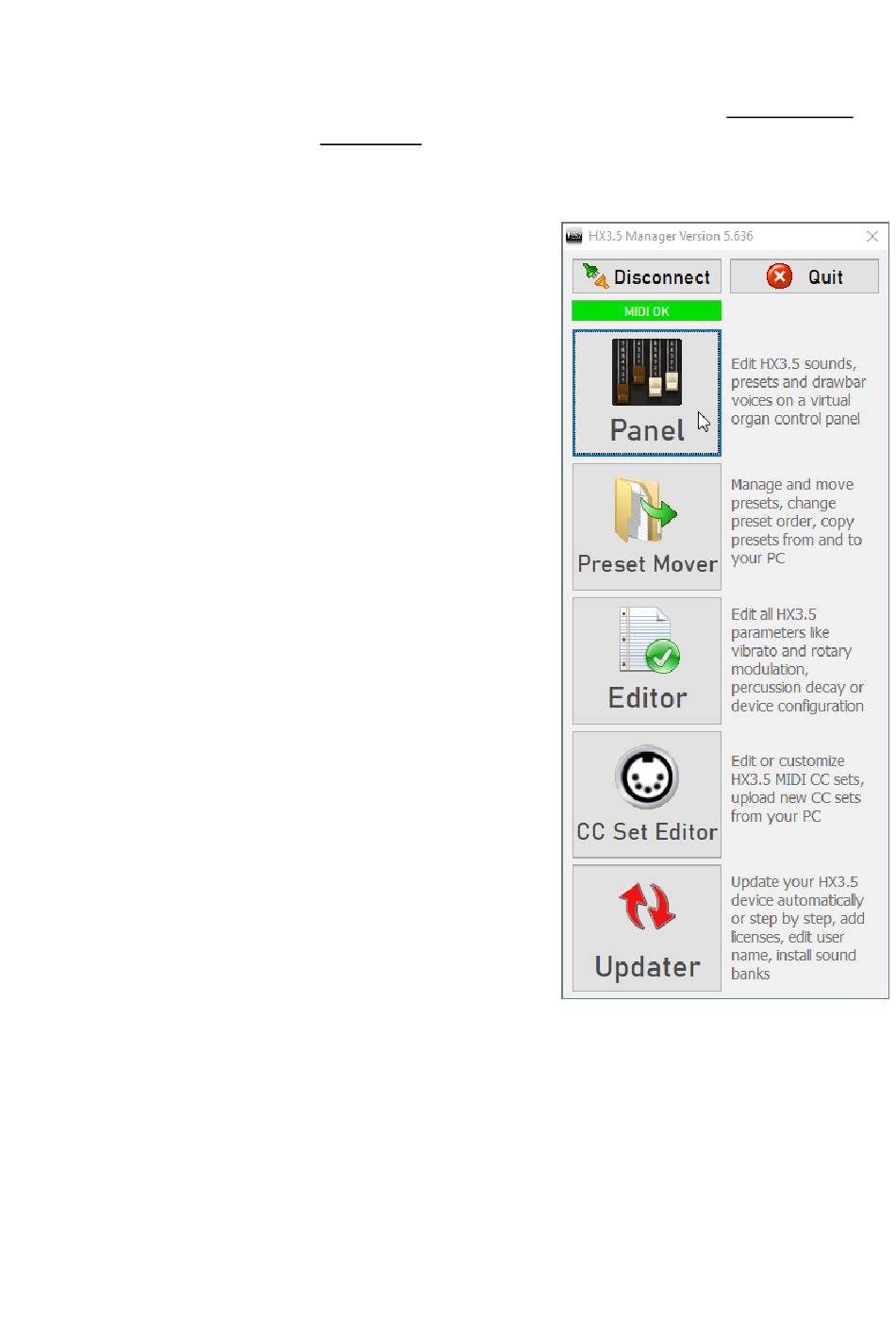

HX3 Manager

The HX3 Manager supports the use of your HX3 device
with a variety of functions:
The Panel contains switches and drawbars for your HX3
device. In the panel window you can adjust sounds and
effects, create, name and save presets. When the panel is
open, you can recall presets live using the function keys on
your PC keyboard.
The Preset Mover makes it easy to manage presets. It lets
you try out, move, and rename presets. You can transfer
presets from a file to the HX3 device or save them to a file.
The Editor lets you set up the HX3 for all conceivable
hardware configurations, gives you access to all available
parameters, and lets you fine-tune sounds and effects.
With the CC Set Editor you can edit the MIDI CC Sets of
the HX3, create CC Sets or load them from a file from your
PC. This allows you to get the most out of your keyboard
controller, even if none of the included CC Sets fit right
away.
The Updater updates the operating software of your HX3
device completely in an automatic process or individual
selected parts. Use the Updater also to activate an
Extended License or to change the username.

TouchOSC for HX3

Control your HX3 device via tablet or smartphone with the TouchOSC mk1 app from Hexler, which
you can get for a few euros in the Apple App Store or Google Play. For wireless connection of iOS
or Android mobile devices we offer a WLAN interface. iOS devices can also communicate with
TouchOSC via MIDI over USB.
8 HX3 Drawbar Expander
