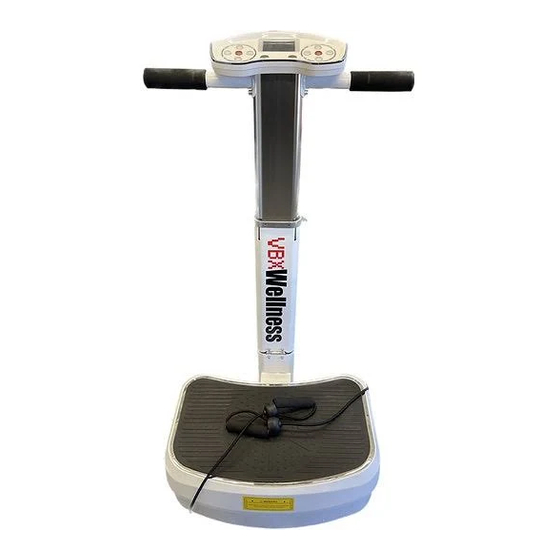

- Page 1 VBX 3500 VIBRATION EXERCISE MACHINE WWW.VBXWELLNESS.COM | VBXWELLNESS@GMAIL.COM 952.884.0326...
-
Page 2: Safety Information
Table of Contents Safety Information Specifications Machine Diagram Assembly Instructions 04-05 Control Panel Diagram Control Panel Operation 06-07 Warranty Information Quick Reference 07-08 Safety Information BEFORE USE… • Check the exercise speed before operating to ensure it’s at a safe and comfortable level for you. •... -
Page 3: Specifications
Specifications Machine Color White Machine Height 50” Machine Weight 58 lbs Max Weight Capacity 260 lbs Footprint 22” x 18” Base Height 8” Base Amplitude 10mm Frame Construction Steel Motor 2: Horizontal, Linear Motor Horsepower 1.5 HP Duty Motor Wattage 600W Vibration Speeds 60 Vibration Force 7.4 G’s Operating Frequency 1Hz-60Hz... -
Page 4: Machine Diagram
Machine Diagram 1. Control Panel 2. Panel Permanent Seat 3. Screw [M6x12] 4. Handrail 5. Screw [M6x16] 6. Extension Tube 7. Lock Catch 8. Support Tube 9. Plastic Bolt [M8] 10. Base 11. Base Feet Assembly Instructions 1. Take the machine out of the box, unfold the support tube (part #8), and lock into place with the plastic bolts (part #9). - Page 5 2. Rotate the lock catch (part #7) to loosen the extension tube (part #6). Then, pull up the extension tube and make sure that the copper bead bounces into the fixed hole. Rotate the lock catch again to make sure that the extension tube is locked at the desired height. - NOTE: There are two (2) fixed holes for different height options.
-
Page 6: Control Panel Diagram
Control Panel Diagram 1. The program button programs your workout into the machine’s memory. P1-P3 are default automatic programs, U1-U3 are user defined programs. A. Default Programs Program H Vibration Speed L Vibration Speed Time Interval 30, 26, 22, 18, 14, 10, 6, 2, 6, 10, 14, 18, 22, 26, 30, 34, 38, 42, 46, 50, 54, 58, 54, 50, 46, 42, 38, 30, 34, 38, 42, 46, 50, 54, 58, 54, 50, 46, 42, 38, 5 sec... -
Page 7: Control Panel Operation
Control Panel Operation • NOTE: After one full program run, the program will repeat automatically until the total system time is finished and then automatically stop. • NOTE: You can press the ‘START/STOP’ button anytime to stop the program. This will put the system back into manual mode. - Page 8 Be sure to give your body at least one day of rest per week. Be careful not to overdo it in the beginning; this is a common mistake. VBX Wellness is a registered brand of M&E Sales, LLP 150 W 88th St, Ste 114 952.884.0326...
