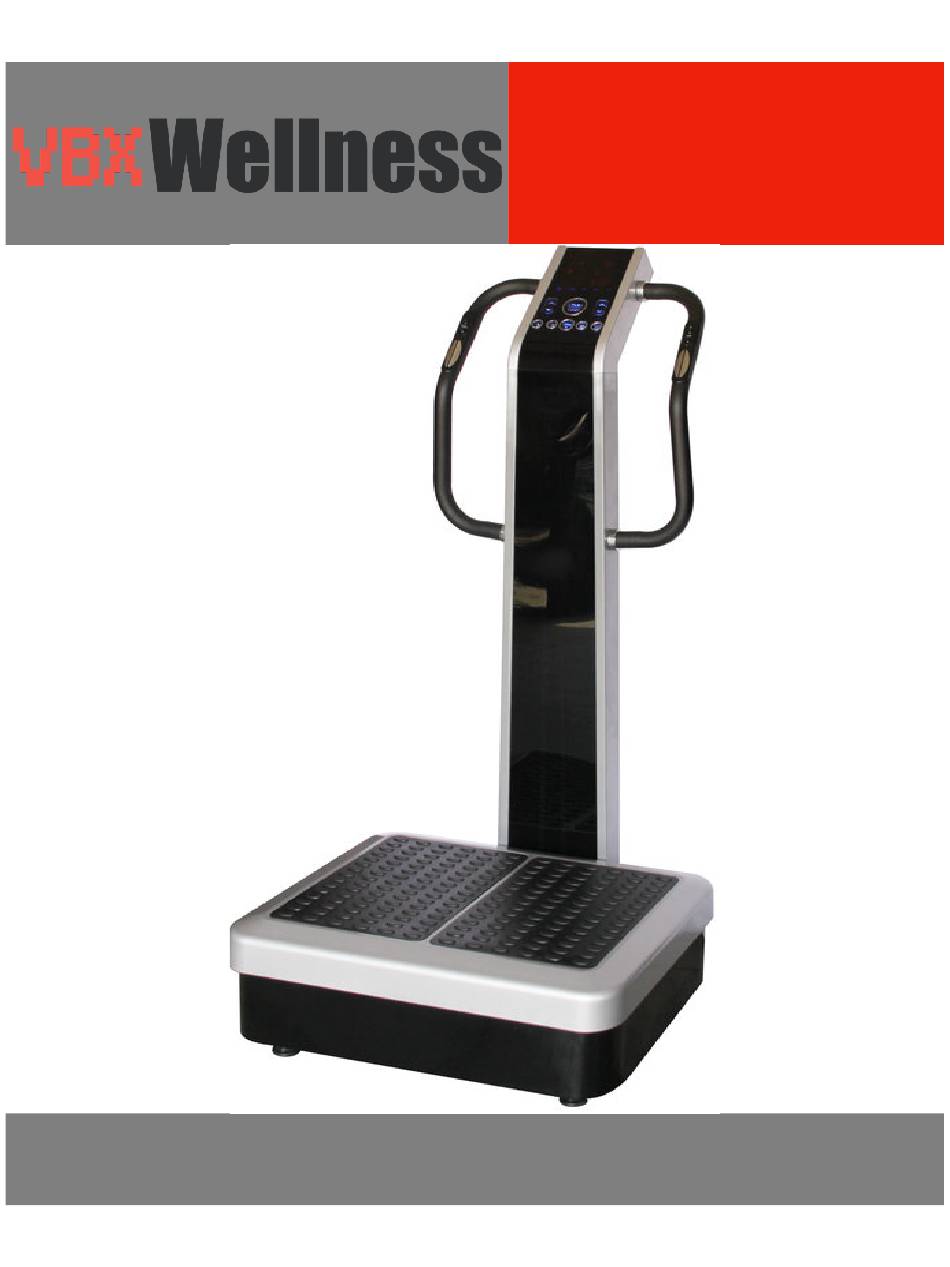

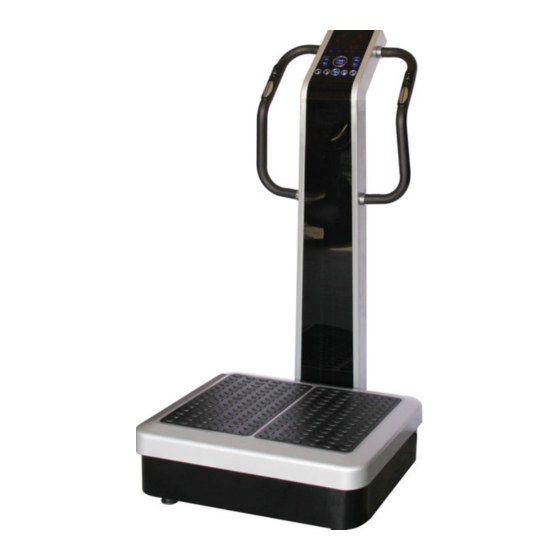

- Page 1 VBX 4000 VIBRATION EXERCISE MACHINE WWW.VBXWELLNESS.COM | VBXWELLNESS@GMAIL.COM 952.884.0326...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information 02-03 Warranty Information Machine Diagram Assembly Instructions Display Diagram Control Panel Diagram Control Panel Operation 08-09 Modes & Programs 09-10 Operating Instructions Specifications Quick Reference SAFETY INFORMATION BEFORE USE… • Check the exercise speed before operating to ensure it’s at a safe and comfortable level for you. -
Page 3: Warranty Information
• Do not reduce or use force to relocate the product, as this may cause damage to the machine. • Do not store the vibration plate near heat or open flame; in direct sunlight or high temperatures for a prolonged period of time; or in humidity. •... -
Page 4: Machine Diagram
MACHINE DIAGRAM 1. Screw (M5x8) 2. Display Board 3. Signal Line Connectors 4. Deco Cover 5. Handrail 6. Tower 7. Screw (M8x55) 8. Screw (M8x20) 9. Gaskets 10. Step Board 11. Base... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Place the base on a flat surface. • NOTE: The base is extremely heavy. We recommend two people removing it from the packaging. 2. Using the tower, connect the upper and lower signal lines. • NOTE: We recommend having one person hold the tower firmly, while the other connects the signal lines. -
Page 6: Display Diagram
DISPLAY DIAGRAM 10-1 10-2... -
Page 7: Control Panel Diagram
CONTROL PANEL DIAGRAM 11-1 11-2 10-2 10-1... -
Page 8: Control Panel Operation
CONTROL PANEL OPERATION 1. The pulse indicator light flickers when the machine detects your pulse. 2. The linear vibration time display displays the linear vibration time or displays the linear and horizontal vibration times combined. The preset time is 0-20 minutes. 3. -
Page 9: Modes & Programs
11. The horizontal vibration time/speed button will adjust the horizontal vibration time when displaying time, or the horizontal vibration speed when in manual mode. 11.1. (+) will increase horizontal vibration time/speed 11.2. (–) will decrease horizontal vibration time/speed 12. The horizontal vibration speed display displays the horizontal vibration speed, ranging from H00-H60 •... - Page 10 How To Use Modes & Programs 1. Open the reset interface by double clicking ‘BOCH-USB-DUL’ under ‘BOCH-USB’ in the USB flash drive. User’s Defined Program Running Column “L” Vibration Data “H” Vibration Data Function Button 2. You can choose U1-U6 by clicking User’s Defined Program. 3.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS 1. Insert the power plug into the power socket on the back side of the base (vibration) plate, check the voltage, and switch on. 2. Prepare for your desired posture on the vibration plate. 3. Press START to being the program. •... -
Page 12: Specifications
SPECIFICATIONS Machine Color Black Light Color Blue Machine Height 58” Machine Weight 126 lbs Max Weight Capacity 400 lbs Footprint 26” x 20” Base Height 8.5” Base Amplitude 10mm Frame Construction Steel Motor 2: Horizontal, Linear Motor Horsepower 2.0 HP Duty Motor Wattage 800W Vibration Speeds... -
Page 13: Quick Reference
Quick Reference The ‘H’ (horizontal) vibration is the triangular oscillation vibration, which is good for muscle contraction. This type of vibration is the one that gives you a workout. The ‘L’ (linear) vibration is the more subtle spiral vibration, which is more therapeutic than the ‘H’...
