INSTRUCTION MANUAL
6200
6202
Worktop Lift Baselift
6201
6203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6200 and is the answer not in the manual?

Questions and answers

Related Manuals for Granberg 6200

Summary of Contents for Granberg 6200

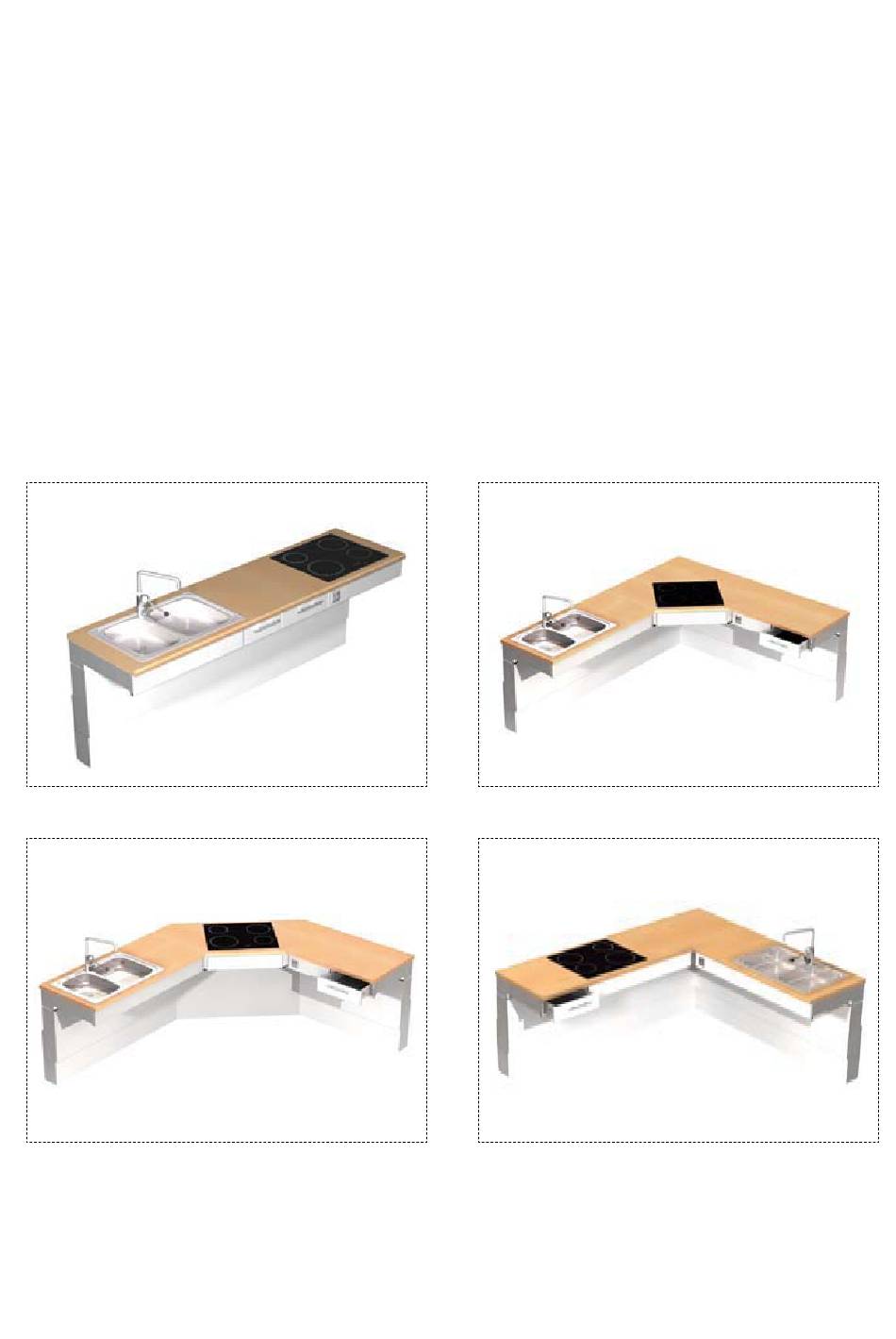

  • Page 1 Worktop Lift Baselift INSTRUCTION MANUAL 6200 6201 6202 6203...

  • Page 3: Table Of Contents

    Joist heights, location of wall socket, water and sewerage ............6 Electric connections ............................7 Water and sewerage connections ......................7 Installation of straight worktop lift, series 6200 ................8 Installation of L-shaped worktop lift, series 6201, 6202 ............... 12 Installation of L-shaped worktop lift, series 6203 ................16 Mounting of fronts ............................

  • Page 4: Introduction

    We have the pleasure to deliver a Granberg Interior Baselift, an electrically operated lifting and lowering system. The Worktop lift unit can be used separately, or together with the Granberg Wall cabinet lifts, and it becomes then a total adaptation of the kitchen.

  • Page 5: Mechanical Construction

    Mechanical construction The worktop lift comprises wall mounted motors and a frame system in aluminium. Cover plates in white melamine, fronts and top board are accessories. Drawers, buttons, hob and sink can be mounted in the frame system. The lift and lowering motion is achieved by electrically powered screw jacks which operate between the wall and the frame system.

  • Page 6: Joist Heights, Location Of Wall Socket, Water And Sewerage

    �oist heights, location of electric socket, water and sewerage �oist heights, location of electric socket, water and sewerage Laying joists in the wall, electric sockets, water- and sewerage connections shall be positioned acc. the following table. Work height: Joist / attachment Joist / attachment Free mounting Location of...

  • Page 7: Electric Connections

    Professionals must make the connection of the water and sewer pipes, to prevent water damages. It is important that the right materials are used, and that location and fixing is made properly. The use of Granberg original installation materials, and the instructions in this manual, ensures correct execution, if a competent fitter carries out the installation work.

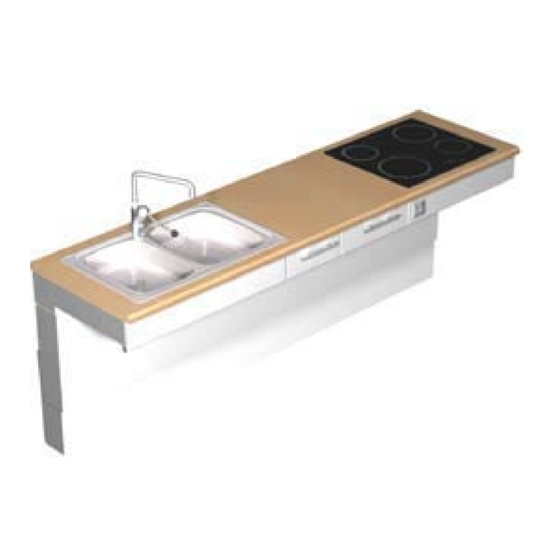

  • Page 8: Installation Of Straight Worktop Lift Series 6200

    Installation of straight worktop lift series 6200 Note! Tiles shall be mounted on the wall prior to installation of the worktop lift unit. To facilitate the side wise positioning the cabinets are installed on one side of the worktop lift unit prior to installing this.
  • Page 9 .6. Connect the motors, the security strip, push button and the electricity cable according the instructions below. Synchronise the motors: Run the lift to it’s lower position and hold the button (at least 5 sec.) until you hear a click from the control box. The synchronisation has succeed when you hear the click sound.
  • Page 10 .6. Adjust the aluminium frame in depth and side wise. Adjust the depth so it suits with the rest of the kitchen. (The depth is adjustable between 560 to 580 mm). Lock the position when the adjustment is ready. See sketch below. min 5 mm min 5 mm Tighten the screws between the motors and the aluminium frame when the adjustment is ready.
  • Page 11 .6.6 Check that the upper part of the lift is exactly horizontally levelled with a water level. To adjust: * Loosen slightly the screws from the wall to be able to adjust the motors vertically. * Screw into the wall through the round holes to fix the position of the motors. Go to page 1 to mount the accessories.

  • Page 12: Installation Of L-Shaped Worktop Lift, Series 6201, 6202

    Installation of worktop lift unit L-shaped with  corner, series 6201 & 6202. eries 6201 & 6202. 6201 & 6202. 6201 6202 Note! Tiles shall be mounted on the wall prior to installation of the worktop lift unit. To facilitate the side wise positioning the cabinets are installed on one side of the worktop lift unit prior to installing this.
  • Page 13 .. ..6 Place the frame system at the motors and tighten the Mount the control box between the motors under the aluminium screws slightly. Adjustment will be done later. bar. unless otherwise specifiedZ name date drawn dimensions are in inches tolerancesZ titleZ checked...
  • Page 14 min 5 mm min 5 mm Tighten the screws between the motors and the aluminium frame when the adjustment is ready.  screws per motor. .. Check that the upper part of the lift is exactly horizontally levelled with a water level. To adjust: * Loosen slightly the screws from the wall to be able to adjust the motors vertically.
  • Page 15 .. Mount corner support for the inner cover plate in correct height position. (Same height as the motors, see section 4.3) 6201 6202 ..10 (ONLY WORKTOP LIFT 6201) Mount the brackets to the outer cover plate in the corner. Adjust the depth position of the brackets when the cover plates are mounted. Go to page 1 to mount the accessories.

  • Page 16: Installation Of L-Shaped Worktop Lift, Series 6203

    Installation of worktop lift unit L-shaped with 0 corner, series 6203 eries 6203 6203 Note! Tiles shall be mounted on the wall prior to installation of the worktop lift unit. To facilitate the side wise positioning the cabinets are installed on one side of the worktop lift unit prior to installing this.
  • Page 17 .. ..6 Mount the control box between the motors under the Connect the motors, the security strip, push button and the aluminium bar. electricity cable according the instructions below. Synchronise the motors: Run the lift to it’s lower position and hold the button (at least 5 sec.) until you hear a click from the control box.
  • Page 18 Tighten the screws between the motors and the aluminium frame when the adjustment is ready.  screws per motor. .. Check that the upper part of the lift is exactly horizontally levelled with a water level. To adjust: * Loosen slightly the screws from the wall to be able to adjust the motors vertically. * Screw into the wall through the round holes to fix the position of the motors.

  • Page 19: Mounting Of Fronts

    Power switch can also be used in combination with buttons. Power switch must be mounted together with a damp-proof cover that is delivered from Granberg. The hole for power switch shall be 73 mm. Note that the inner part of the push button (1) shall be mounted with the text “TOP, OBEN” downwards.

  • Page 20: Mounting Of Top Board

    .11 Mounting of top board Place the top board at the worktop lift and mark where hob and sink are going to be placed. Note! Do not saw in the top board when it is placed at the aluminium frame. The worktop lift can be damaged! Fix the position of the top board in the aluminium frame by use of enclosed brackets and screws.

  • Page 21: Mounting Of Complete Sink Unit

    Granberg worktop lifts do only suit complete sinks delivered from Granberg. (These sinks are special made to suit the worktop lift) Do always contact granberg before use of a complete sink that is not delivered by Granberg. See section 4.5 for correct drain connection.

  • Page 22: Mounting Of Cover Plates

    The upper and lower cover plate has the same dimension. The thickness of the plate can be 12 - 16 mm. If cover plates are not ordered from Granberg, see dimensions according the sketch to the right. .1.1 Mounting of the lower cover plate .1.2...
  • Page 23 .1.3 Mounting of the lower cover plate if it is divided. (This is for worktop lifts wider than 2400 mm). Use the enclosed mounting brackets to fix the plates into the wall. .1. Mounting of cover plates in corner, model 6201 and 6203. Mount the angles between the cover plates.

  • Page 24: Mounting Of End Covers For Cover Plates

    .1 Mounting of end covers to cover plates, 620-06 1. Mount the lower end cover with the bending inwards See picture 1. 2. Mount the upper end cover with the bending outwards. See picture 2. Run the lift up and down all the way to respectively end position. Check that the end covers moves freely, without hindrance and jarring sounds.

  • Page 25: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using the DIAGO. DANGER - To reduce the risk of electric shock: 1. Always unplug this furnishing from the electrical outlet before cleaning. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons: 1.

  • Page 26: Safety Arrangements

    • Competent persons only must carry out installation, service and repair works. • Only Granberg original spare parts shall be used when replacing any parts. Our warranty commitment can otherwise be invalidated.

  • Page 27: Load Distribution And Side Forces

    Discuss suitable actions with your Granberg representative or with the health and safety inspection. We recommend that a Risk assessment in accordance with the Machinery Directive shall be made for the actual working con- ditions. If the owner fits accessories, contact Granberg to get approval for the loading conditions. Actions after use The Worktop lift unit shall after use be left in its current position.

  • Page 28: Cleaning

    When the Diagonal lift unit shall be re-used shall it must be cleaned, inspected and go through a full operation test before it is installed on the new site. We recommend the machine to be sent to Granberg or to the Granberg distributor to get this done. The machine is manufactured from re-usable materials or from materials that can be recycled.

  • Page 29: Warranty

    Damages caused by misuse or incorrect operation of the equipment means that the warranty would expire. Before any warranty work is commenced by a customer Granberg must be contacted for analysis and approval. We do not ac- cept to carry any warranty costs if the repair work has started without an agreement by us.

  • Page 30: Fault Finding

    (See section .16). Spare parts list If any component does not work or has broken, contact your supplier. Only Granberg original spare parts must be used when replacing any parts. Our warranty commitment may otherwise be invalidated.

  • Page 31: Electric System / Electric Circuit Diagram

    Motor Motor Input: 120 V / 60 Hz / 6 A Manufacturer: Granberg Interior AB Tel. +46-11-19 77 50 Box 6112, Fax +46-11-12 76 76 SE-600 06 NORRKÖPING, Sweden The product is verified to be in compliance with the requirements of the applicable UL and CSA standards.
