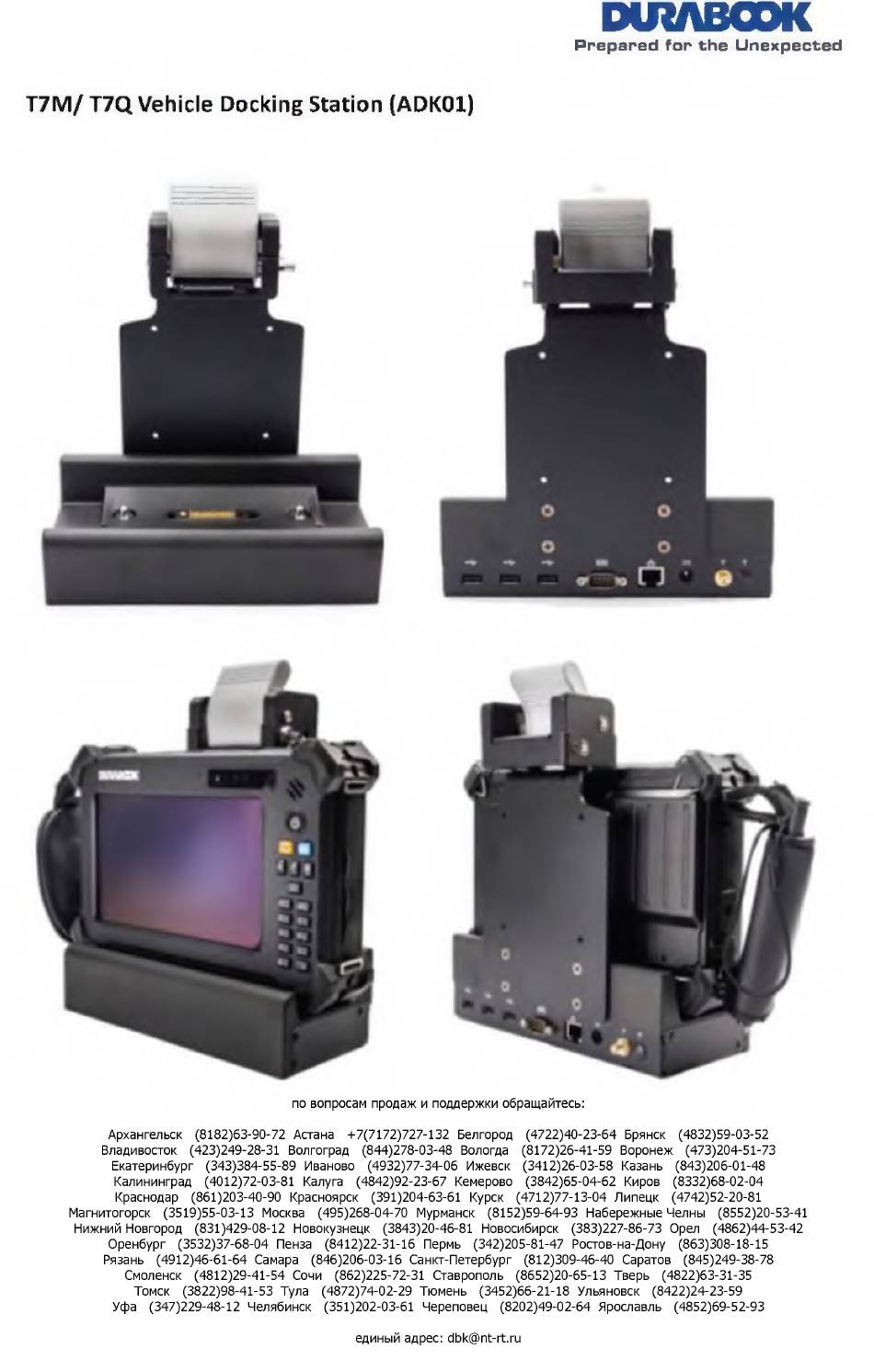

Т7М / T7Q Vehicle Docking Station (ADK01) по вопросам продаж и поддержки обращайтесь: Архангельск (8182)63-90-72 Астана +7(7172)727-132 Белгород (4722)40-23-64 Брянск (4832)59-03-52 Владивосток (423)249-28-31 Волгоград (844)278-03-48 Вологда (8172)26-41-59 Воронеж (473)204-51-73 Екатеринбург (343)384-55-89 Иваново (4932)77-34-06 Ижевск (3412)26-03-58 Казань (843)206-01-48 Калининград (4012)72-03-81 Калуга...
Page 2
Specification of Vehicle Docking for Т7М / T7Q (ADK01) • One RJ-45 jack I/O Ports • Three USB connectors support USB2.0 • One DC-in connector for car adaptor • One SM A Ext. Antenna connector for GPS • One Serial port (direct signal from the Unit) •...
Page 3
A D K 01 T durabook.nt-rt.ru Product Overview Item Latch Guide-Pins Terminal Latch bar (with key slot)(Optional) Mounting holes for VESA mount USB Ports Serial port (RS-232) LAN (RJ-45) port DC-in jack *Please contact dealer for appropriate adapter Installing VESA Mount Plate Align the plate mounting holes with the holes at the back of the docking station as shown in the illustration.
Page 4
A D K 01 T Locking the Latch (Optional) Fully push the latch bar into position to ensure То unlock, insert the latch bar key and turn it the latch is tightly secured. clockwise until a "click" is heard, indicating the latch bar is released.
