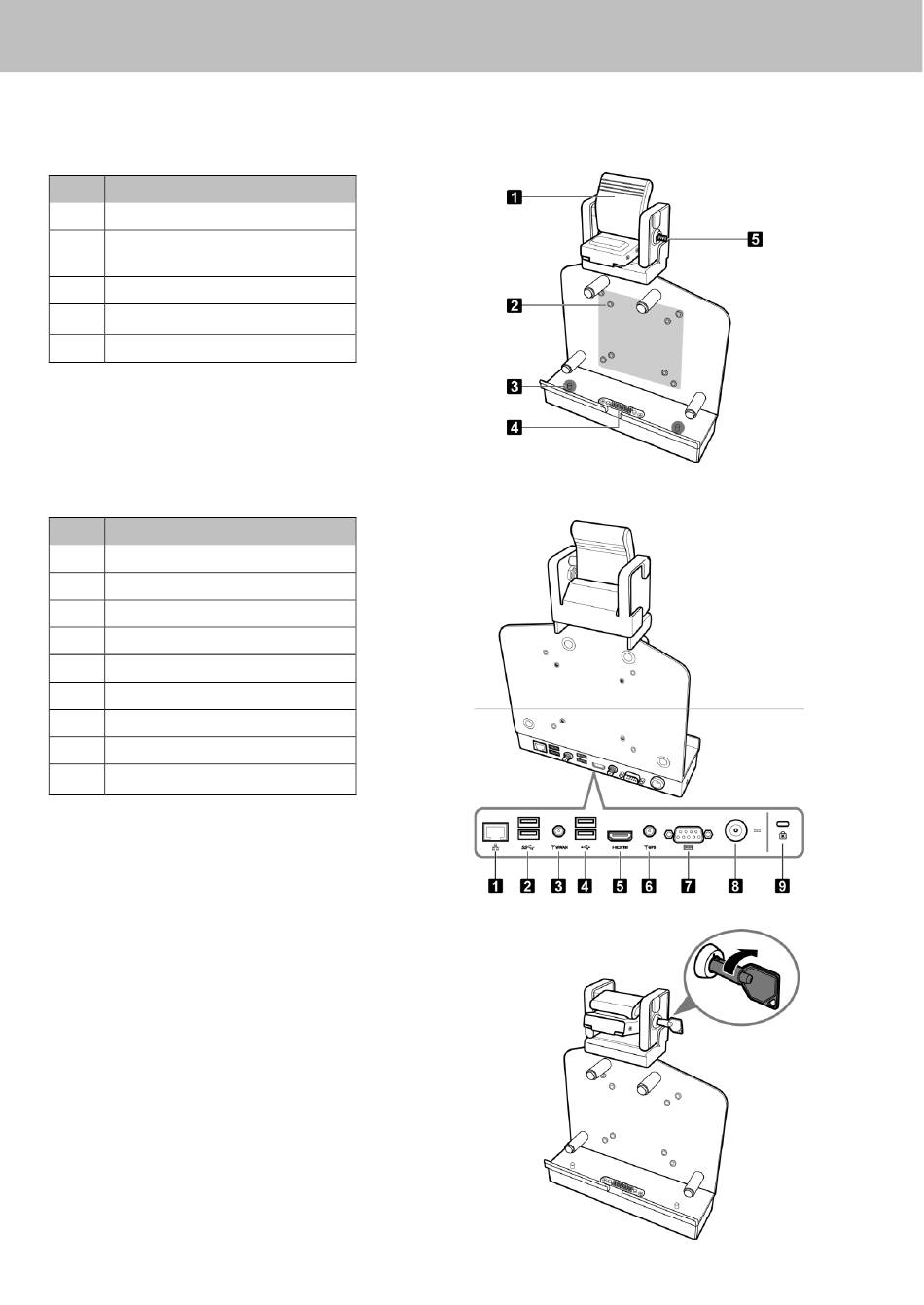

Product Overview
No.
Item
1
Latch
Mounting holes for VESA
2
mount
3
Alignment port (x2)
4
Docking connector
5
Latch bar (with key slot)
No.
Item
1
LAN (RJ-45) port
2
USB3.0 port (x2)
3
WWAN antenna port
4
USB2.0 port (x2)
5
HDMI port
6
GPS antenna port
7
Serial port (RS-232)
8
DC-in jack *
9
Kensington lock slot
*Please contact dealer for appropriate adapter.
Unlock the Latch
The latch on the docking cradle is locked during
packaging. To unlock the latch, do the following:
1.
Insert the latch bar key.
2.
Turn it clockwise until a "click" is heard, indicating
the latch bar is released.
3.
Remove the key from the key slot.
R11 Vehicle Dock
Front
Rear
Advertisement
Table of Contents
Related Manuals for Durabook ADK07
Summary of Contents for Durabook ADK07
- Page 1 R11 Vehicle Dock Product Overview Front Item Latch Mounting holes for VESA mount Alignment port (x2) Docking connector Latch bar (with key slot) Rear Item LAN (RJ-45) port USB3.0 port (x2) WWAN antenna port USB2.0 port (x2) HDMI port GPS antenna port Serial port (RS-232) DC-in jack * Kensington lock slot...
- Page 2 R11 Vehicle Dock Docking the R11 Tablet PC With screen side facing out and docking Secure the R11 tablet PC by pulling the latch connector down, insert the R11 tablet PC into forward until a “click” is heard and the latch is the alignment ports on docking cradle.
- Page 3 R11 Vehicle Dock Remove the R11 tablet PC from the docking cradle. Using the Cable Clamp Attach the cable clamp on the bottom of the cradle. Route the cable(s) through the cable clamp as illustrated. FCC Regulations This device complies with Part 15B Class B of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interface received, including interface that may cause undesired operation.
