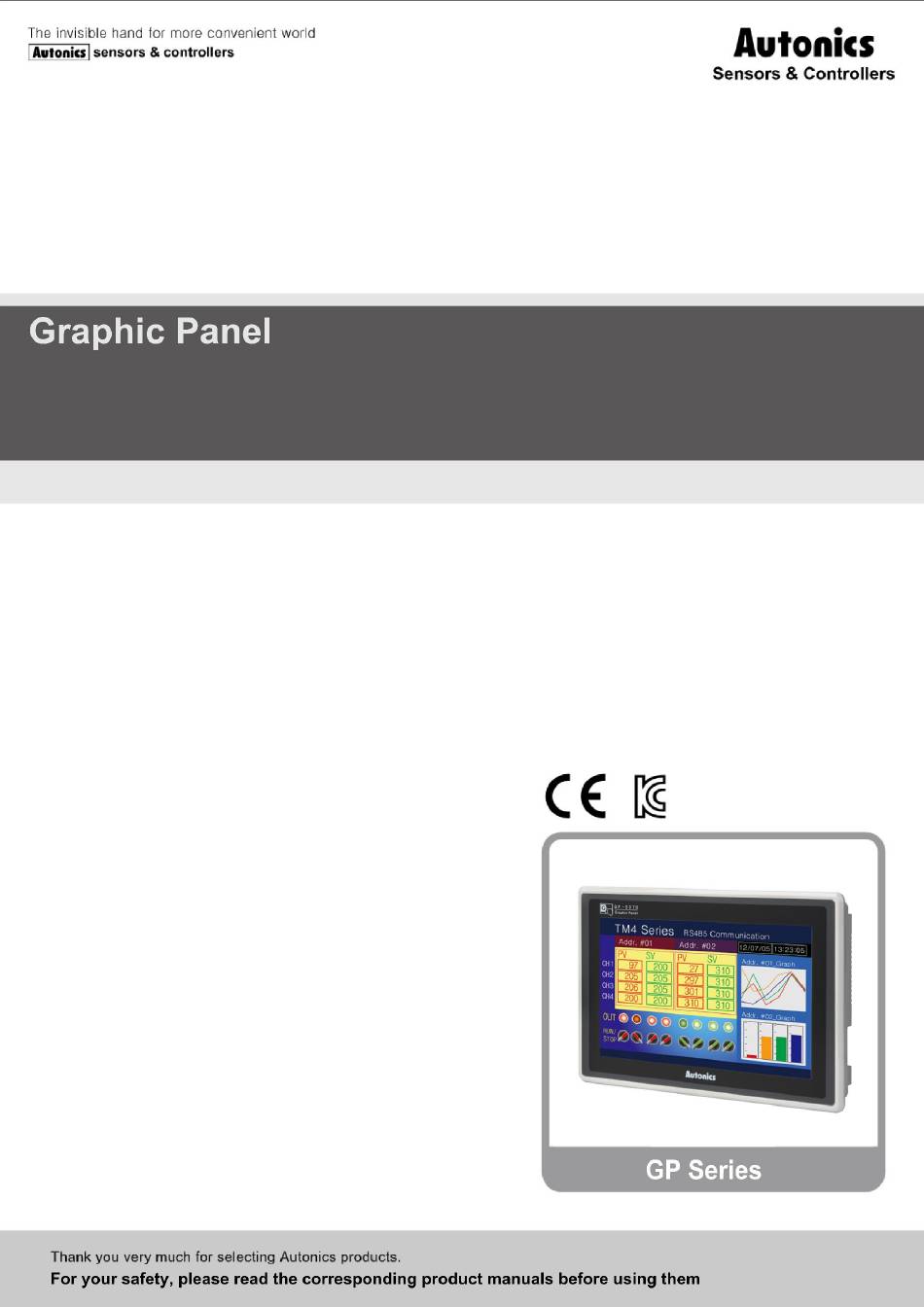

Autonics GP-XBC Solution Manual

Graphic panel

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

GP-XBC (RS232)

Solution Guide

iii

Table of Contents

Need help?

Do you have a question about the GP-XBC and is the answer not in the manual?

Questions and answers

Summary of Contents for Autonics GP-XBC

Page 3: Preface
Preface Thank you very much for selecting Autonics products. Please familiarize yourself with the information in this manual and in the product manuals before using them. This solution guide contains information about a specific architecture solution and does not replace any specific product documentation.
Page 4: Document Guide
(www.autonics.com) to download a copy.  The content of this manual may vary depending on updates of the product software and others unforeseen developments within Autonics. It is subject to change without prior notice. Upgrade notices are published through our homepage. ...
Page 5: Document Symbols
Failure to follow instructions can result in serious injury or death. Failure to follow instructions can lead to a minor injury or product damage. An example of the concerned feature's use. ※1 Annotation mark. © Copyright Reserved Autonics Co., Ltd.
Page 6: Document Version History
기술지원팀 - YCG December 17 2016 v1.0 Document creation Document revision and template update 기술지원팀 - GTE August 8 2017 v2.0 Add several sections September 18 기술지원팀 - GTE v2.0.1 Minor text updates 2017 © Copyright Reserved Autonics Co., Ltd.
Page 7: Table Of Contents
Table of Contents ....................7 Solution Overview ..................9 Solution description Solution components and version Solution architecture Communication cable pin details and dimensions (Autonics model: C3M5P11- D9F0-W4*0) GP-S070 Communication Settings ............12 GP-Editor project settings GP-S070 Ethernet communication settings for GP-Editor...
Page 9: Solution Overview
Solution Overview Solution description Autonics GP-S070-T9D6 device from the GP/LP series is a 7.0 inch LCD color touch panel with build-in serial connection through RS-422 and RS-232C ports. It is a standalone screen with custom OS and dedicated graphic editor software to create up to 500 graphic pages.
Page 10: Solution Architecture
1 Solution Overview Solution architecture Communication cable details and dimensions (Autonics model: C3M5P11-D9F0-W4*0) © Copyright Reserved Autonics Co., Ltd.
Page 12: Gp-S070 Communication Settings
In this document, we will use an Ethernet connection to download the GP-Editor project to the GP device, please refer to the ‘GP-Editor Download Manual’ if you want to use another method (serial connection or USB connection). © Copyright Reserved Autonics Co., Ltd.
Page 13: Gp-Editor Project Settings
GUI components and the XBC PLC registers. Rem: Please refer to the ‘GP-Editor User Manual’ document for procedures on graphics creation or to the example section of this document for a simple interface example. © Copyright Reserved Autonics Co., Ltd.
Page 14: Gp-S070 Ethernet Communication Settings For Gp-Editor
On the PC, go to [Control Panel] – [Network and Sharing Center] – [Local Area Connection] – [Properties], click on ‘Internet Protocol Version 4 (TCP/IPv4) and ‘Properties’. Note your IP address and default gateway to later set properly the GP address. © Copyright Reserved Autonics Co., Ltd.
Page 15 Rem: if the ‘System Setting’ menu does not appear, the default menu shorcut has been changed. Try to click on the other corners of the touch panel or refer to the ‘GP-S070 - User Manual’. Select ‘Environment’. © Copyright Reserved Autonics Co., Ltd.
Page 16 Select ‘Local Ethernet’. Set the Ethernet settings as below: Items Settings Comment IP Address 169.192.1.12 With last digit unique number on the network Station 255.255.255.0 Same that the PC Device 169.192.1.1 Same that the PC © Copyright Reserved Autonics Co., Ltd.
Page 17 2 GP-S070 Communication Settings Click on ‘CLOSE’ to validate the changes. © Copyright Reserved Autonics Co., Ltd.
Page 18: Send Gp-Editor Project To Gp-S070 Device By Ethernet
Click on ‘OK’ to validate the connection method and to go back to the download page. Then click on ‘Download’ and ‘Yes’ to start loading the project in the GP device. The project has been loaded in the GP device. © Copyright Reserved Autonics Co., Ltd.
Page 19: Gp-S070 Serial Communication Settings For Xbc Plc
Rem: if the ‘System Setting’ menu does not appear, the default menu shorcut has been changed. Try to click on the other corner of the touch panel or refer to the ‘GP-S070 - User Manual’. Select ‘Environment’. Click on ‘Serial Communication’. © Copyright Reserved Autonics Co., Ltd.
Page 20 8-bit User setting Parity bit None User setting Stop bit 1-bit User setting Flow control XON/XOFF Any value The GP-S070 is ready to be connected to the XBC PLC by its RS232C communication port. © Copyright Reserved Autonics Co., Ltd.
Page 22: Xbc Project Settings
Run XG5000 and select [Project] – [New Project] in the menu bar. Enter project name and select CPU type ‘XGB’-‘XGB-XBCH’ in the ‘New Project’ dialog box. Click ‘OK’. In the project tree, under [Network Configuration] – [Unspecified Network], double-click on the ‘NewPLC [B0S0 Internal Cnet]’ device. © Copyright Reserved Autonics Co., Ltd.
Page 23 Operation Channel 1 XGT server Mandatory mode In ‘Advanced Settings’ tab set as below, then click ‘OK’. Item Channel 1 Data bit Advanced Stop bit settings Parity bit NONE © Copyright Reserved Autonics Co., Ltd.
Page 24 XBC device by selecting [Online] – [Write], then clicking ‘OK’. Rem: Please refer to the XG5000 documentation for procedures on Ladder program creation and other method to write project to a XBC device. © Copyright Reserved Autonics Co., Ltd.
Page 26: Gui Example
4 GUI Example GUI Example Solution overview 4.1.1 GP-S070 drawing (in GP-Editor from Autonics) ① ⑤ ③ ④ ② ⑥ 4.1.2 PLC program (in XG 5000 from LS) Rem: We will not describe how to create a Ladder program under XG 5000 in this document. Please refer to the XG 5000 documentation for more information.
Page 27: Gp Editor Graphic
Select [Draw] – [Numeral Display] in the menu bar. Click ‘Device’ then set the device parameters as below. Items Settings Channel [CH2]XBC_CPU_Cnet Station XBC communication address Device Click ‘OK’ then move/resize the component as desired. © Copyright Reserved Autonics Co., Ltd.
Page 28: Numeral Input
Select [Draw] – [Numeral Input] in the menu bar. Click ‘Device’ then set the device parameters as below. Items Settings Channel [CH2]XBC_CPU_Cnet Station XBC communication address Device Click ‘OK’ then move/resize the component as desired. © Copyright Reserved Autonics Co., Ltd.
Page 29: Touch Key (Up Key)
Click on the ‘Form’ tab, then on ‘Shape…’. The graphic of the button can be selected in the image library, select for example the image ‘7 SW-013’ then click ‘OK’. Click ‘OK’, then move/resize the component as desired. © Copyright Reserved Autonics Co., Ltd.
Page 30: Touch Key (Down Key)
[CH2]XBC_CPU_Cnet Station XBC communication address Device Action Momentary Click on the ‘Form’ tab, then on ‘Shape…’. Select for example the image ‘8 SW-015’ then click ‘OK’. Click ‘OK’, then move/resize the component as desired. © Copyright Reserved Autonics Co., Ltd.
Page 31: Lamp
Click on the ‘Bit’ tab, then on ‘Shape…’. The graphic of the lamp can be selected in the image library, select for example the image ‘7 LP-013’ then click ‘OK’. Click ‘OK’, then move/resize the component as desired. © Copyright Reserved Autonics Co., Ltd.
Page 32: Touch Key (Reset Key)
Click on the ‘Form’ tab, then on ‘Shape…’. Select for example the image ‘2 SW-003’ then click ‘OK’. A Text can also be added by clicking on ‘Text…’. Click ‘OK’, then move/resize the component as desired. © Copyright Reserved Autonics Co., Ltd.
Page 35: Appendix
5.1.1 Change CH1 communication settings in GP-Editor Select [Common] - [Auxiliary Configuration] - [Project] in the menu bar. Check the ‘Applicaion of serial port, setup, menu key, configuration’ if it is not already done. © Copyright Reserved Autonics Co., Ltd.
Page 36 5 Appendix In the [Serial Port] tab, set CH1 port configuration. In the [Setup] tab, select CH1 port type and set station numbers. The other available port will be allocated to the CH2 port. © Copyright Reserved Autonics Co., Ltd.
Page 37: Change Ch1/Ch2 Communication Settings In The Gp Device
5 Appendix 5.1.2 Change CH1/CH2 communication settings in the GP device Please refer to the ‘2.4 GP-S070 communication settings’ procedure. © Copyright Reserved Autonics Co., Ltd.
Page 38: Troubleshooting
Rem: if the ‘System Setting’ menu does not appear, the default menu shorcut has been changed. Try to click on the other corners of the touch panel or refer to the ‘GP-S070 - User Manual’. Select ‘환경설정’. Click on ‘언어설정’. © Copyright Reserved Autonics Co., Ltd.
Page 39 6 Troubleshooting Click on ‘ENGLISH’ then validate the change by click ‘이전’. © Copyright Reserved Autonics Co., Ltd.
