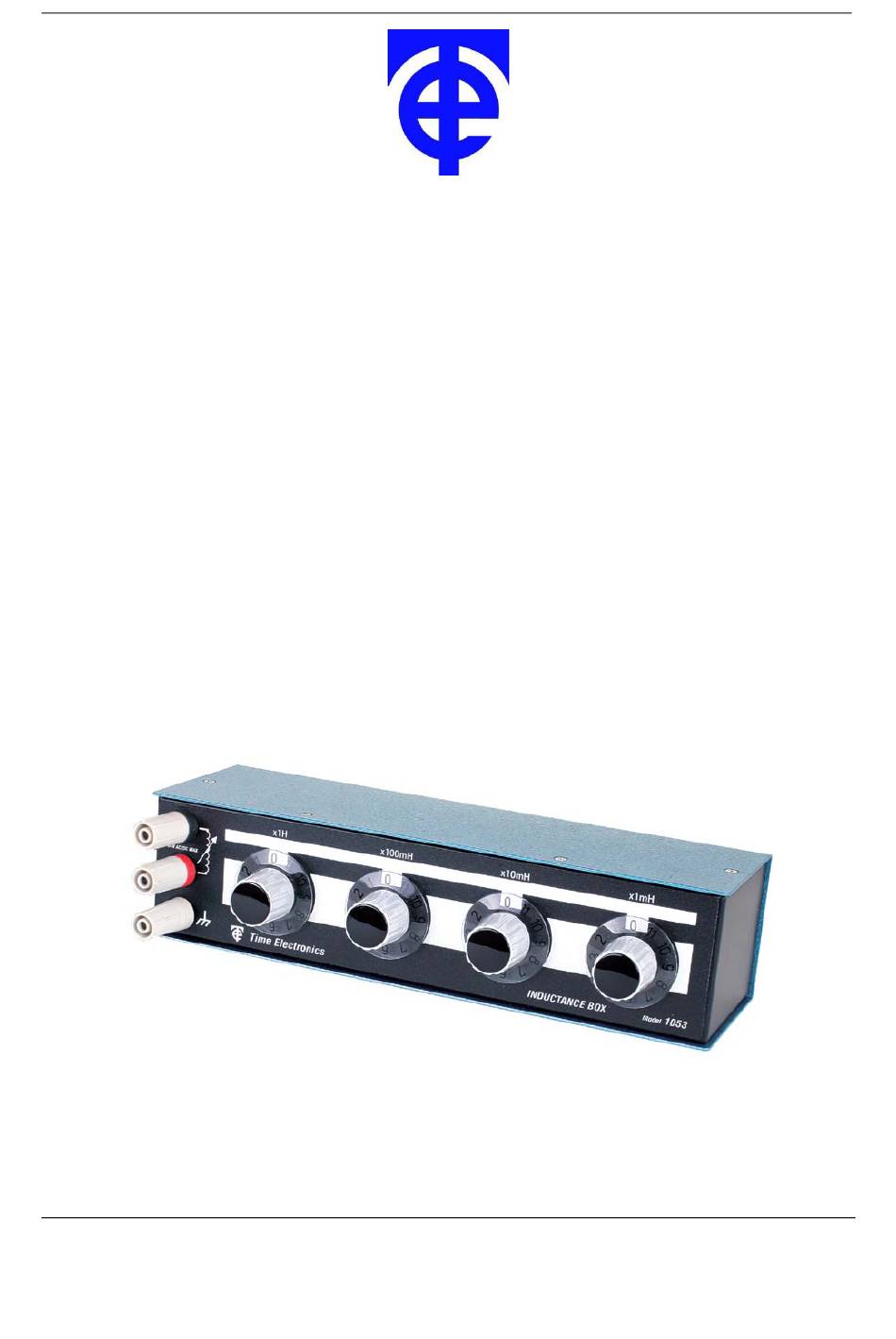

- Page 1 Time Electronics 1053 Decade Inductance Box Technical Manual V1.1 25/01/11 Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 Email: mail@TimeElectronics.co.uk Web Site: www.TimeElectronics.com...
-
Page 2: Table Of Contents
F unzionamento ....................16 G aranzia e As s is tenza T ec nic a ..............17 All Time Electronics' instruments are subject to continuous development and improvement and in consequence may incorporate minor detail changes from the information contained herein. -
Page 3: S Pec Ific Ations
24.5L x 6.2W x 10H (cm) Weight: 0.8kg Operating Temperature: -10ºC to +50ºC Operating Humidity: < 90% (- 10ºC to + 50ºC) Construction: The case is of robust metal construction finished in two-tone blue and black. V1.1 25/01/11 P a g e 1053 Technical Manual... -
Page 4: Operation Of The 1053
2. Operation of the 1053 The 1053 is a compact, robust and accurate decade inductance box suitable for filter design, experimental, substitution and D.C. converter design. Its custom wound, high permeability ferrite cores ensure insignificant influence from external magnetic fields and maximum stability. -
Page 5: G Uarantee & S Ervic Ing
We maintain comprehensive after sales facilities and the unit can, if necessary be returned to us for servicing. During this period, Time Electronics Ltd will, at its discretion, repair or replace the defective items. For servicing under guarantee, the instrument type and serial number must always be quoted, together with details of any fault and the service required. -
Page 6: Manuel Tec Hnique (F Ranc Ais )
BOÎTE D’INDUCTANCES EN DÉCADES 1053 Manuel Tec hnique (F ranc ais ) V1.1 25/01/11 P a g e 1053 Technical Manual... -
Page 7: C Arac Téris Tiques Tec Hniques
Température d’utilisation: + 10 C à +50 <90% (- 10 Humidité d’utilisation: C à +50 Construction: Le boîtier est de construction métallique robuste fini en deux tons de bleu et de noir. V1.1 25/01/11 P a g e 1053 Technical Manual... -
Page 8: F Onc Tionnement
2. F onc tionnement Le 1053 est une boîte d’inductances en décades qui convient à la conception du filtre, à la conception expérimentale et à la conception du convertisseur CC. Ses noyaux en ferrite enroulés à haute perméabilité garantissent que l’influence des champs magnétiques externes est négligeable et lui procurent une stabilité... -
Page 9: G Arantie Et E Ntretien
éventuel et de l’intervention d’entretien requise. L’acheteur de l’instrument doit payer d’avance tous les frais d’expédition. Time Electronics Ltd prendra en charge les frais de livraison de retour. -
Page 10: Tec Hnis C Hes Handbuc H (Deuts C H)
1053 INDUKTIVITÄTSDEKADE Tec hnis c hes Handbuc h (Deuts c h) V1.1 25/01/11 P a g e | 10 1053 Technical Manual... -
Page 11: S Pezifikation
Gewicht: 0.8 Kg Betriebstemperatur: - 10ºC bis + 50ºC Betriebsfeuchtigkeit: < 90% (- 10ºC bis+ 50ºC) Konstruktion: Das Gehäuse ist eine robuste Metallkonstruktion, die blau und Schwarz lackiert ist. V1.1 25/01/11 P a g e | 11 1053 Technical Manual... -
Page 12: E Infuhrung
2. E infuhrung Die 1053 ist eine kompakte, robuste und genaue Induktivitütsdekade, geeignet für Filterentwicklungen, zum Experimentieren, allgemeine Anwendungen sowie für DC - DC – Wandlerentwicklungen. Die Induktivität wird über vier leicht ablesbare Drehschalter eingestellt, die unterteilt sind in Dekadenwerte von 1 mH bis 10 H. -
Page 13: G Arantie Und S Ervic E
Senden Sie das Gerät, Transportkosten bezahlt, an : Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 E-Mail: mail@TimeElectronics.co.uk Web Site: www.TimeElectronics.co.uk V1.1 25/01/11 P a g e | 13 1053 Technical Manual... -
Page 14: Manual T Éc Nic O (Italiano)
CASSETTA DI INDUTTANZA A DECADI 1053 Manual T éc nic o (Italiano) V1.1 25/01/11 P a g e | 14 1053 Technical Manual... -
Page 15: S Pec Ific He
Temperatura di servizio: <90% (fra –10˚C a +50˚C) Umidità di servizio: Costruzione: La cassetta è in metallo robust con rifiniture a due tonalità di colore, in blu e nero. V1.1 25/01/11 P a g e | 15 1053 Technical Manual... -
Page 16: F Unzionamento
2. F unzionamento La cassetta di induttanza a decadi 1053 è compatta, robusta e precisa ed è adatta alla progettazione e costruzione di filtri e convertitori a corrente continua, come pure per altri impieghi di natura sperimentale e di sostituzione. -
Page 17: G Aranzia E As S Is Tenza T Ec Nic A
ASSISTENZA TECNICA POST-GARANZIA Al termine del periodo di validità della garanzia, Time Electronics Ltd. Sarà pur sempre in grado di offrire un eccellente servizio di assistenza tecnica. Come casa produttrice, disponiamo della conoscenza specialistica necessaria a mantenere il vostro strumento in condizioni di funzionamento perfette.
