MODULE LAYOUT

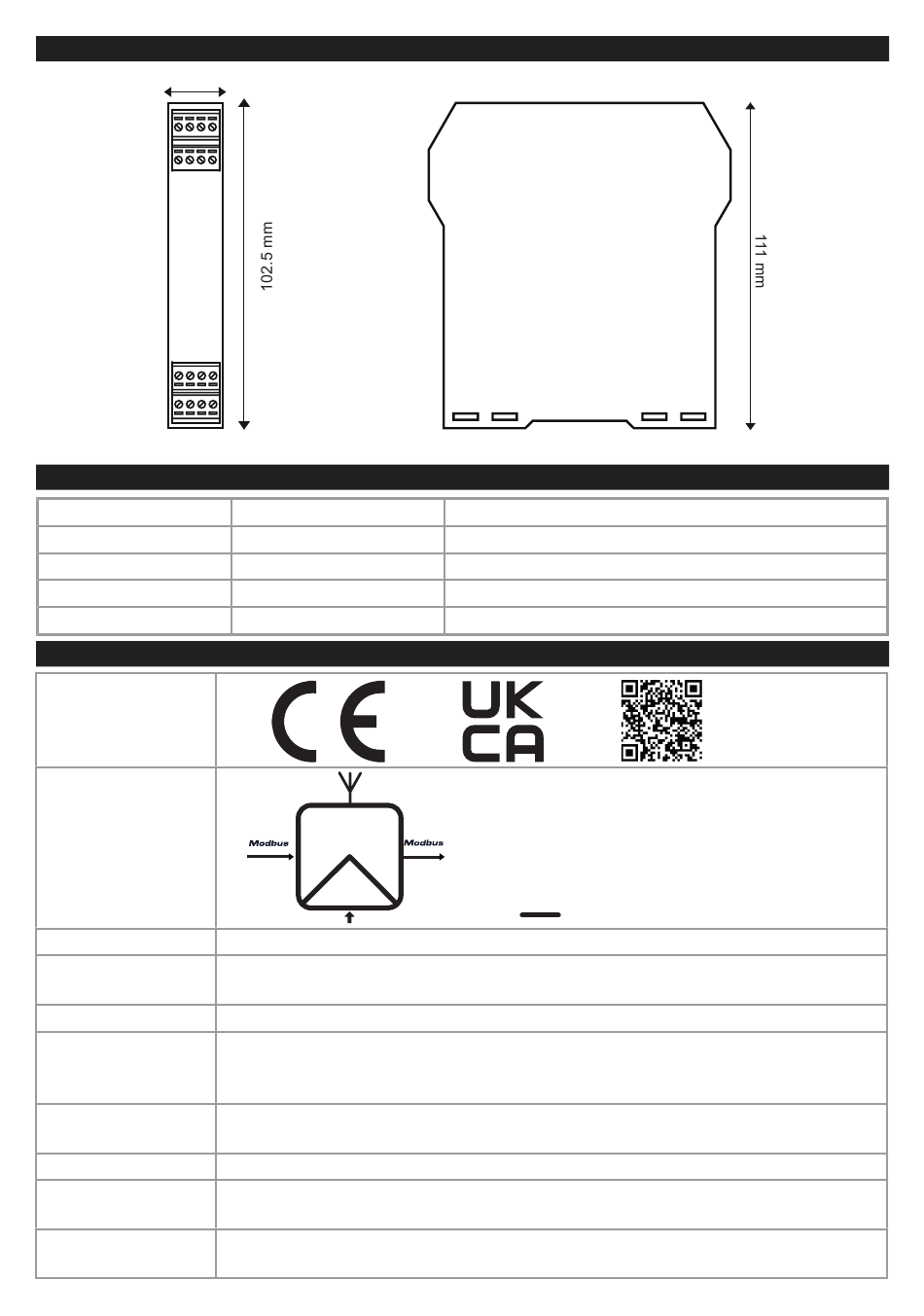

17.5 mm
Dimensions LxHxD: 17.5 x 102.5 x 111 mm; Weight: 110 g; Enclosure: PA6, black
SIGNALS VIA LED ON FRONT PANEL
LED
L1
L2
L3
L4
TECHNICAL SPECIFICATIONS
CERTIFICATIONS
INSULATION
POWER SUPPLY
ENVIRONMENTAL
CONDITIONS
ASSEMBLY
CONNECTIONS
BAND OF
FREQUENCY BAND
MODULATION
RECEIVER CATE-
GORY
RANGE OF
ANTENNAS
MI00602-1-EN
STATUS
Flashing
Flashing
----
Flashing
Communication
RS485
Input
Output
Power
Supply
Voltage: 10 ÷ 40Vdc; 19 ÷ 28Vac; 50 ÷ 60Hz; Max: 1W
Temperature: -10 ÷ +65°C; Humidity: 30% ÷ 90% non-condensing;
Storage temperature: -20÷ +85°C; Degree of protection: IP20.
IEC EN60715, 35mm DIN rail in vertical position.
3-way removable screw terminals, pitch 5mm
Rear connector IDC10 for DIN bar 46277
front microUSB
ERC 70-03, February 2023, Annex 1, h1.7 (band centre 869.525MHz)
LoRa® (CSS Modulation - Chirp Spread Spectrum)
2
450/500 m with supplied Antenna, 700/800 m with Magnetic Antenna.
INSTALLATION MANUAL
Packet transmission on the bus
Packet transmission on radio module
Module powered correctly
RS232
1500 Vac
LED meaning
Not used
