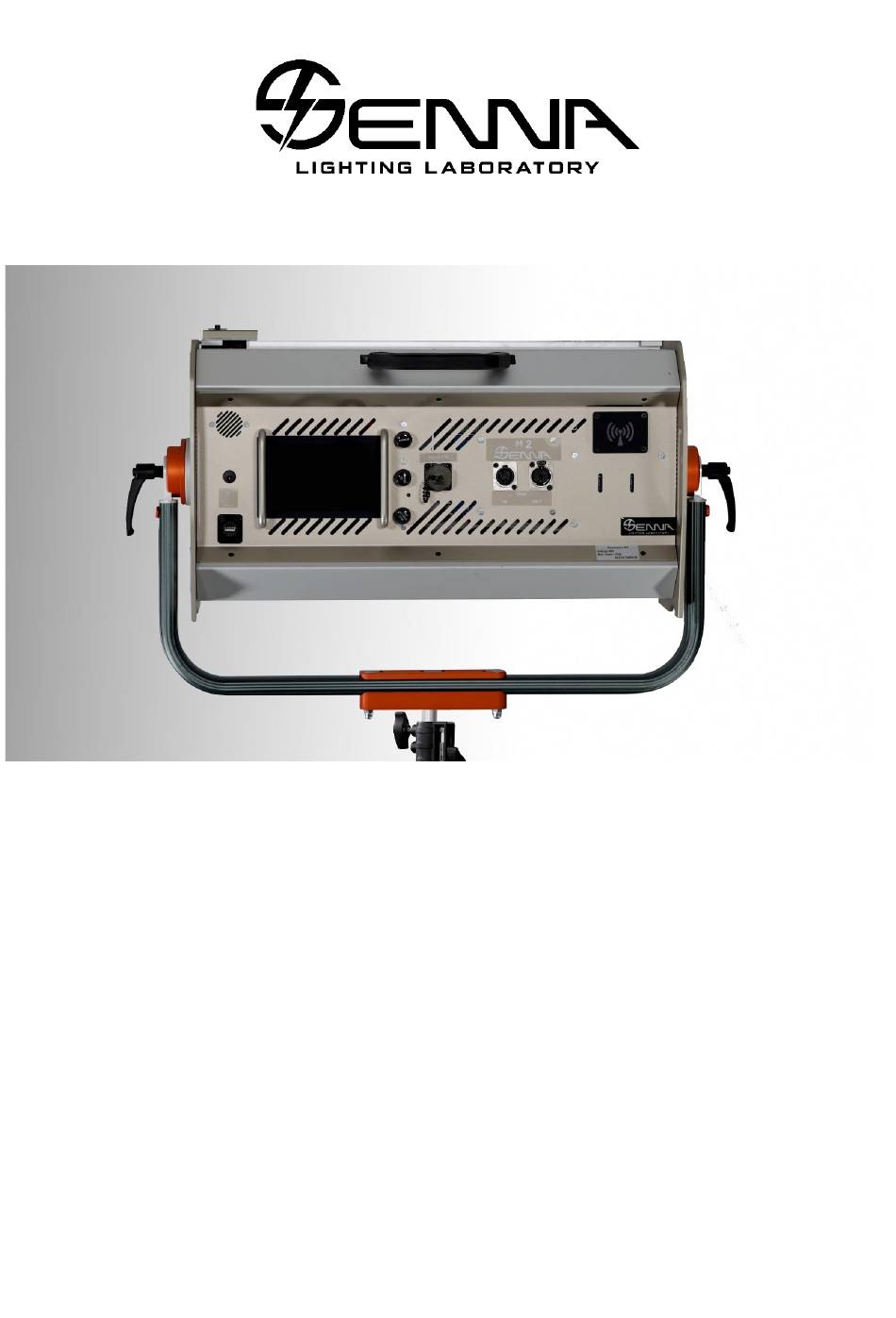

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    User Manual Contents Vital Precautions ..........................3 Introduction ............................. 4 2.1. Specifications: .......................... 4 2.2. Basic Components ........................4 Manual control of M4........................5 3.1. Getting started ........................5 The Menu ............................6 4.1. CCT ............................7 4.2. RGBWW ........................... 7 4.3.

  • Page 3: Vital Precautions

    • Always earth the fixture electrically. • Use only a genuine Senna power supply and connection cable designed for the Masterpiece. • Do not connect or disconnect the header cable when powered. The connectors can be damaged by arcing.

  • Page 4: Introduction

    User Manual 2. Introduction 2.1. Specifications: M2 - LED PANEL Parameter Value Series Masterpiece LED configuration Full RGB + W + WW Dimensions 520*300*170mm Weight 8 kg Light aperture 500 x 260 mm Voltage input 48 Vdc +/- 5% Power consumption...

  • Page 5: Manual Control Of M4

    3. Manual control of M2 M2 dashboard 3.1. Getting started 1. Connect the M2 with power supply box with the enclosed cable. 2. Turn the power supply on. Power supply display M4 display 3. The display of power supply will show voltage, current, power and energy consumption (see...

  • Page 6: The Menu

    User Manual 4. The display 1 on the M2 control board will show introduction message. The QR code on the introduction message takes you to www.senna.hr where you can find more info about M2. 5. After 10 seconds Main Menu will show on the display.

  • Page 7: Cct

    User Manual 4.1. 1. To choose CCT mode simply touch the CCT icon in the left menu in the screen. The icon will turn green. 2. There are CCT and CCT+ option for your selection. Touch the screen to choose one. The icon will turn green.

  • Page 8: Hsi

    User Manual 1. To choose RGBW mode simply touch the RGBW icon in the left menu in the screen. The icon will turn green. 2. To select a colour (Red, Green, Blue, White, Warm White) you want to adjust, simply touch the icon with a color, or use regulation knob 3 (select).

  • Page 9: Gel

    User Manual 4.4. 1. To choose Gel mode simply touch the Gel icon in the left menu in the screen. The icon will turn green. 2. There are 3 Gel groups available in this mode: 1. Lee Color correction 2. Lee Filters Color 3.

  • Page 10: Xy - This Mode Will Be Available Soon

    User Manual 4.5. XY - This mode will be available soon! 4.6. Effects 1. To choose Effect mode simply touch the Effect icon in the left menu in the screen. The icon will turn green. 2. There are 5 groups of effects available in this mode: 1.

  • Page 11: Timer

    User Manual 7. To choose Settings mode simply touch the Settings icon in the left menu in the screen. The icon will turn green. 8. Display will show these settings: Timer Sound/Light Lumen radio 4.7.1. Timer To enter timer settings simply touch its icon. Display will show 2 timers: General time –...

  • Page 12: Lumen Radio

    To go back to Settings, simply touch the Settings icon on the left. 4.7.3. Lumen Radio Lumen Radio settings enable you to UNLINK M2 from your lumen radio device. To do that, please follow the steps: 1. Enter Lumen radio settings by touching its icon. The icon will turn green.

  • Page 13: Dmx

    1. First thing you need to do is to set the range of operation, by choosing the segment(s) of M2 you want to control separately. You can do that by touching the parts in the picture (below).

  • Page 14: Cct Dmx Channels Chart

    User Manual 3. Select Dimmer mode. There are 4 dimmer modes available for your selection. 1. Linear 2. Exponent (temporary not available) 3. Logarithm (temporary not available) 4. S curve (temporary not available) You can select one of these by touching the icon or using the navigation knob 3. Selected icon will turn green.

  • Page 15: Rgbww Dmx Channels Chart

    User Manual 4.8.2. RGBW DMX Channels Chart 1 Segment Control 2 Segments Control 1. General Dim 2. Dimmer 3. RED dim. 4. GREEN dim. 1. Dimmer Seg. 1 5. BLUE dim. 2. RED dim. 6. WHITE dim. 3. GREEN dim. Seg.
  • Page 16 User Manual 4.8.4.1. GEL Groups Charts Group 1 - Lee Color Correction Gel range Gel Name Gel Number Eighth 1/8 CTO 10-14 Quarter 1/4 CTO 15-19 Half 1/2 CTO 20-24 Three quarters 3/4CTO 25-29 Full 1/1 CTO 30-34 Double 2/1 CTO 35-39 Eighth 1/8 CTB 40-44...
  • Page 17 User Manual 30-34 Evening Blue 35-39 Moss Green 40-44 Dark Yellow Green 45-49 Bright Pink 50-54 Deep Blue 55-59 Yellow 60-64 Golden Amber 65-69 Apricot 70-74 Fire 75-79 Cosmetic Peach 80-84 Industry Sodium 85-89 Sodium 90-94 Urban Sodium Group 3- Rosco Color Gel range Gel Name Gel Number...

  • Page 18: Dmx - Ultimate Mode

    User Manual 4.8.5. DMX - Ultimate mode Ultimate mode enables you to control all the modes at once with your DMX control plate. To select the Ultimate mode touch UP or DOWN button or use the navigation knob 2 until you reach Ultimate mode icon.

  • Page 19: Controlling M4 With Skybeast Console

    Snake White 5. Controlling M2 with SkyBeast console Pairing your devices To be able to control your M2 with SkyBeast console, you should first pair these two devices. • Here are the settings you need to make on your M2: 1.
  • Page 20 M2 is paired to the SkyBeast Please make sure that the number of DMX channel selected on your M2 matches the number of the selected bank on your SkyBeast console! There are 16 bank available on your SkyBeast console (each containing 30 channels) + 4 standard mode channels.

  • Page 21: Mode Selection

    User Manual 5.1. Mode selection To select a mode on your SkyBeast console please follow the steps: 1. Press and hold Mode Select button. 2. While holding Mode Select button, use 1. Channel Potentiometer to navigate through 6 available modes. Your navigation will be shown on the display.

  • Page 22: Memory Pre-Sets

    User Manual 5.2. Memory pre-sets When you have made adjustments of the modes you can store your own memory pre-sets. There are 6 memory pre-sets available for each bank. To store a pre-set please follow the steps: 1. Make all adjustments of operational modes you want as described in the previous chapter 2.

  • Page 23: Memory Loop Cycle

    User Manual To activate Auto Memory Recall please follow the steps: 1. Press the Menu button shortly. 2. First memory pre-set will light up and then each next added pre-set and they will stop at the last memory pre-set stored in session. 3.

  • Page 24: Chasing Lights

    User Manual 1. Press and hold General Master button until the LED bulb on the button turns ON. 2. Release General Master button. 3. Channel potentiometers 2-8 will go to 0 position and display will show percentage of general dimmer that has been previous set.
  • Page 25 User Manual 3. Each DMX panel will turn to the memory pre-set you have previously saved on that memory button. (For example, if you press memory button 1, all fixtures will load memory pre-set 1, and so on) 4. Fade speed between memory pre-sets can be adjusted using Fade Speed knob. 5.

  • Page 26: Warranty Letter

    User Manual 6. WARRANTY LETTER 1. The Supplier warrants that on delivery, and for a period of 24 months from the date of Delivery (warranty period), the Goods shall: a) conform in all material respects with their description and any applicable Goods Specification;...
