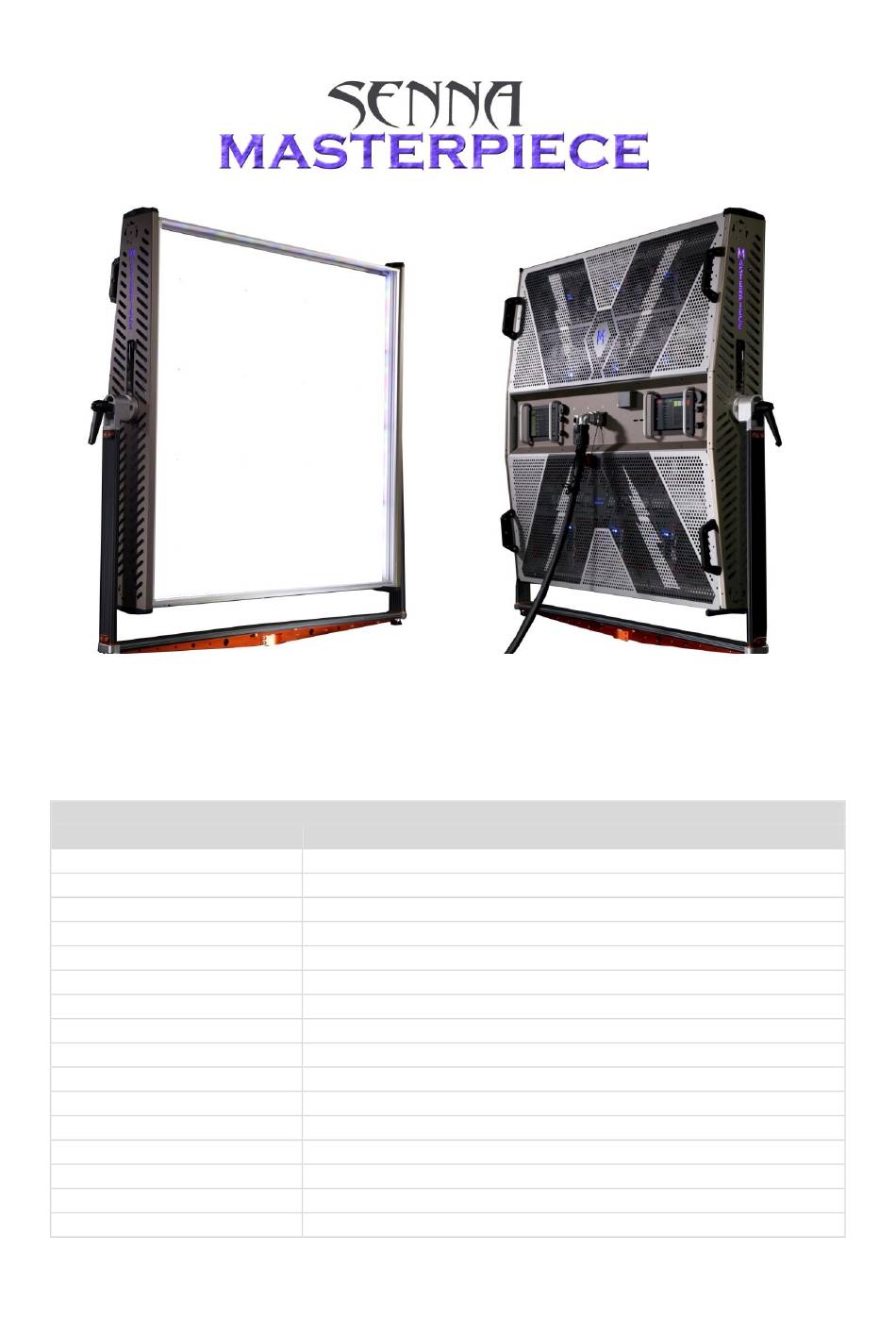

1. Introduction
1.1.
Specifications:
Parameter
Series
LED configuration
Dimensions
Weight
Light aperture
Voltage input
Power consumption
Unit power connection :
Dimming
Flicker
Color temperature
Control
Beam angle
Color rendering
IP rating
Operation temperature-
MASTERPIECE - LED PANEL
Value
Masterpiece
Full RGB + W + W
1100 x 1070 mm
34 kg
1000 x 1020 mm
48 Vdc +/- 5%
2800W maximum
WEIPU 32 series 4 pin
0% to 100% continuous
flicker free 10% to 100%
2000K – 20.000K
Full on board touch screen/wired DMX/LumenRadio CRMX wireless
60° (half peak angle), 15° with optical lens (included)
CRI average > 95
IP20
Max. power: -20°C to + 30°C; 70% power: >+30°C

Advertisement

loading
Need help?

Need help?

Do you have a question about the MASTERPIECE and is the answer not in the manual?

Questions and answers

Summary of Contents for Senna MASTERPIECE

  • Page 1 User Manuals 1. Introduction 1.1. Specifications: MASTERPIECE - LED PANEL Parameter Value Series Masterpiece LED configuration Full RGB + W + W Dimensions 1100 x 1070 mm Weight 34 kg Light aperture 1000 x 1020 mm Voltage input 48 Vdc +/- 5%...
  • Page 2 User Manuals MASTERPIECE - POWER SUPPLY Parameter Value Series PS3000 Dimension 420 x 210 x 175 mm Weight approx. 12kg Input range 100 to 240Vac, 50/60HZ, 3300VA max Output range 48 Vdc, 64A, 3000VA max Power input connection NEUTRIK power CON 16A / Schuko (EU), 2meter...
  • Page 3: Getting Started

    2.1. Masterpiece dashboard 2.2. Getting started 1. Connect the Masterpiece with power supply box with the enclosed cable. 2. Turn the power supply on. Power supply display Masterpiece display 3. The display of power supply will show voltage, current, power and energy consumption (see...
  • Page 4 User Manuals 4. The display 1 on the Masterpiece control board will show introduction message. The QR code on the introduction message takes you to www.senna.hr where you can find more info about Masterpiece. 5. After 10 seconds Main Menu will show on Masterpiece display.
  • Page 5 User Manuals 3.1. 1. To choose CCT mode simply touch the CCT icon in the left menu in the screen. The icon will turn green. 2. There are CCT and CCT+ option for your selection. Touch the screen to choose one. The icon will turn green.
  • Page 6 User Manuals 1. To choose RGBW mode simply touch the RGBW icon in the left menu in the screen. The icon will turn green. 2. To select a colour (Red, Green, Blue, White, Worm) you want to adjust, simply touch the icon with a color, or use regulation knob 3 (select).
  • Page 7 User Manuals 3.4. 1. To choose Gel mode simply touch the Gel icon in the left menu in the screen. The icon will turn green. 2. There are 3 Gel groups available in this mode: 1. Lee Color correction 2. Lee Filters Color 3.
  • Page 8 User Manuals 3.5. XY - This mode will be available soon! 3.6. Effects 1. To choose Effect mode simply touch the Effect icon in the left menu in the screen. The icon will turn green. 2. There are 5 groups of effects available in this mode: 1.
  • Page 9 Volume - If you turn the volume up, the voice will pronounce every command you select in the menu. Logo light –with this command you can adjust the intensity of Masterpiece logo light at the back side of the Masterpiece body.
  • Page 10 To go back to Settings, simply touch the Settings icon on the left. 3.7.3. Lumen Radio Lumen Radio settings enable you to UNLINK Masterpiece from your lumen radio devise. To do that, please follow the steps: 1. Enter Lumen radio settings by touching its icon. The icon will turn green.
  • Page 11 1. First thing you need to do is to set the range of operation, by choosing the segment(s) of Masterpiece you want to control separately. You can do that by touching the parts in the picture (below). Selected segment will turn white:...
  • Page 12 User Manuals 3. Select Dimmer mode. There are 4 dimmer modes available for your selection. 1. Linear 2. Exponent (temporary not available) 3. Logarithm (temporary not available) 4. S curve (temporary not available) You can select one of these by touching the icon or using the navigation knob 3. Selected icon will turn green.
  • Page 13 User Manuals 16 Segments Control 17. Dimmer 1. General Dimmer 34. Green/Magenta point 18. Color temperature 2. Dimmer 35. Dimmer 19. Green/Magenta point 3. Color temperature 36. Color temperature 20. Dimmer 4. Green/Magenta point 37. Green/Magenta point 21. Color temperature 5.
  • Page 14 User Manuals 16 Segments Control 73. WORM dimmer 1. General dimmer 25. WORM Dimmer 49. WORM Dimmer 74. Dimmer 2. Dimmer 26. Dimmer 50. Dimmer 75. RED dimmer 3. RED dimmer 27. RED dimmer 51. RED dimmer 76. GREEN dimmer 4.
  • Page 15 User Manuals 16 Segments Control 17. Dimmer 1. General Dimmer 34. Saturation 18. Hue 2. Dimmer 35. Dimmer 19. Saturation 3. Hue 36. Hue 20. Dimmer 4. Saturation 37. Saturation 21. Hue 5. Dimmer 38. Dimmer 22. Saturation 6. Hue 39.
  • Page 16 User Manuals 50-54 Three quarters 3/4 CTB 55-59 Full 1/1 CTB 60-64 Double 2/1 CTB 65-69 Plus Green 1/8 70-74 Plus Green 1/4 75-79 Plus Green 1/2 80-84 Plus Green 1/1 85-89 Minus Green 1/8 90-94 Minus Green 1/4 95-99 Minus Green 1/2 100-104 Minus Green 1/1...
  • Page 17 User Manuals Group 3- Rosco Color Gel range Gel Name Gel Number 30 Magenta 4730 10-14 60 Magenta 4760 15-19 90 Magenta 4790 20-24 15 Cyan 4315 25-29 30 Cyan 4330 30-34 60 Cyan 4360 35-39 90 Cyan 4390 40-44 30 Green 4430 45-49...
  • Page 18: Pairing Your Devices

    7. Channel 4. Controlling Masterpiece with SkyBeast console 4.1. Pairing your devices To be able to control your Masterpiece with SkyBeast console, you should first pair these two devices.  Here are the settings you need to make on your Masterpiece: 1.
  • Page 19 Menu once again  Use General Master and Mode Select (+)buttons to navigate the menu until your reach command Masterpiece by Senna  Press Menu button shortly to confirm selection  Display will show Masterpiece selected  When display shows DMX channels...
  • Page 20: Mode Selection

    Masterpiece is paired to the SkyBeast Please make sure that the number of DMX channel selected on your Masterpiece matches the number of the selected bank on your SkyBeast console! There are 16 bank available on your SkyBeast console (each containing 30 channels) + 4 standard mode channels.
  • Page 21: Memory Pre-Sets

    User Manuals Channel potentiometer 4 – Saturation Channel potentiometer 1 – Volume Channel potentiometer 2 – RED 3. RGBW Channel potentiometer 3 – GREEN Channel potentiometer 4 – BLUE Channel potentiometer 5 – WHITE Channel potentiometer 6 – WORM  LEE: Channel potentiometer 1 –...
  • Page 22 User Manuals *If you change the bank and select another DMX fixture, stored pre-sets will not be deleted. You will be able to recall them when you return to the bank. 4.4. Auto Memory recall After you have stored the desired light pre-sets, you can set the automatic memory recall of the session of pre-sets.
  • Page 23 User Manuals 4.6. General Master Settings General Master Settings affect all DMX fixtures you have connected to SkyBeast console at once. This option enables you to:  Change volume of all DMX fixtures at the same time  Turn Stobe on all DMX fixtures ...
  • Page 24 User Manuals 4. Press Mode Select button shortly. All panels will turn off. 6. Press Mode Select button shortly once again. 7. Chasing lights is active. To adjust the speed of Chasing lights, use the Strobe/Chasing Speed knob. To set direction of Chasing lights (clockwise/counter-clockwise) use Potentiometer 2. To activate loop of Chasing lights (on/off) use Potentiometer 3.
