- Page 1 LightStation by SENNA User Manual...
-
Page 2: Specifications

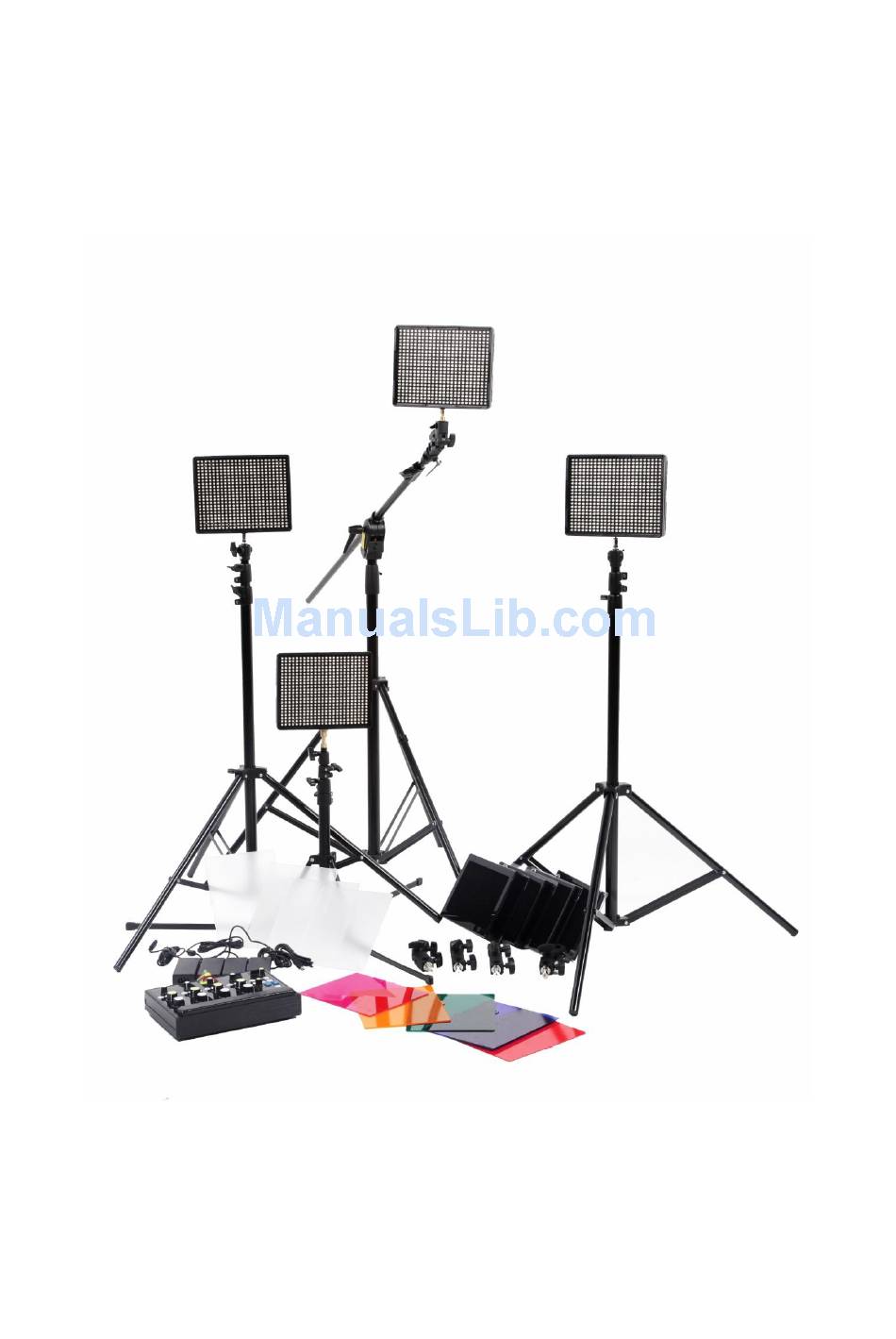

1. Introduction LightStation is a system of LED panels and the wireless control plate which enables you to set and store different light presets and scenes which can be recalled at any point. The settings include dimmer and temperature regulation. - Page 3 1.3 Components: Control plate 8 batteries 4 LED Panels with diffusors 1 x stand 0,5m-2,1m 1 x boom stand 2 x stand 1m-2,6m 4 x honeycomb grids (7°, 15°, 20°, 45°) 1 x four-stand bag 6 x color filters 1x Holder with ball heads (if ordered) 2 x filter/grid rails 4 x joint adapter 5 x Power adapter...
-
Page 4: Part Diagram
Part diagram 2.1 Control plate diagram 2.2 Led panel diagram... -
Page 5: Mounting The System
Using the joint adapter you can adjust the angel of panel: 3.2 Mounting the grids LightStation systems includes 4 different honeycomb grids (7°, 15°, 20°, 45°) To mount the grids on the panels, simply insert the grids into the slot on the panels as shown in the picture. -
Page 6: Getting Started
4. Turn the power switch of the control plate on. 5. The control plate will start establishing wireless connection with panels and the lights will flash on all buttons. 6. When the lights on buttons turn off, wireless connection is established and your LightStation system is ready for use. - Page 7 4.2. Using more than one panel per channel Basic LightStation set includes 4 LED panel. However, LightStation is a modular system, meaning that it can control as many panels as you like, and if you need more light, you can extend your configuration with more panels whenever you like.
-
Page 8: Advanced Settings
. Dimmer and temperature regulation Now that the address of the panels are set, you can easily regulate dimmer and color temperature of each panel remotely using dimmer regulation knobs on the control plate. Any change you make with be shown on display –... -
Page 9: Menu Options
IMPORTANT: Start pressing the memory buttons right after you have pressed Menu, otherwise you will enter the Menu. To activate Auto scene recall press the Menu button shortly. The panels will turn to the first stored light scene, and then to each next added scene and they will stop at the last scene stored in session. -
Page 10: Change Channel
The options of the menu are: 1. Change channel 2. Change bank 3. Change settings (available for customised orders) 4. Console settings 5. Change DMX (available for customised orders) 6. Exit menu 7. Choose effects 6.1. Change channel: In order to be able to change the channel of the panel/s, control plate and the panel/s must be set on the same bank. - Page 11 6.2. Change bank This option refers to the bank of the panel/s. You can use control plate to easily change the bank of the panels. This is the procedure: 1. The control plate must be set on the same bank as the panel/s you want to effect on.
- Page 12 6.3. Console settings With console settings you can change display backlight intensity or the color of control plate light: 1. RGB LED color: 13. Press the hold Menu button for a few seconds to enter the Menu. 14. Use Stobe/Running buttons to find the option “Console settings”...
- Page 13 6. The panel is now unlinked from the system and it can be controlled manually. If you want to return the Panel to remote control, just turn it off and on again, and it will be a part of LightStation system again.
- Page 14 9. Batteries LightStation system (control plate and panels) run on 7.4v rechargeable batteries. The batteries capacity of the system is 2 working hour. 9.1. Checking the state of batteries: To check the state of the control plate battery please check the voltage indicator display.
- Page 15 Power adapter inputs...
