cypress solutions CTM-500 Quick Start Manual

cypress solutions CTM-500 Quick Start Manual

Wireless gateway
Hide thumbs Also See for CTM-500:

Advertisement

Quick Links

1. Connect the hardware
Insert the SIM card(s)
2
into the slot and close
SIM door.
Refer to manual for instructions on
the SIM insertion process.
3
Connect the power cable to
turn on the modem.
• DC power supply
• Power over Ethernet
• Vehicle ECU (OBDII/J1939)
1
Connect the antennas.
SIM card requirement:
2FF style | up to 2 SIMs
2. Verify the connection
Check the following key LED light statuses for a solid color. If the "Connection" LED is on with a solid RED, your
CTM-500 is connected to the Internet successfully.
CONNECTION
Solid
BLUE
Solid
GREEN
Detailed LED status information is available in the CTM-500 manual here.
Quick Start Guide

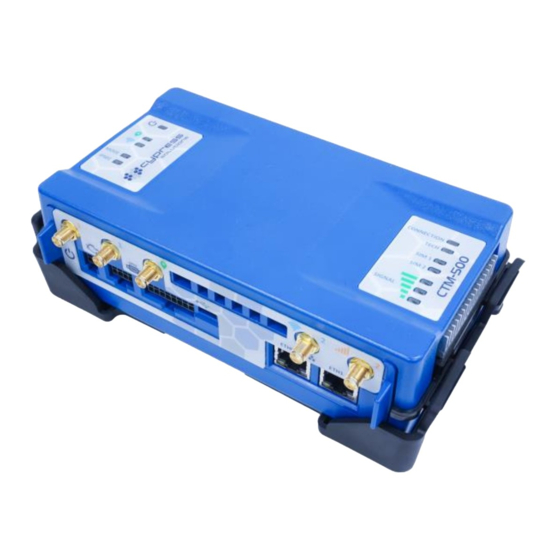

CTM-500 Wireless Gateway
SIM
Solid
RED
Solid
GREEN
Solid/Flashing
GREEN
