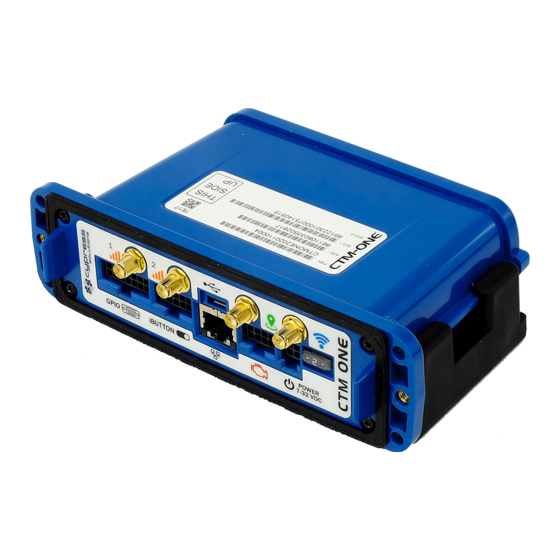

- Page 1 SIM CARD INSTALLATION Model CTM-ONE Revision Rev B Sim Card Installation Guide: CTM-ONE 3066 Beta Avenue | Burnaby, B.C. | V5G 4K4 © 2021 Cypress Solutions...
- Page 2 Revision Control Revision Control Description Revision Date Initial version Rev A 2018-01-04 Reformatted version Rev B 2021-09-07 © 2021 Cypress Solutions CTM-ONE Sim Card Installation Guide Rev B...
- Page 3 Inserting a SIM Card Step by Step .......................... 3 Step 1 - Remove Cover ..........................3 Step 2 - Insert SIM Card(s) ........................4 Step 3 - Reassemble Cover ........................5 © 2021 Cypress Solutions CTM-ONE Sim Card Installation Guide Rev B...
- Page 4 4 socket head cap screws using a 3/32” Allen key (supplied). After completely loosening the 4 screws lift off the cover. You may have to wiggle the cover to completely disengage it from the chassis. © 2021 Cypress Solutions CTM-ONE Sim Card Installation Guide Rev B...
- Page 5 Ensure that the copper contacts are facing downward (chamfered corner to the front right). If applicable, the second SIM card can be inserted into the lower slot of the dual-SIM holder. © 2021 Cypress Solutions CTM-ONE Sim Card Installation Guide Rev B...
- Page 6 Ensure that the gasket is in place when the Battery cover is reinstalled. Tighten screws in a crisscross pattern until snug for optimal weather tight seal. You have now completed the SIM card(s) installation. © 2021 Cypress Solutions CTM-ONE Sim Card Installation Guide Rev B...
