Venterior VT-FF001 Operation Manual

Venterior VT-FF001 Operation Manual

Portable fish finder

Advertisement

OPERATION MANUAL

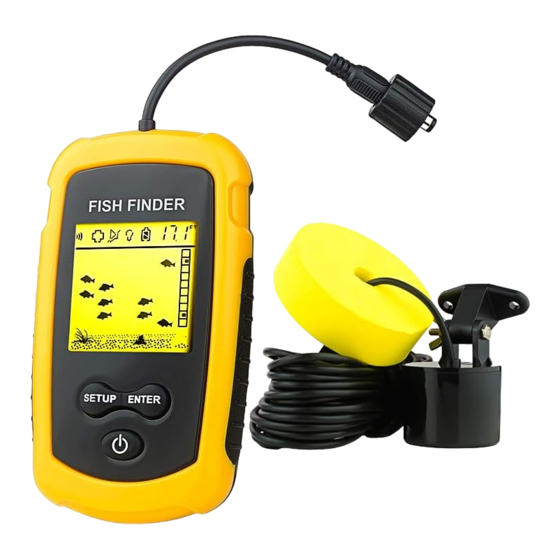

Venterior VT-FF001 Portable Fish Finder
Model Number: VT-FF001
Brand Name: Venterior
Country of origin: China
Read this manual completely before attempting to use
this
product.
Visit
our
website
or
write
to
customerservice@venterior.com for further assistance
and technical support.
FCC Warning Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including
interference
that
may
cause
undesired
operation.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-FF001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Venterior VT-FF001

  • Page 1 OPERATION MANUAL Venterior VT-FF001 Portable Fish Finder Model Number: VT-FF001 Brand Name: Venterior Country of origin: China Read this manual completely before attempting to use this product. Visit website write customerservice@venterior.com for further assistance and technical support. FCC Warning Statement This device complies with Part 15 of the FCC Rules.
  • Page 2: Fish Finder Display

    Package Includes :  Fish Finder Display  Sonar Sensor (Transducer) with 25ft cable  Removable Transducer Float with Rubber Stopper  Transducer Side-Scan Adapter  Stainless Bolt and Wing Nut  Neck Strap  Operation Manual Important: 1.The fish finder uses 4 x AAA batteries(not included). 2.
  • Page 3: Feature Setup

    8. Fish Location Indicator 9. Bottom Contour Indicator/Rock Indicator 10. Weed Indicator TURNING ON/OFF AND SIMULATION MODE 1. To turn the Power On, press the POWER Key. 2. To turn the Power Off, Press and Hold the POWER Key for 3 seconds. 3.
  • Page 4 SENSITIVITY There are 5 user selectable sensitivity settings to choose from. It greatly depends on the clarity and depth of the water. Very clear water allows for a moderate sensitivity setting. Conversely, dirty water requires a higher sensitivity setting to target detail but will increase the irritating false readings.
  • Page 5: Fish Alarm

    battery life, so it’s suggested to only turn it on during low light conditions. When the backlight feature is set to OFF, the backlight will only illuminate for 3 seconds whenever a key is pressed. FISH ALARM An alarm sounds when a group of fish are detected. The alarm feature could be turn off if you prefer quiet fishing.
  • Page 6 depth readout will indicate “---”. The reading “---” may also occur in water that is extremely dirty, or where there are heavy silt or mud bottoms. Sonar is a sound signal that travels through water. Sonar will not travel through air. So the smallest air bubble between the sonar sensor and the water will cause the unit to operate incorrectly.
  • Page 7 indicator A. B. Moderately tall weeds are depicted by turning on the indicator B. C. Tall weeds are depicted by turning on the indicator C. Rock Indicator A. Sandy or muddy with no rock, debris or contour. B. Moderately pile of rocks, or uneven bottom contour. C.
  • Page 8 Note: In calm water, the sonar sensor can be set at a level which will provide the maximum amount of sonar coverage. In rough water, the sonar sensor may need to be lowered into the water further to provide stabilized readings. USING THE FISH FINDER WITH FLOAT 1.
  • Page 9: Fishing From A Boat

    FISHING FROM A BOAT There are 3 methods that the fish finder can be used from a boat: 1. Toss the sensor and float into the water as per the previous instructions. 2. Attach the Side-Scan Adapter to the boat hull using the mounting tabs.
  • Page 10 to the ice. 3. If there are any air between the sonar sensor and ice, or the water below the ice, the unit will not work properly and will require you to try another spot, or cut a hole in the ice to use.
  • Page 11 Product Specification Display: TN/ANTI-UV LCD Backlighting: Green LED Power: 4-AAA batteries Measure unit: Meters/Feet Sensor beam angle: 45 degrees Depth range Max: 328feet/ 100meters Depth range Min: 2feet/ 0.6meters Operational 14 to 113 f(-10 to temperature: -45℃) It shows fish/ It’s not working in my pool The fish finder will NOT function properly in a bath tub, swimming pool, bucket, or any body of water that has hard sides.
  • Page 12 Adjusting the sensitivity setting to the lowest level may reduce these false readings, but if they do not go away, it is suggested that you discontinue use of the fish finder under these conditions. Contact us: Website: www.venterior.com Email: customerservice@venterior.com...
