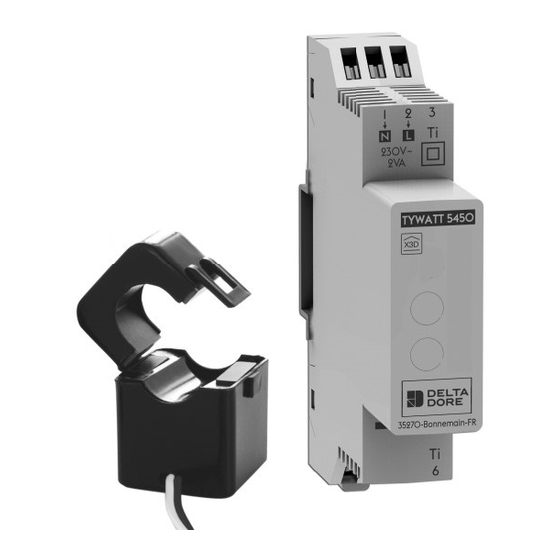

Smart modular power consumption sensor
Hide thumbs Also See for Tywatt 5450:

Advertisement

Quick Links

Tywatt 5450
Smart modular power
EN
consumption sensor

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tywatt 5450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DELTA DORE Tywatt 5450

  • Page 1 Tywatt 5450 Smart modular power consumption sensor...
  • Page 2 1 - Recommendations 2 - Connection Switch off the installation power supply 2.1 Connection instructions max. for the terminals Ø 0,75 - 1,5 mm - Strip the wires while respecting 8 mm the strip length specified on the product. - Device intended for single-phase installations. - Mounted on a DIN rail in the electrical cabinet.
  • Page 3 - Connect the blue wire of the Ti to terminal 3 and the white wire to the terminal 6 of the Tywatt. Connection of the primary: 230V~ - Open the TYWATT 5450 current transformer casing. click Heating - Insert the substation’s...
  • Page 4 - Settings > My home > My devices > Settings > My home > My devices > Add a device Consumption > then select the Tywatt to which > Consumption > Tywatt 5450 > then follow the the EM.IC is paired. on-screen instructions.
  • Page 5: Technical Specifications

    Technical specifications Modular unit - Power supply: 230 V~ 2 VA - Class II insulation - Type 1 action - Rated impulse withstand voltage: 4000 V - Ball test temperature: Housing : 75°C Terminal block: 100°C - Storage temperature: -10°C / +70°C - Operating temperature: 0°C / +55°C - IP 30 - Dimensions: 1 module - 18 x 90 x 71 mm...
