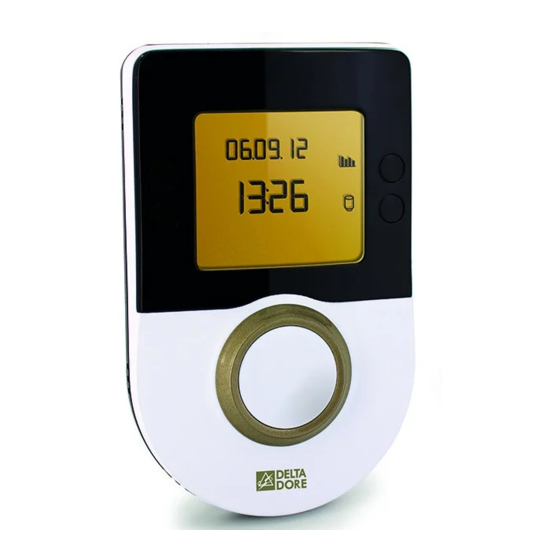

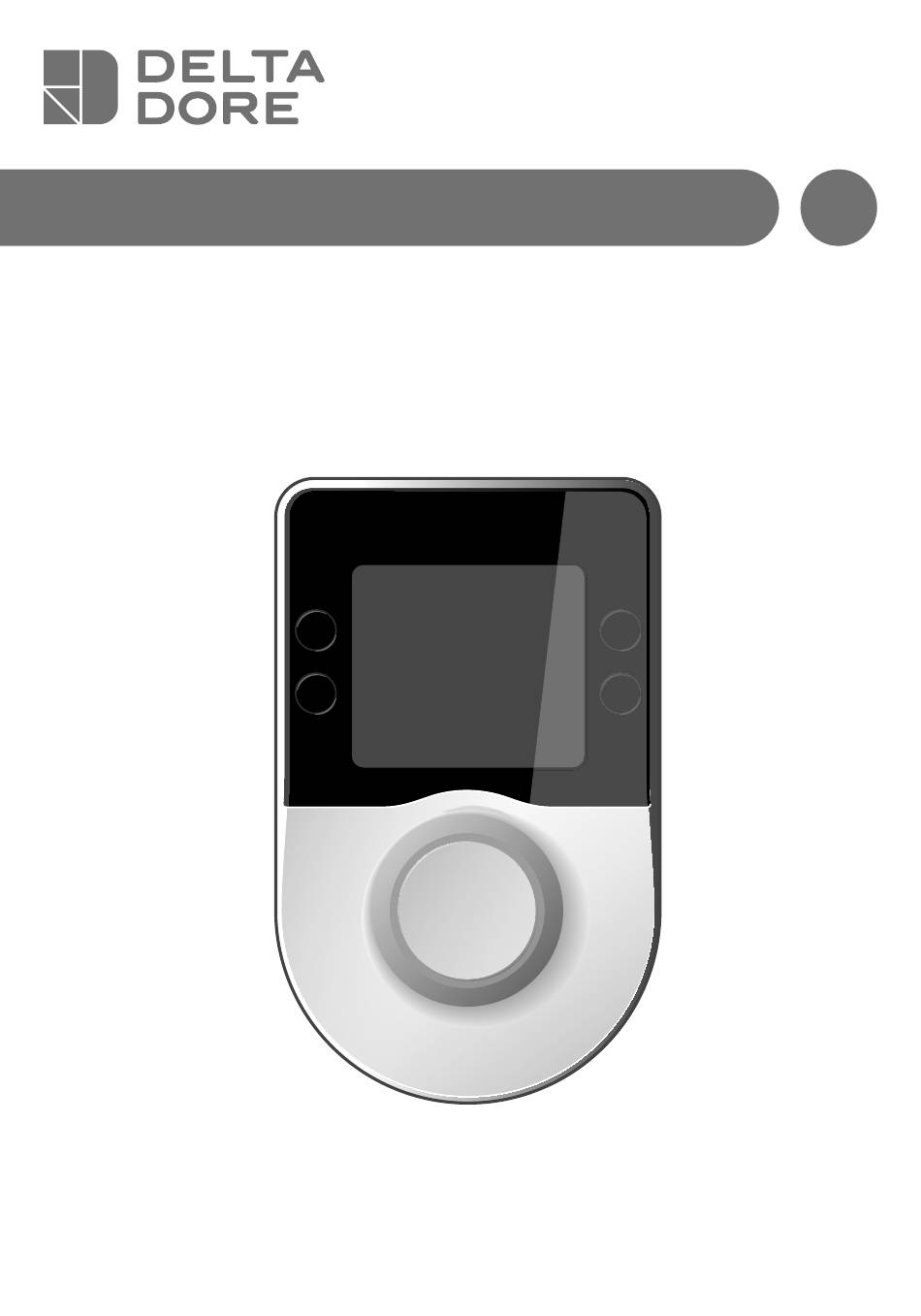

- Page 1 Tywatt 1000 Energy consumption meter User Guide...
-
Page 2: Table Of Contents
Contents 1- AUTO mode ....................3 2- Technical unit indicator lights ..............3 3- Home automation functions ..............4 4- Date and time settings ................5 5- Consumption data display ..............7 6- ‘i’ information button ................8 7- DHW programming .................9 8- DHW override ..................9 9- Help ...................... -
Page 3: 1- Auto Mode
1- AUTO mode Temperature Information Time measured button Consumption data display Hot water tank override Standby mode Auto Mode Press a button • DHW override possible. • Access to consumption data ( • Changeover to standby after a 30 seconds time-out period 2- Technical unit indicator lights Bus indicator light Blinks in sync with the data... -
Page 4: 3- Home Automation Functions
3- Home automation functions The home automation functions control the following functions either locally or remotely via a tablet or a smartphone: - display of the consumption data over the current month and the history of previous months (electricity, gas, etc.). To get this service, you have to associate the room unit with the TYDOM home automation gateway. -
Page 5: 4- Date And Time Settings
4- Date and time settings JJ/MM/AA HH/MM >3s Hold the 'i' button Confirm with Enter the date, then the time. down for 3 seconds Confirm with OK. EXIT Turn the selector knob to exit the mode - 5 -... - Page 6 5- Consumption data display From the AUTO mode. Others Elec. Press Plugs Cooling Heating : Total gas consumption : Total electric consumption : Cooling consumption : Heating consumption : Domestic Hot Water consumption (DHW) : Consumption of devices connected to the mains - To change over to a different consumption, turn the selector knob.
-
Page 7: 5- Consumption Data Display
Example: To view the total electric consumption of your system turn the selector knob to select the symbol. History: Press '+' to display the overall consumption history from the beginning of the current year, then for the previous year Displays the con- sumption for the current month History:... -
Page 8: I' Information Button
6- 'i' information button The AUTO mode displays the system status ('i' button) and any faults (refer to the "Help" section). Press 'i'. Display of The 'Heat/Cool' option will only be the measured available if the presence of a cooling temperature. -
Page 9: 7- Dhw Programming
7- DHW programming If you have subscribed to a contract other than the historic double rate (OP/PH) and Tempo contracts, you have the possibility of adapting the activation range of the domestic hot water tank. Refer to the installation guide (menu 2-21 and 2-22). 8- DHW override From the AUTO mode. -
Page 10: 9- Help
9- Help Nothing is displayed on the room unit screen. There is no power supply. Check the circuit breaker. symbol does not appear. The DHW is not managed by the device. Refer to menu 1-04. Replacing a consumption emitting product (e.g. Tywatt 5100, etc.): You must initialise the indices (menu 2-24). - Page 11 - 11 -...
- Page 12 RED 2014/53/UE www.deltadore.com...
