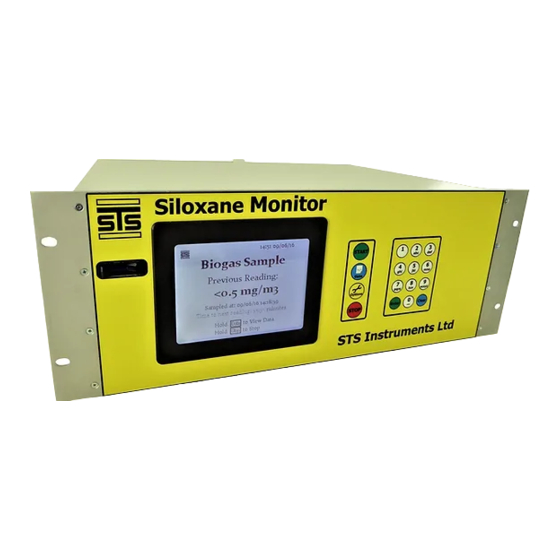

- Page 1 2018 STS Instruments Ltd, Data Capture Manual SILOXANE MONITOR MANUAL STS INSTRUMENTS COPYRIGHT 2018 STS INSTRUMENTS LTD | www.siloxanemonitoring.com...
-
Page 2: Table Of Contents
Remote data ....................5 3.2.1 Remote Data connection ................5 3.2.2 Access to remote data site ................7 3.2.3 4-20mA Error Codes .................. 10 Displayed Data ................... 10 SD card ....................12 20 October 2016, STS Instruments Ltd, Data Capture Manual... -
Page 3: Manual Guide
The following manual describes the provision of data, its access and retrieval. Should at any point you require additional help or information on the use or installation of the system please contact STS directly at: sales@safetrainingsystems.com or +44 (0) 1344 483563 20 October 2016, STS Instruments Ltd, Data Capture Manual... -
Page 4: Safety Information
SAFETY INFORMATION The STS Siloxane Monitor operates from a 110V mains supply, the instrument case should not therefore be opened without having first isolated the power supply and disconnected the kettle lead form the rear of the instrument. The high voltage section of the instrument is protected by clear cover –... -
Page 5: Data Output
DATA OUTPUT KEY FEATURES There are several methods for outputting data from the Siloxane Monitor: 4-20mA data lines Provided for the transfer of data to a 3 party system. Remote Data access A data service accessible from any internet connection where individual or groups of monitors can be viewed to see current and trend data on a secure website. -
Page 6: Remote Data
T4 = Error (Active low) The transmitter is unpowered and requires a voltage in of 12-24V. The sample feeds are controlled by the siloxane monitor, switching valves inside the kiosk. If no such valves are used, only Sample feed 1 is active. - Page 7 The site is accessed using a set user name and password allowing access only to that user’s data. User accounts are managed and access rights granted by STS on approval of the monitor owner. 20 October 2016, STS Instruments Ltd, Data Capture Manual...
-
Page 8: Access To Remote Data Site
Logon to data site – www.metronview.com Input login and password as provided separately to this document. The home screen will then display all the devices to which you have viewing rights. 20 October 2016, STS Instruments Ltd, Data Capture Manual... - Page 9 To download the data as a csv file click on the csv file icon on the top right hand corner of the data table 20 October 2016, STS Instruments Ltd, Data Capture Manual...
- Page 10 The data is downloaded as a csv file in this format: 20 October 2016, STS Instruments Ltd, Data Capture Manual...
-
Page 11: 4-20Ma Error Codes
0: Standby 25: Communications Fault 50: Fan Fault 75: CH4 High Fault 100: N2 Fault 125: Internal Temp Fault 150: Biogas Volume Fault 175: Concentrator Temp Fault 200: Logging Normally DISPLAYED DATA 20 October 2016, STS Instruments Ltd, Data Capture Manual... - Page 12 There are two methods for viewing this data, the first is from the main menu of the instrument, Holding DATA: Then hold START to enter the data display. Or via the main logging screen: Hold Data to display the Historical readings. 20 October 2016, STS Instruments Ltd, Data Capture Manual...
-
Page 13: Sd Card
SD CARD In addition to the previous outputs, data is written constantly to the onboard SD card. This may be accessed by removal of the SD card and download to a pc/laptop. 20 October 2016, STS Instruments Ltd, Data Capture Manual... - Page 14 Once the data has been downloaded the card should be replaced in the Slot and press stop to return the instrument to the main menu screen. The instrument will not run without the SD card being inserted – please ensure it is re-inserted correctly after data download. 20 October 2016, STS Instruments Ltd, Data Capture Manual...
- Page 15 It is recommended that the SD card Data is removed and backed up into external storage. As data is accumulated onto the card, the speed at which the Data can be written decreases. Example data file 20 October 2016, STS Instruments Ltd, Data Capture Manual...
- Page 16 Graph Data: 20 October 2016, STS Instruments Ltd, Data Capture Manual...
- Page 17 20 October 2016, STS Instruments Ltd, Data Capture Manual...
