BUZZ 3 & 4
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Monarch BUZZ 3

Summary of Contents for Monarch BUZZ 3

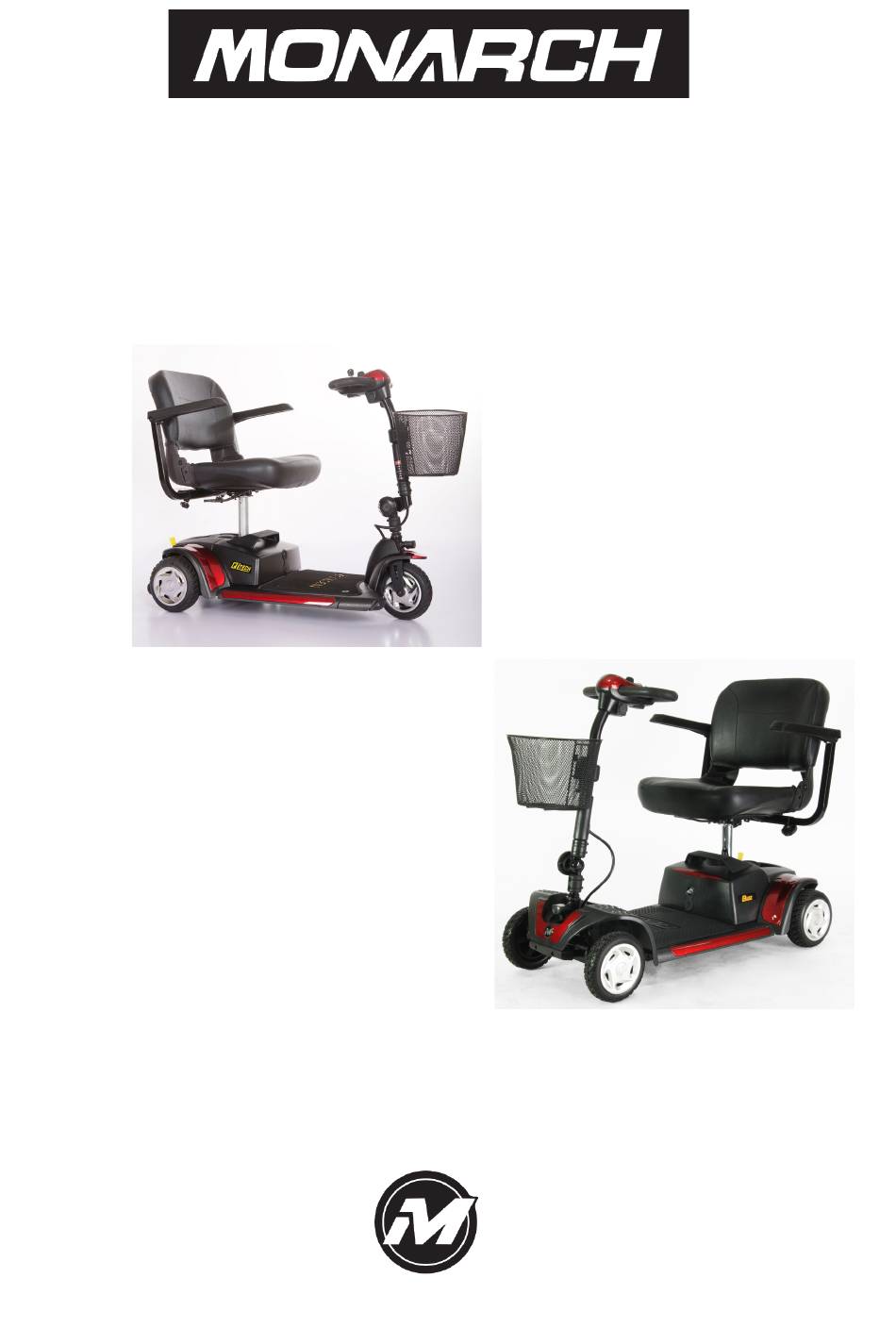

  • Page 1 BUZZ 3 & 4 Owner’s Manual...

  • Page 2: Table Of Contents

    Freewheel Mode 5. RIDING YOUR SCOOTER Getting on Basic Driving Ramps and Curbs 6. TRANSPORTING YOUR SCOOTER Disassembly Assembly Transporting 7. CARE AND MAINTENANCE Cleaning Batteries and Charging Troubleshooting Diagnostics SPECIFICATIONS WARRANTY Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.
  • Page 3 Owner’s Manual. The Monarch Buzz 3 and 4 wheelers are imported by Scooters Australia Pty Ltd. If you need any assistance, please contact the dealer from whom you purchased the scooter.

  • Page 4: Introduction

    Please review the features and benefits of certain components of the Buzz Scooter above. The above figure depicts the Buzz 4 scooter. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 5: Safety

    2. SAFETY Your Monarch BUZZ scooter is a battery-operated personal mobility vehicle. Driving your scooter carefully and thoughtfully will help ensure your personal safety and the safety of other people. NOTE: Before learning to operate your scooter, have your authorised Scooters Australia dealer determine if it is advisable for you to practice getting on and off your scooter and operating it in the presence of an attendant.
  • Page 6 DO NOT ATTEMPT TO DRIVE THE SCOOTER WITH THE FREEWHEEL DISENGAGED! WARNING: Do not connect or allow anyone except an authorised Monarch representative to connect any electrical or mechanical device to your scooter. Unauthorised accessories will void the warranty and may cause injury.
  • Page 7 Never operate your scooter while you are under the influence of alcohol. • DAILY CHECKLIST Make sure each day your check your tyre tread, battery charge, and seat swivel mechanism to ensure it is locked in position. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 8: Emi / Rfi

    • If unintended movement or brake release occurs, turn your scooter off as soon as it is safe to do so. • Report all incidents of unintended movement or brake failure to your Monarch dealer. WARNING: Turn off your scooter as soon as it is safely possible if unintended or uncontrollable motion occurs or if unintended brake release occurs.

  • Page 9: Controls

    When the throttle control lever is completely released, it automatically returns to the center “stop” position and engages your scooter’s brakes, bringing you to a complete stop. You will hear a “click” when the brake engages. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 10: Seating

    5. Reinstall and tighten the nut, bolt, and washer. The bolt must be installed from the back of the pedestal, with the nut and washer to the front of the scooter. 6. Raise the lever when placing the seat back on the seat post. Figure 4. Seat Pin Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 11: Freewheel Mode

    Always make certain that your scooter brake is engaged before inserting the key into the ignition switch. WARNING: Never sit on your scooter while it is being transported in a vehicle. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 12: Riding Your Scooter

    See Fig. 3. 2. Turn the tiller to the left to drive in reverse to the left. 3. Turn the tiller to the right to drive in reverse to the right. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 13: Ramps And Curbs

    • Never negotiate inclines or curbs by traversing them at an angle other than 90°. Doing so may cause the scooter to tip over. • Go down a curb slowly to avoid a jarring bump. Use as little power as possible. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 14: Transporting Your Scooter

    2. Pull the front frame up and off the rear section. See Fig. 8 3. Fold tiller down by unlocking adjustment knob and re-tighten knob to secure collapsed tiller. Figure 8. Figure 9: Buzz 3 collapsed. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 15: Assembly

    Accidental separation of the frame from the rear carriage may occur and cause injury or damage. WARNING: Failing to assure proper installation of the seat could result in injury. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 16: Transporting

    WARNING: Never sit on your scooter when it is being transported. Always fasten down your scooter securely with an approved tie-down system while transporting your scooter. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.

  • Page 17: Care And Maintenance

    Australia dealer. This also protects your warranty. Services can be arranged by contacting your nearest Monarch dealer and organising either a home service or a service in the workshop. Fees may apply for additional time taken if you organise a home service.

  • Page 18: Troubleshooting

    When the batteries need replacing (the scooter will not have as big a range as when new), phone your local Monarch dealer who will be able to supply and fit new batteries either in your home or at the workshop.

  • Page 19: Diagnostics

    “engaged” position. • Turn the key back to the “On” position. • If the above remedies do not solve the problem, contact your authorised Monarch dealer. 6 Beeps: Indicates that the throttle control lever was not in the neutral position when the key switch was turned to the “On”...
  • Page 20 • Turn the key switch to the “On” position. • If the above procedure does not solve the problem, contact your authorised Monarch dealer. 7 Beeps: • Indicates a problem with the throttle control lever. • May also indicate a problem with the potentiometer (speed control).
  • Page 21 NOTE: As improvements are continually occurring to our products, we reserve the right to change the details of this manual, including the specifications, without prior notice. Please check with your local Monarch dealer for details. Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.
  • Page 22 Note: While charging batteries it is normal for the battery charger to heat up. Heat coming from the battery charger DOES NOT constitute a defect NOTE: Items not listed above are not covered for repair under this warranty Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.
  • Page 23 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Importer: Scooters Australia Pty Ltd, 4/355 South Gippsland Hwy, DANDENONG, Vic 3175. Ph 03 9799 6622 www.scootersaus.com.au email: headoffice@scootersaus.com.au Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.
  • Page 24 Service 60 Months Service • Please phone your local Monarch dealer to arrange for your next service appointment • Please ensure that the details of each service are recorded above. Authorised Dealer Monarch Buzz Owner’s Manual v17. © Scooters Australia 2017.
