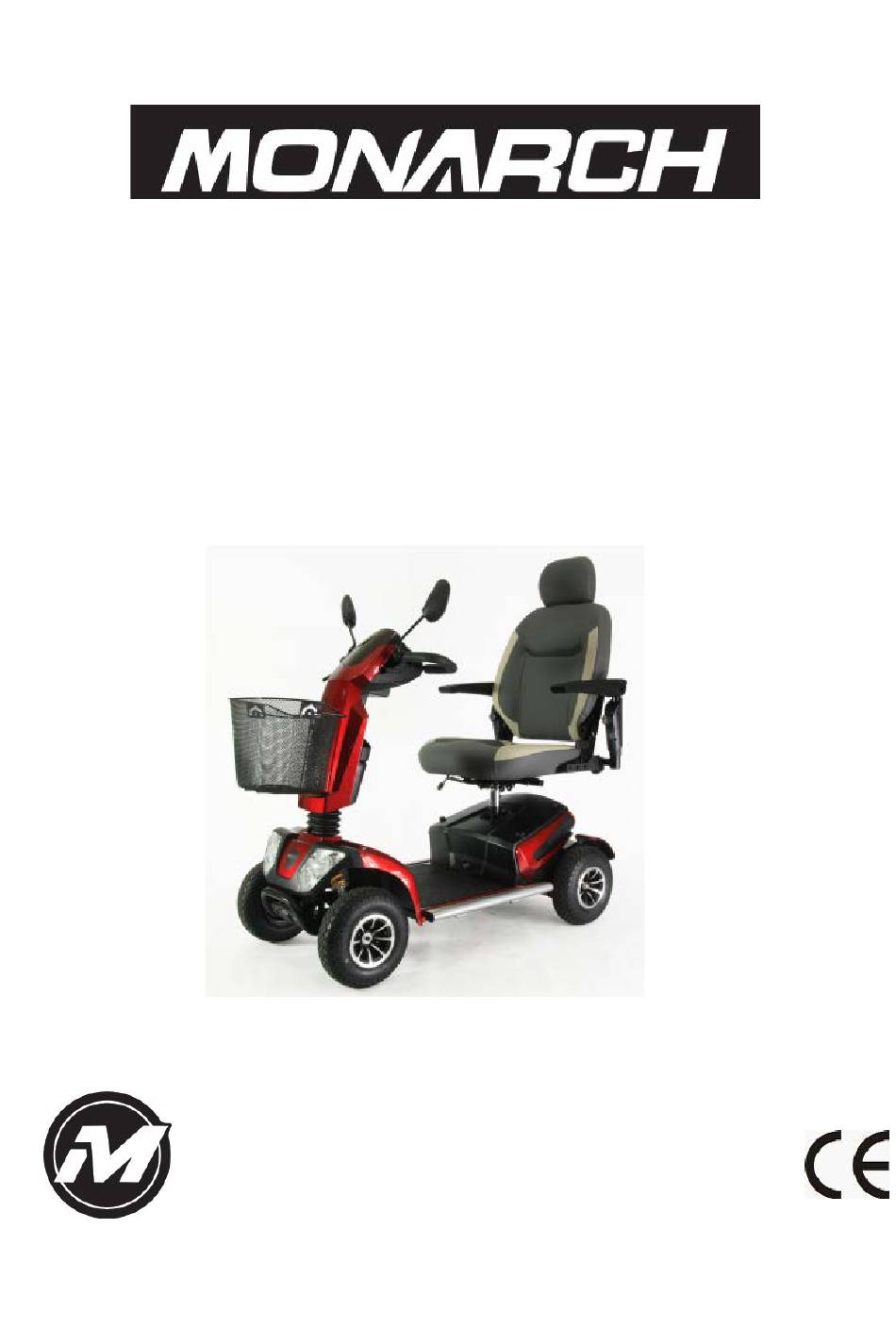

  • Page 1 VOLTA Owner’s Manual...

  • Page 2: I.introduction

    Owner’s Manual. The Monarch Volta is imported by Scooters Australia Pty Ltd. If you need any assistance, please contact the dealer from whom you purchased the scooter.

  • Page 3: Table Of Contents

    Mounting…………………………………………………………………………………...… Basic Driving………………………………………………………………………………… Steering in a Tight Spots…………………………………………………………………… VII.DISASSEMBLY………………………………………………………………………..VIII.ASSEMBLY…………………………………………………………………………..… IX. TRANSPORTING YOUR SCOOTER…………………………………………….….. X.CARE AND MAINTENANCE…………………………………………………………… Routine Maintenance……………………………………………………………………….. Cleaning Your Scooter………………………………………………………………….….. Batteries and Charging…………………………………………………………………….. Troubleshooting…………………………………………………………………..………… Diagnostics………………………………………………………………………………..23-24 XI.WARRANTY……………………………………………………………………………… 25-26 Service Record………………..…………………………………………………………..Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 4: Features And Benefits

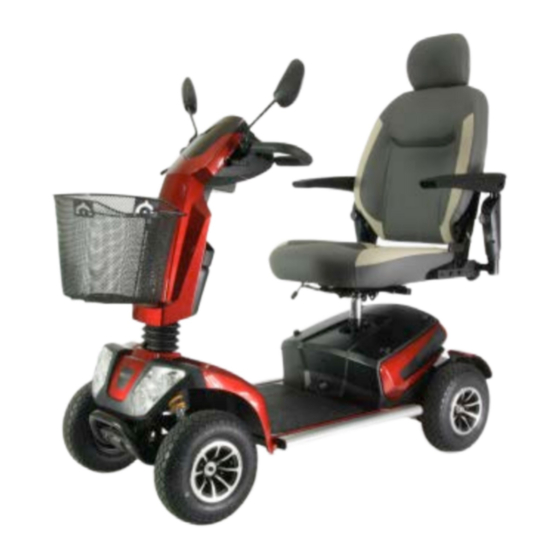

    Plastic basket is optional) Seat Swivel: A standard feature, the seat can swivel to the left or right for easy transfers or to sit more comfortably at a table or desk. Figure 1. Features Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 5: Ii.safety

    Drive with caution when attempting to negotiate any incline, even access ramps. • Always climb or descend an incline by driving straight up or straight down the face of the slope. See figure 2. Monarch Volta Owner’s Manual. © Scooters Australia 2016...
  • Page 6 You may notice this when pushing the scooter. The scooter will move freely until you reach a certain speed. You will then encounter some resistance as the motor brake system is activated. Monarch Volta Owner’s Manual. © Scooters Australia 2016...
  • Page 7 Never back up or down a step or curb. • Do not drive your scooter in icy or salted conditions. • Never operate your scooter while you are under the influence of alcohol. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 8: Iii.emi/Rfi

    Report all incidents of unintended movement or park brake failure to your local dealer or ring 1300 622 633 WARNING Turn off your scooter as soon as it is safely possible if unintended or uncontrollable motion occurs or if unintended park brake release occurs. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 9: Your Volta Scooter

    Model __________________________________ Serial Number_______________________ Date of Purchase _____________________________ Body Colour_______________ Dealer Name___________________________________________________________________ Company______________________________________________________________________ Address_______________________________________________________________________ City ____________________________________ State_______ P/C______________________ Please remember to fill in and return your warranty registration card in the back of this manual. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 10: Specifications

    Literature is current at the time of printing. Scooters Australia reserves the right to make changes to the product or literature at any time without prior notice. WARNING: THIS SCOOTER SHOULD NEVER BE USED AS A SEAT WHILE BEING TRANPORTED Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 11: Operation

    Yellow indicates caution and approximately a one-half charge of the batteries. • Red indicates that the batteries have less than one-half of a charge remaining. See section X. “Care and Maintenance” for instruction concerning charging the batteries. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 12: Seating

    2. Slide the armrests in or out to the desired width. 3. Tighten the adjustment knobs. WARNING Be sure adjustments knobs are securely tightened against the inserted armrest tube. Do not overextend the armrest. Monarch Volta Owner’s Manual. © Scooters Australia 2016...
  • Page 13 1. Push down on the seat rotation lever and rotate the seat to the desired position. See figure 8. 2. Release the handle to lock the seat at any 45° position. Nut, washer and bolt Figure 9 Figure 10 Figure 11 Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 14: Freewheel Mode

    Pull forward on the freewheel lever towards the letter D (Drive Position). Pushing the scooter too quickly in freewheel will cause the motor to act as a generator causing the scooter to become difficult to push. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 15: Riding Your Scooter

    2. With both hands on the handgrips of the tiller, turn the tiller to the left to travel to the left. 3. Make certain to maintain sufficient clearance when turning your scooter so that the rear wheels will clear any obstacle. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 16: Steering In A Tight Spots

    If you must stop your scooter while driving up a ramp: Starting up again simply requires that you apply gentle and steady forward power pressure to the throttle control lever, always leaning forward. Accelerate gently after stopping on any incline. Monarch Volta Owner’s Manual. © Scooters Australia 2016...
  • Page 17 Refer to the “Safety” section. If you are unsure about any situation, avoid it. Common sense is your best protection. • Feel free to use your scooter on lawns or in park areas. • Avoid long or high grass, which may wrap around your scooter's axles. • Avoid loose gravel. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 18: Vii.disassembly

    6. Use one hand to grasp the tiller adjust handle. Pull on the lever and position the tiller at the best angle for transport. 7. Release the handle. It will automatically lock the tiller at the selected angle. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 19: Viii.assembly

    2. Gently lower the battery pack onto the frame. See figure 16. Figure 16. Battery Installation Install the Seat 3. Hold the seat on an angle so you can see the seat swivel post underneath Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 20: Transporting Your Scooter

    WARNING If your scooter and its components are not properly and securely stowed during transportation, the scooter or the components may move or become airborne and cause injury or damage. WARNING Never sit on your scooter when it is being transported. Secure with an approved tie-down system. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 21: X.care And Maintenance

    Do not leave batteries in a low state of charge for extended periods. Charge a discharged battery as soon as possible. • Fully recharge batteries regularly, and disconnect the charger from the scooter after charging. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 22: Troubleshooting

    If the problem continues, have your authorised dealer load test the batteries. • If the batteries are good, the charger may be the problem. Consult your authorised Resetting the Main Circuit Breaker Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 23: Diagnostics

    Indicates that the motor control board is overloaded and overheated. • An overload can occur if you have been driving your scooter for an extended period of time up an incline above the recommended degrees. Monarch Volta Owner’s Manual. © Scooters Australia 2016...
  • Page 24 Indicates other internal errors or faults. Your scooter will not operate until the problem is corrected Remedy: Contact your authorised dealer. NOTE: IF YOU HAVE ANY DOUBTS ABOUT THE OPERATION OR SAFETY OF YOUR SCOOTER PLEASE CONSULT YOUR LOCAL AUTHORISED DEALER. Monarch Volta Owner’s Manual. © Scooters Australia 2016...

  • Page 25: Xi.warranty

    Limited'Warranty' Scooters(and(Powerchairs( Effective(January(1 ,(2016( The(following(warranty(is(granted(only(to(the(INITIAL(consumer(who(has(purchased(our(product,(and(commences(on(the(Date(of( Purchase(by(the(Consumer(from(an(Authorised(Dealer,(by(Scooters(Australia(Pty(Ltd.(Any(warranty(claim(must(be(made(in(the(first( instance(to(the(Authorised(Dealer(from(whom(the(product(was(purchased,(and(must(be(taken(to(the(Authorised(Dealer(for(such( claims.(If(the(product(is(not(taken(to(the(Authorised(Dealer(a(callIout(fee(may(be(payable.( Three%Year%Warranty% For( the( period( of( three( years,( from( the( date( of( purchase( from( the( Authorised( Dealer,( in( the( event( of( defective( materials( or( workmanship,(Scooters(Australia(Pty(Ltd(will(repair(or(replace(at(our(option(any(of(the(following(components(found(to(be(defective( by(an(authorised(Scooters(Australia(representative:( • Steel(Frame( • Frame(Welds( • Tiller(Frame( • Front(Fork( •...
  • Page 26 Limited'Warranty' ((continued) Warranty%Exclusions:% Scooters(Australia(does(not(provide(warranty(on(any(of(the(following(items(which(may(require(replacement(due(to(the(normal(wear( and(tear(of(day(to(day(usage:( • Tyres(and(Tubes( • Plastic(Shrouds( • Motor(Brushes( • Bulbs(/(Fuses( • Brake(pads( • Upholstery( • Armrest(pads( This(warranty(also(excludes(the(following:( • Batteries((Please(consult(battery(manufacturer(for(any(implied(warranty)( • Loss(or(theft(of(components( • Damage(caused(by:( Battery(fluid(spillage(or(leakage( Abuse,(misuse,(accident(or(negligence.( Improper(operation,(maintenance(or(storage( Commercial(use(or(use(other(than(normal( Repairs(and(/(or(modifications(made(without(specific(written(consent(of(Scooters(Australia( Exceeding(the(specified(weight(capacity(of(the(unit,(including(exceeding(weight(/(slope(specifications( Accessories(other(than(those(supplied(or(approved(by(Scooters(Australia( Failure(to(adhere(to(the(product(instructions(contained(in(the(Owner’s(Manual( Acts(of(Nature,(such(as(lightning(strikes,(etc( Circumstances(beyond(the(control(of(Scooters(Australia( Call(out(fees(or(freight(costs(if(the(product(is(not(returned(to(the(authorised(dealer.( • ANY(PARTS(ALTERED(OR(REPAIRED(BY(UNAUTHORISED(PERSONS.( There'is'no'other'express'warranty.' Implied( warranties,( including( those( of( merchantability( and( fitness( for( a( particular( purpose( are( excluded.( Liabilities( for( consequential(damages(are(excluded.(This(warranty(gives(you(specific(rights(and(you(may(also(have(other(rights(which(may(vary( from(state(to(state.(...

  • Page 27: Service Record

    Service'Record' Initial(Owner(…………………………………………………………………………………..….( Date(Purchased:(………………………………………………((Invoice(#:(………………………( Date' Invoice'#' Technician' Notes' Serviced' (signature)' 12(Months( Service( 24(Months( Service( 36(Months( Service( 48(Months( Service( 60(Months( Service( • Please(phone(your(local(dealer(to(arrange(for(your(next(service(appointment( • Please(ensure(that(the(details(of(each(service(are(recorded(above.( Authorised(Dealer(...
