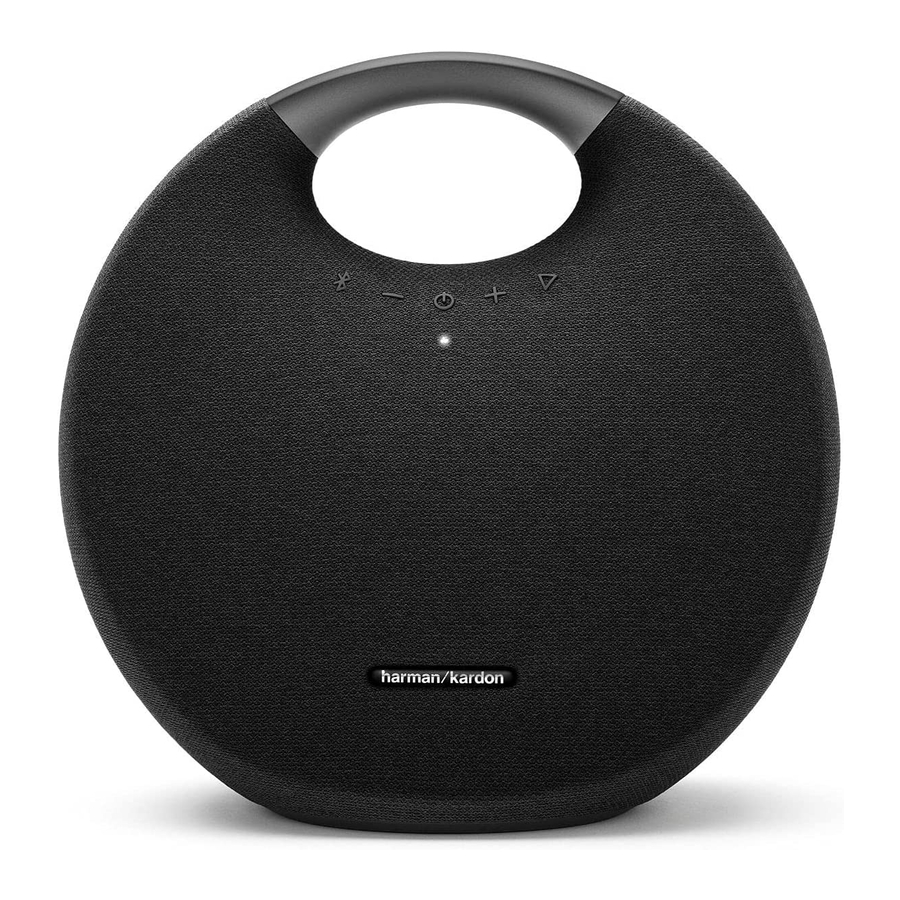

Harman Kardon ONYX STUDIO 6 Quick Start Guide

For more information, please visit harmankardon.com

WHAT'S IN THE BOX

BUTTONS

CONNECTIONS

BLUETOOTH^®

Bluetooth connection

Music control

LED BEHAVIOR

	Blinking		Bluetooth pairing mode
	Slow blinking		Bluetooth not connected
	Fast blinking		Wireless Dual Sound pairing mode
	On		Bluetooth/Wireless Dual Sound connected
	Blinking		Low power
	On		Charging

WIRELESS DUAL SOUND

Long press the Bluetooth button to connect another Onyx Studio 6 for louder sound.

Harman Kardon Onyx Studio 6 is IPX7 waterproof.

To ensure that the Harman Kardon Onyx Studio 6 is waterproof, please remove all cable connections and tightly close the cap; exposing the Harman Kardon Onyx Studio 6 to liquids without doing so may result in permanent damage to the speaker. And do not expose Harman Kardon Onyx Studio 6 to water while charging, as doing so may result in permanent damage to the speaker or power source.

IPX7 waterproof is defined as the speaker can be immersed in water up to 1m for up to 30 minutes.

If the speaker will not be used for a long period of time, please recharge the battery at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.

Specification

• Bluetooth version: 4.2
• Support: A2DP 1.3, AVRCP 1.6
• Transducers: Woofer 1 x 120mm, Tweeter 1 x 25mm
• Rated Power: 1 x 50WRMS Bi-amp (AC mode)
• Frequency response: 50Hz - 20kHz (-6dB)
• Signal to noise ratio: 80dB A-weighted
• Power supply: 19V/2A
• Battery type: 3.635V/3283mAh Lithium-ion
• Battery charge time: 5 hours
• Music playtime: up to 8 hours (Varies by volume level and music content)
• Bluetooth transmitter power: 0 - 9dBm
• Bluetooth transmitter frequency range: 2402MHz - 2480MHz
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• Dimension (H x W x D): 284mm x 291mm x 128mm
• Weight: 2940g
