Roper Rhodes Cirrus Instructions

Cirrus Wall Mounted Unit
Installation & aftercare instructions
Please retain for future reference
Instructions should be kept / passed to end-user once installation complete

Installation Procedure:

Securing the unit

It is recommended that the unit and basin are secured to a suitably reinforced wall to ensure stability. The wall plugs supplied are only suitable for
solid stone/brick walls. For plasterboard walls use specialist wall plugs along with supplementary wall strengthening as units can be very heavy. Seek
advice from a specialist about the suitability of fixings to be used.
Wear suitable eye protection when drilling. Take care when using power tools near water - the use of a residual current device (RCD) is
recommended. Beware of hidden pipes or cables. Take care when drilling tiled surfaces as the drill might slip. Use a piece of masking tape to prevent
the drill from wandering.
1
IMPORTANT
Once the unit is level mark the 2 final fixing points through the holes in the back brace (C). The unit should then be removed and wall plugs put into the
wall at these points. Re-install the unit using the hangers being sure to fully tighten back to the wall. Finally, secure the unit to the wall via the holes in
the back brace.
3

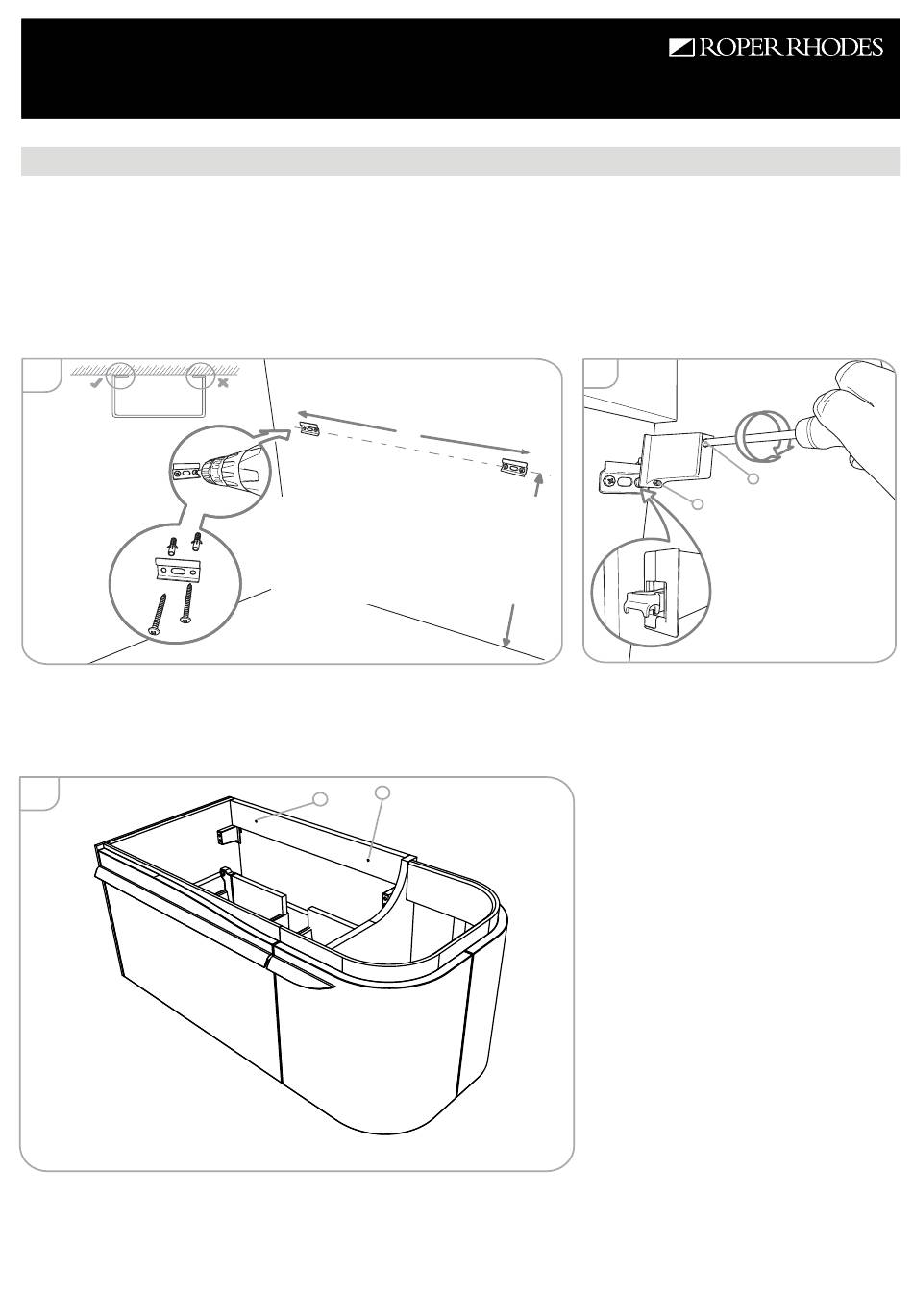

Mark the location of each of the wall mounting
plates ensuring that they are positioned inside the
sidewalls of the vanity unit. We would recommend
the height is set such that the overall height
including the basin is 860mm. For each mounting
plate drill two holes in the marked positions using a
8mm drill bit to a depth of 55mm.
C
C
Customer Services, Roper Rhodes Ltd, Brassmill Lane Trading
Estate, Bath, BA1 3JF
Tel:01225 303 900 | Fax: 01225 448 877
Email: sales@roperrhodes.co.uk | Web: www.roperrhodes.co.uk
2
B
A
Locate the hangers onto the
wall mounting plates. Wall
hangers not only tighten the
unit against the wall (Screw
B) but also offer up/down
adjustment to fine-tune the
fixing position (Screw A).
RR-CIR900 REV : 02.03.15
