Roper Rhodes Cypher Unit WM Installation & Aftercare Instructions

Cypher Unit WM
Installation Procedure:
Before You Start
It is recommended that the unit and basin are secured to a suitably reinforced wall to ensure stability. The wall plugs supplied are only suitable for
solid stone/brick walls. For plasterboard walls use specialist wall plugs along with supplementary wall strengthening as units can be very heavy. Seek
advice from a specialist about the suitability of fixings to be used.
Wear suitable eye protection when drilling. Take care when using power tools near water - the use of a residual current device (RCD) is
recommended. Beware of hidden pipes or cables. Take care when drilling tiled surfaces as the drill might slip. Use a piece of masking tape to prevent
the drill from wandering.
1
Fascia Adjustment
Fascias may require adjustment for correct alignment. If adjustment is required follow instructions below.
3
Rotate plastic cover.
5
C
Installation & aftercare instructions
Please retain for future reference

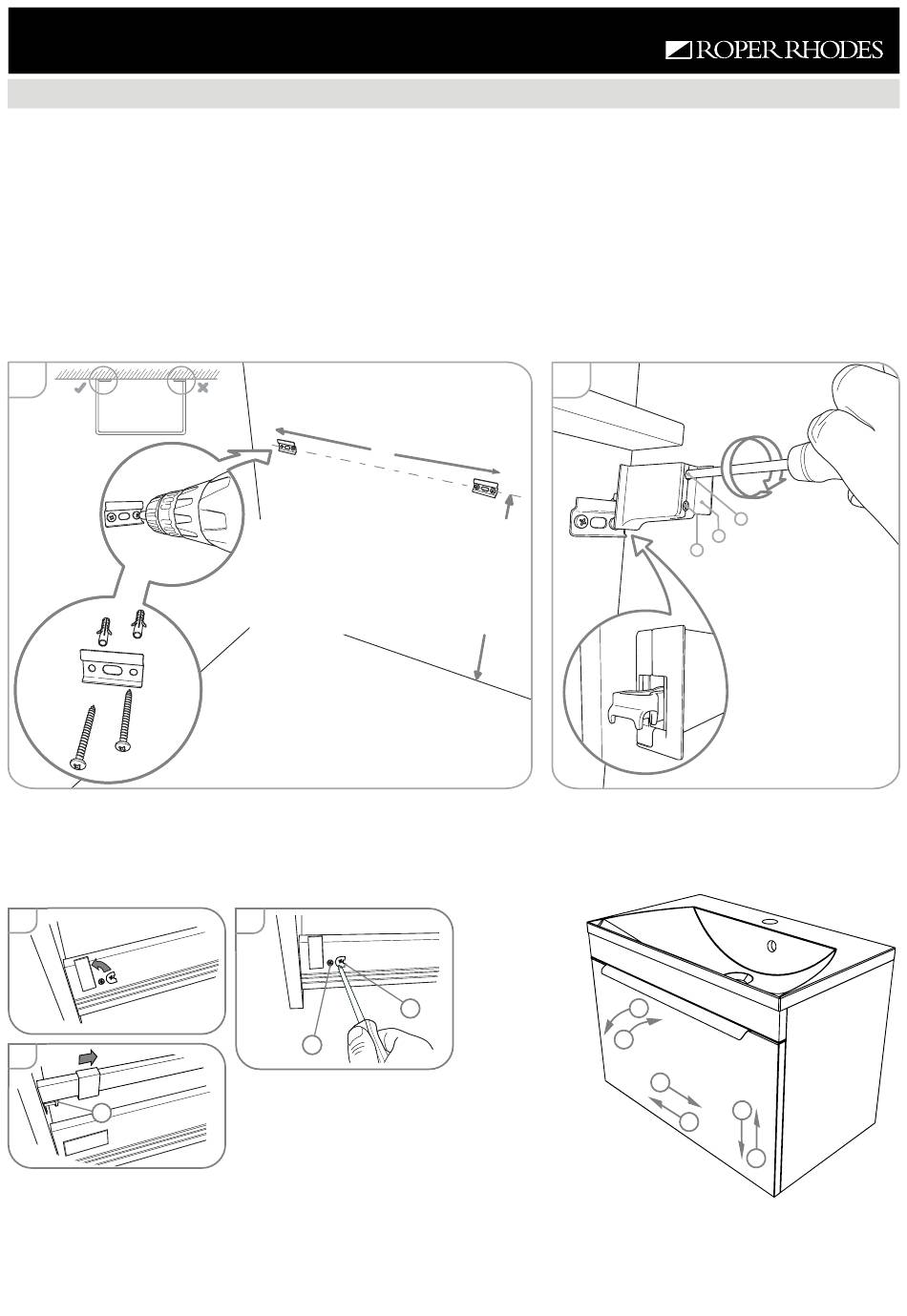

Mark the location of each of the wall mounting
plates ensuring that they are positioned inside the
sidewalls of the vanity unit. We would recommend
the height is set such that the overall height
including the basin is 860mm. For each mounting
plate drill two holes in the marked positions using a
8mm drill bit to a depth of 55mm.
4
A
B
To make adjustment 1 (Up and Down) turn screw A (see drawing 4)
To make adjustment 2 (Left and Right) turn screw B (see drawing 4)
To make adjustment 3 (Tilt in and out) turn screw C (see drawing 5)
Customer Services, Roper Rhodes Ltd, Brassmill Lane Trading
Estate, Bath, BA1 3JF
Tel:01225 303 900 | Fax: 01225 448 877
Email: sales@roperrhodes.co.uk | Web: www.roperrhodes.co.uk
2
C
A
3
3
2
2
B
Locate the hangers onto the
wall mounting plates. Wall
hangers not only tighten the
unit against the wall (Screw
A) but also offer up/down
adjustment to fine-tune the
fixing position (Screw B).
Finally fold over flap C to
conceal the adjustment
screws on the wall hanger.
1
1
RR-CYPWM REV : 060813
