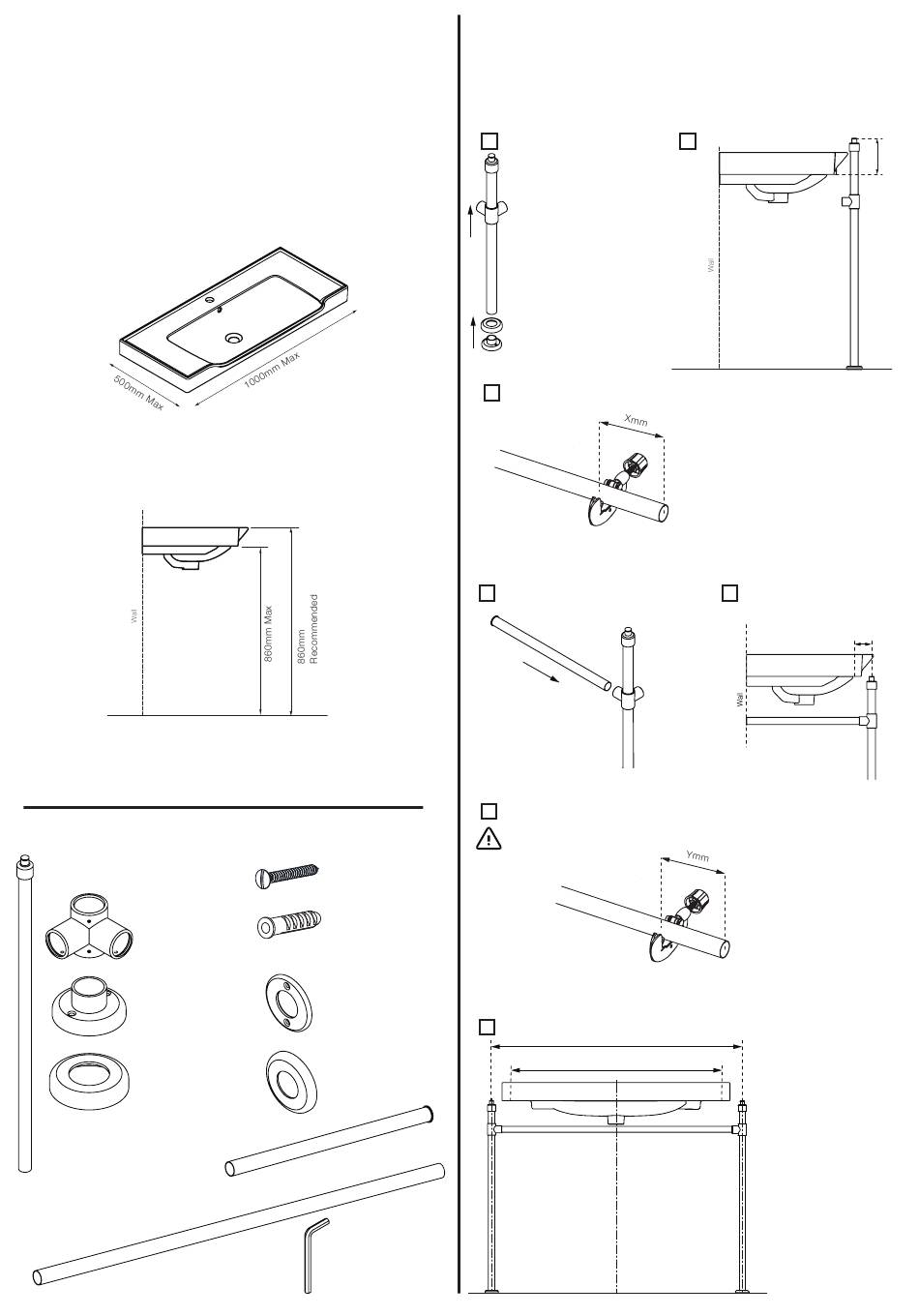

DC14025 - UNIVERSAL
WASHSTAND
Chrome Universal Washstand
Please read completely before starting.
FITTING INSTRUCTIONS
Please make sure your basin's width and depth does not exceed 1000 X 500mm.
Maximum height of legs are 860mm.
Please make sure the warnings and after-care instructions are made available for
the end user to read.
FITTING GUIDE
Position the basin such that the main surface is 860mm from the floor.
Ensure the basin is firmly secured to the wall using appropriate basin fixings before
proceeding with the installation of the Washstand,
fix the basin in accordance with the manufacturers instructions.
COMPONENT LIST
x2 Legs
x2 Knuckle Joints - with
pre assembled Grub
Screws
x2 Floor Fixing Brackets
x2 Floor Fixing Bracket
Covers
x2 Side Bars
x1 Front Bar
ADJUSTING YOUR WASHSTAND PRIOR TO FIXING
The Legs, Side Bars and Front Bar can all be cut down to suit the basin you are installing.
Use a metal pipe cutter with an adjustable cutting diameter. To accommodate Ø28 +
Ø26mm tube.
CUTTING THE LEGS
Only follow this section if you want to lower the height of the legs.
1
3
CUTTING THE SIDE BARS
Only follow this section if you want to shorten the depth of the Side Bars.
Loosely assemble one Side Bar onto a
1
leg joint.
3
x8 Screws
M4 x 26mm
x8 Wall / Floor Plugs
M5 x 27mm
CUTTING THE FRONT BAR
x2 Wall Fixing Brackets
Only follow this section if you want to shorten the width of the front bar.
1
x2 Wall Fixing Bracket
Covers
x 1 Hex Key 2mm
Slide the knuckle joint onto the leg
and fix the grub screws using the
provided hex key to secure it.
Loosely locate the floor
fixing brackets and covers
onto the legs.
The leg has an adjustable
component that makes contact
with the underside of the basin.
This can be extended up 26mm if
necessary.
Cut distance X from the base of the leg.
Cut the same distance on both legs.
Remove the side bar from the joint and cut distance Y on both bars.
IMPORTANT - Do not cut the end with the flange. Only cut the plain end.
900mm
Zmm
Measure Distance Xmm
2
Base Of Leg
Measure from the position you
2
want your leg to be located, to the
centre of the current leg position.
Ymm
Loosely assemble the front bar
into the leg joints.
Align the washstand centrally.
Measure a suitable width for your
washstand (Zmm).
Measure the distance between
leg centres this should be 900mm
+/- 5mm
Subtract Zmm from 900mm
900mm -Zmm = Measurement
Xmm
Σ
Advertisement
Related Manuals for Roper Rhodes DC14025
Summary of Contents for Roper Rhodes DC14025
- Page 1 DC14025 - UNIVERSAL ADJUSTING YOUR WASHSTAND PRIOR TO FIXING The Legs, Side Bars and Front Bar can all be cut down to suit the basin you are installing. WASHSTAND Use a metal pipe cutter with an adjustable cutting diameter. To accommodate Ø28 + Ø26mm tube.
- Page 2 The washstand should now fit under Remove the front bar from the leg joints Once the washstand is aligned and level, mark out and drill the pilot holes using your basin to your desired Σ and cut Measurement on one side. a suitable drill bit.
