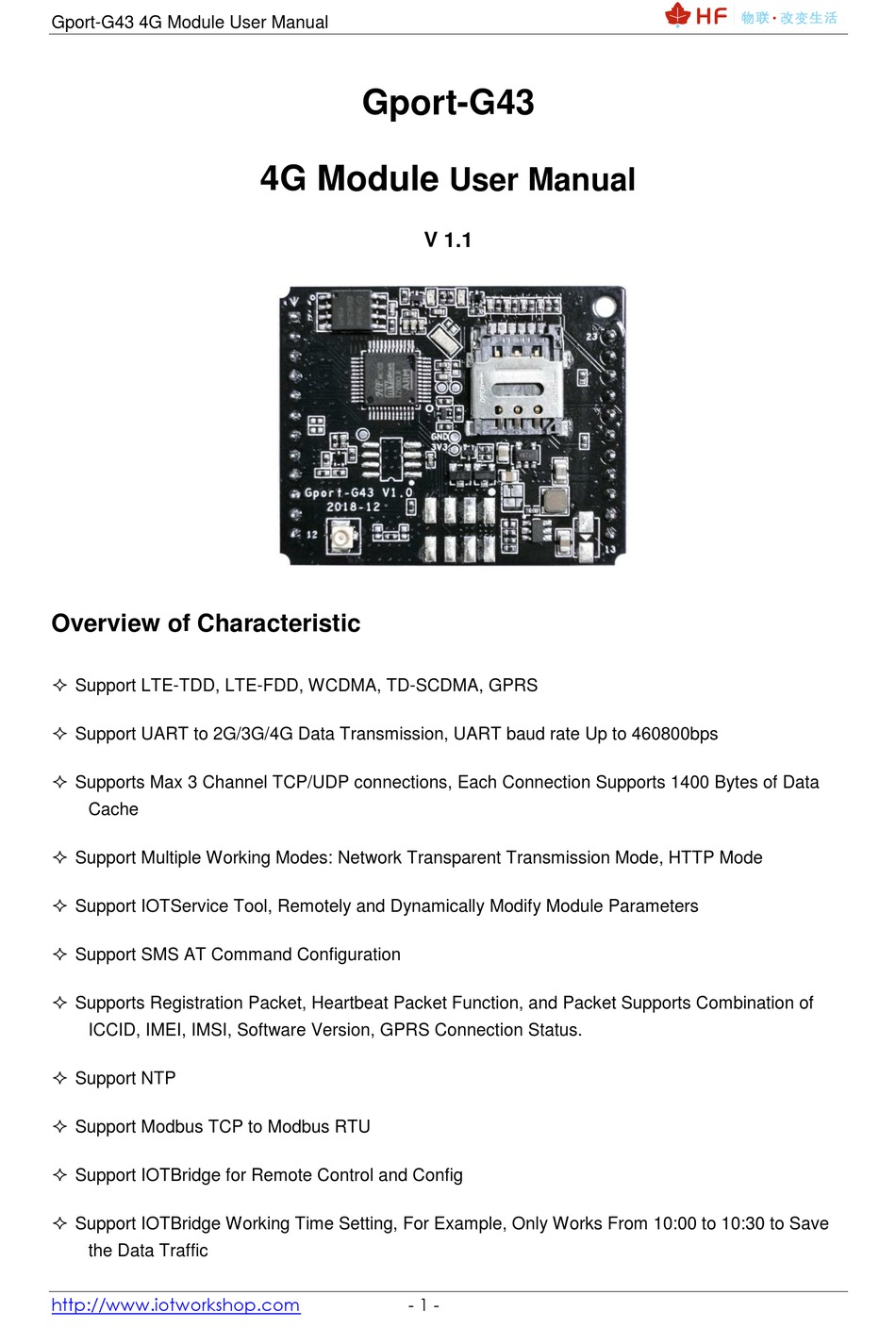

Gport-G43 4G Module User Manual
Overview of Characteristic
Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, GPRS
Support UART to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps
Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data
Cache
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support SMS AT Command Configuration
Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of
ICCID, IMEI, IMSI, Software Version, GPRS Connection Status.
Support NTP
Support Modbus TCP to Modbus RTU
Support IOTBridge for Remote Control and Config
Support IOTBridge Working Time Setting, For Example, Only Works From 10:00 to 10:30 to Save
the Data Traffic
http://www.iotworkshop.com
Gport-G43
4G Module
V 1.1
- 1 -
User Manual
Advertisement
Table of Contents
Related Manuals for HF Gport-G43
Summary of Contents for HF Gport-G43
- Page 1 Gport-G43 4G Module User Manual Gport-G43 4G Module User Manual V 1.1 Overview of Characteristic Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, GPRS Support UART to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache ...
- Page 2 Gport-G43 4G Module User Manual Support UART, Network OTA Upgrade Firmware Size: 45 x 32 x 8mm 5～18VDC Wide Power Supply http://www.iotworkshop.com - 2 -...
-
Page 3: Table Of Contents
Gport-G43 4G Module User Manual TABLE OF CONTENTS TABLE OF CONTENTS ........................3 LIST OF FIGURES ..........................4 LIST OF TABLES ..........................4 PRODUCT OVERVIER ......................5 1.1. General Description ......................5 1.2. Device Parameters ......................5 1.3. Key Applications ......................6 HARDWARE INTRODUCTION ................... -
Page 4: List Of Figures
Gport-G43 PIN Interface Definition ......................9 Gport-G43-P8 PIN Interface Definition ....................11 Absolute Maximum Ratings ........................12 Power Supply & Power Consumption ....................12 Gport-G43 Evaluation Kit Interface Description ..................17 HISTORY V 1.0 12-19-2018. First Version V 1.1 01-09-2019. Update picture, EVK http://www.iotworkshop.com... -
Page 5: Product Overvier
The Gport-G43 support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, GPRS full network. 4G network support maximum download data rate 150Mbps, upload data rate 50Mbps. The Gport-G43 support TCPIP protocol, with its UART interface, it make traditional UART device easy connecting to IOT. Module structure is as following. -
Page 6: Key Applications
5~18VDC(5V/2A or 9V/1A power supply) ~300mA@9V Working Current 2A peak current 1.3. Key Applications The Gport-G43 module connects the serial device to the Internet and conforms to the TCP/IP protocol for transmitting serial data. ⚫ Remote device monitoring http://www.iotworkshop.com - 6 -... - Page 7 Gport-G43 4G Module User Manual ⚫ Production asset tracking and monitoring ⚫ Security field ⚫ Industrial sensors and controllers ⚫ Health medical equipment ⚫ ATM equipment ⚫ Data acquisition equipment ⚫ UPS power management equipment ⚫ Telecommunication equipment ⚫ Data display device ⚫...
-
Page 8: Hardware Introduction
Gport-G43 4G Module User Manual 2. HARDWARE INTRODUCTION Gport-G43 is a 4G solution for serial device networking. Data transmission via 2G/3G/4G makes product integration very easy. This product meets EMC Class B security level and can pass relevant certification tests in various countries. -
Page 9: Gport-G43 Interface
Gport-G43 4G Module User Manual 2.2. Gport-G43 Interface Figure 4. Gport-G43 PIN Interface Gport-G43 PIN Interface Definition Description Network Signal Type Notes Name High voltage effective. Socket A Link LINKA On: Socket A channel connection is OK Off: Socket A channel connection is NG High voltage effective. - Page 10 Gport-G43 4G Module User Manual Description Network Signal Type Notes Name GPIO GPIO 11,12 Power GND 5~18VDC 13,14 Power Input 0.2s On -> 1.8s Off: Search the network 1.8s On ->0.2s Off: Network standby Network Status (Reserved) 0.125 On -> 0.125 Off: Network Communication OK 3.8V@2A...
-
Page 11: Gport-G43-P8 Interface
Gport-G43 4G Module User Manual 2.3. Gport-G43-P8 Interface Figure 5. Gport-G43-P8 PIN Interface Gport-G43-P8 PIN Interface Definition Description Network Signal Type Notes Name Power GND 5~18VDC Power Input Reload to Long press 3 seconds down and loose to RELOAD Factory Setting... -
Page 12: Gpio Electrical Characteristics
Gport-G43 4G Module User Manual Description Network Signal Type Notes Name Communication OK High voltage effective. Socket A Link LINKA On: Socket A channel connection is OK Off: Socket A channel connection is NG 2.4. GPIO Electrical Characteristics Absolute Maximum Ratings... -
Page 13: Onboard Sim Slot
Gport-G43 4G Module User Manual Figure 6. NET Recommended Circuit 2.6. Onboard SIM Slot Open the slot as following picture. Figure 7. SIM Slot http://www.iotworkshop.com - 13 -... -
Page 14: Sim Card Interface
Gport-G43 4G Module User Manual 2.7. SIM Card Interface The SIM card interface supports the functions of the GSM Phase1 specification. It also supports the functions of the GSM Phase 2+ specification and the FAST 64 kbps SIM card (for the SIM Application Toolkit). -
Page 15: Mechanical Size
Gport-G43 4G Module User Manual With a 6-pin SIM card holder, Amphenol Company's C70710M0065122 is recommended. Visit http://www.amphenol.com for more information. Figure 9. Recommended SIM Card Holder 2.8. Mechanical Size The dimensions of Gport-G43 are defined as following pictures(mm): http://www.iotworkshop.com - 15 -... -
Page 16: Evaluation Kit
High-Flying provides the evaluation kit to promote user to familiar the product and develop the detailed application. The evaluation kit shown as below, user can connect to Gport-G43 with the RS-232 UART to configure the parameters, manage the module or do the some functional tests. -
Page 17: Product Order Information
Long press 3 seconds down and loose to restore Reload parameters to factory setting Reset Reset module 2.10. Product Order Information Based on customers detailed requirements, we provide different configuration Gport-G43, details as below: Figure 12. Gport-G43 Product Order Information http://www.iotworkshop.com - 17 -... -
Page 18: Appendix A: Contact Information
Gport-G43 4G Module User Manual APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Address: Room1002 , #1Building, No.3000 Longdong Avenue, Pudong District, Shanghai, China 201202 Website: www.iotworkshop.com www.hi-flying.com Contact: Sales：sales@iotworkshop.com Support：support@iotworkshop.com Service：service@iotworkshop.com Business：business@iotworkshop.com ---------------------------------------------------------------------------- ------------------------------- For more information about us, please visit our website: www.iotworkshop.com <...
