RCI AG-BAG T7170 Operator And Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

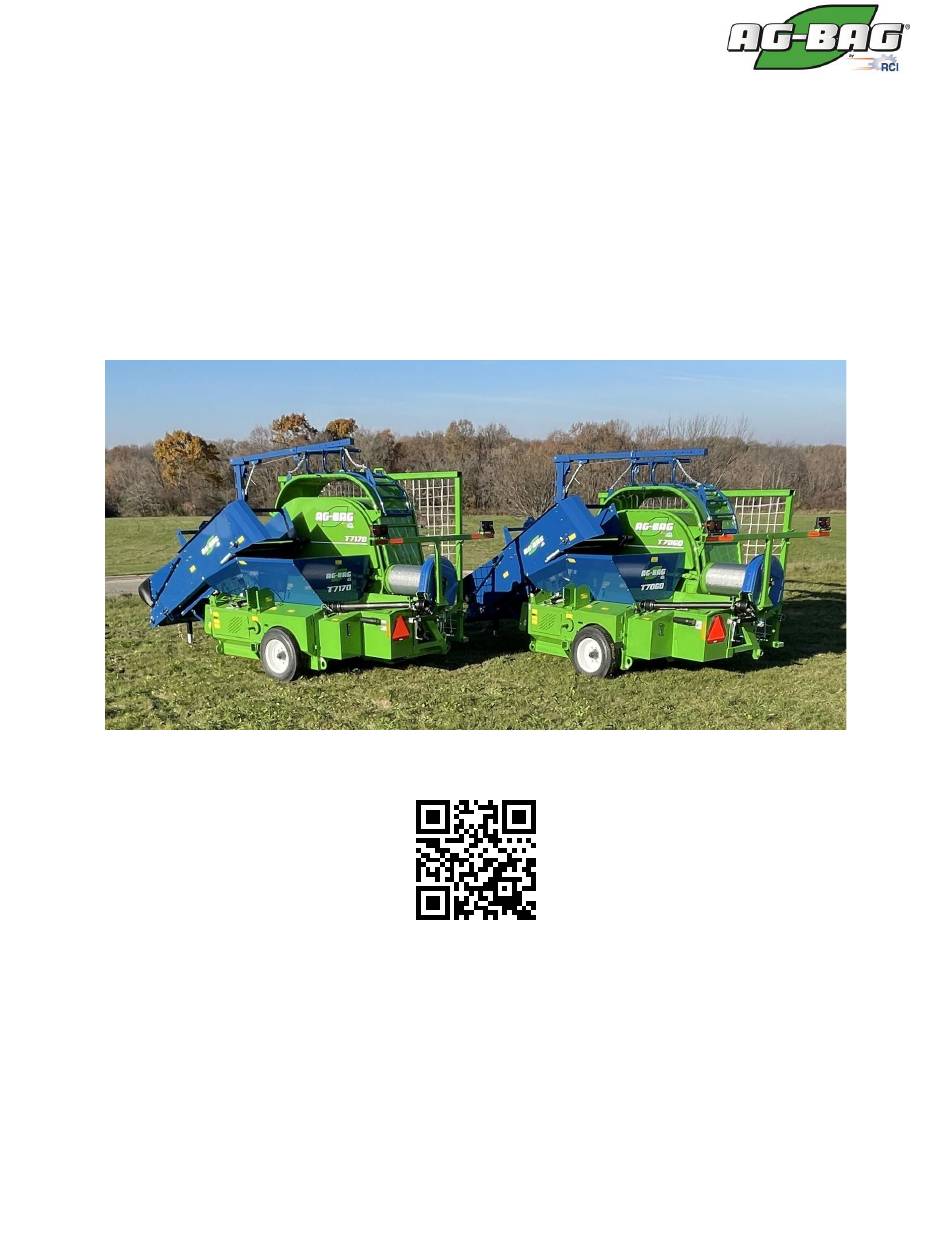

T7170, T7270 and T7060 Ag-Baggers
(T7170 Ag-Bagger S/N 0401054 - )
Operator and Parts Manual
(For Repair Parts, see Page 102)
Includes installation, operating, adjustment, maintenance, technical,
repair parts and safety information for the T7270, T7170 and T7060 Ag-Baggers
Please retain this document for future reference.
A Color PDF copy of this document is available online for download.
bit.ly/OperManual
Ag-Bag by RCI
RCI Engineering
www.ag-bag.com
Copyright © 2023 by RCI Engineering LLC
AB3171234 Rev A (20Jan23)
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-BAG T7170 and is the answer not in the manual?

Questions and answers

Related Manuals for RCI AG-BAG T7170

Summary of Contents for RCI AG-BAG T7170

  • Page 1 T7270, T7170 and T7060 Ag-Baggers Please retain this document for future reference. A Color PDF copy of this document is available online for download. bit.ly/OperManual Ag-Bag by RCI RCI Engineering www.ag-bag.com Copyright © 2023 by RCI Engineering LLC AB3171234 Rev A (20Jan23)
  • Page 2 (1) year from the date of sale. Ag-Bag by RCI warranty includes: Genuine Ag-Bag by RCI parts costs and labor required to repair or replace equipment at the selling dealer’s business location. AG-BAG BY RCI MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND,...
  • Page 3 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 4: Table Of Contents

    2 TABLE OF CONTENTS Section Contents Section Contents Warranty Statement Conveyor Chain Table of Contents Hydraulic Pump Drive Chain Marketing Bulletin Forage Distributor Position Machine Specifications Rotor Drive Chain Safe Operation of Machine Bag Boom Power Shut Down Procedure Bag Cradle Safety Warning Signs Tunnel Cleanout and Stripper Bar Plate Safety Sign Locations...

  • Page 5: Marketing Bulletin

    3 Marketing Bulletin Model T7270, T7170 and T7060 The T7270, T7170 and T7060 Pull-Type Ag-Baggers feature increased capacity and many operational improvements. These improvements are based on dealer and customer input. The T7170 and T7270 feature a 9’ or 10’ tunnel. The T7060 features a 6’, 8’ or 9’ tunnel. Key Product Improvements: 1.
  • Page 6 4. Sweeping Tunnel Cleanout (T7270 and T7170) • Hydraulic cylinders sweep remaining crop into the Ag-Bag when finished • Reduces labor, time and plastic usage when finishing and starting a new Ag-Bag • Reduces forage loss and increases packing at the end of each Ag-Bag 5.
  • Page 7 Product Specifications...
  • Page 8 Dealers order all products from RCI directly. All parts, service and warranty matters are handled by RCI. Warranty for these products is 1 year of parts and labor as outlined in the Ag-Bag by RCI Warranty Statement. Visit www.RCIengineering.com for more product information, ordering, and additional information.

  • Page 9: Safe Operation Of Machine

    4 SAFE OPERATION OF MACHINE Operator Authorization The machine owner must provide the operator of the machine this manual and ensure that the operator reads and understands the contents. This must be performed before the machine is put into operation. Safety Alert Symbol This safety alert symbol is used to alert the operator to the potential for personal injury.
  • Page 10 General Safety Precautions / Accident Prevention Continued 9. Know how to stop Ag-Bagger operation BEFORE starting the machine. 10. DO NOT enter the conveyor or hopper while the machine is operating or any time the PTO is still connected to the tractor or before following the Power Shut Down Procedure on the next page.
  • Page 11 24. DO NOT stand between the tractor and Ag-Bagger when hitching or unhitching Ag-Bagger unless engine is stopped, and parking brake is engaged. 25. ALWAYS STAY CLEAR of cables, cable drums and backstop. Cables are under tension during Ag-Bagging Operations. A fast release of tension could have unexpected consequences.
  • Page 12 5 SAFETY WARNING SIGNS Safety Messages Whenever the words and symbols shown below are used in this manual or on the machine, the instructions MUST be followed as they relate to personal safety. Safety Decal (1). Manual Reference. Before operating the machine, make sure to read this manual in it’s entirety.
  • Page 13 Safety Decal (8). This safety sign is a warning of injury due to escaping hydaulic fluid undeer presssure. Keep away from this area when the hoses have hydraulic pressure to avoid the hazard. Failure to do so may result in serious injury. Safety Decal (9).
  • Page 14 6 SAFETY SIGN LOCATIONS All decals shown in locations correspond to Safety Decals on previous pages. Figure 5. Service Compartment Figure 1. Front View of Machine Figure 6. Driveline Compartment Figure 2. Hitch End of Machine Figure 3. Hitch Figure 7. Rotor Idler End Compartment Figure 8.
  • Page 15 7 COMPONENT LOCATIONS Figure 9. Ag-Bagger Shown in Transport Configuration with Tunnel Extension in Mounted Position (for clarity) Key 1 – Bag Boom Key 2 – Bag Cradle Key 3 – Tunnel and Extension Key 4 – Backstop Key 5 – Taillight Bar Key 6 –...

  • Page 16: Machine Specifications

    Check the rotor, conveyor, hopper, 8 Operating the Unit and tunnel cleanout (if equipped) to ensure there are no foreign objects. Pre-Operation Checklist Check the tunnel cleanout is The pre-operation checklist is provided completely closed. for both personal safety and maintaining the mechanical condition of the Ag- Check the conveyor chain for correct Bagger.

  • Page 17: Backstop Setup

    Backstop Setup Place the Ag-Bagger where the bag will begin. Release the cable drum brake pressure by opening the needle valve and the hand pump valve. See Figure 12. Unhook the backstop slings from the cables at each side of the machine. Remove the pins that retain the Figure 12.
  • Page 18 There are several lifting methods (Fig. 14) available to move the backstop from storage position to Ag-Bagging position: • Bag boom cradle (Figure 15) o Reverse boom and use tube at front of cradle at hooks on back side of backstop •...

  • Page 19: Moving Wheels To Ag-Bagging Position

    Moving Wheels to Ag-Bagging Position and Connecting Tractor NOTE: Backstop must be placed at the starting position of the bag. Ag-Bagger must be on a firm, level site to move wheels and hitch. IMPORTANT: Site for moving wheels must be level to prevent Ag-Bagger from rolling when unhitched from the towing vehicle.
  • Page 20 Install tractor on Ag-Bagger and install appropriately sized hitch pin. Turn tractor off, ensure in park, and remove key. For the T7270 and T7170, remove lift jack, rotate 90 degrees and place into transport position on the hitch using cross pin provided. For the T7060, or to use manual lifting, install the lift jack at the towing hitch end wheel lift position.
  • Page 21 For the T7170 and T7270, clear the area of bystanders, check that all previous steps are complete, and safely start the tractor and start the PTO at low idle. Keeping the tractor in park and at low idle, go to the operator station at the Ag- Bagger and activate the lever for Figure 22.
  • Page 22 For all models, fully raise the jack stand at the towing hitch end of the machine. Secure the jack stand in the raised position with the cross pin and lynch pin. See Figure 26. For the T7060, use the lift jacks to lower the machine down to the ground and remove the pressure from the lift jacks.

  • Page 23: Hitch Adjustment

    Hitch Adjustment The machine must be adjusted at the hitch to be level or have the tunnel end of the machine lower than the hitch end of the machine. The tunnel end of the machine should never be higher than level. Failure to do will result poor...

  • Page 24: Inoculant Applicator Connection

    Inoculant Applicator Connection The handle is also adjustable and serves Connect inoculant applicator as a locking device for the bag boom in electrical supply to a 12-volt source on transport position by locking into a the tractor. position on the frame. Use the cross pin at the handle to secure the handle up or Consult your local Ag-Bag dealer and the down.

  • Page 25: Tunnel Extension Installation

    Tunnel Extension Installation Push the extension into position and The tunnel extensions are stored above install the previously removed pins at the the main tunnel for transport. These base tunnel where the extension is extensions pin-on using pins installed. The hitch pin clips are not used provided with machine.

  • Page 26: Bag Identification

    Bag Identification Only use genuine Ag-Bag bags. They are designed to fit and function properly. The bag size is indicated on the box. Verify the bag is the correct size for your Ag-Bagger and tunnel. Locate the arrow on the side of the box. Always make sure it is pointing towards the Ag-Bagger.
  • Page 27 Unfold the bag. Lift the top half of the bag CAUTION: and place it on the bag cradle. Use the Caution should be used when moving winch on the bag boom to raise the Ag- Ag-Bags. Weight of Ag-Bags can be over Bag and cradle.
  • Page 28 Take the ends of the tunnel bungee cord that is tied to the bag cradle and connect to the bag pan hooks on each side of the tunnel. Check that the tunnel bungee cord support ropes are evenly spaced and aligned parallel to the Ag-Bag.

  • Page 29: Seal The Beginning End Of The Ag-Bag

    Seal the Beginning End of the Ag-Bag Part Number Description AA1500272 250 ft. Roll Pull enough bag to apply the seal. Pull AA1500270 9.5 ft. Long, 4/Box from the inside folds, not the outside AA1500267 14.5 ft. Long, 4/box* folds. AA1500268 17 ft.

  • Page 30: Attach The Backstop

    Attach the Backstop Place the backstop where it is intended to start the Ag-Bag. If needed, back the Ag-Bagger up next to the backstop. The backstop should be aligned with the tunnel opening and 1 to 2 feet behind the tunnel.

  • Page 31: Lower Conveyor To Operating Position

    Lower Conveyor to Operating Position The tractor PTO must be safely engaged before operating the hydraulic conveyor raise and lower control. Before lowering the conveyor, release the conveyor lift lock at the upper end of the slide rail. Pull the lock down and rotate to retain the pin in a disengaged condition to release the conveyor lift lock.
  • Page 32 Fold out the conveyor extension to the wide position. Remove the two lynch pins at the hinge joint in the extension. Move the extension to the outer position and reinstall the pins. See Figure 56. Figure 56. Conveyor Extension Key 1 – Lynch Pins Key 2 –...

  • Page 33: Set Brake Pressure

    Set Brake Pressure Using the hydraulic hand pump, set the cable drum brake pressure between 400 and 450 psi. The pump valve must be closed, and needle valve must be open, to increase brake pressure. Close the needle valve to hold pressure. Open both valves to release the brake Figure 59.

  • Page 34: Verifying Cleanout Closed

    Verifying Tunnel Cleanout Closed For the T7270 and T7170, it is important to ensure that the cleanout door is closed prior to any Ag-Bagging operation. The T7060 is not equipped with tunnel cleanout. The tractor PTO must be safely engaged before operating the tunnel cleanout control.

  • Page 35: Ag-Bagging Operation

    Ag-Bagging Operation IMPORTANT: The Ag-Bagger must be greased and DANGER: lubricated during the Ag-Bagging To avoid serious injury, operation. See the Lubrication and climb Maintenance section of this manual. around or in Ag-Bagger or conveyor while in operation. Falling into machine will result in serious injury or death.
  • Page 36 Start the inoculant applicator, if so equipped once product is being unloaded onto conveyor. Turn inoculant applicator off just before load is empty. Check the cable drum brake pressure and adjust as required according to the following indicators: A. Check the stretch bars on the side of the bag.

  • Page 37: Sweeping Tunnel Cleanout Operation

    Sweeping Tunnel Cleanout Operation T7060, cleanout done Lift the safety collar at the lever and pull manually. Using the release valve or the lever back to the neutral position. See valves on the hydraulic hand pump, Figure 70. slightly release the cable brake pressure and move the Ag-Bagger forward about 5 feet (1.5 m).

  • Page 38: Backstop Removal

    Backstop Removal WARNING Backstop is heavy. Use Set a slight brake pressure to retain the care when moving cables in position. backstop. equipment capable of handling the backstop. See Backstop Setup section of this manual information regarding handling methods for backstop. Ensure the tractor is still in park.

  • Page 39: Removing The Ag-Bag From The Ag-Bagger

    Removing the Ag-Bag from the Ag- Bagger Once the cleanout is complete, the backstop removed, the cables rewound, and the bungee cord released, safely pull the Ag-Bagger forward. The bag will slide off the tunnel. Figure 74. End of Ag-Bagging Stop the tractor, put in park, shut off engine and remove key.

  • Page 40: Venting The Ag-Bag

    Venting the Ag-Bag Part Number Description AA1500893 Reusable Vent Valve Immediately after the Ag-Bag is sealed, AA1500568 Vent Installation Tool a vent must be installed to remove the gases produced by the product. Figure 78. Vent Valve Components A reusable vent valve and vent tool are available from your Ag-Bag dealer.

  • Page 41: Moving Wheels To Transport Position

    Moving Wheels to Transport Position IMPORTANT: Site for moving wheels must be level to prevent Ag-Bagger from rolling when unhitched from the towing vehicle. Ground conditions must be firm to prevent lift jacks from settling during wheel removal. IMPORTANT: Keep service door closed whenever the tractor is running to shield moving components around the hydraulic pump Figure 82.
  • Page 42 For the T7270 and T7170, clear the area of bystanders and safely start the tractor and start the PTO at low idle. Keeping the tractor in park and at low idle, go to the operator station at the Ag- Bagger and push the lever for machine lift.
  • Page 43 For all models, lower the jack stand at the towing hitch end of the machine while the machine is in a raised position. Secure the jack stand in the lowered position with the cross pin and lynch pin. See Figure 89. For the T7060, use the lift jacks to lower Figure 89.
  • Page 44 Remove the PTO shaft from the tractor. Remove the retaining chain from both ends of the PTO shaft shield. Raise the PTO shaft guard up and secure it with the rubber latch at the top center. Move the PTO shaft to the storage location.

  • Page 45: Tunnel Storage

    Tunnel Storage NOTE: The tunnel extensions are stored above Push the extension into storage position the main tunnel for transport. These and install the previously removed pins at extensions pin-on using pins the base tunnel where the extension is provided with machine.

  • Page 46: Backstop Storage

    Install the blue transport brackets at the lower pins on the tunnel extensions in the storage position as shown in Figure 99. Use the pins horizontally as indicated. Ensure that the pin of the blue bracket is in the hole of the tunnel pin. This will retain the lower portion of the tunnel in transport.
  • Page 47 Remove the lifting device. If the bag cradle is used, return it to the top tunnel extension and flip the latches over at the ends and raise with the hand crank. This will help to stabilize the bag cradle for transport.

  • Page 48: Transporting The Ag-Bagger

    Transporting the Ag-Bagger Before transporting Ag-Bagger, WARNING: perform an inspection of the unit to DO NOT TOW THIS ensure it is safe for transport. IMPLEMENT OVER 25 mph (40 kph). Failure to A safety chain is provided for the hitch to abide may result in the towing vehicle.
  • Page 49 To narrow the transport width of the Ag- Bagger to 102 inches wide (2.6 m), fold in the conveyor extension, place the PTO in the rear storage position, and move the conveyor motor to the top support bracket for storage. narrow transport, tunnel...

  • Page 50: Conveyor Position

    9 PERFORMANCE OPTIMIZATION There are many factors that impact the performance of the Ag-Bagger as well as the quality of the silages produced. Use the following information to ensure that the system produces the highest quality of silage an Ag-Bag can offer. Conveyor Position Figure 112.

  • Page 51: Tractor Setup

    Tractor Setup The proper tractor size and configuration Product Moisture is essential to performance. Select the The desired moisture level for proper proper based machine ensiling in an Ag-Bag is typically 60 to 65 specifications in this manual. percent. At too high of moisture, fermentation can WARNING: be negatively impacted, in addition to lost NEVER...

  • Page 52: Ag-Bag Site

    NOTE: The possibility of Ag-Bag damage will Pick a site away from rodent infestations result from cables contacting a wider- or habitat or create a border zone around shaped Ag-Bag. Place cardboard the Ag-Bag site to deter rodents from between the Ag-Bag and cables if invading the site.

  • Page 53: Ag-Bagging Pressure

    Ag-Bagging Pressure Carefully straddle the string over the Ag- When filling the Ag-Bag, the Ag-Bag Bag approximately 15 feet away from the should not be stretched more than 2 Ag-Bagger. inches (5 cm) above the tunnel, nor should the Ag-Bag push against the While Ag-Bagging, when the lighter side cables.

  • Page 54: Wind Damage

    Wind Damage Ag-Bag Shape Wind damage can be caused by the wind Keep the Ag-Bag away from the cables. whipping the loose end of the Ag-Bag. If it appears that the cables will contact To prevent damage, the loose Ag-Bag the Ag-Bag, insert a piece of cardboard end needs to be secured with Master between the Ag-Bag and the cable.

  • Page 55: Suggested Feed Out Rates Per Day

    Suggested Feed Out Rates Per Day Winter Rates (Oct. through April) Bag Size Feet/Day Tons/Day 9 ft. 1 ft. 10 ft. 2 ft. Summer Rates (May through Sept.) Bag Size Feet/Day Tons/Day 9 ft. 2-1/4 ft. 2-3/4 10 ft. 2-1/2 ft. Capacity of Tons per Running Foot of Ag-Bag 9 ft.

  • Page 56: Genuine Ag-Bag Capacity Chart

    Genuine Ag-Bag Capacity Chart Range of Range of Range of Bags per Tons/Bag 28- Approx. 56# Bag Size Tons/Bag 65% M Tons/Bag 35% Pallet 30% M Shelled Bushels per Bag Alfalfa M Earlage Corn 6x100' 52-60 48-52 50-55 6x150' 85-98 78-85 90-95 6x200'...

  • Page 57: Conveyor Position

    10 ADJUSTMENTS Conveyor Position The single greatest adjustment that can be made to impact the performance of the T7270, T7170 and T7060 Ag-Bagger is the conveyor position. To maximize throughput and bag density, the product must be delivered to the rotor and forage distributor at the very center of the machine.

  • Page 58: Conveyor Angle

    The control lever will return to the centered (neutral) position when released. Pulling the control lever will raise the conveyor. See Figure 119. The conveyor must not rest on the ground when Ag-Bagging. Keep the conveyor approximately six Figure 119. Conveyor Raise and Lower inches off the ground.

  • Page 59: Conveyor Chain

    Conveyor Chain adjusting bolts. Tighten the four retainer WARNING: nuts on the carriage bolts on each side of lubricate, the conveyor. adjust and/or service this Ag-Bagger unless shingle lower guide clearance to 3/16” of clearance to the the Power Shut Down Procedure in chain when all components are clean.

  • Page 60: Hydraulic Pump Drive Chain

    Hydraulic Pump Drive Chain T7170 and T7060 Only WARNING: DANGER: lubricate, DO NOT operate the adjust and/or service Ag-Bagger unless all this Ag-Bagger unless guards are in place. the Power Shut Down Procedure in Failure to do so may cause serious the Safe Operation of Machine section injury or death.

  • Page 61: Forage Distributor Position

    Forage Distributor Position WARNING: lubricate, adjust and/or service this Ag-Bagger unless the Power Shut Down Procedure in the Safe Operation of Machine section of this manual has been exercised. The forage distributor is adjustable as to clearance height between distributor and the rotor. The forage distributor must always remain level and parallel to the rotor.

  • Page 62: Rotor Drive Chain

    Rotor Drive Chain If the chain “slaps” during operation, WARNING: lubricate, increase the tension up to a maximum of adjust and/or service 0.080 inch (2 mm) for the crop conditions this Ag-Bagger unless that are causing the condition. the Power Shut Down Procedure in the Safe Operation of Machine section of this manual has been exercised.

  • Page 63: Bag Boom

    Bag Boom The handle is also adjustable and serves WARNING: as a locking device for the bag boom in lubricate, transport position by locking into a adjust and/or service position on the frame. Use the cross pin this Ag-Bagger unless at the handle to secure the handle up or the Power Shut Down Procedure in down.

  • Page 64: Bag Cradle

    Bag Cradle WARNING: lubricate, adjust and/or service this Ag-Bagger unless the Power Shut Down Procedure in the Safe Operation of Machine section of this manual has been exercised. The bag cradle wings are adjustable for different sizes of tunnels. The bag cradle performs best when it rests on the curvature of the tunnel when in the storage position.
  • Page 65 Tunnel Cleanout and Stripper Bar Plate WARNING: DANGER: lubricate, DO NOT operate the adjust and/or service Ag-Bagger unless all this Ag-Bagger unless guards are in place. the Power Shut Down Procedure in Failure to do so may cause serious the Safe Operation of Machine section injury or death.
  • Page 66 Cleanout Door to Frame Clearance The cleanout door can be adjusted side- to-side to fit tightly in the frame and to fine-tune the stripper bar plate alignment. The cleanout door should be adjusted using provided shims before adjusting the stripper bar plate for tooth alignment.

  • Page 67: Changing Tunnels

    Brake System Accumulator Pressure brake system features accumulator to absorb impact loads and thermal expansion effects on the braking system. The accumulator has a pre-set pressure of 300 psi (2,068 kPa) at 70 deg F (21 deg C). This accumulator should only be charged by a dealership using the proper equipment.

  • Page 68: Lubrication And Maintenance

    Wheel Bearings - Repack 11 LUBRICATION AND MAINTENANCE Interval: Annually for non-highway use. WARNING: For highway use, check wheel bearings lubricate, monthly. Repack wheel bearings adjust and/or service annually. this Ag-Bagger unless the Power Shut Down Procedure in Use a premium grade of lithium base the Safe Operation of Machine section wheel bearing grease.

  • Page 69: Wheel Bearings - Greasing

    Place the hub on the spindle. Rotate the Wheel Bearings - Greasing hub while performing this step so that the seal lip does not fold under as the lip is Each set of wheel bearings is greased at installed on the seat of the spindle. the hub.

  • Page 70: Rotor Bearings

    Rotor Bearings Forage Distributor Bearings Interval: Every 2 hours of Ag-Bagging. Interval: Once per Ag-Bag Each rotor bearing is greased by using a Each distributor bearing is greased by remote mounted grease fitting at the using a remote mounted grease fitting at operator station.

  • Page 71: Cable Drum Shaft Bearings

    Cable Drum Shaft Bearings Interval: Daily Each cable drum has a bearing at the outside and inside for support. There are 4 grease locations total for the cable drum shaft assembly. Wipe off each fitting before attaching the grease gun. Grease each bearing and babbitt bearing.

  • Page 72: Conveyor Bearings

    Conveyor Bearings Interval: Daily The conveyor has four bearings and that require greasing. Three bearings are greased through a fitting on the bearing housing. The top inside bearing is greased through a remote mounted grease fitting Wipe off each fitting before attaching the grease gun.

  • Page 73: Conveyor Cleanout

    Conveyor Cleanout Interval: Daily The conveyor has a lower hopper pan for cleanout to allow the removal of any material accumulated. Remove the hitch pin clip and the rod to allow the pan to open. Clean out all accumulated material to prevent damage to components and attraction to rodents.

  • Page 74: Rotor Drive Chain

    Rotor Drive Chain Interval: Every 2 hours of Ag-Bagging. DANGER: DO NOT operate the Ag-Bagger unless all guards are in place. Failure to do so may cause serious injury or death. With the Ag-Bagger idling, oil the rotor drive chain through the oil slot located in the cover over the rotor drive chain.

  • Page 75: Hydraulic Pump Drive Chain

    Hydraulic Pump Drive Chain T7170 and T7060 Only Interval: Every 2 hours of Ag-Bagging. DANGER: DO NOT operate the Ag-Bagger unless all guards are in place. Failure to do so may cause serious injury or death. With the Ag-Bagger idling, oil the hydraulic pump drive chain through the Fig.

  • Page 76: Bag Boom Pivot

    Bag Boom Pivot Interval: Monthly Wipe off the grease fittings before attaching the grease gun. Grease fitting and swing the bag boom side to side to distribute the grease evenly. Do not over grease as the pivot tube is open to the bottom side. Wipe off excess grease when finished.

  • Page 77: Hydraulic Oil Level Check

    Hydraulic Oil Level Check Keep the hydraulic reservoir clean to Interval: Daily maximize the heat transfer from the reservoir for cooling. Maintain the oil level in the main hydraulic reservoir point Make sure components approximately in the middle to 2/3 of the functioning properly and maintain proper level indicator at the side of the hydraulic adjustments for all areas outlined in this...

  • Page 78: Hydraulic Oil Change

    Hydraulic Oil Change Interval: Every 250 hours most important element Place a suitable container (capable of maintaining hydraulic oil is to keep it holding 25 gallons (114 L) under the plug clean, filtered and do not allow it to at the bottom of the hydraulic reservoir. overheat.

  • Page 79: Hydraulic Oil Filter

    Hydraulic Oil Filter Interval: Annually whenever hydraulic oil is changed The oil filter is located inside the service compartment, near the hydraulic pump and reservoir. After the unit is turned off with the Power Shut Down Procedure in the Safe Operation of Machine section of this manual, the system should be allowed to Figure 155.
  • Page 80 Gearbox Oil On the top side of the gearbox, locate the T7170 and T7060 Only ended fill and breather tube with the breather on top. Interval: Annual or whenever hydraulic oil is changed Thoroughly clean the area around the breather and remove the breather from WARNING: lubricate, the port.
  • Page 81 Gearbox and Planetary Oil Rotate the cover over the top of the T7270 Only gearbox to expose the fill port and breather on top. Interval: Annual or whenever hydraulic oil is changed Place a suitable container under the drain plugs located on the bottom of the gearbox and planetary.

  • Page 82: Cable Drum Brake Pads Only Only

    Shut off the unit following the Power Shut DANGER: Down Procedure in the Safe Operation of DO NOT operate the Machine section in this manual. Wait 5 Ag-Bagger unless all minutes for the oil in the system to settle. guards are in place. Failure to do so may cause serious Inspect the oil level at the sight glass.
  • Page 83 Cable Drum Brake Pads Interval: Replace as needed. If the cable drum brakes begin to lose the ability to hold the cable drums at the pressure required, the brake pads may need to be replaced. Replace both pads on the cable drum. Relieve the brake system pressure by opening the needle valve and the pump valve at the hand pump.

  • Page 84: Cables

    Cables Interval: Once Per Ag-Bag IMPORTANT: ALWAYS wear gloves when handling or working with cables. Check the cables at the end of each Ag- Bag before the tension is released. Check each cable for frayed spots, kinks, broken strands, or thin spots. Check the cable ends making sure the cable is not pulled from the sleeve.

  • Page 85: Brake System Oil

    Brake System Oil NOTE: As the brake pads wear, the oil level in the hand pump will decrease. Interval: As Required When new brake pads are installed and the calipers compressed to fit the new If the hand pump is low on oil and does brake pads, hydraulic jack oil may need not maintain the ability to pump correct to be removed from the reservoir of the...

  • Page 86: Rotor Tooth Tine Caps

    Rotor Tooth Tine Caps Place the new rotor tooth cap on top of Interval: As Required the rotor tooth. The cap should be centered in the space between the two WARNING: stripper bars. lubricate, adjust and/or service Check to ensure the cap is straight with the Ag-Bagger unless the tooth and weld across both ends and the Power Shut Down...

  • Page 87: Stripper Bar Plate

    Stripper Bar Plate Interval: As Required The stripper bar plate should be replaced whenever the gap between a new tine cap and the stripper bar plate exceeds 1/8” (3mm). To replace the stripper bar plate, it is best to open the tunnel cleanout and remove the bolts of the stripper bar plate.

  • Page 88: 12 Service

    12 SERVICE Torque Specifications NOTE: Use these torque values when tightening hardware, excluding lock nuts, self- tapping screws, thread forming screws, and sheet metal screws unless otherwise specified. All torque values are in lb-ft except those marked with an (*) which are lb-in. For metric torque value Nm, multiply lb-ft by 1.355 or for lb-in multiply by 0.113).

  • Page 89: Hydraulic Fittings

    Hydraulic Fittings hose end body. With the second wrench, WARNING: tighten the swivel nut to the torque Escaping fluid under indicated in the chart provided. pressure can penetrate skin causing *Torque values shown are based on lubricated connections in reassembly. serious injury.

  • Page 90: Hydraulic System Pressure

    Hydraulic System Pressure SPECIFICATION System Relief Pressure: 2,500 psi (17,236 kPa) maximum Hand Control Manifold Pressure Relief Adjustment: 1. Locate the pressure relief cartridge on the hand control manifold. a. For the T7060, this Figure 169. Pressure Adjustment Key 1 – Hand Valve cartridge is located on the Key 2 –...

  • Page 91: Hydraulic System

    14 THEORY OF OPERATION Hydraulic System The hydraulic systems of the T7270, T7170 and T7060 are self-contained and open-center. The PTO drives a pump drive through the gearbox. The pump pressurizes the control manifold. System pressure is protected by a relief valve built in the control manifold.
  • Page 92 Figure 171. T7270 Hydraulic Functional Schematic...
  • Page 93 Figure 172. T7170 Hydraulic Functional Schematic...
  • Page 94 Figure 173. T7060 Hydraulic Functional Schematic...

  • Page 95: Electrical System

    Electrical System The T7270, T7170 and T7060 have an electrical harness for the inoculant system and a separate harness for transport lighting. For the inoculant system, refer to the manual provided with the system. For the transport lighting harness, the following is a description of wiring functions.
  • Page 96 15 Troubleshooting Symptom Cause Solution Replace shear bolt. Rotor stops rotating. PTO Shear bolt on PTO shaft broken. Check and remove obstruction from shaft continues to turn. hopper. Check for further damage. Check that conveyor is centered on Forage distributor is overloaded. hopper.
  • Page 97 16 Storage Before placing the Ag-Bagger into storage, prepare the unit properly. 1. Remove any product or acidic 9. Install the rotor chain on the juices which will cause corrosion. sprockets. Install the rotor chain guard on the Ag-Bagger. 2. Open the cleanout door at the lower end of the conveyor and 10.
  • Page 98 Raise the green jack stand at the hitch 17 SET-UP AND ASSEMBLY end to the highest position. This product is shipped in a narrow configuration and requires minimal setup See Figures 174 through 176. for field use. Once set-up is complete, review all adjustments in the Adjustments section of this manual and adjust as needed.
  • Page 99 Remove Fork Pockets Remove the fork pockets from under the machine. Stack the brackets and tighten the hardware in the stack of parts. Place components storage Figure 177. Bottom View from Bag Pan Key 1 – Fork Pockets compartment for the customer. See Figure 177.
  • Page 100 String the Backstop compartment for use in securing the ends The backstop can be strung while in the of Ag-Bags later. storage position on the Ag-Bagger. The mounts can then be closed at the Use the rope provided in the storage ends using a hammer if desired.
  • Page 101 Move the Bag Cradle For the T7060, the bag cradle is typically shipped on top of the tunnel extensions. For the T7270 and T7170, the bag cradle is typically shipped inside of the conveyor to keep the height of the machine as low as possible with the 10’...
  • Page 102 Ag- Bag by RCI. Check Wheel Lug Nut Torque Check wheel lug nut torque. See Wheel Ag-Bag by RCI firmly believes in Lug Nut Torque in the Lubrication and continuous improvement and would Maintenance section of this manual.
  • Page 103 All parts listed are available through your local dealer. Attention: Dealer – Contact Ag-Bag by RCI directly for all part orders for this unit. Please include a serial number and model of the attachment when placing a parts order. The serial number plate is located near the oil filter in the service compartment.
  • Page 104 Repair Parts Index Section 1 - Drive Assembly, Rotor & Forage Distributor 1.1 - T7060 & T7170 Drive Assembly……………………………………………….. 1.2 - T7270 Drive Assembly…………………………………………………………… 110 1.3 - Rotor………………………………………………………………………………. 114 1.4 - Forage Distributor……………………………………………………………….. Section 2 - Conveyor & Hopper 2.1 - Conveyor Drive…………………………………………………………………… 118 2.2 - Conveyor Bolt-Ons……………………………………………………………….
  • Page 105 Section 9 - Control Valves, T7170 Pump Drive & Hydraulic Tank 9.1 - Control Valves……………………………………………………………………… 182 9.2 - T7060 & T7170 Pump Drive & Hydraulic Tank………………………………… 184 Section 10 - Component breakdowns 10.1 - Double Output Gearbox………………………………………………………… 186 10.2 - Planetary Gearbox……………………………………………………………… 188 10.3 - 540 PTO………………………………………………………………………….
  • Page 106 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 107 1.1 – T7060 & T7170 Drive Assembly...
  • Page 108 1.1 – T7060 & T7170 Drive Assembly Part Number Description Comments AB3171153 Frame, Main T7170 AB3170700 Frame, T7060 Main T7060 AB3170150 Gearbox, Double Output See breakdown on Parts Page 10.1 AB3170930 Oil, 75w90 Synthetic - 2.5 gal. Oil for Gearbox AA0901994 PTO, 1-3/8 6 x 1-3/4 20 #8 See breakdown on Parts Page 10.3...
  • Page 109 1.1 – T7060 & T7170 Drive Assembly - Continued...
  • Page 110 1.1 – T7060 & T7170 Drive Assembly – Continued Part Number Description Comments AA907688 Key, 7/8 x 7/8 x 4.00 1018 RC900064 Bolt, 5/16-18 x 1-1/4 Gr5 YZ Hex RC902162 Washer, 5/16 SAE YZ Hard Flat RC900579 Nut, 5/16-18 YZ Nylock RC900091 Bolt, 3/8-16 x 1-1/4 Gr 5 YZ Hex RC900093...
  • Page 111 1.2 – T7270 Drive Assembly...
  • Page 112 1.2 – T7270 Drive Assembly Part Number Description Comments AB3171153 Frame, Main AB3170939 Gearbox, Planetary See breakdown on Parts Page 10.2 AB3171214 Oil, Mobil SHC Gear 220 - 3.9 gal. Oil for Gearbox AB3171098 PTO, 1000 RPM See breakdown on Parts Page 10.4 AB3170174 Support, Gearbox AB3170932...
  • Page 113 1.2 – T7270 Drive Assembly - Continued...
  • Page 114 1.2 – T7270 Drive Assembly - Continued Part Number Description Comments RC700154 Tee, -08 MORFS -12 MORB -08 MORFS Run RC700898 Elbow, -20 MORFS -20 MORB 45° AA907688 Key, 7/8 x 7/8 x 4.00 1018 RC900064 Bolt, 5/16-18 x 1-1/4 Gr5 YZ Hex RC902162 Washer, 5/16 SAE YZ Hard Flat RC900579...
  • Page 115 1.3 – Rotor...
  • Page 116 1.3 – Rotor Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170700 Frame, T7060 Main T7060 AB3170309 Rotor, 84" T7170 & T7270 AB3170695 Rotor, 72" T7060 AB3170904 Tooth, Rotor T7170 & T7270 AB3170904 Tooth, Rotor T7060 AA1020001 Cap, 1 X 3/16 X 8-13/16 Tine T7170 &...
  • Page 117 1.4 – Forage Distributor...
  • Page 118 1.4 – Forage Distributor Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170700 Frame, T7060 Main T7060 AB3170952 Distributor, T7170 Forage T7170 & T7270 AB3170955 Distributor, T7060 Forage T7060 AB3170521 Plate, Adjuster Filler AB3171707 Shaft, Distributor Drive AA3160365 Shaft, Auger AB3170519 Spacer, Motor Bearing...
  • Page 119 2.1 – Conveyor Drive...
  • Page 120 2.1 – Conveyor Drive Part Number Description Comments AB3170104 Frame, Wide Single Conveyor AB3170107 Assembly, Wide Single Conveyor End AB3170106 End, Wide Single Conveyor AB3170117 Pin, Wide YZ Latch AB3170112 Door, Wide Single Conveyor Clean Out AB3170976 Transition, Conveyor AB3170119 Shaft, 1-1/4 x 46-3/4 YZ Idler AA0900987 Roller, 1.250 Bore Conveyor...
  • Page 121 2.1 – Conveyor Drive - Continued...
  • Page 122 2.1 – Conveyor Drive – Continued Part Number Description Comments AB3171279 Bearing, 1-1/4" Bore 2-Bolt Flange Eccentric AA1501477 Tubing, 1-1/4" OD x 1" ID x 1-1/2" Black Vinyl RC701534 Adapter, 1/8 NPT 1/8 NPSM Straight Swivel RC950703 Latch, Tight-Hold Draw RC902616 P-Clamp, 5/8 Cushion RC902067...
  • Page 123 2.2 – Conveyor Bolt-Ons...
  • Page 124 2.2 – Conveyor Bolt-Ons Part Number Description Comments AB3170104 Frame, Wide Single Conveyor AB3170141 Panel, Hinged Side AB3170632 Skirt, 10" x 42.5" Rubber Side AB3170146 Deflector, Wide Conveyor AB3170206 Bracket, Gandy Lift AB3170201 Strip, Wide Conveyor Side Skirt AB3170916 Brace, Conveyor Side AB3170982 Shingle, Conveyor RC902148...
  • Page 125 2.3 – Conveyor Lift...
  • Page 126 2.3 – Conveyor Lift Part Number Description Comments AA0900441 Frame, Conveyor Slide AA0900484 Hold Down, Conveyor AB3171727 Indicator, Conveyor Position AA1700750 Pin, Cam Lever AA0717764 Spring RC902761 Pin, 5/32 x 1-1/4 CZ Roll RC901873 Zerk, 1/8 NPT Straight Grease RC900091 Bolt, 3/8-16 x 1-1/4 Gr 5 YZ Hex RC900677 Washer, 3/8 SAE YZ Hard Flat...
  • Page 127 2.4 – Conveyor Mounting...
  • Page 128 2.4 – Conveyor Mounting Part Number Description Comments AB3170101 Assembly, Wide Single Chain Conveyor AA0900515 Assembly, Conveyor Slide AB3170485 Support, Conveyor AB3170489 Brace, Conveyor AB3171721 Panel, Conveyor Hopper AA1541780 Motor, 6070 Conveyor Hydraulic AA1621179 Kit, Hydraulic Motor Seal AA0901800 Key, Conveyor Motor AA0900468 Cylinder, 2 x 28 x 1.125 Hydraulic AA2148205...
  • Page 129 2.5 – Hopper...
  • Page 130 2.5 – Hopper Part Number Description Comments AB3170214 Liner, Rotor Pan T7170 & T7270 AB3170721 Liner, T7060 Rotor Pan T7060 AB3170210 Panel, Front Left Hopper T7170 & T7270 AB3170723 Panel, LH Front Hopper T7060 AB3171176 Panel, Tunnel Side Hopper T7170 & T7270 AB3171751 Panel, Tunnel Side Hopper T7060...
  • Page 131 3.1 – T7060 Stripper Bars...
  • Page 132 3.1 – T7060 Stripper Bars Part Number Description Comments AB3170700 Frame, T7060 Main AB3170626 Replacement, LH Stripper Bar Plate RC902766 Bolt, 3/4 x 3 Gr 5 CZ Carriage RC902416 Washer, 3/4 SAE YZ Hard Flat RC900597 Nut, 3/4-10 YZ Nylock...
  • Page 133 3.2 – Tunnel Cleanout...
  • Page 134 3.2 – Tunnel Cleanout Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170225 Door, Cleanout AB3170626 Replacement, LH Stripper Bar Plate AB3170597 Replacement, RH Stripper Bar Plate AB3170264 Guide, Stripper Bar AB3170913 Shim, Stripper Bar AB3170265 Shim, Stripper Bar Guide AB3170912 Shim, .060"...
  • Page 135 3.2 – Tunnel Cleanout - Continued...
  • Page 136 3.2 – Tunnel Cleanout - Continued Part Number Description Comments RC900135 Bolt, 1/2-13 x 1-1/2 Gr 5 YZ Hex RC900136 Bolt, 1/2-13 x 1 3/4 Gr 5 YZ Hex RC900731 Washer, 1/2 YZ Lock RC900691 Washer, 1/2 SAE YZ Hard Flat RC900689 Washer, 1/2 USS YZ Hard Flat RC900588...
  • Page 137 4.1 – T7060 6’ Tunnel...
  • Page 138 AB3171763 Pin, YZ Extension Lower AA1560005 Rope, 3/8" x 300' Backstop AB3170898 Strap, 6 ft Backstop AB3170795 Decal, 10.5" x 28" AgBag by RCI Logo RC901939 Reflector, Yellow 2 x 9 AB3170998 Pin/Lanyard, Tunnel Pins come with lanyard RC902806 Pin, 1/4 x 1-5/8 CZ Detent...
  • Page 139 4.2 – T7060 8’ & 9’ Tunnels...
  • Page 140 4.2 – T7060 8’ & 9’ Tunnels Base/End Extension Bundles Part Number Description Comments AB3170801 Tunnel, T7060 8' Base AB3170807 Tunnel, T7060 9' Base AB3170805 Extension, T7060 8' End Tunnel AB3170811 Extension, T7060 9' End Tunnel AB3171074 Pin, YZ Extension AB3171076 Pin, YZ Tunnel Extension Top AB3171763...
  • Page 141 4.3 – T7060 8’ & 9’ Tunnel Completion...
  • Page 142 4.3 – T7060 8’ & 9’ Tunnel Completion Part Number Description Comments AB3170841 Base, LH T7060 Tunnel AB3170843 Base, RH T7060 Tunnel See breakdown on Parts Page AB3170443 Assembly, Bag Boom See breakdown on Parts Page AB3170369 Cradle, Bag 9'&10' AB3170752 Backstop, 9 ft AA1560006...
  • Page 143 4.4 – T7170 & T7270 9’ Tunnel...
  • Page 144 4.4 – T7170 & T7270 9’ Tunnel AB3170594 Part Number Description Comments AB3170277 Tunnel, 9' AB3170375 Extension, 9' End AB3171074 Pin, YZ Extension AB3171076 Pin, YZ Tunnel Extension Top AB3171763 Pin, YZ Extension Lower AB3170998 Pin/Lanyard, Tunnel Pins come with lanyard AB3171768 Retainer, Tunnel RC902805...
  • Page 145 4.5 – T7170 & T7270 10’ Tunnel...
  • Page 146 4.5 – T7170 & T7270 10’ Tunnel AB3170591 Part Number Description Comments AB3170279 Tunnel, 10' AB3170371 Extension, 10' End AB3170555 Door, Hood Access AB3170554 Plate, Fork Access Door AB3171074 Pin, YZ Extension AB3171763 Pin, YZ Extension Lower AB3170998 Pin/Lanyard, Tunnel Pins come with lanyard AB3171768 Retainer, Tunnel...
  • Page 147 4.6 – Bag Boom...
  • Page 148 4.6 – Bag Boom Part Number Description Comments AB3170438 Vertical Frame, Bag Boom AB3170440 Horizontal Frame, Bag Boom AA0900397 Winch, Brake DLB1500A AA2121349 Top Link, Cat 2 Hitch AB3170436 Pulley Mount, Bag Boom AA1060036 Pulley, Bag Boom 3 in. AA1501691 Cable, 1/4 X 30 ft w/Hook AB3170442 Handle, Boom...
  • Page 149 4.7 – Cradle...
  • Page 150 4.7 – Cradle Part Number Description Comments AB3170368 Cradle, Bag 9'&10' AB3170366 Extension Hook, Cradle AB3170600 Hinge Rod, Cradle RC950637 Chain, 1/4 Grade 43 x 22 Links AB3170989 Trim, 2" C.L. Edge AB3170997 Trim, 3" C.L. Edge RC901973 Tie, 11 UV Resistant Cable RC900839 Pin, 1/8 x 1 YZ Cotter RC902481...
  • Page 151 4.8 – Bungee Kit...
  • Page 152 4.8 – Bungee Kit Part Number Description Comments AA1560004 Kit, Bungee Cord AA1560000 Bungee Cord, Tunnel AA1560001 Bungee Cord, Bag Pan RC902780 Carabiner, 3/8 x 3-3/16 CZ...
  • Page 153 5.1 – Cable Drums...
  • Page 154 5.1 – Cable Drums Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170700 Frame, T7060 Main T7060 AB3170530 Drum, Cable AB3170532 Shaft, Center Drum T7170 & T7270 AB3170720 Shaft, T7060 Center Cable Drum T7060 AB3170578 Coupler, Drum Shaft AA3160389 Cable, 3/8 x 295 ft AA1500412...
  • Page 155 5.1 – Cable Drums...
  • Page 156 5.1 – Cable Drums - Continued Part Number Description Comments RC700079 Adapter, -06 MORFS -10 MORB Straight RC702608 Adapter, .062" x -06 MORFS -06 FORFS Swivel Orifice RC901824 Pin, 5/32 x 1-1/2 CZ Cotter RC902595 Pin, 3/8 x 2-1/2 CZ Locking Square Retainer RC900902 Pin, 3/8 x 3 CZ Locking Square Retainer RC901823...
  • Page 157 5.2 – Drum Brakes...
  • Page 158 5.2 – Drum Brakes Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170700 Frame, T7060 Main T7060 See breakdown on Parts AA1501348 Brake, Mico 02-520-274 Page 10.7 See breakdown on Parts AA0900040 Pump, 17 CI 2000 PSI Hand Page 10.6 RC950658 Accumulator, 9.8 CUI...
  • Page 159 6.1 – Backstop & Bag Pan...
  • Page 160 6.1 – Backstop & Bag Pan Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170700 Frame, T7060 Main T7060 AB3170593 Backstop, 10 ft T7170 & T7270 AB3170752 Backstop, 9 ft T7060 AA1560007 Rope, 3/8" x 500' Backstop T7170 & T7270 AA1560006 Rope, 3/8"...
  • Page 161 7.1 – Shields...
  • Page 162 7.1 – Shields Part Number Description Comments AB3171153 Frame, Main T7170 & T7270 AB3170700 Frame, T7060 Main T7060 AB3171179 Shield, Control T7170 & T7270 AB3171730 Shield, T7060 Control T7060 AB3170396 Door, T7170 Front Access T7170 & T7270 AB3170732 Door, T7060 Front Access T7060 AB3170384 Door, T7170 Wheel...
  • Page 163 7.1 – Shields - Continued...
  • Page 164 7.1 – Shields - Continued Part Number Description Comments RC950592 Latch, Rubber Draw RC900452 Screw, #8-32 x 1/2 CZ Ph Pan Hd RC901817 Nut, #8-32 YZ Nylock RC902738 Screw, #10-24 x 5/8 CZ Ph Pan Hd RC900667 Washer, #10 SAE YZ Flat RC902420 Nut, #10-24 YZ Nylock RC900085...
  • Page 165 7.2 – T7060 Storage Compartment...
  • Page 166 7.2 – T7060 Storage Compartment Part Number Description Comments AB3170700 Frame, T7060 Main AB3170682 Manual, AB317 Operator RC950460 Holder, Manual See breakdown on Parts Page AB3170199 Assembly, Hydraulic Tank AB3170537 Compartment, Storage AB3170544 Cover, Storage Compartment AB3170539 Filler, Tank AB3170546 Spacer, Hinge AB3170340 Hinge, .188"...
  • Page 167 7.3 - T7170 & T7270 Storage Compartment...
  • Page 168 7.3 - T7170 & T7270 Storage Compartment Part Number Description Comments AB3171153 Frame, Main AB3171234 Manual, T-Series Operator RC950460 Holder, Manual See breakdown on Parts AB3170199 Assembly, Hydraulic Tank Page 9.2 AB3170537 Compartment, Storage AB3171183 Cover, Storage Compartment AB3171143 Panel, Tank Filler AB3171141 Bracket, Valve AB3171145...
  • Page 169 8.1 – Transport...
  • Page 170 8.1 – Transport Part Number Description Comments AB3171153 Frame, Main AB3171743 Assembly, Adjustable Hitch See breakdown on Parts Page 8.2 AB3170498 Assembly, Light Bar See breakdown on Parts Page 8.3 AB3170587 Assembly, Wheel & Tire AB3170683 Wheel RC950620 Tire See breakdown on Parts Page RC950669 Assembly, 8 on 8 Spindle 10.8...
  • Page 171 8.2 – Hitch...
  • Page 172 8.2 – Hitch Part Number Description Comments AB3171742 Hitch, Adjustable RC950722 Hitch, 3 Hole Category 3 Drawbar w/ Clevis AA1501398 Jack, Manual 8000# 2.5 Sq Mnt RC950617 Chain, 3/8 Grade 70 x 31" Safety RC900909 Pin, 5/8 x 5-3/4 YZ Hitch RC900322 Bolt, 3/4-10 x 6-1/2 Gr 8 YZ Hex RC902416...
  • Page 173 8.3 – Light Bar...
  • Page 174 8.3 – Light Bar Part Number Description Comments AB3170494 Bar, Light AB3170926 Kit, Lights w/Harness AB3170925 Harness, Light AA0900460 Harness, Light 6000 Series RC750591 Indicator, Left Stop Turn Tail LED Warning RC750592 Indicator, Right Stop Turn Tail LED Warning RC901941 Decal, Flourescent Orange 2 x 9 Marker RC901940 Reflector, Red 2 x 9...
  • Page 175 8.4 – Hydraulic Machine Lift...
  • Page 176 8.4 – Hydraulic Machine Lift Part Number Description Comments AB3171153 Frame, Main AB3171134 Tube, Lower Lift RC950672 Cylinder, 2" x 16" Tie Rod See breakdown on Parts RC950671 Assembly, 3-Way Flow Divider Page 10.9 RC700077 Adapter, -06 MORFS -06 MORB Straight RC700107 Adapter, -06 MORFS x -06 MORB Straight Long RC700181...
  • Page 177 8.5 – Decals...
  • Page 178 Sign, Plastic SMV Not included in kits RC901939 Reflector, Yellow 2 x 9 Not included in kits AA0701571 Decal, 12" x 32" AgBag by RCI Logo AA0901563 Decal, 7" x 19" AgBag by RCI Logo AB3170697 Decal, 3.5" x 18.5" T7170 T7170...
  • Page 179 8.5 – Decals - Continued...
  • Page 180 8.5 – Decals – Continued Part Number Description Comments RC902793 Decal, ISO Foot Crush Hazard RC901935 Decal, ISO High Pressure Fluid Hazard T7060 - Qty 1 RC901926 Decal, ISO Keep Safe Distance RC902794 Decal, ISO No Step Hazard RC902791 Decal, ISO PTO Entanglement RC901930 Decal, ISO Tiedown RC902797...
  • Page 181 8.6 – Conveyor Decals...
  • Page 182 8.6 – Conveyor Decals Part Number Description Comments AB3170102 Assembly, Wide Single Chain Conveyor AA0901563 Decal, 7" x 19" AgBag by RCI Logo AB3170970 Decal, Conveyor Position RC901933 Decal, Grease RC902792 Decal, ISO Conveyor Entanglement RC901932 Decal, ISO Entanglement Hazard...
  • Page 183 9.1 – Control Valves...
  • Page 184 9.1 – Control Valves RH Control Valve Part Number Description Comments See breakdown on Parts AB3170918 Valve, 2-Bank Hand Control Page 10.5 RC700078 Adapter, -06 MORFS -08 MORB Straight RC700108 Adapter, -06 MORFS x -08 MORB Straight Long T7170 & T7270 RC700119 Elbow, -06 MORFS -08 MORB 90°...
  • Page 185 9.2 – T7060 & T7170 Pump Drive & Hydraulic Tank *Previous T7170 machines used the same #50 pump drive chain and sprockets as the T7060. Previous units can be upgraded to the size #60 chain by replacing both sprockets and chain. Verify actual chain size in use on any early s/n machines (prior to s/n 0401054).
  • Page 186 9.2 – T7170 Pump Drive & Hydraulic Tank Part Number Description Comments AB3171153 Frame, Main T7170 AB3170700 Frame, T7060 Main T7060 See breakdown on Parts Page AB3170150 Gearbox, Double Output 10.1 RC950610 Pump, 2100 Series Gear RC950665 Kit, Seal AB3170509 Mount, Pump Chain, #60HR x 52 Pitches + Connecting RC950716...
  • Page 187 10.1 – Double Output Gearbox...
  • Page 188 10.1 – Double Output Gearbox Part Number Description Comments AA0901714 Wheel, Crown AA0901715 Casing, Gearbox AA0901716 Bolt, M10x22 AA0901717 Plug, 1/2” Gas AA0901718 Cover, Gearbox AA0901720 Nut, M60x2 AA0901721 Plug, Oil Filler 1/2 Gas AA0901722 Bolt, M12 x 35 AA0901723 Cover AA0901724 Seal, Double Lip...
  • Page 189 10.2 – Planetary Gearbox...
  • Page 190 10.2 – Planetary Gearbox Part Number Description Comments AB3171239 Gearbox, T152 Bevel AB3171240 Planetary, PD 117 AB3171241 Kit, Input Seal and Bearing AB3171242 Kit, Output Seal and Bearing AB3171214 Oil, Mobil SHC Gear 220 - 3.9 gal. Oil for Gearbox...
  • Page 191 10.3 – 540 PTO...
  • Page 192 10.3 – 540 PTO Part Number Description Comments AA0902006 Yoke, #7-S8-G8 RT Ball 1-3/8” Z6 AA87012142 Kit, S8-H8-G8 34.9X93.5 Cross AA84524411 Yoke, H8 Outer 4 Lobe 12211 (66.0) AA47821975 Pin, Flexible Roll 10 X 85 DIN1481 AA0902007 Tube, Outer Drive AA0902008 Tube, Inner Drive AA1501853...
  • Page 193 10.4 – 1000 PTO...
  • Page 194 10.4 – 1000 PTO Part Number Description Comments AB3171217 Half, Guarded Joint & Shaft AB3171218 Half, Joint & Shaft AB3171225 Half, Guarded Joint & Tube AB3171226 Half, Joint & Tube AB3171220 Kit, Auto-Lok Repair AB3171219 Yoke, 55 Slide Lock AB3171221 Kit, 55E Cross AB3171222 Yoke &...
  • Page 195 10.5 – Control Valves...
  • Page 196 10.5 – Control Valves AB3170918 Part Number Description Comments AB3171015 Body, Distributor AB3171002 O-Ring AB3171003 Spacer AB3171004 Spacer, Open Slot AB3171005 Valve AB3171006 Spool, Type A AB3171007 Spool, Type C AB3171008 Positioner AB3171009 Positioner AB3171010 Cap, Lever AB3171012 Lever, 150mm AB3171168 Part Number Description...
  • Page 197 10.6 – Hand Pump...
  • Page 198 10.6 – Hand Pump Part Number Description Comments AA0000646 Dowel, Machined Piston AA0000647 Tab, Piston AA0000555 Kit, Hydraulic Hand Pump Release AA0000648 Screw, #8-32 x 3/8 BO Flat Head Socket AA0000654 Plug, Hand Pump Filler AA0000655 O-Ring, Filler Plug AA0901970 Assembly, Hand Pump Cartridge...
  • Page 199 10.7 – Brake Caliper...
  • Page 200 10.7 – Brake Caliper Part Number Description Comments AABN314704 Set, Brake Pad 1 Set AA1500199 Kit, Brake Repair Mico AA0000642 Screw, Bleeder AA0000643 Connector, Brake Caliper AA0000644 Tube, Brake Caliper AA0000645 Piston, Brake Caliper...
  • Page 201 10.8 – Spindle...
  • Page 202 10.8 – Spindle Part Number Description Comments RC950694 Hub, Cast RC950626 Spindle RC950623 Cup, Inner Bearing RC950624 Cup, Outer Bearing RC950627 Cone, Inner Bearing RC950628 Cone, Outer Bearing RC950695 Seal, Inner RC950696 Washer, Spindle RC950697 Nut, Hex Slotted RC902847 Pin, 7/32 x 2 CZ Cotter RC950698 Cap, Hub RC950625...
  • Page 203 10.9 – Flow Dividers...
  • Page 204 10.9 – Flow Dividers RC950603 Part Number Description Comments RC950602 Housing, #06 ORB x 2 Flow Divider RC950147 Valve, #08 25 PSI Check RC950604 Piston, #08 Pilot RC950605 Valve, #10 50:50, 4 GPM Input, Flow Divider RC950359 Stop, #2 Cavity Plug RC950362 Stop, #4 Cavity Plug RC950169...
  • Page 205 11.1 – Gandy Option...
  • Page 206 11.1 – Gandy Option Part Number Description Comments AA1500005 Applicator, Gandy 45# 4H Dry Inoc AA0900838 Instructions, Gandy Mount Lightbar RC900135 Bolt, 1/2-13 x 1-1/2 Gr 5 YZ Hex RC900691 Washer, 1/2 SAE YZ Hard Flat RC900588 Nut, 1/2-13 YZ Nylock...
  • Page 207 11.2 – Gandy Dry Inoculator...
  • Page 208 11.2 – Gandy Dry Inoculator Part Number Description Comments AA1500276 Motor, Elec w/Brkt Sprkts Harness AA1500472 Slide, Jumbo 4 Hole Straight Bottom AA1500344 Rotor, Jumbo 10" Rubber Gandy AA3160475 Spacer AA1501991 Washer, 5/8 x 1-1/2 x 5/16 Rubber AA1501920 Washer, Gandy SS AA1501628 Bearing, Gandy AA1501621...
  • Page 209 11.3-Miscellaneous Items...
  • Page 210 11.3-Miscellaneous Items Part Number Description Comments AA1500893 Valve, Bag Vent AA1500568 Tool, Bag Vent AA1570001 Spray Adhesive - Not Shown AA1500523 Repair Tape, 2 in. x 36 Yard Roll - Not Shown 18/Case AA1500525 Repair Tape, 3 in. x 36 Yard Roll - Not Shown 24/Case AA1501331 Repair Tape, 4 in.
  • Page 211 19 PRE-DELIVERY CHECKLIST (Keep in Manual – Send Copy to RCI) Wheels are properly attached, and After the Ag-Bagger is completely set up tires are properly inflated. and prior to delivery, the following inspections MUST be made before delivery to the customer. Check off each Cylinders, hoses, and fittings are item after prescribed action is taken.
  • Page 212 20 DELIVERY CHECKLIST (Keep in Manual – Send Copy to RCI) The following checklist is an important reminder of valuable information that must be passed on to the customer at the time the Ag-Bagger is delivered. Check off each item as you explain it to the customer.
  • Page 213 21 WARRANTY REGISTRATION AND ACKNOWLEDGEMENTS (Keep in Manual – Send Copy to RCI) work must complete, Save time sending copy to Ag-Bag and information provided, to properly register warranty. Save copy each fill out online after this page is complete.
