RCI 186M Operator's Manual

Windrow merger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

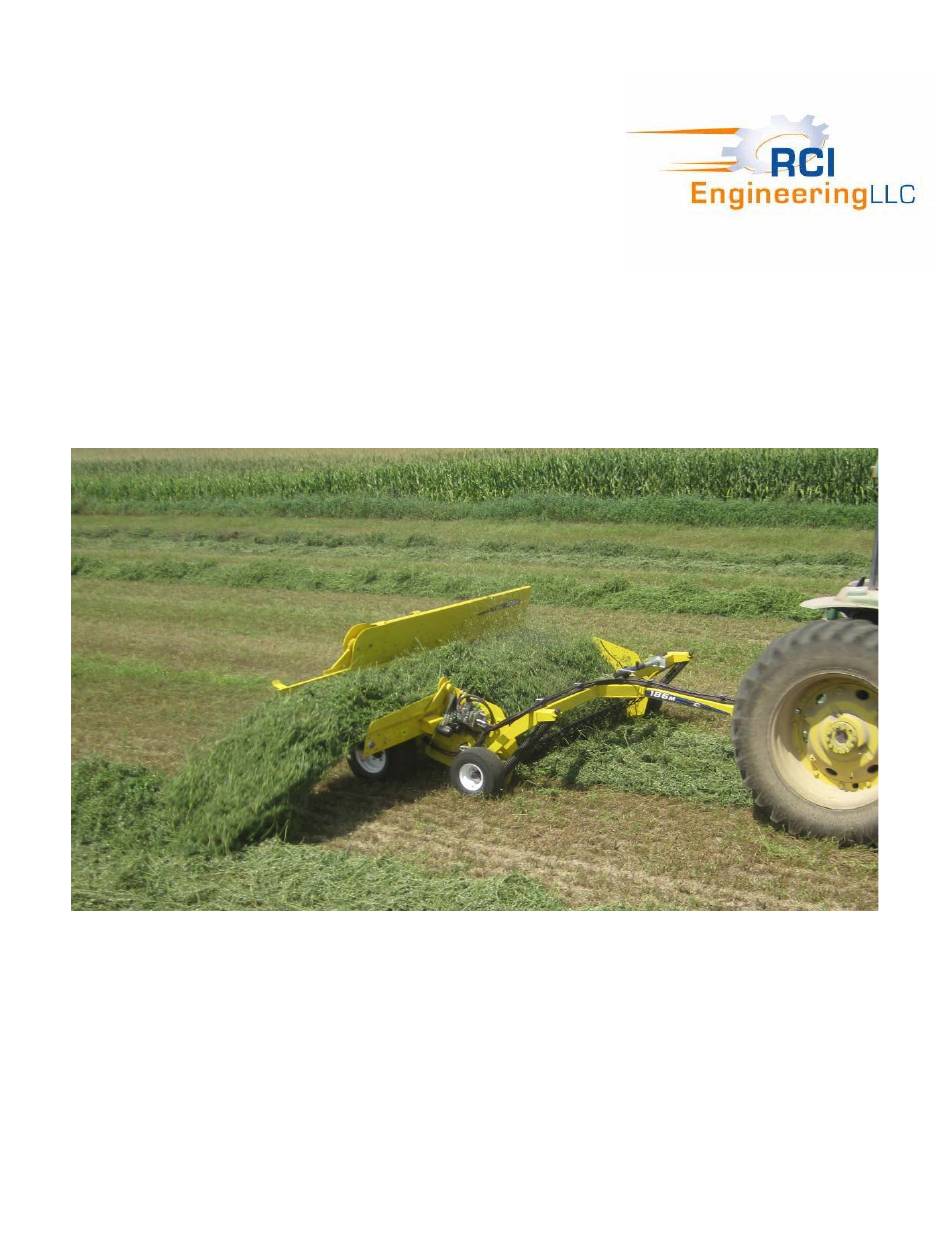

186M Windrow Merger
Operator Manual
Includes operating, adjustment, maintenance, technical,
repair parts and safety instructions for the 186M Windrow Merger.
Please retain this document for future reference. Keep this manual available for reference to the
operator at all times. Do not allow anyone to operate this implement without reading and fully
understanding this operator manual. Never allow children to operate on or near any equipment at
any time.
RCI Engineering LLC
RC130102 Rev B 1Nov2017
www.RCIengineering.com
Copyright © 2017 by RCI Engineering LLC
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 186M and is the answer not in the manual?

Questions and answers

Related Manuals for RCI 186M

Summary of Contents for RCI 186M

  • Page 1 Operator Manual Includes operating, adjustment, maintenance, technical, repair parts and safety instructions for the 186M Windrow Merger. Please retain this document for future reference. Keep this manual available for reference to the operator at all times. Do not allow anyone to operate this implement without reading and fully understanding this operator manual.

  • Page 2: Warranty Statement

    Original Retail Purchaser to be free from defects in material and workmanship for a period of one (1) year from the date of sale. RCI warranty includes: Genuine RCI parts costs and labor required to repair or replace equipment at the selling dealer’s business location. RCI MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EXPRESSED...

  • Page 3: Intended Use

    Intended Use: For merging two or three windrows from up to 18' wide cut widths into a single windrow. The 186M can also function as a very effective windrow inverter for improved crop drying in some conditions. Product Highlights: •...
  • Page 4 Product Limitations: • The 186M is not recommended at this time for use with tractors without integrated oil coolers. • When used on a tractor with open-center hydraulics and no flow control from the tractor, a pair of plugs must be removed from the manifold to allow for flow control at the manifold. Refer to the 186M Operator Manual for more information.

  • Page 5: Table Of Contents

    Table of Contents Section Page Warranty Statement……………………………………………..Intended Use…………………………………………………..Table of Contents………………………………………...……..Specifications………………………………………………………. Pre-Delivery Checklist…………………………………………..6, 68 Delivery Checklist………………………………………………..8, 70 Safe Operation of Machine………………………….……....Safety Warning Signs……………………………………………… Safety Sign Locations………………………..……………....Safety Sign Definitions……..……………………………….... Setup Instructions……...……………………………………..Field Operation………………………………………………..Adjustments……………………………………………………….. Maintenance…………………………………………………..Service…………………………………………………….....

  • Page 6: Specifications

    186M Merger Specifications Pickup Pickup Working Width 8' 6” Type Cam w/tine bar reel Number of Cams Number of Tine Bars 6 w/ center support Wind Guard Pickup Drive Hydraulic Stripper Guard Type Metal Float System Spring Conveyor Belt Width, in.

  • Page 7: Pre-Delivery Checklist

    Pre-delivery Checklist (Copy for Return to RCI at back of this manual) After the unit has been assembled and lubricated and prior to delivery to customer, the merger needs to be inspected thoroughly to ensure it is in proper working order. The following checklist must be reviewed and each item found to be satisfactorily completed.
  • Page 8 This Page Intentionally Left Blank...

  • Page 9: Delivery Checklist

    Delivery Checklist (Copy for Return to RCI at back of this manual) The following items must be performed when delivering the attachment to the customer. Check off each item as it is performed. Provide the customer with the Operator's Manual and instruct them to read prior to operating the unit.
  • Page 10 This Page Intentionally Left Blank...

  • Page 11: Safe Operation Of Machine

    Safe Operation of Machine Operator Authorization The machine owner must provide the operator of the machine this manual and ensure that the operator reads and understands the contents. This must be performed before the machine is put into operation. Safety Alert Symbol This safety alert symbol is used to alert the operator to the potential for personal injury.

  • Page 12: Safety Warning Signs

    Safety Warning Signs The safety warning signs feature a hazard description panel without text. It is important to properly identify any hazards when working around the attachment. The signs have a black border and yellow background. Each decal has two boxes of information regarding the hazard.

  • Page 13: Safety Sign Locations

    Safety Sign Locations Decal locations are identified in the figures below and referenced on the following pages.

  • Page 14: Safety Sign Definitions

    Safety Sign Definitions Safety Sign 1 This safety sign is a general warning sign instructing the operator to read the Operator's Manual for an explanation of safety signs applicable to the machine. The Operator's Manual is located in a tube holder at the left rear corner of the machine.
  • Page 15 Safety Sign 6 This safety sign is a warning of a pinch point. Keep clear of this area and do not place any body parts in this area due to the risk of the pinch point. Failure to do so may result in serious injury.
  • Page 16 This Page Intentionally Left Blank...

  • Page 17: Setup Instructions

    Setup Instructions Convert from Shipping to Field Setup Each unit is shipped with the tongue in a raised position. See Figure 7. Perform the following actions to prepare the machine from shipping configuration to field configuration: 1) Release unit from shipping skid by cutting shipping straps.
  • Page 18 8) Install the shipping strap from the hitch as a stop on the lower side of the tongue frame. See Figure 10. IMPORTANT: Ensure that the plate is arranged with the hook slot towards the front of the merger and the wide area extended under the frame of the merger.

  • Page 19: Field Operation

    Field Operation IMPORTANT If required to start the engine or tractor The 186M Windrow Merger is capable of electrical circuit to relieve hydraulic merging windrows from cut widths up to 16' pressure, be sure to repeat Step 2 before with the standard extension.
  • Page 20 See 12) Proceed to merging operation. "Engage/Disengage Main Clutch" in the next section. To prepare the 186M for transport from the 8) Return to the tractor and start the field, perform the following: unit while following the General Safety Precautions on Page 8 of this 1) Engage the transport lock.

  • Page 21: Adjustments

    Set the park brake of the tractor and shut off the engine. Remove the key from the ignition. Float Pressure The 186M Merger is preset to operate under Figure 11. Float Adjustment full spring load in normal operation. Key 1 - Spring Key 2 - Jam Nut (Hidden)
  • Page 22 Engage / Disengage Transport Lock before performing any service work. The transport lock is located at the left side Beware of components that may move when of the implement. changing selections with valves or removing locking mechanisms. Failure to do so may Before disengaging the transport lock, result in serious injury.
  • Page 23 Engage / Disengage Extension Motor The extension motor is engaged and disengaged manually. IMPORTANT When the extension is not in use, be sure the extension motor is disengaged. Failure to do so may result in belt damage. Always release all hydraulic pressure, lower unit to ground or transport stop, engage park brake, turn off tractor, and remove key before making any adjustments.
  • Page 24 Pickup Speed Adjustment – Closed Center Systems The tine speed is adjustable in series with Note: A new manifold is used starting with the belt speed by adjusting hydraulic oil serial number RCIX00835. Units built prior flow. to this serial number break do not feature the ability to switch between open-center and IMPORTANT: closed-center tractors and do not have flow...
  • Page 25 Changing Between Closed- and Open- There are two flow control valves on the Center Hydraulics manifold. The third, silver handle is the The default configuration for the hydraulic valve used to engage/disengage the manifold is for Closed-Center Hydraulics. extension motor. Each valve is also labeled on the manifold with engraved letters.

  • Page 26: Maintenance

    Maintenance Perform general lubrication every 10 hours of operation or before and after intermediate use (before and after seasonal harvests) unless otherwise specified. Severe or unusual conditions may require more frequent lubrication. The following illustrations show the lubrication points on the unit. Prior to using grease gun, clean the grease fitting.

  • Page 27: Service

    Service Cam Bearing Replacement Right end pickup cam bearing replacement. 1. Remove the cover from the cam track. 2. Remove the first tine bar guard from the end for clearance to work. 3. Loosen the bolt retaining the cover tab and move the tab for clearance to the access hole for removal of the bearing retaining bolt.
  • Page 28 Broken Tine Replacement Broken tines must be replaced immediately to prevent damage to other components. To replace a broken tine: 1. Remove the tine guard covering the broken tine. 2. Remove the 3/8” x 1¼” bolt and tine clip holding the broken tine in place. 3.
  • Page 29 Tire Pressures Inspect tire pressures and adjust appropriately. SPECIFICATION Gauge Wheel Pressure: Max 20 psi (140 kPa) Drive Wheel Pressure Max 20 psi (140 kPa) Main Belt Tension The main belt of the merger is automatically adjusting, but requires occasional maintenance to reset the spring.
  • Page 30 Implement Plugging Belt Care The belt compound includes polyester- Should the unit encounter an obstruction of reinforced-rubber. Although designed for crop at the pickup, use the following durability, the following is important to procedure to remove the restriction. consider to maximize the life of the belt. 1.
  • Page 31 Preparation for Storage 4. Store merger with transport lock in At the end of the season, the following place and extension in the transport should be done before putting the windrow position. pickup attachment into storage. 5. Store in a dry place out of the 1.
  • Page 32 This Page Intentionally Left Blank...

  • Page 33: Troubleshooting

    Troubleshooting Problem Cause Remedy Belt will not move. Obstruction to belt. Clear obstruction. Hydraulic valve closed. Open hydraulic valve. Will not float freely. Float spring is too tight. Loosen float springs Hydraulics not functioning Inspect for proper properly. connection of hoses. Crop is left in the field Gauge wheels are too low.
  • Page 34 This Page Intentionally Left Blank...

  • Page 35: Hydraulic Functional Schematic

    Hydraulic Functional Schematic...
  • Page 36 This Page Intentionally Left Blank...

  • Page 37: Bolt And Screw Torque Values

    Bolt and Screw Torque Values...
  • Page 38 This Page Intentionally Left Blank...

  • Page 39: Repair Parts

    All parts listed for the 186M Windrow Recommended Spare Parts Listing - Merger are available from your local John Dealer Deere dealer.
  • Page 40 This Page Intentionally Left Blank...

  • Page 41: Parts Index

    Parts Index Section Page Hitch and Wheel Components…………...………………………..Hitch Pivot Components……..……..……………………………..Pickup Components..…….………………………………………..Conveyor Components………...……………………………....Extension Components…...………………………………………..Long Extension Components…………………………………………... Windguard Components….…………………………………....Motor and Manifold Components….……………………………..Hydraulic Components….……….………………………………..Decals – Left…………….……….………………………………..Decals – Right…………...……….………………………………..Decals – Back…………………….………………………………..
  • Page 42 Hitch And Wheel Components...
  • Page 43 Hitch and Wheel Components Part Number Description Comments RC063040 Pivot RC063044 Takeup RC063175 Plug, Lower Spring RC063028 Spring RC063176 Plug, Upper Spring RC130097 Axle, Adjustable RC063037 Pin, Pivot RC063344 Stand, Jack RC063225 Bushing, 1.00 Machine RC063365 Sprindle RC063369 Valve, Ball RC063391 Cushion, Hose RC063390...
  • Page 44 Hitch Pivot Components...
  • Page 45 Hitch Pivot Components Part Number Description Comments RC063521 Latch RC063523 Cylinder, Lift RC063276 Spring, Cylinder RC063340 Link, Cylinder RC063370 Fitting, Orifice RC063438 Stop RC130017 Tongue RC902007 Pin, 5/8 X 4 CZ Clevis RC900588 Nut, 1/2-13 YZ Nylock RC900282 Bolt, 1/2-13 x 1-1/2 Gr 8 YZ Hex RC900703 Washer, 3/4 SAE YZ Flat RC900686...
  • Page 46 Pickup Components...
  • Page 47 Pickup Components Part Number Description Comments RC063188 Guard, Tine Bar RC130020 Reel RC024115 Assembly, Bearing RC063109 Bar, Tine RC024040 Tine, Pickup RC063113 Arm, RH Cam RC130024 Arm, LH Cam RC024016 Bushing RC024017 Bearing, Ball RC024007 Shaft, Center Support RC130021 Bar, Tine Long RC024253 Clip,Tine RC901558...
  • Page 48 This Page Intentionally Left Blank...
  • Page 49 Pickup Components - continued Part Number Description Comments RC700638 Adapter, -10 MORB -8 FORB Reducer RC901878 Bolt, 1/2-20 x 1-1/4 Gr 8 YZ Hex RC901638 Pin, 1/8 x 2 SS Cotter RC901890 Nut, 1-20 Castle RC900071 Bolt, 5/16-18 x 2-1/2 Gr5 YZ Hex RC902153 Screw, 3/8-24 X 3/8 BO Button Socket Cap RC902152...
  • Page 50 Conveyor Components...
  • Page 51 Washer, 5/16 SAE YZ Flat RC900579 Nut, 5/16-18 YZ Nylock RC900404 Bolt, 3/8-16 x 1-1/4 CZ Carriage RC900583 Nut, Nylock 3/8-16 RC900612 Nut, 1/2-13 YZ Hex Jam RC900377 Bolt, 1/4-20 x 5/8 CZ Carriage RC130109 Pin, Belt RC130102 Manual, 186M Operator...
  • Page 52 Extension Components...
  • Page 53 Extension Components Part Number Description Comments RC063070 Extension RC063309 Pivot, Rear RC063308 Pin, Pivot RC063270 Brg, Polymer RC063225 Bushing, 1.00 Machine RC063300 Cylinder RC063345 Gear, Laminate RC063076 Plate, Brg RC063083 Washer RC063054 Scraper RC024034 Assembly, Bearing RC063094 Bearing, Sleeve RC063186 Bearing, FHSPFTZ 206-20 RC063227 Belt, Converyor Ext...
  • Page 54 Long Extension Components – Optional...
  • Page 55 Long Extension Components – Optional Part Number Description Comments RC063462 Extension RC063479 Belt, Extension RC063461 Seal RC901558 Bolt, 5/16-18 X 1 CZ Carriage RC900672 Washer, 5/16 SAE YZ Flat RC900579 Nut, 5/16-18 YZ Nylock RC130109 Belt, Pin RC063499 Manual, Operator...
  • Page 56 Windguard Components...
  • Page 57 Windguard Components Part Number Description Comments RC063263 Spacer RC063284 Bracket, RH Pivot RC130025 Windguard RC063200 Washer RC063290 Bracket, LH Pivot RC063282 Bushing, Pivot RC063285 Retainer RC900588 Nut, 1/2-13 YZ Nylock RC900686 Washer, 1/2 SAE YZ Flat RC900677 Washer, 3/8 SAE YZ Hard Flat RC900093 Bolt, 3/8-16 x 1-1/2 Gr 5 YZ Hex RC900834...
  • Page 58 Motor and Manifold Components...
  • Page 59 Nut, 1/4-20 YZ Nylock RC700084 Adapter, -8 MFS, -10 MORB Straight RC700126 Adapter, -8 MFS -10 MORB 90° Elbow *1 For implement s/n RCIX00834 and higher. Replaces previous versions. If replacing on implement s/n RCIX00833 and below, contact RCI for update instructions.
  • Page 61 Hydraulic Components Part Number Description Comments RC063397 COUPLER, QUICK, MALE, -8 FORB RC700077 ADAPTER, Straight, -6 MFS, -6 MORB RC700126 ADAPTER, 90 deg, Elbow, -8 MFS, -10 MORB RC700119 ADAPTER, 90 deg. Elbow, -6 MFS, -8 MORB RC700146 ADAPTER, TEE, -6 MFS, -6 MORB RC700084 ADAPTER, Straight, -8 MFS, -10 MORB RC700118...
  • Page 62 Decals - Left...
  • Page 63 Decals – Left Part No. Description Comments RC130100 Decal, 186M Long Left RC901936 Decal, Tire Pressure RC901934 Decal, Read OPM RC901939 Reflector, Yellow 2 x 9 RC901933 Decal, Grease RC902035 Decal, ISO Pinch Point Hazard Horizontal RC901932 Decal, ISO Entanglement Hazard...
  • Page 64 Decals – Right...
  • Page 65 Decals – Right Part Number Description Comments RC130101 Decal, 186M Long Right RC901939 Reflector, Yellow 2 x 9 RC902035 Decal, ISO Pinch Point Hazard Horizontal RC901933 Decal, Grease RC901932 Decal, ISO Entanglement Hazard RC901935 Decal, ISO High Pressure Fluid Hazard...
  • Page 66 Decals – Back...
  • Page 67 Decals – Back Part Number Description Comments RC901940 Reflector, Red 2 x 9 RC901941 Reflector, Orange 2 X 9 RC130099 Decal, 186M Rectangle RC901932 Decal, ISO Entanglement Hazard RC901937 Decal, American Flag RC902035 Decal, ISO Pinch Point Hazard Horizontal RC901938 Decal, SMV...
  • Page 68 This Page Intentionally Left Blank...
  • Page 69 __________________________ ___________________ Model Number Serial Number Date Sold Owner’s Name and Address Name_______________________________________________ Address_____________________________________________ City, State, Zip _______________________________________ Original: Enclose in manual and give to customer at time of delivery. Copy: Dealership Copy: RCI Engineering LLC RCI Engineering LLC Fax: 920-387-9804...
  • Page 70 This Page Intentionally Left Blank...
  • Page 71 Delivery Checklist (Copy for Return to RCI at back of this manual) The following items must be performed when delivering the attachment to the customer. Check off each item as it is performed. Provide the customer with the Operator's Manual and instruct them to read prior to operating the unit.
  • Page 72 208 River Knoll Drive ● Mayville, WI 53050 ● 920-387-9804 ● Fax 920-387-9806 www.rciengineering.com...
