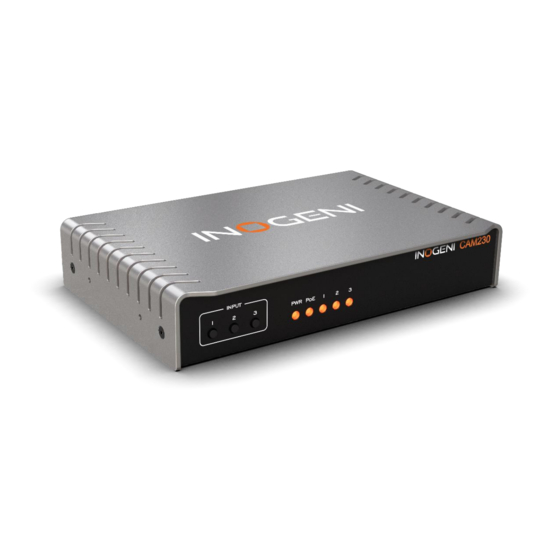

Summary of Contents for inogeni CAM230
- Page 1 INOGENI CAM230 User Guide User guide Version 1.0 April 12, 2023...
-
Page 2: Table Of Contents
LAN communication protocol ............................10 CDC-NCM communication protocol ..........................10 PoE ....................................10 Webpage ..................................11 REST API ..................................15 INOGENI Control App ..............................17 Mechanical specifications ............................18 DIP switches ................................19 Troubleshooting section ............................... 20 Support..................................21 Certifications ................................21... -
Page 3: Typical Application
TYPICAL APPLICATION Here is a typical connection diagram used for the CAM230 device in a videoconferencing setup. Figure 1: Common use case... -
Page 4: Block Diagram
BLOCK DIAGRAM Here is a simple block diagram to better understand the usage of the product. Status leds Power Power management Buttons (Control + PoE) RS232 USB3.0/2.0 camera input USB2.0 camera output USB3.0/2.0 camera input HDMI output HDMI input Figure 2: Basic block diagram The device embeds a video switch that can connect to USB3.0/2.0 and HDMI cameras. -
Page 5: Device Interfaces
DEVICE INTERFACES Here are the devices interfaces. Figure 3: Front side connections Figure 4: Back side connections Input selection buttons Input status LEDs HDMI output USB2.0 camera output USB3.0 camera inputs HDMI camera input RS232 and remote interface LAN/PoE interface +12VDC power input... -
Page 6: Leds Behavior
LEDS BEHAVIOR Here are the LEDs behavior: Power input No power. SOLID Device is powered up. Not powered from PoE. SOLID Powered from PoE. Input led Input not detected and not selected. Input detected and not selected. FLASH-LOW Input not detected and selected. HIGH Input detected and selected. -
Page 7: Specifications
SPECIFICATIONS Here is the complete specification. Physical details 17.33 cm x 11.57 cm x 3.26 cm Dimensions (W x L x H) 6.82” x 4.55” x 1.28” 12V (100-240 VAC 50/60Hz to 12V/1.2A DC) – or – Power supply PoE source compliant with IEEE 802.3af (802.3at Type 1) Weight 606 g 1 x USB 2.0 Type-B to Type-A cable (3ft). - Page 8 Control Front buttons RS-232 Control options IP interface 100 Mbps Baud rate: 9600 Data bits: 8 RS232 interface Stop bits: 1 Parity: None Flow control: None Certifications The device does not decrypt BD/DVD movies, satellite/cable receivers or other HDCP compliant encrypted sources.
-
Page 9: Serial Communication Protocol
Pin 2: GND Pin 3: Transmit Pin 4: 5V supply (for INOGENI Remote) Typically, commands will return ACK in case of success and NACK in case of failure. Note that if serial interface was disabled using REST API, commands will not be parsed, and no response will be provided. -
Page 10: Inogeni Remote
1 => automatic switching INOGENI REMOTE The INOGENI Remote needs to be connected to the terminal block port in order to operate. Apply wiring accordingly. This remote is sending serial commands to the device. Make sure to set the DIP SW6 below the device to ON in order to apply power to the remote before going further. -
Page 11: Lan Communication Protocol
LAN COMMUNICATION PROTOCOL You can access the device settings through its LAN interface. The LAN interface use DHCP and static IP addressing. You can obtain the IP from the Inogeni Control App or from the serial port IP command. CDC-NCM COMMUNICATION PROTOCOL The device can also be controlled through CDC-NCM interface exposed on the USB2.0 device port. -
Page 12: Webpage
WEBPAGE Here is the webpage that can be used to configure and upgrade the device. The username is “admin”, and the default password is “admin”. The STATUS page will give you information about the firmware installed. video and audio devices that you can monitor. - Page 13 The CONFIGURATION tab will allow you to : Set the HDMI resolution over HDMI Set the selected camera source Set the video input switching mode AUTO : Device will switch to newly detected video source MANUAL : Device will only switch when we get the control to do it. Set the audio input from USB sources or HDMI input.
- Page 14 The SYSTEM tab will allow you to : Change the current password for accessing device settings Get/Set REST API access token needed using REST API interface. Change network settings of your device Restore default settings and reboot the system Update your system Figure 7: System preview...
- Page 15 The DOCUMENTATION tab will allow you : Get to the present user guide Go to product webpage Figure 8: Documentation preview The first time you access the webpage, your web browser is likely to complain that the connection is insecure. The reason for this is because we are using self-signed HTTPS certificate, because certificate providers will not provide certificates for address that are not globally accessible.
-
Page 16: Rest Api
REST API The REST API need to have Autorization: Bearer <REST API access token> in the HTTP header. The response will be JSON formatted with a “message” field containing a JSON string explaining the cause of the error if any. Note that we are using self-signed certificate. - Page 17 3 => 720P50 4 => 4K24 5 => 4K25 6 => 4K30 x-www-form-urlencoded POST 200 => success JSON object with 400 => error message field format=<formatIndex> https://<IP>/api/v1/setVideoFormat 401 => authorization explaining error if input=<inputIndex> error Set video input format Possible <inputIndex> parameters: 1 =>...
-
Page 18: Inogeni Control App
You can use our Control App to monitor firmware information, upgrade and configure your unit. NOTE: You need to use the USB-B to USB-A cable provided with the box for the Control App to detect the unit. Figure 9: INOGENI Control App preview... -
Page 19: Mechanical Specifications
MECHANICAL SPECIFICATIONS You can find the mechanical specification here that lists the holes. All dimensions are in mm [in]. Figure 10: Top plate dimensions... -
Page 20: Dip Switches
Figure 11: Bottom plate dimensions and holes positions DIP SWITCHES Here you can find the behavior of the DIP switches located at the back of the unit. Switch Position Description For future use. For future use. For future use. For future use. Reserved. -
Page 21: Troubleshooting Section
Unfortunately, this is the expected behavior since the PC is agnostic of the computer is not detecting the USB camera. However, the device supports all UVC controls (pan, tilt and camera while the CAM230 is zoom controls) and can route them to the selected camera. connected in line. -
Page 22: Support
© Copyright 2023 by INOGENI INC. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase. Product specifications can change without notice.
