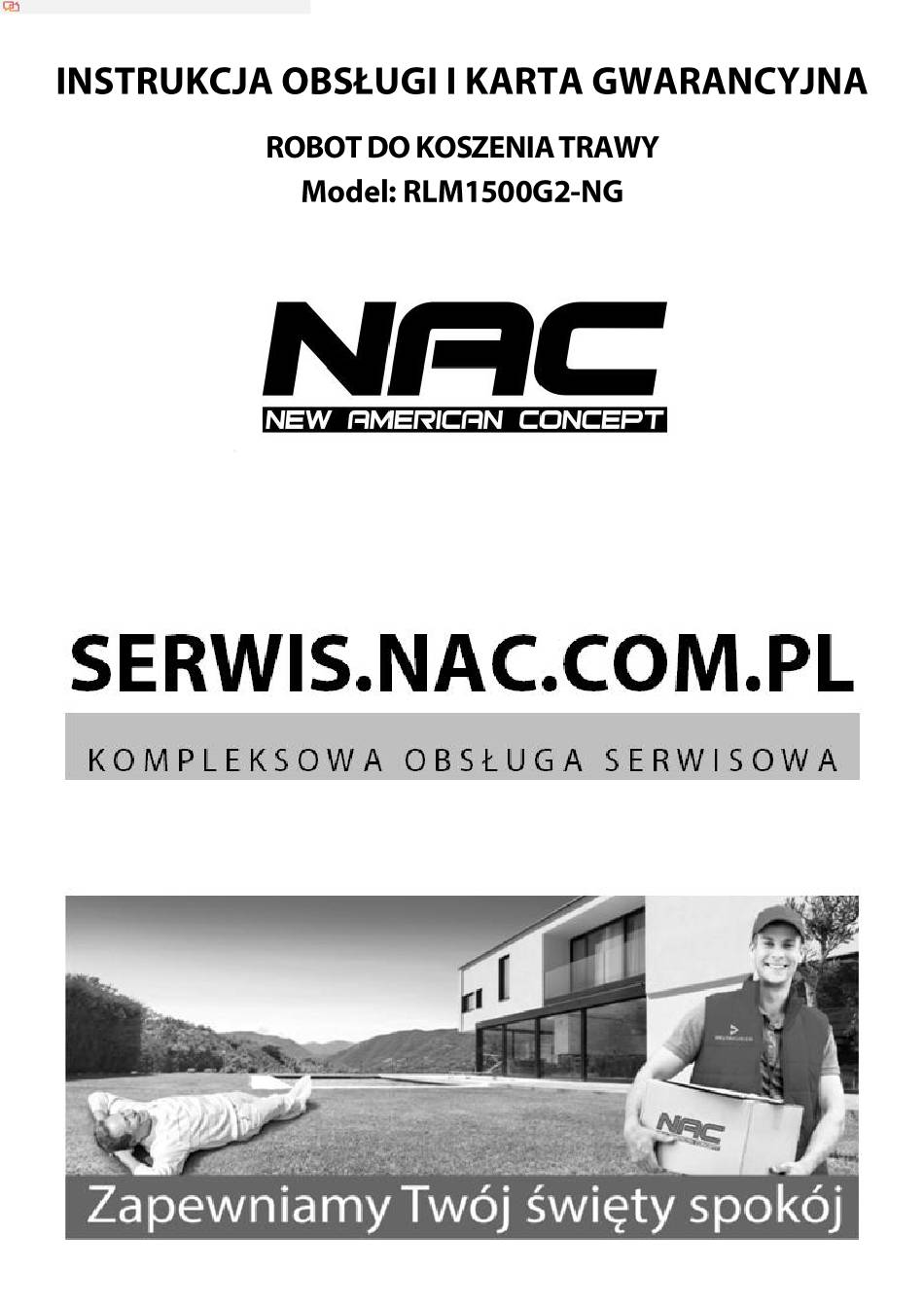

- Page 1 Translated from Polish to English - www.onlinedoctranslator.com...
-
Page 3: Technical Data
Review and diagnose problems Warranty and service Assembly diagrams Declaration of Conformity twenty Terms of warranty Warranty Card TECHNICAL DATA A ROBOT FOR MOWING GRASS RLM1500G2-NG Type, model Rated voltage 28V DC Rotation speed 2900 / min Cutting width 240 mm Cutting height... - Page 4 DESCRIPTION OF GRAPHIC PAGES AND PICTOGRAMS 1. Note! Danger. Be especially careful. Important! 2. Read the instructions and follow the warnings. 3. Store the equipment out of the reach of children. 4. Do not sit or carry children on the lawnmower. 5.
-
Page 5: General Safety Regulations
GENERAL SAFETY REGULATIONS Safety rules for machines and devices with an electric motor The device is considered suitable for use in countries with a moderate and uniformly humid climate. It can also be used in other countries. WARNING! Read the instructions carefully. Familiarize yourself with the safety regulations for electrically powered devices and the controls and the correct use of the device. -
Page 6: Personal Security
Safety decals and spare parts can be ordered from the NAC Service Center and authorized dealers. Power tools, accessories, working tools, etc. should be used in accordance with these instructions, taking into account the conditions and type of work to be performed. - Page 7 NAC service center. This will ensure that the power tool remains safe.
-
Page 8: Residual Risk
It is safe to have the knives replaced by an Authorized NAC Service Center. This is a paid service. Before replacing the blades in the robot, turn off, remove the battery and unscrew the blades. -
Page 9: Before First Use
using the device for purposes other than those described in the manual, when other people, especially children or animals, are nearby, use of the device by people not familiar with the manual, using the device without proper protective clothing and footwear for the operator, ... - Page 10 The design of the robot allows you to service lawns with an area of up to 1500 m², the typical working time on a single charge is 90 minutes. At the time the robot mows approximately 180 m². The most advantageous and optimal lawn area for the operation of the RLM1500G2-NG robotic mower is 1000 m². Fig. 3...
- Page 11 Preparation of the working area Place the contents of the package on the grass near where you are going to place the docking station (Fig. 4). Fig. 4 Docking station positioning: Start by placing the dock both on the sketch and in your garden within a reasonable distance from the power outlet as the dock's power cord is 15 meters long.
- Page 12 Make islands around obstacles, e.g. flower beds, with a rope to mark the working area 3 (Fig. 1)if you do not want the robot to not mow in this area as shown in the example working area sketch (Fig. 3). The incoming and outgoing conductors must be no more than 5 mm apart.
-
Page 13: Battery Charging
Now you can start inserting the stakes. Use a cardboard rule (Fig. 2) to keep the required distance from the edge (depending on the needs 10-35 cm) (Fig. 10). The distance between the stakes must not exceed 0.7 m. We recommend that the stakes are placed more densely in the corners of the lawn. - Page 14 ATTENTION! The charger must always be stored in a dry place. ATTENTION! The lawnmower cannot be used until installation is complete and the battery is fully charged. . Robot service Control board (Fig.16) 1 - main switch 2 - button for changing the settings 3 - settings confirmation button 4 - value increase button / return to the docking station 5 - value decrease / start button (manual start of the robot's operation)
-
Page 15: Rain Sensor
Back to base station Sometimes it is necessary to bring the robot back to the base station. Regardless of where the mower is in the marked area, to bring it back to the base station: 1. Press the button STOP (Fig. 17). The robot will stop mowing. 2. -
Page 16: Cleaning, Maintenance And Storage
. Safe mode and reset While working, the robot may encounter an unforeseen event that will trigger the emergency mode. Such events include, among others: too high an inclination, one of the robot's wheels driving into a hole, the robot colliding with an obstacle, the robot is lifted. As a result of such an event, the robot stops working and goes into emergency mode. - Page 17 Error while loading. Battery failure, turn the robot on / off several times. If the error persists, contact the NAC service center. The battery is broken, contact the service center. Battery over / under voltage. The tilt sensor has tripped.
- Page 18 Remember that the machine should be cleaned after each use. Keeping the equipment clean will ensure long-term and reliable operation. Cleaning, maintenance and periodic inspections are not repairs. Authorized NAC services can perform these activities as part of a paid service.
-
Page 20: Guaranteed Sound Power Level L
DECLARATION OF CONFORMITY EC declaration of conformity Producer: name: NAC Sp. z o. o Al. Krakowska 39, 05-090 Raszyn, Poland address: declares with full responsibility that the machine: name: RLM1500G2-NG lawn mowing robot model: serial number: 028 twenty 0607 533 527 0000 000001 - 028 23 0607 533 527 0000 999999 meets the essential requirements: ... - Page 21 The hotline is open from Monday to Friday from 8.00 to 15.00. Connection cost according to the rates of operators of individual networks. Our specialized service network provides you with all assistance in the field of technical and operational advice. List of authorized service points: available on the website serwis.nac.com.pl...
-
Page 22: Terms Of Warranty
NAC brand. This warranty is valid in the territory of the Republic of Poland. 5. The defects of the device covered by the warranty will be removed within 14 working days from the date of receipt at the NAC Authorized Service Center. -
Page 23: Warranty Card
I declare that I am an official Authorized Distributor of NAC equipment. Submitting a statement inconsistent with the facts by an entity that is not an authorized Distributor of NAC equipment may result in the seller's criminal liability pursuant to Art. 271 and art. 286 of the Criminal Code.
Need help?
Do you have a question about the RLM1500G2-NG and is the answer not in the manual?
Questions and answers
Our mower is just dojng the boundary please advise
The Nac RLM1500G2-NG mower may only be doing the boundary due to one or more of the following reasons:
1. The robot has strayed beyond the boundary line or the boundary wire is not properly connected (Error F1).
2. The boundary cable or power supply is not properly connected, so there's no signal on the charging station (Error F2).
3. The surface slope near the boundary is greater than 30°, especially in wet grass, which may cause the robot to move outside the working area.
4. The robot's tilt sensor has tripped due to a slope over 20°, requiring a restart on the boundary wire (Error E12).
5. The docking station is not placed correctly, such as on a slope or in a low area, affecting operation.
Proper installation and boundary wire placement are needed for correct operation.
This answer is automatically generated
@Mr. Anderson thank you we keep getting E2 as error code now after sorting the other out
