Summary of Contents for Anatomic SITT Anatomic Hygiene Sit

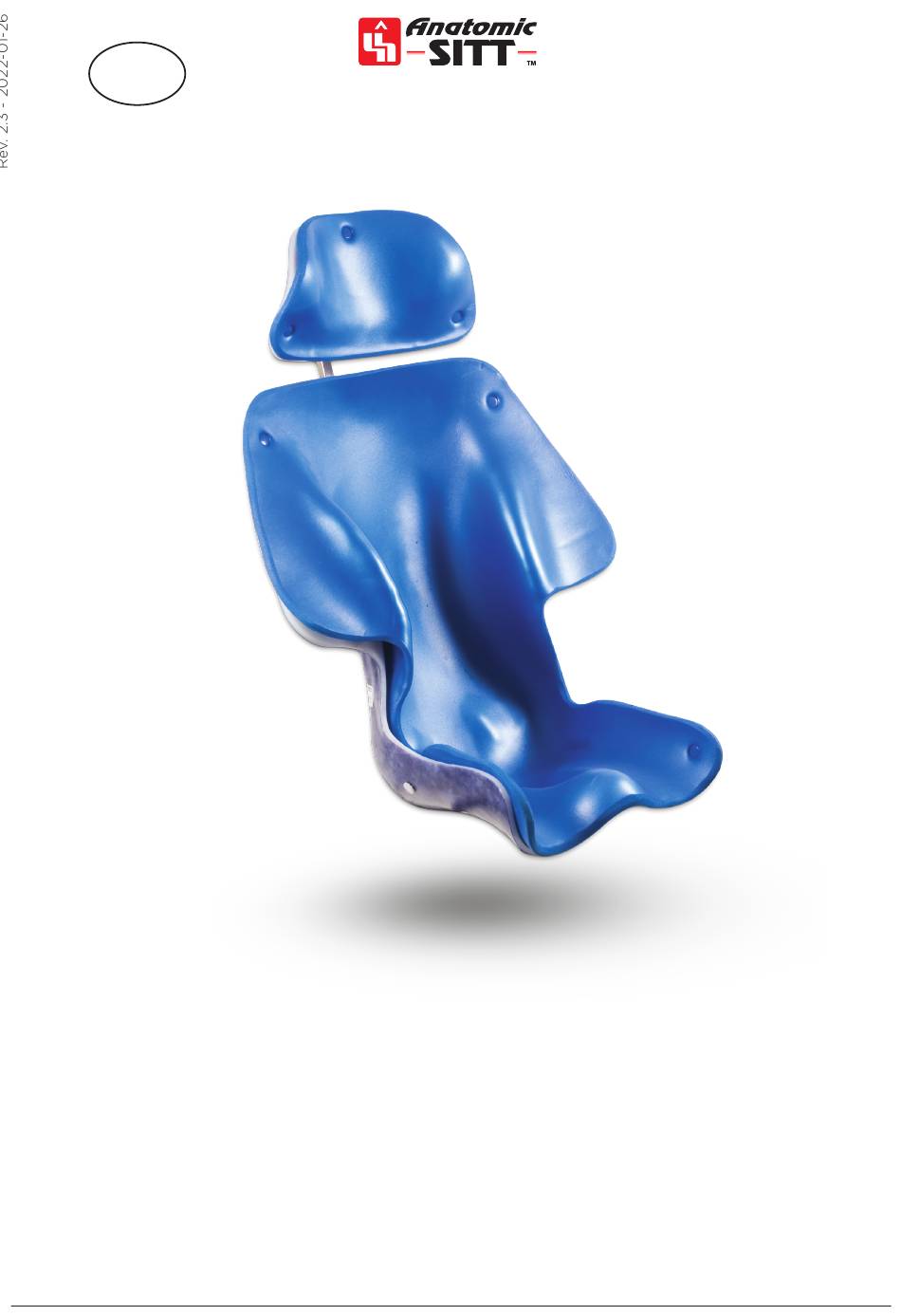

- Page 1 Anatomic Hygiene Sits User manual User manual, mounting and adjustment instructions, service and maintenance...
-
Page 2: Table Of Contents
Divergency/Incidents ..........6 Revision .............15 Use of the seat ..........7 Manufacturer This product is manufactured by Anatomic Sitt i Norrköping AB Postal address Anatomic Sitt AB, Box 6137, SE-600 06 Norrköping, Sweden Street address Anatomic Sitt AB, Terminalgatan 1, SE-603 61 Norrköping... -
Page 3: Introduction
(SN - for main products) or batch number (LOT - for accessories). The label is placed on the inside of the seat shell on the back or seat. These numbers shall be provided in correspondence with Anatomic Sitt. Declaration of conformity The device complies with the requirements for medical devices under Regulation (EU) 2017/745 on medical devices. -
Page 4: Symbol List
Symbol list The batch/batch number of the Alerts the reader to important manufacture for identification purposes. safety information, etc. The symbol indicates instructions Medical device. and tips which makes it easier when using the product. Reference number/item number Always read the instructions for product identification. -
Page 5: Warnings And Precautions
Warnings and precautions Settings may only be done by qualified professionals. It is only permitted to make settings in the manner described in this user manual. Check the product for function before handing it over to a user. The person who are prescribing the aid is responsible for instructing the user and/or other persons in its immediate environment how to use the product safely. -
Page 6: Control Before Use
Divergency/Incidents If the product is unusable product, contact your aids center or dealer/manufacturer. If a serious incident occurs, it should be reported to Anatomic Sitt AB and to the country’s competent authority. User manual Anatomic Hygiene Sits... -
Page 7: Use Of The Seat
Use of the seat Use of the seat Make sure the seat is firmly attached to the chassi and can be tilted. Make sure the parking brake is locked and the wheelchair is on a stable surface. Start by tilting/tipping the seat back as far as possible, before the patient is placed in the seat. -
Page 8: Mounting And Adjustment Instructions
Mounting and adjustment instructions Mounting must always be done by qualified personnel, (technicians at an aidcenter or equivalent). Instruct the user and/or other people close to the user about the product’s functions so that the aid can be used safely. Headrest Mounting / adjustment of headrest * Remove the protective cover on the backrest. -
Page 9: Justerbar Höftvinkel
Adjustable hip angle The adjustable hip angle makes it possible to change the seat angle for the hip. The seat is always delivered in the middle of three positions and can be either closed or opened with respect to the seat angle at the hip. Increase the hip angle Loosen the screws (A) slightly on the sides of the seat. -
Page 10: Footrest
Footrest Adjustment Loosen the handle (H) at the seat and ensure that the angle is not too transverse so that the stand grips the frame of the base or the ground when tilting. Adjust to the desired height of the footrest and finish with the desired angle at the ankle joint (4 mm Allen key). -
Page 11: Calfsupport
Calfsupport Mounting of calfsupport Before you can install the wadding, you must first remove any footrests. Start by removing the end cap (G) and then loosen the lever handle (F) that holds the footrest in place on the footrest bar. Then pull the footrest plate and its fittings downwards. -
Page 12: Table
Table Assembly of the table Place the table on the armrest plates and then screw the table’s locking arms (H) under the armrest plate (G) until they are squeezed . If you have chosen a table with reinforcement and which can be swung away, there is a tube to which the table should be attached under the armrest plate. -
Page 13: Summary And Follow-Up
Summary and follow-up After mounting and/or adjustment, check that the products (main product and accessories) are mounted correctly according to the user manual and works as intended. Check the settings of the product and its accessories so that the user has a correct sitting position. -
Page 14: Service And Maintenance
Turn the paddings inside out when drying if possible. Regarding positioning supports (belts and harness) from Anatomic SITT AB follow the washing advice on the label on each product. -
Page 15: Warranty
Warranty Warranty and complaint Warranty generally applies for one (1) year against manufacturing defects from delivery date or according to agreement. Warranty is not provided for external influences or abnormal handling. For warranty treatment is required incorrect item in return. Always enclose a delivery note. In order to best assess the complaint, the product must be dry and cleaned when it is sent back. - Page 16 Anatomic Sitt AB (manufacturer) Box 6137, SE-600 06 Norrköping, Sweden Phone +46 11 16 18 00 Fax +46 11 16 20 05 Visiting address Terminalgatan 1, SE-603 61 Norrköping, Sweden anatomicsitt.com info@anatomicsitt.com facebook.com/anatomicsitt youtube.com/anatomicsitt User manual Anatomic Hygiene Sits www.anatomicsitt.com | +46 11 16 18 00...
