Summary of Contents for Anatomic SITT Zitzi Pengy

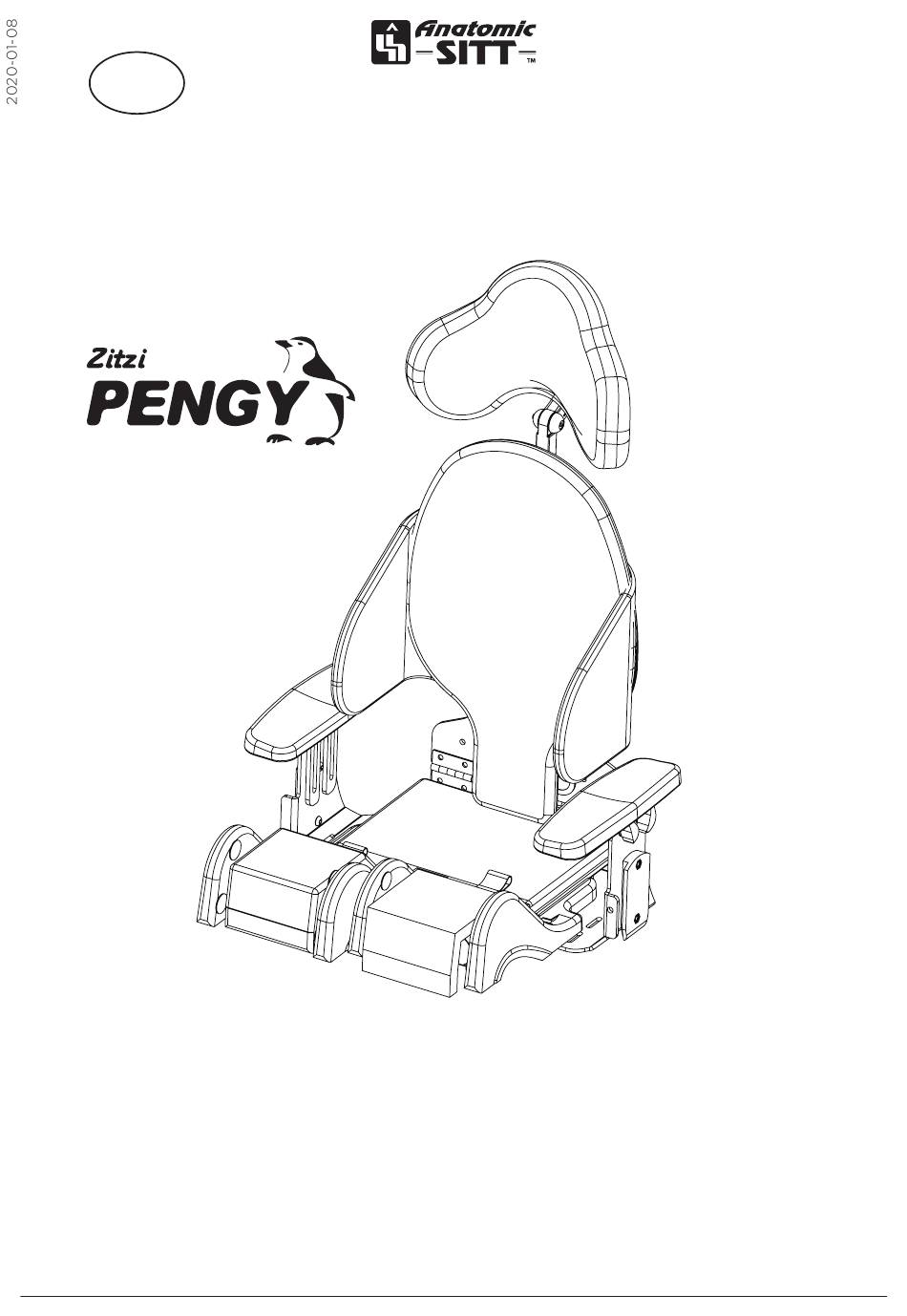

- Page 1 User manual Zitzi Pengy Pro Seat...
-
Page 2: Table Of Contents
Table of contents Safety precautions ��������������������������������� 3 Chest harness������������������������������������������12 Introduction �������������������������������������������������������������������������3 Mounting of upper support bracket ���������������������� 12 Field of application�����������������������������������������������������������3 Mounting on Pengy sulky ��������������������13 Correspondence ����������������������������������������������������������������3 Mounting on Pengy sulky �������������������������������������������� 13 Crash tested �������������������������������������������������������������������������3 Unmounting from Pengy sulky ��������������������������������� 13 Headrest ����������������������������������������������������4 Advanced footrest�������������������������������... -
Page 3: Safety Precautions
Safety precautions Introduction For you to use all advandtages of the Zitzi Pengy Pro, it is important that you read this manual thoroughly� This applies to all persons who are in the vicinity of the user� The product is designed for users with seating problems and fits many differ- ent types of diagnoses�... -
Page 4: Headrest
Headrest Mounting the headrest Mount the main support bracket with lever handle (B) and its washer and screw (A)� Note that the screw (A) should not be to tightened, it shoulde be possible to move up and down when the lever knob (B) is loosened� Height adjusting the headrest To adjust the height of the headrest, loosen the lever handle (B) and move the headrest to desired position�... -
Page 5: Backrest
Backrest Adjustment of backrest height To adjust the back height, loosen the screws (A) using the adjustment key and then adjust it to desired height� When you are satisfied with the setting tighten the screws (A) again� Adjustment of lateral support To width and height adjust the lateral supports, loosen the knobs (B) and then adjust to the desired height and width�... -
Page 6: Seat Part
Seat part Adjust seat depth and Leg length difference Loosen the screw (A) on the leg part with the help of the adjustment key, and then adjust the leg part to the desired length� Then tighten the screw (A) again� Abduction, adduction and windswept To adjust the leg part to any of these positions, loosen the screw (A) using allen key, and move the leg part to desired postion�... -
Page 7: Hip Belt
Hip belt Adjusting the hip belt When mounting the hip belt in the hip belt tracks, use a tri-glide buckle� For assembly according to the tri-glide method, see picture� Standard positionons of hip belt Hip belt tracks User manual – Pengy Pro Seat www.anatomicsitt.com | +46 11 16 18 00... -
Page 8: Armrest
Armrest Width adjustment To change the width of the armrest, loosen the screw (B) and then move the armrest to the desired positon, then tighten the screw (B)� For more with adjustment remove the screw (A) and turn the angle bracket 180°, then tigthen the screws (A)�... -
Page 9: Mounting The Table
Table, solid Mounting the table Put the table on the armrest plates and then rotate the locking lever of the table into position below the armrest plate� The locking lever must be rotated until it is inside the rim of the raised armrest plate� Locking lever User manual –... -
Page 10: Crossbar
Crossbar Installation of crossbar The bracket for the crossbar (A) is mounted under the armrest plates with the supported screws and fittings with grooves (C)� The bow is pushed in and tightened with knob (B) on both sides� The crossbar can be pulled out on the left side and rotaded away while the right side is still remains in the fitting pipe�... -
Page 11: Hip Support
Hip support Mounting of hip support As an option, hip support is available for better positioning of pelvis laterally� The hip support is mounted as shown below� Fit the hip support using the carriage bolt (A) and the knob (B)� To adjust the hip support in width, loosen the knob (B), adjust to the desired position and lock the knob�... -
Page 12: Chest Harness
Chest harness Mounting of upper support bracket Put the support bracket on the vertical head stay� Lock the screw (A)� When installing the chest harness, attach the upper mounting straps in the 725 buckle� Lower stripes are mounted in the groove (C) using a tri-glide buckle� To adjust the width of the harness, you need a Phillips screwdriver and a wrench in size 8 (B)�... -
Page 13: Mounting On Pengy Sulky
Mounting on Pengy sulky Mounting on the Pengy sulky Hold the Pengy seat in the armrests and guide the seat towards the lines as the picture shows� The locking pin automatically locks when the seat reach the lowest point in the bracket� Unmounting from the Pengy sulky To unmount Pengy seat from Pengy sulky, first loosen the locking pin (A) by pulling it out and turning it 90°�... -
Page 14: Advanced Footrest
Advanced footrest Only the advanced footrests can be mounted in the seat� The standard footrest is mounted in the sulky (see Pengy Sulky operating instruc- tions)� The instruction applies to both whole and divided footrests� Installation of footrests - A Attach the footrest to the mounting (square tube) between the leg parts (A)�... -
Page 15: Calf Support Advanced Footrest
Calf support for advanced footrest Loosen the screws A to adjust to the height and depth of the calf support plates� Tighten the screws when correct setting is achieved� Loosen the screws B to adjust the width of the calf support plates� Tighten the screws when correct setting is achieved�... -
Page 16: Foot Strap
Foot strap The footplate is prepared for mounting of foot straps� Mounting the foot straps on all footplates is done by pulling the strap down and up through two of the pre-drilled holes in the footplate� The foot strap can be mounted in the front or rear hole sets�... -
Page 17: Maintenance Instructions
1 year against manufacturing defects� For more detailed information about the warranty we provide, see page 15 of this manual� Spare parts For the CE marking of the Zitzi Pengy to be valid, the seating system may only be fitted with spare parts delivered by Anatomic SITT AB� Reconditioning Reconditioning of the product shall only be done with original parts from Anatomic SITT AB�... -
Page 18: Summary And Follow-Ups
Summary and follow-ups Follow-up inspections Continuously perform the follow-ups specified in each point� You should check the following points every time patient shall use the seating system� • Regularly examine that all the screws are securely locked� • Regularly examine the wear of straps and cushions� •... -
Page 19: Terms Of Sale
Terms of sale Warranty Warranty against manufacturing errors is valid for one (1) year from delivery date� Warranty is void if the product has been subjected to external factors or rough handling� It’s required that the faulty product is returned for us to process a warranty claim�... - Page 20 Anatomic SITT AB (manufacturer) Box 6137, SE-600 06 Norrköping, Sweden Phone +46 11 16 18 00 Fax +46 11 16 20 05 Street address Terminalgatan 1, SE-602 29 Norrköping, Sweden Anatomic SITT A/S Viengevej 4, 8240 Risskov, Denmark Phone +45 86 17 01 74...
