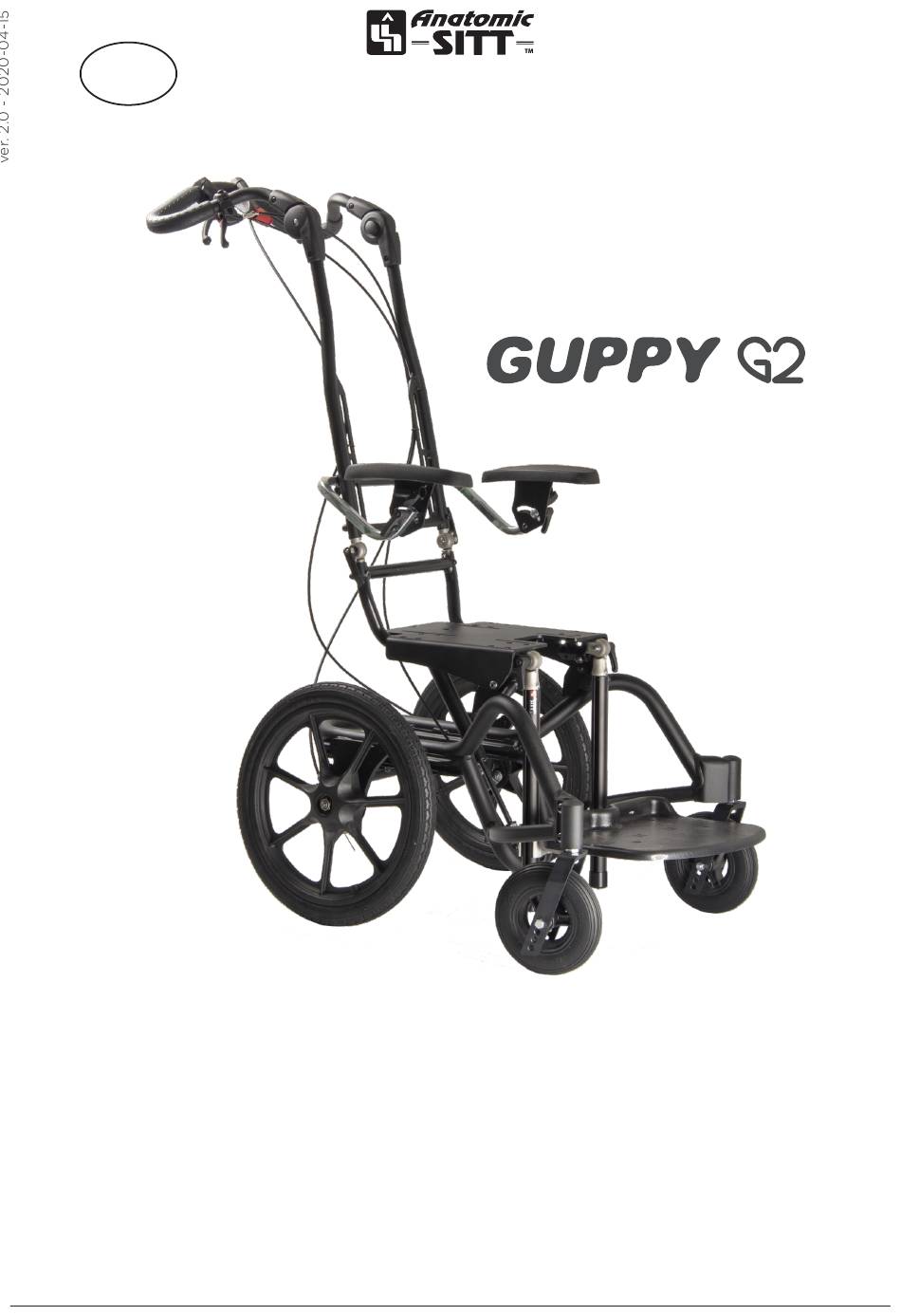

- Page 1 User manual Zitzi Guppy G2...
-
Page 2: Table Of Contents
Stepbar ����������������������������������������������������28 Caster positioning ........... 15 Mounting stepbar ........28 Adjusting of caster fork ......... 16 To use stepbar ..........28 Angle adjustment of caster fork ....16 User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... - Page 3 Warranty ............38 Warranty ............34 Warranty claims ........... 38 Combinations ..........34 Returning products ........38 Spare parts ............. 34 Marking ............34 Technical data ����������������������������������������39 Recycling ............34 User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00...
-
Page 4: Safety Precautions
Safety precautions Introduction In order to use the Zitzi Guppy G2 in its full extent, it is important that you read this manual. This applies to everyone close to the user. The product is intended for users with seating problems and fits many different kinds of diagnoses. - Page 5 This product is manufactured by Anatomic SITT i Norrköping AB Postal address Anatomic SITT AB, Box 6137, SE-600 06 Norrköping Street address Anatomic SITT AB, Terminalgatan 1, SE-603 61 Norrköping Phone +46 11-161800 Email info@anatomicsitt.com Webb anatomicsitt.com Instructions movies youtube.com/anatomicsitt Follow us on facebook.com/anatomicsitt...
-
Page 6: Seat Part
(4) screws, washers and nuts in marked tracks (A). NOTE! For further information on mounting plates, see the respective user manuals for the chosen seating system. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 7: Tilt
(som på bild nedan) erhålls tilt på 0-32 . Om kolven fästs in i hålet framför erhålls en tilt på -7-25 Negative Standard tilt tilt User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 8: Armrest On Driving Bow
To adjust the angle of the armrest, loosen the hand lever (C) a little and adjust to desired angle. Depth adjustment of the armrest plate Losen the screws (D) under the armrest plate and move to desired depth using the holes below the plate. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... - Page 9 User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00...
-
Page 10: Driving Bow
Losen both lever handles (B) and lower the chassis forward. Then tighten the levers (B) again. NOTE! Do not hang bags or heavy objects on the chassis. This, together with other factors, can cause the chassis to tip backwards. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... - Page 11 User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00...
-
Page 12: Wheels
Release the driving wheel with quick-release To release the wheel, press and hold the button (B) in the wheel center as you pull off the wheel from the chassis. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 13: Wheels
20”, 22” and 24” are mounted in holes D + E. NOTE! Changing the wheelposition might increase the risk of tipping. NOTE! The screws should not be completely unscrewed, just slightly. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 14: E-Drive
NOTE! For more detailed information about e-drive, refer to separate installation instructions for E-drive on Guppy. Using E-drive E-drive makes Guppy an attendent operated electrical wheelchair and controlled by a hand control.l. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 15: Caster
You can adjust the castors in four (4) different height positions. This allows you to adjust the castor height after positioning the driving wheels. NOTE! Secure that the screws is properly tighten after the adjustment. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 16: Adjusting Of Caster Fork
Loosen and rotate the eccentric nuts (C) on the caster attachment (B) until the cor- rect angle is obtained. Tighten the screws properly after adjusting the caster fork. NOTE! Make sure the screws are properly tightened after the adjustment. 90° 90° Ground User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 17: Brake
Releasing the brakes To release locking of a wheel, press the brakehandle (A) and the locking device (B) will release automatically. Then let go of the brakehandle (A). User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 18: Mounting Of Drum Brake
Loctite 243 or equivalent. NOTE! For more information about using quick-release, see page 12. NOTE! The mounting principle of drum brake is the same regardless of wheel size. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... - Page 19 User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00...
-
Page 20: Troubleshooting Of Drum Brake
Squeeze the brake by lifting the drum brake arm (E) and move the nut (D) further up the wire. Tighten the nut (D) and adjust the tension with the screw (C). Detailed view of drum brake User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 21: Parking Brake
To use the parking brake Lock the parking brake (D) by pushing the parking brake lever forward. Pull the parking brake lever back to release the parking brake. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 22: Footrest
When the footrest is mounted in the seat part plate, it is possible to adjust the footrest at the ankle. Release the levers (F) slightly and adjust the footrest to the desired height. Tighten the levers. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 23: Calf Support
Adjusting the width To adjust the width of the calf support, loosen the screws (A) slightly and adjust to desired width. Tighten the screws (A). Footrest stay Foot plate User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 24: Footrest Brackets
To use the ball joint function, first loosen the screws (B) and (C) and adjusts to the desired position. Tighten the screws (B) and safety lock the position with screw (C). User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... - Page 25 User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00...
-
Page 26: Footrest High-Edge
(I) in the footrest plate. Finish by mounting the included cushion and check that all screws are tightly tightened. NOTE! After adjusting the desired height, the plastic stay (H) can be cut or heated under the footrest plate as required. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 27: Anti-Tipper
When deactivating, try to step on the anti-tip so close to the anti-tip attachment as possible. Make sure to turn the anti-tipper until you hear a click, wich indicates that the anti- tipper is in the correct position. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 28: Stepbar
NOTE! When using the stepbar, it is important that you hold the driving bow or the push handle properly. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 29: Direction Lock
Pull the locking pin (H) straight up from the moving part and then rotate 90° and release the pin gently. NOTE! Direction lock fits only 7” caster wheels. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 30: Mud Flap
You can adjust the mudguars in height by loosen the screws (D). Adjust to required height and then tighten the screws (D). NOTE! You just need to loosen the screws (E) slightly. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 31: Transportation In A Vehicle
Crashtested and approved Guppy G2 is crashtested and approved according to 7176-19 for 75 kg. NOTE! The crash approval applies to load weights up to 75 kg. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 32: Transportation Kit
Crashtested and approved! Guppy G2 is crashtested and approved according to 7176-19 for 75 kg in a vehicle. NOTE! Crash approval applies to load weight up to 75 kg. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 33: Service And Maintenance
Check all moving parts and fasteners for wear. Service should always be performed by professional and qualified personnel. If you are unsure, please feel free to contact Anatomic SITT AB. Cleaning and washing instructions Plastic and metal parts shall be wiped off with a damp cloth, or washed with antibacterial liquid or similar. -
Page 34: Warranty
For other combinations please contact Anatomic SITT AB. Spare parts For the CE marking of the Guppy to be valid, the product may only be fitted with spare parts delivered by Anatomic SITT AB. Marking Guppy and its accessories are CE marked products. A unique serial number is located on a label placed under the seat part. -
Page 35: Reconditioning
Work should always be done by professional and qualified staff. If you need support, you are always welcome to contact Anatomic SITT AB. The need of reconditioning varies and must be judged case by case. Go through all checkpoints at least once per year or as needed. -
Page 36: Stability
If there are defects that cannot be fixed by reconditioning, the product should be taken out of service and recycled. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 37: Adaptation And Customization
The product should be notified that it is adapted to a specific user so that it can not be mistaken for a standard product. NOTE! The CE marking expires on customized products. User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 38: Terms Of Sale
40% of the invoice value For products returned more than 360 days from delivery no refund is made for the products Customized products cannot be returned User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00... -
Page 39: Technical Data
75 mm 330 mm 18 - 38 cm Size Footrest stay profile length (cm) User manual Zitzi Guppy G2 www.anatomicsitt.com | +46 11 16 18 00 Anatomic SITT AB • Telefon +46 11-16 18 00 • Email info@anatomicsitt.com • Web www.anatomicsitt.com... - Page 40 Anatomic SITT AB (manufacturer) Box 6137, SE-600 06 Norrköping, Sweden Phone +46 11 16 18 00 Fax +46 11 16 20 05 Visiting address Terminalgatan 1, SE-603 61 Norrköping, Sweden Anatomic SITT A/S Viengevej 4, 8240 Risskov, Denmark Phone +45 86 17 01 74...
