REVENTON HMI CURTAIN User Manual

C ontroller with thermostat HMI CURTAIN
User Guide

Welcome

Thank you for buying the product! Your new controller will
provide years of reliable service. Using this digital device
will provide more uniform comfort through the seasons.
Please read this manual for complete instructions
on installing and operating your device. If you require
further assistance, please feel free to contact directly with
Reventon Group Sp. z o.o.
In the box you will find
- controller with thermostat HMI CURTAIN
- user guide
- screws (2 pieces)

Service

We offer the warranty of 24 months from the sales day.

Technical data

Temp. range: 5 - 35°C Accuracy: ± 0.5°C
Timing error: <1% Power consumption: < 1.5 W
Power supply: 95 ~ 240 VAC, 50 ~ 60 Hz
Maximal current load:
•
fan: 5 A (inductive)
•
valve actuator: 3 A
Shell material: PC (fireproof)
Dimensions: 86 x 86 x 13,3 mm
Installation box: 86 x 86 mm lub Ø 60 mm
Ambient temperature: t = 0 - 45°C, ϕ = 5-95%
Storage temperature: -5 - 55°C
RS485/Modbus RTU communication
Baudrate: 9600 bps
Degree of protection (housing): IP 20

About device

The controller with thermostat HMI CURTAIN is designed
to control the operation of the air curtain by switching ON
/ OFF its fans and valves. This controlling can be realised
depending on limit sensor position (using dry contact)
or difference between set and room temperatures. It can
work in heating, cooling or ventilation mode. The item
is microprocessor based device with LCD display.

Features of the controller

•
Modern design similar as a cell phone
•
Beautiful Frame CHROME creates elegant life
•
Acrylic lenses to avoid the finger scratch
•
Touch Button makes simple operation
•
Large screen display with backlight is easy to read -
even in the dark
•
Dry contact for door sensor
•
One-touch temp control overrides program schedule
•
Internal and external sensor selectable is suitable
for any place
•
Data memory when power is off
•
Easy installation
•
86 x 86 mm hidden box and european 60 mm round
box is available

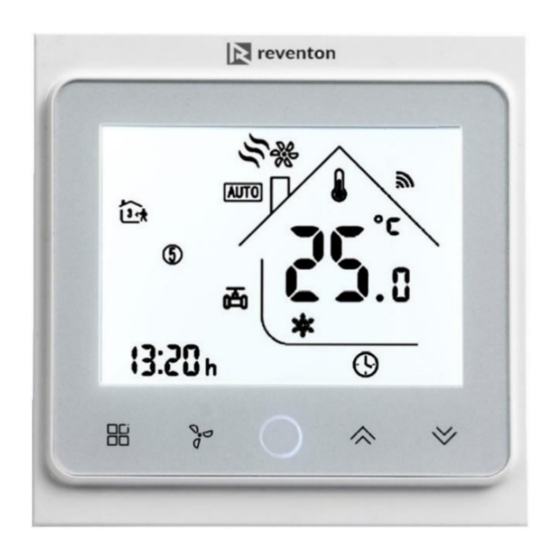

Home screen quick reference

Operation

1. Setting the temperature
Press or to set temperature.
2. Setting lock
Press and hold and for 5 sec. to lock the screen.
The icon will display on the screen.
Press and hold and again for 5 sec. to unlock
the screen.
3. Setting the fan
Press to select the fan speed OFF, HIGH, MED, LOW.
4. Setting the system mode
Press to change the system mode COOLING, HEATING
and VENTILATION. In the mode of VENTILATION, the valve
is off but the fan runs.
5. Set clock and day
Press and hold till subsequent minutes / hours / days
starts to flash and then define time and data and with
and .
6. Setting functions and options
During power off, press and hold
time for 5 sec. to go to system functions. Then press
to change the different items. Press
the relative values according to the table.
and at the same
or to set
