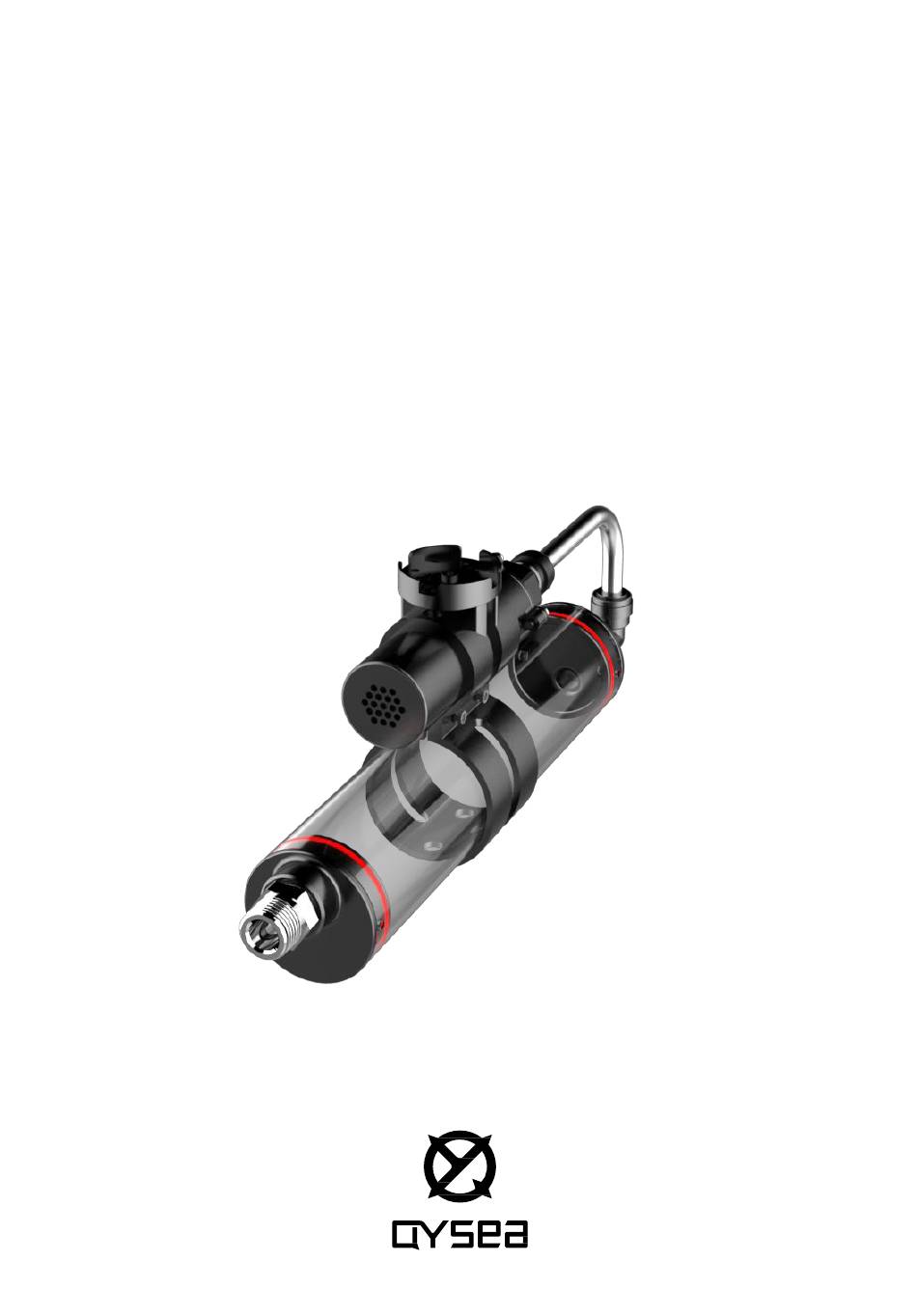

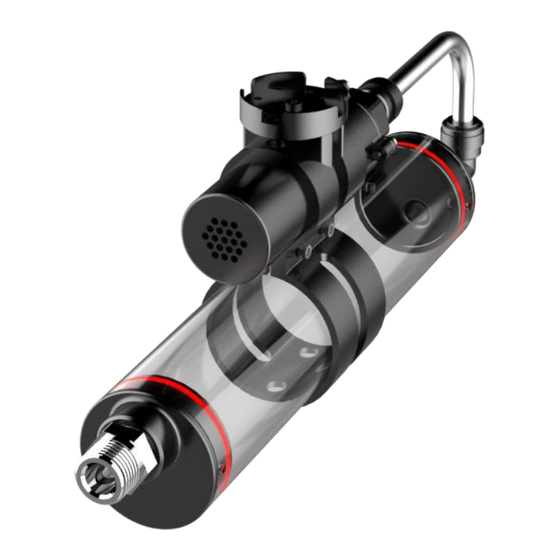

- Page 1 User Manual for 500mL Water Sampler...
-
Page 3: Table Of Contents
Contents Introduction and packing list··········································································································01 Out of box audit······················································································································02 Product specification··············································································································03 Usage instructions··················································································································04 Installation································································································································ 05-11 Operation································································································································· 12-17 Maintenance and after-sales support····················································································18 Disclaimer········································································································································19... -
Page 4: Introduction And Packing List
/ Introduction and Packing List Serial Item Name Quantity Unit Number Box for 500ml water sampler 500ml water sampler Fixing top cover Fixing base Quick release buckle – female buckle M4X12 inner hexagon screw M6X16 inner hexagon screw Φ3 inner hexagon wrench Φ5 inner hexagon wrench User manual... -
Page 5: Out Of Box Audit
/Out of Box Audit Before operating FIFISH products, please be sure to receive relevant training and take practices, and read this document thoroughly before performing underwater operations. Operations in violation of QY safety rules may result in the consequence that your safety and interests cannot be guaranteed. 1. -
Page 6: Product Specification
/Product Specification Item Specification Max working depth 150m Working temperature -10 to 60 °C Sampling capacity 500 ml Input voltage 12V DC Max power consumption 2A @ 12V Communication mode Uart... -
Page 7: Usage Instructions
6. Check whether the underwater robot and the remote control are working normally when connected to the connector on the underwater vehicle. 7. Check the batteries of mobile phones, tablet PCs and laptops. 8. After-sales mailbox: support@qysea.com... -
Page 8: Installation
/Installation 1. Loosen the swivel cap screws at the bottom... - Page 9 /Installation 2. Take out the 500ml water sampler device 3. Install 500ml water sampler bracket (check whether the bottom is flat after installation. If it is not flat, please reinstall it in the opposite direction)
- Page 10 /Installation 4. Use long hex screws to tighten the bottom four hex screws 5.Loosen the middle two hexagon screws with a hexagon screwdriver...
- Page 11 /Installation 6. Unscrew the Q-interface cap at the bottom of ROV...
- Page 12 /Installation 7. Insert 500ml water sampler...
- Page 13 /Installation 8. Connect the 500ml water sampler with the Q-interface...
- Page 14 /Installation 9. Lock the two hexagon screws in the middle of the support to complete the installation...
-
Page 15: Operation
/Operation 1. Switch the remote control to mode A Operate the right front roller to control the water sampler device... - Page 16 /Operation matters needing attention 1. After the ROV is launched, it must be filled with water within 1m depth, and then pumped to the target deep water area (prevent the cavity of 500ml water intake device from being pressed and exploded by water pressure when it reaches deep water level)
- Page 17 /Operation 2. Before water intake, ROV needs to be remotely raised 45 ° 3. When ROV reaches the target water level for pumping, it needs to pump continuously for at least 1 minute Avoid that the water in the 500ml water intake is not completely drained, which will affect the accuracy of the sample...
- Page 18 /Operation 4. After the water sampler is completed, loosen the screws of the 500ml water intake bracket 5. Pull off the connector of 500ml water sampler...
- Page 19 /Operation 6. Take out the main body of 500ml water sampler...
- Page 20 /Operation 7. Remove the head of the main body of the 500ml water sampler Pour out the sample water into the measuring cup...
-
Page 21: Maintenance And After-Sales Support
WeChat official account (FIFISH Underwater Robot) and the official website. 2. Contact number: +86-755-2266-2313 Working hours: Monday to Friday, 9:30-19:00 3. Email: support@qysea.com 4. If there is a machine malfunction, please record the malfunction video in advance, as well as... -
Page 22: Disclaimer
Failures or damages caused by any third-party products (including products that QYSEA may provide or integrate into QYSEA products at the request of users). Any damage caused by non-QYSEA technology or other support (for example, the support for solving the "operation method" problem or incorrect product settings, installation and firmware upgrades).
