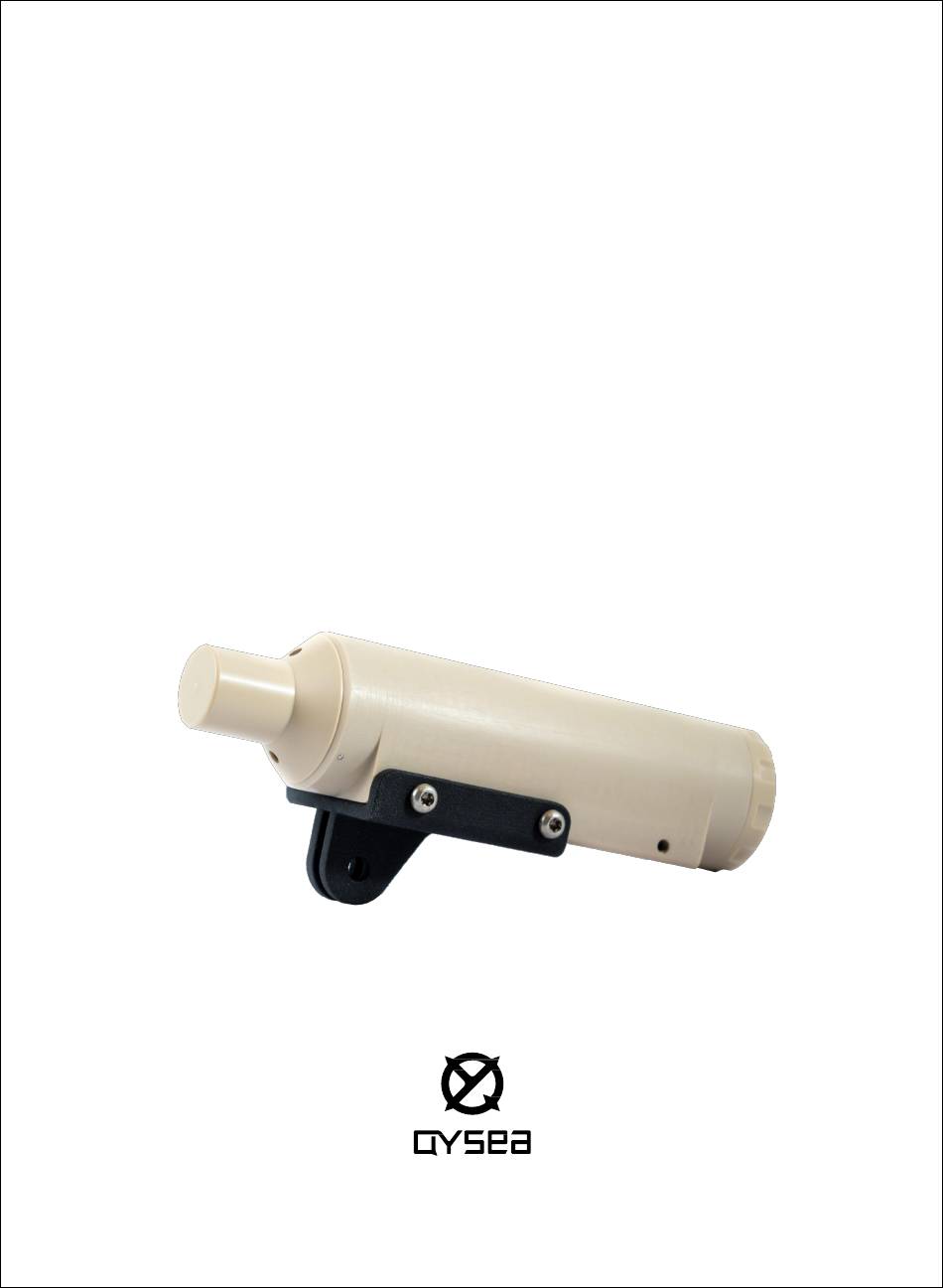

- Page 1 Installation Guide U-QPS (Underwater Quick Position System)
-
Page 3: Table Of Contents
Contents Safety Rules·····································································································································01 Product specification······················································································································02 Usage instructions··························································································································03 Installation······································································································································04 Operation······································································································································· 17 Charging········································································································································· 25 Maintenance and after-sales support····························································································26 Disclaimer········································································································································27... -
Page 5: Safety Rules
2. When installing the accessories, the power supply of the underwater vehicle shall be shut down. 3. Please check whether all the parts of the U-QPS are complete. If there is any part missing, please contact QY after-sales service personnel in a timely manner. -
Page 6: Product Specification
/Product Specification Item Specification Working Depth (max) 300m Operating Temp -5℃~60℃ Battery Lifetime 10hours Locator (U1) Work Range 100m or 300m Directivity Omnidirectional ( 360degrees) Frequency 31.25-250KHz Charging 5V, 8W Operating Temp -10℃ ~ 60℃ Receiver (Topside) Operating Principle Time of flight, Triangulation Receiver Directivity Omnidirectional ( 360degrees) System Weight (typical) -
Page 7: Usage Instructions
2. Before connecting the U-QPS with the underwater vehicle, the underwater vehicle shall be powered off. 3. Check the battery level of the underwater vehicle to ensure that there is sufficient and stable power. -
Page 8: Installation

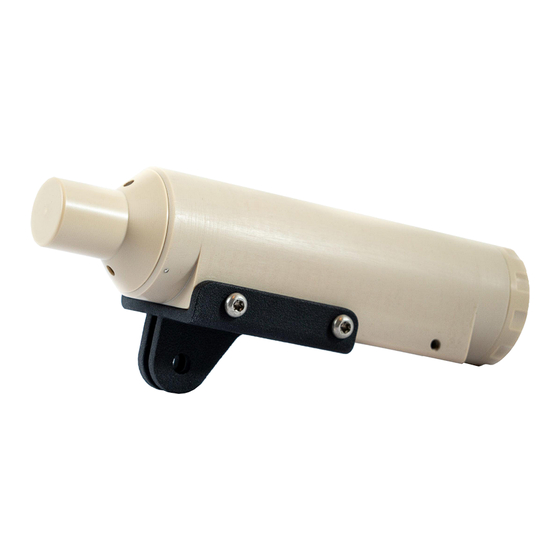

/Installation 1.Signal transmitter U1 (referred to as ‘U1’) 1.1 Mounting bracket: load the QPS bracket onto U1 (do NOT tighten the U1 bottom cover before use) Locator U1 screw U-QPS bracket... - Page 9 /Installation 2. Install the locator on the FIFISH PRO W6 Topside Antenna Locator U1...
- Page 10 /Installation 2. Install the locator on the FIFISH PRO W6...
- Page 11 /Installation 3. Open the back cover of U1. Turn the rotary switch at the back to the appropriate channel (the default is 3). Tighten the back cover and wait for the indicator light to flash until it is always on. Note: Power off the locator by opening the back cover...
- Page 12 /Installation 4. Unfold and fix the antenna Note: Please do NOT buckle roughly on step 2, which may damage the cable inside the antenna.
- Page 13 /Installation 5. Connect the antenna to the second port of topside (‘Receiver 1/Antenna’) 6. Open the receiver and turn the IP switch to 192.168.2.94...
- Page 14 /Installation 7. Connect the network port inside the topside...
- Page 15 /Installation 8. Connect the remote controller with the FIFISH special network cable...
- Page 16 /Installation 9. Connect the power supply 9.1 Connect the power supply and turn on the power switch...
- Page 17 /Installation 10. Connect the battery (Optional) 10.1 Connect the battery（The battery need to buy with yourself）and turn on the power switch...
- Page 18 /Installation 11. Check the LED1 and GPS indicator lights inside the topside. Wait until the indicator light turns solid green, indicating that the signal is connected. A flashing green light means that the signal is still being connected. Check the network port indicator light. If the green light is solid and the yellow light is flashing frequently, the connection is successful.
- Page 19 /Installation 12. Lay the antenna into the water and fix its position. Please notice the antenna's 'Forward' direction. Note: 1. Please put the antenna Forward correctly. 2. Do NOT put the entire antenna into the water...
- Page 20 /Installation 13. If it is to be used on the vessel, it is recommended to install the antenna on the starboard side. Note: 1. Please put the antenna Forward correctly. 2. Do NOT put the entire antenna into the water...
-
Page 21: Operation
/Operation 1. Power ON the Topside Open the FIFISH app Click the icon of U-QPS... - Page 22 /Operation 2. Open the FIFISH app Open map display selected...
- Page 23 /Operation 3. Open the settings Set the channel corresponding to U1, and the default is 3...
- Page 24 /Operation 4. Set the latitude and longitude of the antenna and the heading of "Forward" The data can be automatically obtained with the mobile device through the icon Click Save after setting.
- Page 25 /Operation 5. Baseline setting Please refer to the following figure to set the antenna parameters Click ‘SAVE’ and ‘Exit Settings’ to complete setting...
- Page 26 /Operation (External mode) 1. If QPS is used on vessel, an additional external mode is required. Connect the device with UQPS Helper to the remote control WiFi The sending frequency is set to 500ms, The compass and location (latitude and longitude) are checked 'external' Click start.
- Page 27 /Operation (External mode) 2. Fix the UQPS Helper-enabled devece Make the orientation of device consistent with the ‘Forward’ direction on the antenna External mode setting is complete. Note: 1. The mobile device and the antenna should be fixed at specific positions to ensure that the rotation amplitude generated by the two when the hull moves are consistent.
- Page 28 /Operation (APP Interface) Interface Function 1. Tracking trail time (second) 2. U-QPS settings 3. More map types 4. Offline Map (Can be downloaded by "FIFISH APP - Help - QPS Offline Map") 5. Home 6. Zoom in / out 7. Scale 8.
-
Page 29: Charging
/Charging (Locator) 1. Remove the back cap of the locator Connect with the charger (5V,8W), the indicator will show green. (Note: the input current should not exceed 2A ) 5V, 2A... -
Page 30: Maintenance And After-Sales Support
(FIFISH Underwater Robot) and the official website. 2. Contact number: +86-755-2266-2313 Working hours: Monday to Friday, 9:00-18:10 (GMT+8) 3. Email: support@qysea.com 4. If there is a machine malfunction, please record the malfunction video in advance, as well as providing the machine SN number and purchase invoice, so that we can provide you with a solution faster. -
Page 31: Disclaimer
Failures or damages caused by any third-party products (including products that QYSEA may provide or integrate into QYSEA products at the request of users). Any damage caused by non-QYSEA technology or other support (for example, the support for solving the "operation method" problem or incorrect product settings, installation and firmware upgrades).
