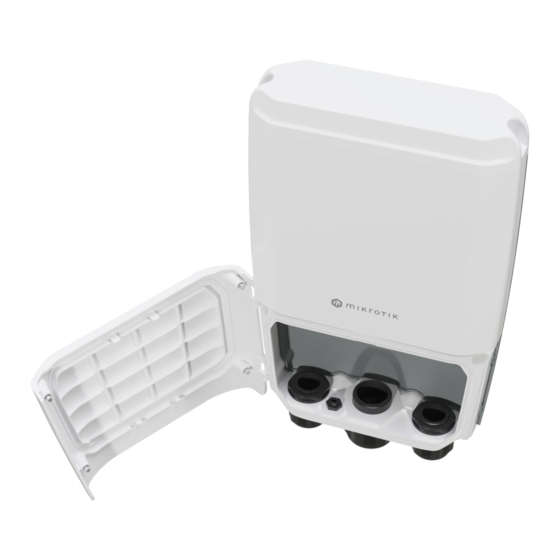

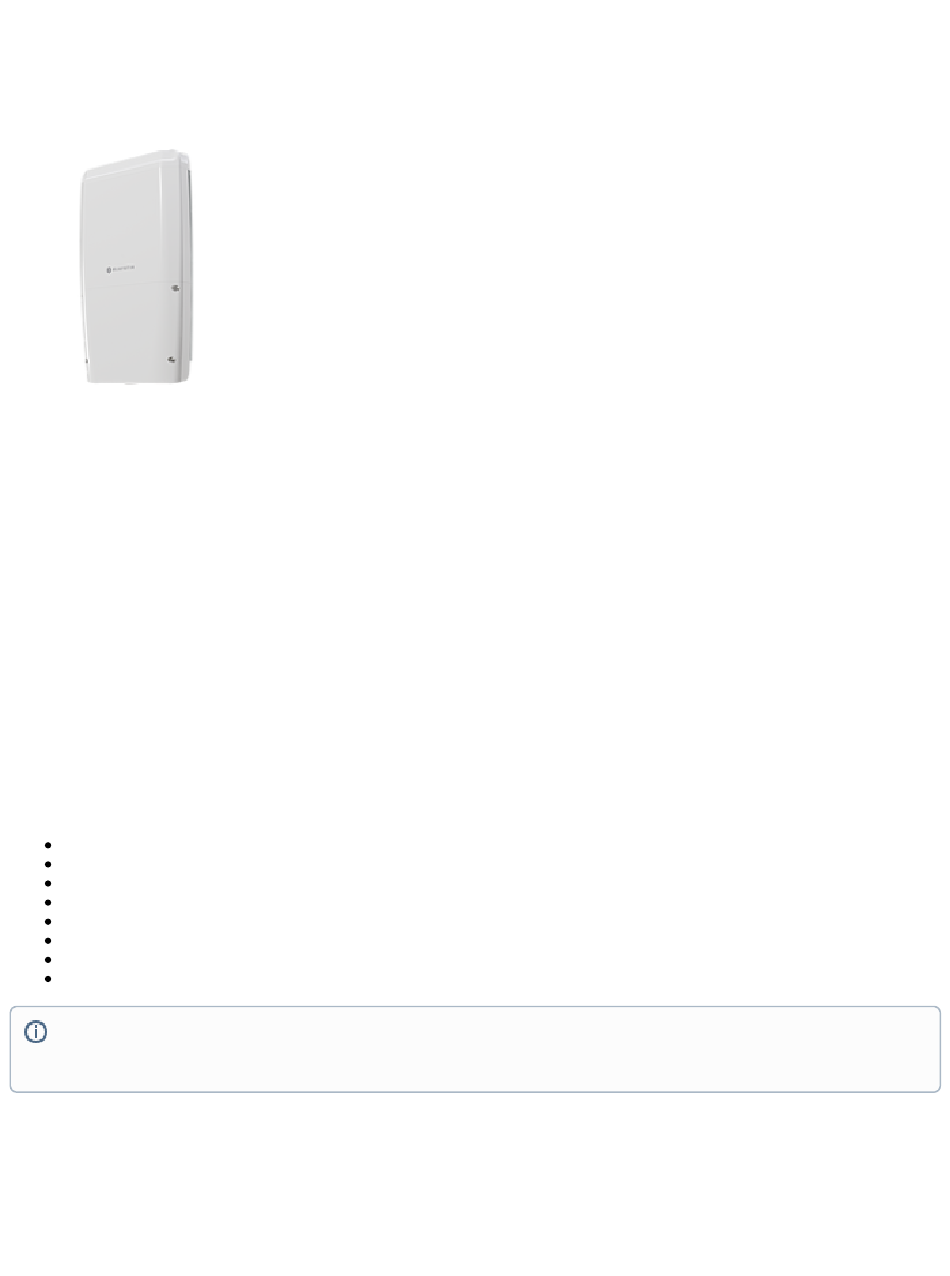

MikroTik CRS504-4XQ-OUT Quick Start Manual

CRS504-4XQ-OUT
CRS504-4XQ-OUT
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.
Quick start
Connect an ethernet cable to the device;
Download the configuration tool
Open the Neighbors tab and connect to the device using the MAC address;
The user name: is admin
To update the device to the latest software version ownload the latest RouterOS software from
Choose MIPSBE packages, and save them to your computer;
Return to the WinBox and upload downloaded packages;
Restart the device.
The device should be used in optical fiber applications where cables can be pulled through the cable glands and then connected to the QSFP
modules. It also supports DAC, AOC, and Breakout cables with no-separable connectors, however, the use of them in some ports is possible
only with the removed cable glands. Note that using this device without a cable gland will reduce its IP code from IP66 to IP54.
Mounting
https://mt.lv/winbox ;
, by default, there is no password (or, for some models, check user and wireless passwords on the sticker);
d https://mikrotik.com/download ;
