RELAX-A-MIST CR-9 Installation Instructions

A
RELAX
MIST
QUALITY STEAM BATH EQUIPMENT
TIME &
REMOTE
TEMPERATURE CONTROL
CONTROL
Before commencing with
the Relax-A-Mist® steam generator has been installed
according to the steam generator installati on instructi ons.

1. GENERAL INFORMATION

The Relax-A-Mist® ti me and temperature control is a simple
programmable control. The user friendly design has programmable
ti me and temperature setti ngs. Once a program is set and running,
you may temporarily override the setti ngs by pressing the ti me
or temperature butt ons and the applicable increment arrow.
Upon completi on of the ti med setti ng, or halti ng your steam
bath with the "on/off " butt on, your temporary override setti ng
will return to the programmed default setti ngs. Your steam bath
is ready for your next use. Power supply interrupti ons will not
change or delete your default ti me and temperature setti ngs.

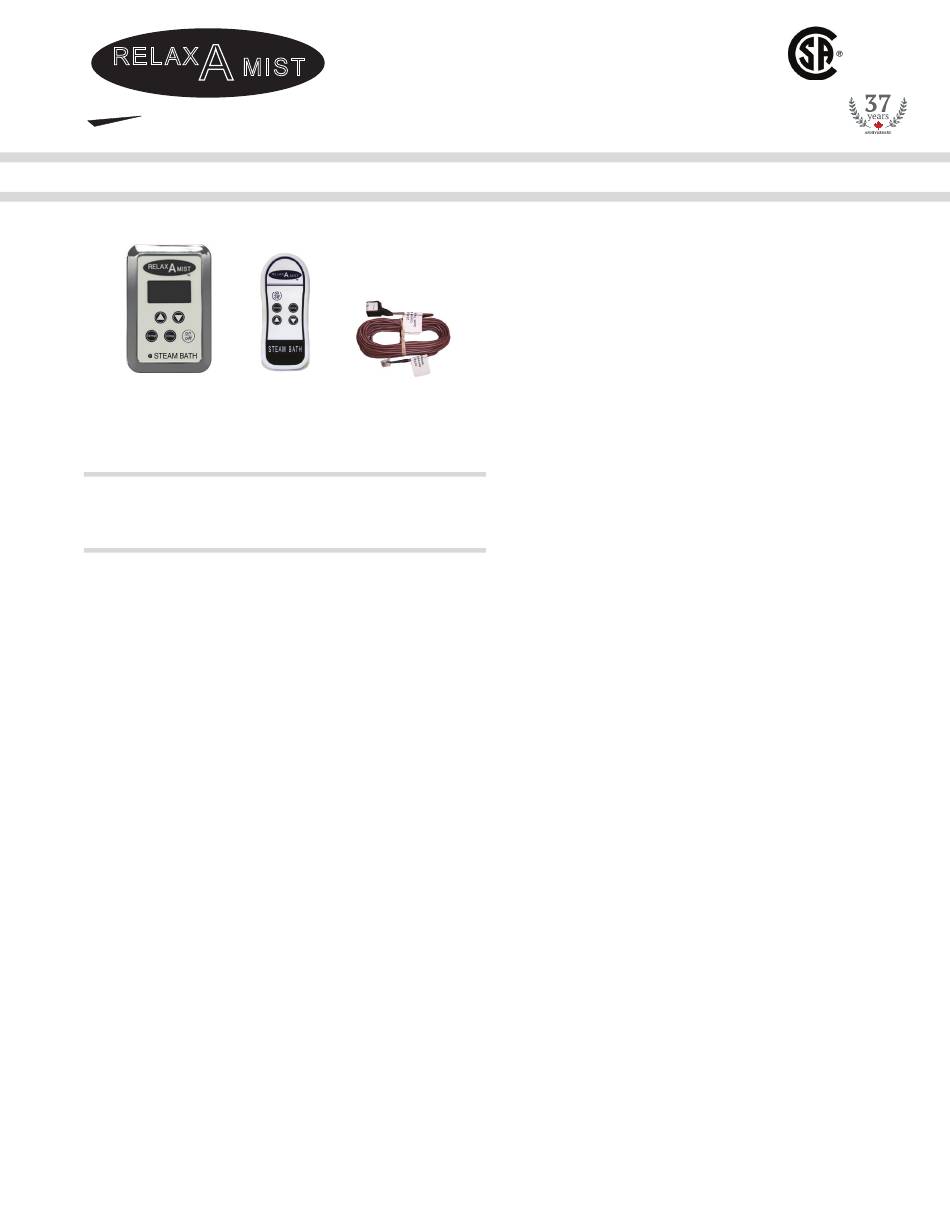

The digital ti me and temperature control switch comes as a
package complete with the following:
1. One programmable Time and Temperature Control.
2. One Remote Control.
3. One 25 foot cord set (steam generator connecti on wire
to control) with a modular male plug-in at the steam
unit and a modular female plug-in at the control, inside
the steam room.
The programmable Time and Temperature Control switch
must be located inside the steam room, approximately 4
feet off the fi nished fl oor, and NOT in an area above the
steam nozzles. The thermostat sensor is built into the bott om
of the Time and Temperature control. The remote control
can only operate the main control from a direct line of site.
1-800-Y-U-STEAM
(1-800-987-8326)
INSTALLATION INSTRUCTIONS
TIME & TEMPERATURE CONTROL
with HANDHELD REMOTE
®
FOR MODELS JR-1, JR-2, JR-3, JR-4, CR-9, CR-11, CR-12, & CR-14
USE ONLY RELAX-A-MIST® FACTORY SUPPLIED PARTS
CONTROL
CORD SET
these instructi ons, ensure
NOTE: Inside of the steam room, the six inch wire on the back
of the Time & Temperature control (with the male plug),
connects into the 25 foot wire (with the female plug). At
the steam generator, the male plug from the 25 foot wire
connects to the female plug located on the side of the
steam generator's electrical box marked "Timer Switch
and 24 VAC". The cord set modular female connecti on
must be identi fi ed at the steam generator (do not plug
the switch cord into the automati c drain connecti on).
The control's 25 foot cord set wire must be installed
during the rough in, with the male end at the steam
generator and the female end at the area in the steam
bath where the control will be installed on the wall.
2. ROUGH IN
ELECTRICAL (According to local electrical code)
Before commencing, check
Relax-A-Mist® steam generator
according to the steam generator installati on instructi ons.
Install only the Relax-A-Mist® 25 foot cord set wire (compati ble
with the Quick Touch Timer or the Time and Temperature
Control) ensuring that the modular male plug is located in the
area where the steam generator is to be installed. The modular
female connector of the 25 foot wire should protrude out of the
wall about 6 inches into the shower or steam room where the
control will be installed. You will need to make the hole in the
cement board and the fi nished ti le approx. 7/8" diameter to
allow the modular wire connectors from the control and the 25
foot cord set to pass back inside the wall for the fi nal installati on.
DO NOT ADHERE CONTROL TO WALL UNTIL YOU HAVE
COMPLETED THE STEAM GENERATOR START UP AND CONTROL
PRETEST.
CAUTION CAUTION CAUTION
DO NOT STRETCH THE WIRE TIGHT. DO NOT STAPLE THE WIRE
TO STUDS. CHECK ORIENTATION OF MODULAR CONNECTORS
ON CONTROL CORD SET TO ENSURE MALE END IS AT STEAM
GENERATOR AND FEMALE END IS IN THE AREA THE CONTROL
WILL BE LOCATED, INSIDE THE STEAM SHOWER.
NOTE: The electrical "supply" for the steam generator CANNOT
be switched directly by the Time and Temperature
Control.
The power supply cable must be run directly to the steam
generator from the fuse or circuit breaker panel. A separate
1
